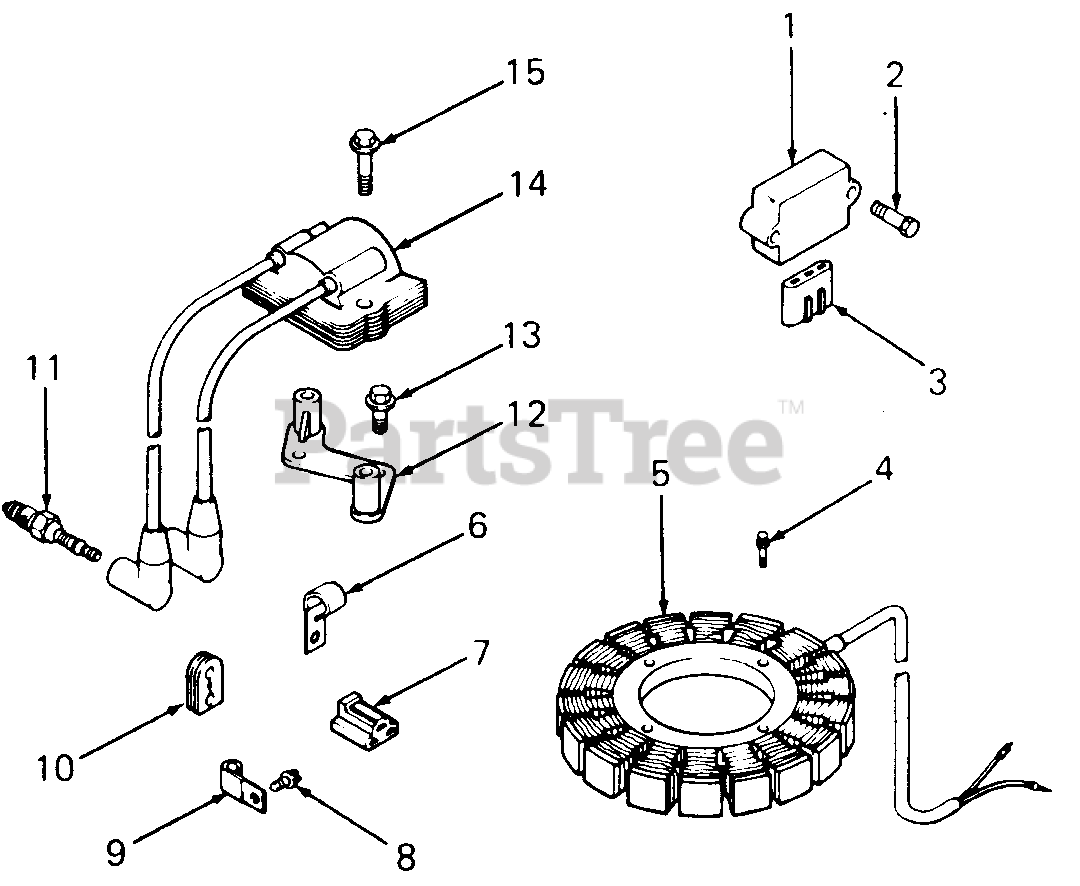

1430 (132-253-100) - Cub Cadet Garden Tractor (SN: 207401 - 239300) Engine Electrical Parts Diagram

Garden Tractor

Engine Electrical Parts Diagram

  • Title

1

Cub Cadet KH-41-403-05

Rectifier, Regulator
(Superseded to KH-25-755-03)

$

$

Not available

2

Cub Cadet KH-X-5-3

Screw, H.C. Sems, 1/4-20 X 5/8

$

$

Not available

3

Cub Cadet KH-236602

Connector, Female (3 contact)
(Superseded to KH-25-155-41-S)

$24.99

$

In Stock, only 1 left!

0

4

Cub Cadet KH-X-67-51

Screw, Hex Wash Hd, 10-24 X 3/4
(Superseded to KH-25-086-97-S)

$3.49

$

Usually ships in 2-5 days

0

5

Cub Cadet KH-237878

Stator Kit, 15 amp

$149.99

$

In Stock, Qty 15

0

6

Cub Cadet KH-235173

Clip, Cable

$

$

Not available

7

Cub Cadet KH-236473

Connector, Male (3 contact)

$

$

Not available

8

Cub Cadet KH-X-67-83

Screw, Hex Wash Hd, 1/4-20 X 7/16
(Superseded to KH-25-086-106-S)

$2.49

$

In Stock, only 1 left!

0

9

Cub Cadet KH-48-154-02

Clip, Lead

$

$

Not available

10

Cub Cadet KH-52-313-02

Grommet

$

$

Not available

11

Cub Cadet 759-3334

Spark Plug

$15.99

$

Usually ships in 3-6 days

0

12

Cub Cadet KH-52-126-08

Bracket, Module

$

$

Not available

13

Cub Cadet KH-25-086-16

Screw, Hex Wash Hd, 1/4-20 X 7/8

$

$

Not available

14

Cub Cadet KH-52-584-02

Module, Ignition w/ Diode

$

$

Not available

15

Cub Cadet KH-25-086-15

Screw, Hex Wash Hd, 1/4-20 X 1

$

$

Not available

Cub Cadet KH-47-518-33

Lead, Violet, Regulator Rectifier

Note: (11 in. 14 gauge uninsulated push on tab terminals)

$

$

Not available

Cub Cadet KH-52-518-19

Lead, White, Module to Connector

Note: (19-1/2 in. 14 gauge insulated push on tab-uninsulated push on tab terminal

$

$

Not available
