143 AE 15 - Husqvarna Earth Auger (2009-10) ENGINE Parts Diagram

Earth Auger

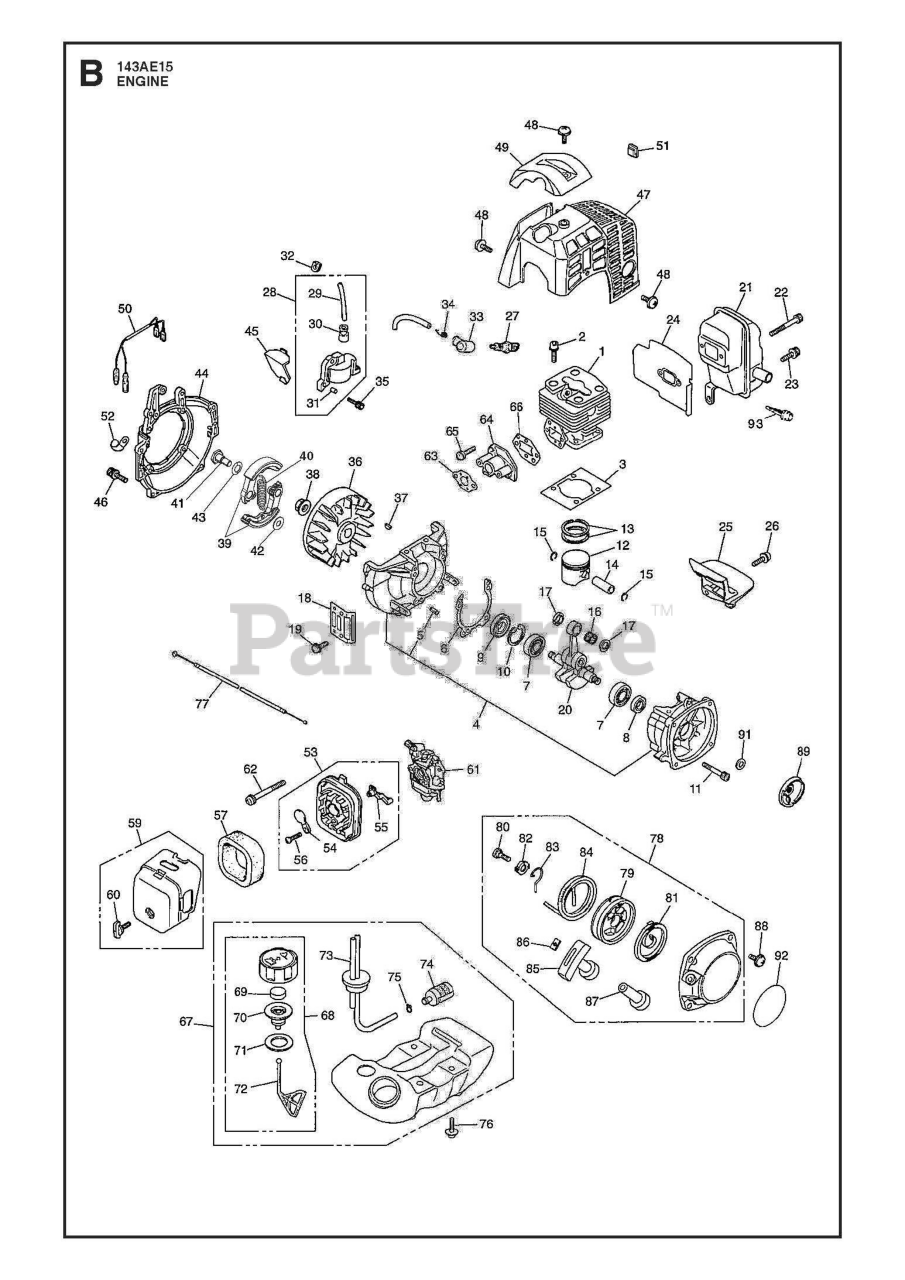

ENGINE Parts Diagram

  • Title

78

Husqvarna 574014601

NEEDS DESCRIPTION

$

$

Currently unavailable

21

Husqvarna 574002201

NEEDS DESCRIPTION

Note: Australia (ANSI)

$

$

Currently unavailable

11

Husqvarna 506609401

BOLT

$3.49

$

In Stock, only 4 left!

0

67

Husqvarna 525898501

TANK ASSY (RPLS -85004)

$85.99

$

Usually ships in 3-10 days

0

44

Husqvarna 574721201

NEEDS DESCRIPTION

$

$

Currently unavailable

86

Husqvarna 504114001

KNOB

$4.99

$

Usually ships in 3-10 days

0

5

Husqvarna 505296101

PIN

$3.49

$

Usually ships in 3-10 days

0

10

Husqvarna 504121001

RING

$3.99

$

In Stock, only 2 left!

0

3

Husqvarna 510064301

GASKET

$6.49

$

Usually ships in 3-10 days

0

64

Husqvarna 526520501

INSULATOR

$27.99

$

Usually ships in 3-10 days

0

84

Husqvarna 505302801

NEEDS DESCRIPTION

$

$

Not available

12

Husqvarna 505296901

PISTON

$42.99

$

Usually ships in 3-10 days

0

69

Husqvarna 506746801

FILTER

$6.49

$

In Stock, only 2 left!

0

47

Husqvarna 574003601

NEEDS DESCRIPTION

Note: Autralia (ANSI)

$

$

Currently unavailable

32

Husqvarna 515415301

GROMMET
(Superseded to 521358801)

$1.49

$

Usually ships in 3-10 days

0

57

Husqvarna 505309201

ELEMENT

$6.49

$

In Stock, Qty 18

0

9

Husqvarna 505296701

SEAL

$7.99

$

In Stock, only 2 left!

0

41

Husqvarna 505297801

SCREW

$7.49

$

In Stock, only 2 left!

0

54

Husqvarna 505308901

PLATE, CHOKE

$

$

Not available

75

Husqvarna 506707001

CLIP

$4.99

$

In Stock, Qty 9

0

39

Husqvarna 505297601

NEEDS DESCRIPTION

$

$

Currently unavailable

37

Husqvarna 506689401

KEY

$4.99

$

Usually ships in 3-10 days

0

60

Husqvarna 523071301

KNOB

$5.99

$

Usually ships in 3-10 days

0

65

Husqvarna 505304801

SCREW

$3.49

$

Usually ships in 3-10 days

0

76

Husqvarna 513350001

SCREW

$

$

Not available

8

Husqvarna 504121501

SEAL

$9.99

$

Usually ships in 3-10 days

0

2

Husqvarna 513412501

BOLT

$3.99

$

Usually ships in 3-10 days

0

85

Husqvarna 505303401

KNOB

$7.99

$

In Stock, only 1 left!

0

83

Husqvarna 504114801

SWING ARM

$7.49

$

In Stock, Qty 10

0

43

Husqvarna 505298101

WASHER

$3.99

$

Usually ships in 3-10 days

0

18

Husqvarna 505296201

GUARD

$

$

Not available

61

Husqvarna 515368001

CARBURETOR-A

$133.99

$

Usually ships in 3-10 days

0

45

Husqvarna 505300401

PLATE

$

$

Not available

33

Husqvarna 505298801

CAP

$7.49

$

In Stock, Qty 5

0

71

Husqvarna 506744301

PACKING

$4.99

$

In Stock, only 3 left!

0

79

Husqvarna 504114701

REEL

$18.99

$

In Stock, only 4 left!

0

87

Husqvarna 513253701

NEEDS DESCRIPTION

$

$

Currently unavailable

27

Husqvarna 515497401

NEEDS DESCRIPTION

$

$

Currently unavailable

34

Husqvarna 505298901

SPRING

$4.99

$

Usually ships in 3-10 days

0

82

Husqvarna 504114601

COLLAR

$4.99

$

In Stock, only 1 left!

0

92

Husqvarna 574004901

NEEDS DESCRIPTION

$

$

Currently unavailable

89

Husqvarna 504114401

PULLEY

$9.99

$

In Stock, only 2 left!

0

30

Husqvarna 505042801

CAP
(Superseded to 516744001)

$4.99

$

Usually ships in 3-10 days

0

53

Husqvarna 505308801

BODY ASSY.

$15.99

$

Usually ships in 3-10 days

0

36

Husqvarna 505298201

ROTOR

$

$

Not available

35

Husqvarna 505299001

BOLT

$3.99

$

Usually ships in 3-10 days

0

4

Husqvarna 505296001

CRANKCASE

$

$

Not available

17

Husqvarna 513752401

WASHER

$6.99

$

In Stock, only 2 left!

0

21

Husqvarna 505299301

MUFFLER

$

$

Not available

68

Husqvarna 505309601

CAP A

$11.99

$

In Stock, only 3 left!

0

73

Husqvarna 505310301

PIPE COMP.

$17.99

$

Usually ships in 3-10 days

0

13

Husqvarna 510917901

RING, PISTON 2/PK

$9.99

$

In Stock, only 1 left!

0

91

Husqvarna 505304601

COLLAR

$

$

Not available

29

Husqvarna 505298401

CORD.HIGH

$3.49

$

Usually ships in 3-10 days

0

40

Husqvarna 505297701

SPRING

$7.49

$

Usually ships in 3-10 days

0

66

Husqvarna 505304901

GASKET

$4.99

$

Usually ships in 3-10 days

0

20

Husqvarna 505297501

NEEDS DESCRIPTION

$

$

Currently unavailable

77

Husqvarna 521846301

CABLE COMP.

$21.99

$

Usually ships in 3-10 days

0

72

Husqvarna 506745801

STOPPER

$4.99

$

In Stock, only 3 left!

0

6

Husqvarna 505296401

GASKET

$3.99

$

Usually ships in 3-10 days

0

81

Husqvarna 504115001

SPRING, SPIRAL

$11.99

$

In Stock, Qty 12

0

55

Husqvarna 505309001

LEVER.CHOKE

$

$

Not available

80

Husqvarna 515367101

SCREW

$4.99

$

In Stock, only 1 left!

0

1

Husqvarna 510064201

CYLINDER

$34.99

$

Usually ships in 3-10 days

0

42

Husqvarna 505298001

WASHER

$3.99

$

In Stock, Qty 8

0

19

Husqvarna 505299801

SCREW

$2.23

$

Usually ships in 3-10 days

0

93

Husqvarna 513351501

ARRESTER

Note: Australia (ANSI)

$10.99

$

Usually ships in 3-10 days

0

74

Husqvarna 506742601

FILTER ASSY
(Superseded to 591375401)

$10.99

$

In Stock, Qty 20+

0

62

Husqvarna 505308701

SCREW

$3.99

$

In Stock, only 1 left!

0

46

Husqvarna 505300201

NEEDS DESCRIPTION

$

$

Not available

88

Husqvarna 505304401

SCREW

$3.99

$

Usually ships in 3-10 days

0

51

Husqvarna 505301301

GROMMET

$3.99

$

Usually ships in 3-10 days

0

15

Husqvarna 516283001

RING

$4.99

$

In Stock, only 1 left!

0

26

Husqvarna 505299801

SCREW

$2.23

$

Usually ships in 3-10 days

0

59

Husqvarna 505309301

NEEDS DESCRIPTION

$

$

Currently unavailable

23

Husqvarna 505299501

BOLT

$4.99

$

In Stock, only 1 left!

0

24

Husqvarna 526522801

GASKET

$6.99

$

Usually ships in 3-10 days

0

49

Husqvarna 505301101

NEEDS DESCRIPTION

$

$

Currently unavailable

47

Husqvarna 505300501

NEEDS DESCRIPTION

$

$

Currently unavailable

25

Husqvarna 505299701

PLATE.MUFFLER

$

$

Not available

52

Husqvarna 521525101

CLAMP
(Superseded to 544264901)

$3.99

$

Usually ships in 3-10 days

0

28

Husqvarna 505298301

COIL-A

$79.99

$

Usually ships in 3-10 days

0

70

Husqvarna 515369401

HOLDER-A

$10.99

$

Usually ships in 3-10 days

0

16

Husqvarna 505297301

ROLLER BEARING

$9.99

$

In Stock, Qty 5

0

50

Husqvarna 505301401

CORD COMPLETE

$7.99

$

Usually ships in 3-10 days

0

38

Husqvarna 504118001

NUT
(Superseded to 516437401)

$3.99

$

Usually ships in 3-10 days

0

48

Husqvarna 505300601

SCREW

$3.99

$

In Stock, Qty 14

0

22

Husqvarna 505299401

NEEDS DESCRIPTION

$

$

Not available

14

Husqvarna 505297101

PISTON PIN

$6.49

$

Usually ships in 3-10 days

0

56

Husqvarna 506614001

SCREW
(Superseded to 516771801)

$3.49

$

In Stock, only 4 left!

0

63

Husqvarna 505305001

GASKET

$4.99

$

Usually ships in 3-10 days

0

31

Husqvarna 505298601

PIN

$

$

Not available

7

Husqvarna 505296501

BEARING

$12.99

$

Usually ships in 3-10 days

0
