143 AE 15 - Husqvarna Earth Auger (2009-10) CARBURETOR Parts Diagram

Earth Auger

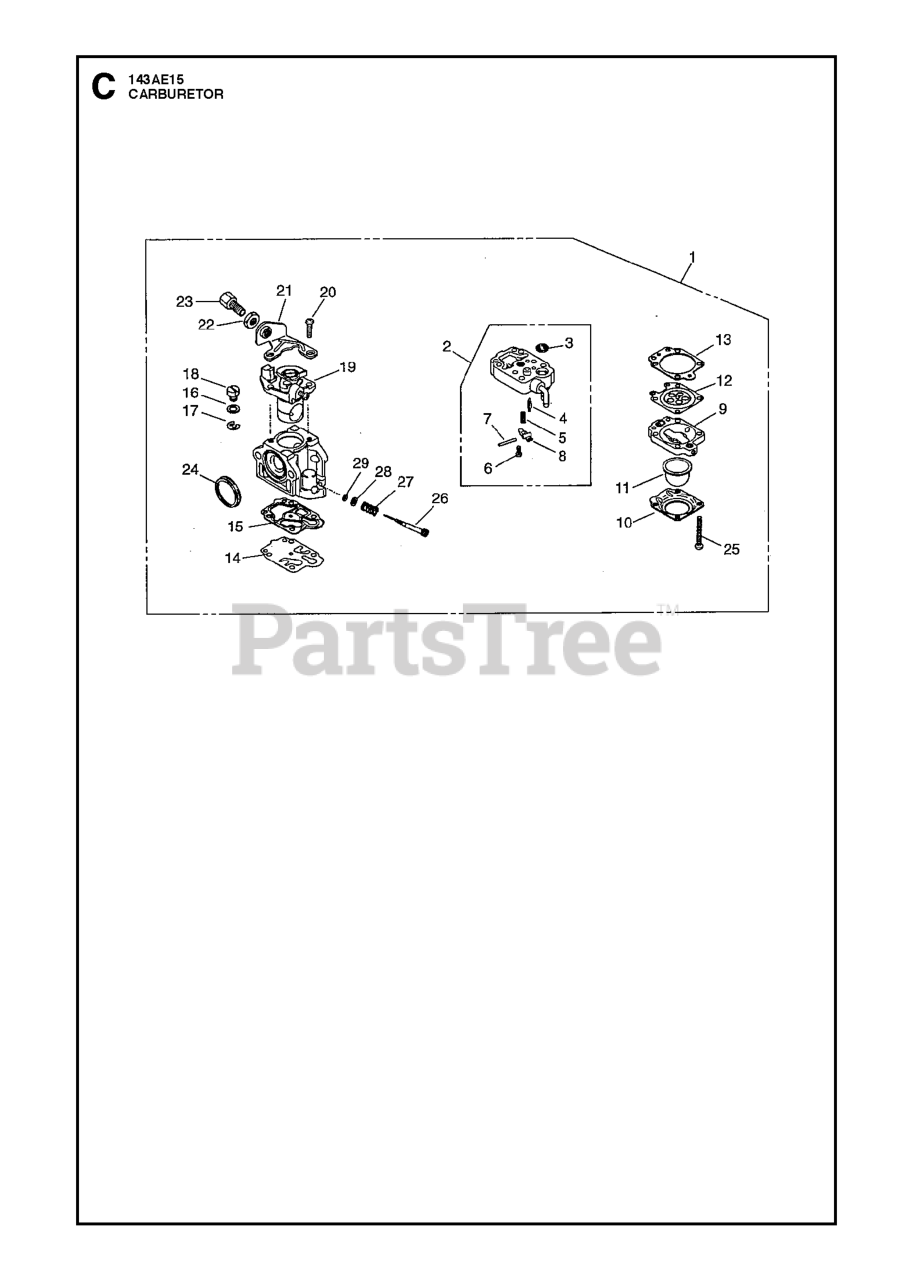

CARBURETOR Parts Diagram

  • Title

3

Husqvarna 520957001

SCREEN
(Superseded to 574012501)

$4.99

$

Usually ships in 3-10 days

0

14

Husqvarna 506689801

DIAPHRAGM

$6.49

$

Usually ships in 3-10 days

0

18

Husqvarna 506741201

SWIVEL

$9.99

$

Usually ships in 3-10 days

0

17

Husqvarna 506738601

RING

$2.49

$

Usually ships in 3-10 days

0

19

Husqvarna 515368101

VALVE-A

$

$

Not available

29

Husqvarna 513437801

O-RING

$2.49

$

Usually ships in 3-10 days

0

9

Husqvarna 506740901

BODY

$34.99

$

Usually ships in 3-10 days

0

6

Husqvarna 505306101

SCREW

$3.99

$

Usually ships in 3-10 days

0

1

Husqvarna 515368001

CARBURETOR-A

$133.99

$

Usually ships in 3-10 days

0

23

Husqvarna 515466101

SCREW

$

$

Not available

12

Husqvarna 505056401

DIAPHRAGM

$17.99

$

In Stock, only 2 left!

0

21

Husqvarna 506746001

BRACKET

$10.99

$

In Stock, only 1 left!

0

28

Husqvarna 513437701

WASHER

$2.49

$

Usually ships in 3-10 days

0

25

Husqvarna 506741101

SCREW

$4.99

$

In Stock, only 2 left!

0

26

Husqvarna 513285801

NEEDLE

$12.99

$

Usually ships in 3-10 days

0

11

Husqvarna 505306701

PUMP

$9.49

$

Usually ships in 3-10 days

0

10

Husqvarna 506741001

1OVER

$6.49

$

In Stock, Qty 9

0

27

Husqvarna 513301501

SPRING
(Superseded to 513301601)

$2.49

$

Usually ships in 3-10 days

0

5

Husqvarna 505306001

SPRING

$3.99

$

Usually ships in 3-10 days

0

20

Husqvarna 505307901

SCREW

$4.99

$

In Stock, only 2 left!

0

7

Husqvarna 520977401

PIN

$6.49

$

Usually ships in 3-10 days

0

13

Husqvarna 506740801

GASKET

$10.99

$

In Stock, only 2 left!

0

15

Husqvarna 505307201

GASKET
(Superseded to 516160601)

$

$

Not available

22

Husqvarna 506612601

NUT
(Superseded to 516524101)

$4.99

$

Usually ships in 3-10 days

0

4

Husqvarna 521085401

VALVE INLET

$27.99

$

Usually ships in 3-10 days

0

2

Husqvarna 502238401

CARBURETOR BODY

$53.99

$

In Stock, Qty 5

0

8

Husqvarna 520977201

LEVER

$7.49

$

Usually ships in 3-10 days

0

24

Husqvarna 505308401

RING PACKING

$4.99

$

Usually ships in 3-10 days

0

16

Husqvarna 506746101

WASHER

$3.99

$

In Stock, only 1 left!

0
