143-995-205 - Ranch King Garden Tractor (1993) Draft Bar Assembly Parts Diagram

Garden Tractor

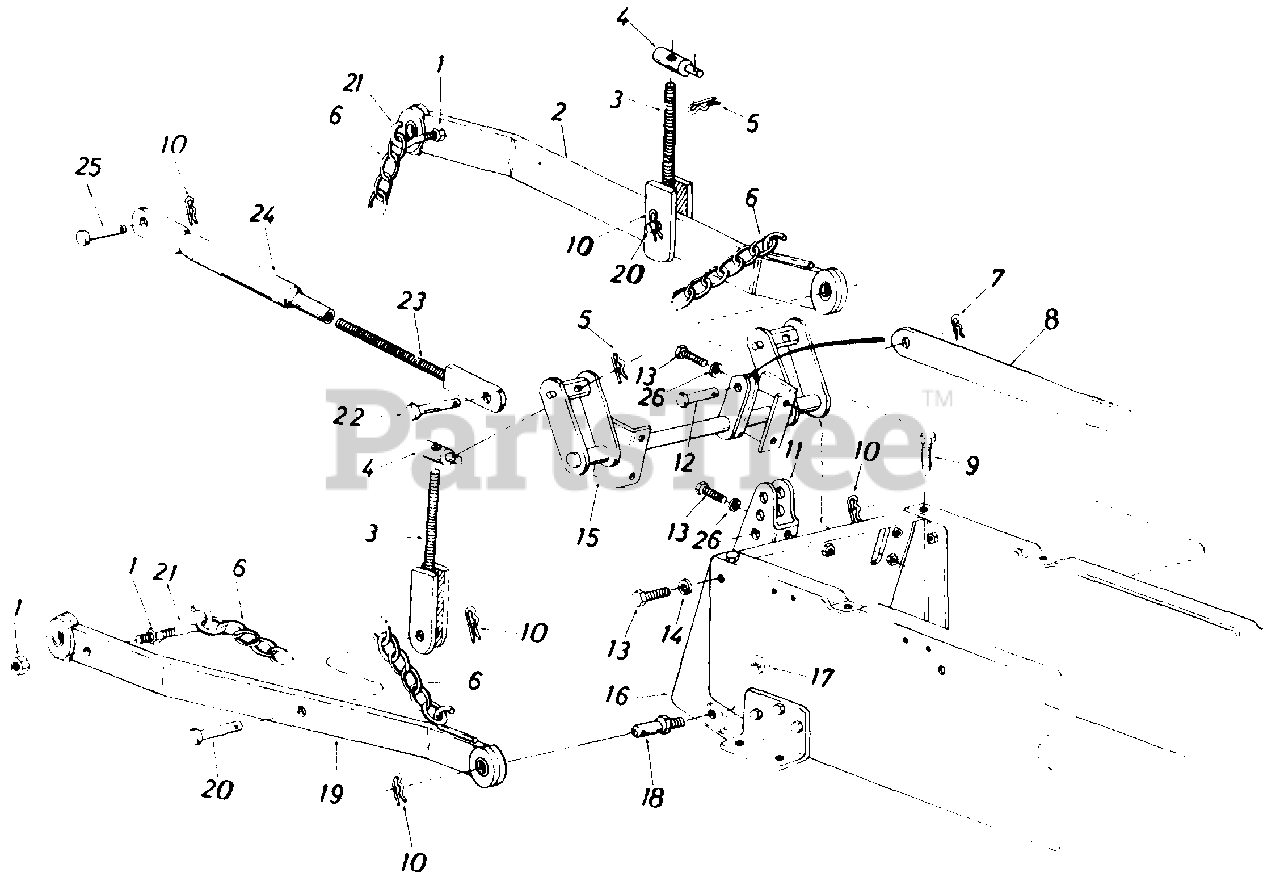

Draft Bar Assembly Parts Diagram

  • Title

1

MTD 712-0290

Hex Cent. L-Nut 7/16-14 Thd.

$4.99

$

In Stock, Qty 11

0

2

MTD 13130

Draft Bar Ass'y.- L.H.

$

$

Not available

3

MTD 13138

Clevis Screw Ass'y.

$

$

Not available

4

MTD 711-0649

Clevis Pin

$

$

Not available

5

MTD 714-0147

Hitch Pin Clip

$4.99

$

In Stock, Qty 6

0

6

MTD 713-0148

Chain - 20 Links

$

$

Not available

7

MTD 714-0470

Cotter Pin 1/8" Dia. x 1.25" Lg

$4.49

$

In Stock, Qty 20+

0

8

MTD 13709

Push Bar Ass'y.

Variations

MTD 13709-0637

Push Bar Ass'y. - POWDER BLACK (0637)

$

$

Not available

$

$

9

MTD 710-0216

Hex Scr. 3/8-16 x .75" Lg.

$4.49

$

In Stock, Qty 14

0

10

MTD 714-0117

Hairpin Cotter

$4.49

$

In Stock, Qty 16

0

11

MTD 13026

Hitch Brkt.
(Superseded to 13026-0637)

Variations

MTD 13026-0637

Hitch Bracket - POWDER BLACK (0637)

$60.99

$

Usually ships in 3-6 days

0

$60.99

$

Usually ships in 3-6 days

0

12

MTD 711-0654

Clevis Pin

$16.99

$

Usually ships in 3-6 days

0

13

MTD 710-0216

Hex Scr. 3/8-16 x .75" Lg.

$4.49

$

In Stock, Qty 14

0

14

MTD 736-0217

L-Wash. 3/8" Scr.- H.D.

$4.49

$

In Stock, Qty 6

0

15

MTD 13135

Rear Lift Shaft Ass'y.
(Superseded to 13135-0637)

Variations

MTD 13135-0637

SHAFT-LIFT-RR - POWDER BLACK (0637)

$

$

Not available

$

$

16

MTD 13196

Hitch Plate Ass'y.
(Superseded to 13196-0637)

Variations

MTD 13196-0637

PLATE-HITCH - POWDER BLACK (0637)

$

$

Not available

MTD 13196-0648

PLATE-HITCH - TECH GRAY (0648)

$

$

Not available

MTD 13196-0665

PLATE-HITCH - YARDMAN GREEN (0665)

$

$

Not available

$

$

17

MTD 712-0923

Hex Cent. L-Nut 5/8-18 Thd.

$6.99

$

Usually ships in 3-6 days

0

18

MTD 711-0497

Link Clevis Pin

$

$

Not available

19

MTD 13129

Draft Bar Ass'y.- R.H.
(Superseded to 13129A-0637)

$

$

Not available

20

MTD 711-0225

Clevis Pin .63" Dia. x 1.66" Lg.

$

$

Not available

21

MTD 711-0639

Hitch Chain Hook

$10.99

$

Usually ships in 3-6 days

0

22

MTD 711-0299

Clevis Pin .63" Dia. x 2.4" Lg.

$36.99

$

Usually ships in 3-6 days

0

23

MTD 711-0636

Clevis Screw

$

$

Not available

24

MTD 749-0238

Clevis Tubing
(Superseded to 749-0238-0637)

Variations

MTD 749-0238-0637

TUBING - POWDER BLACK (0637)

$44.99

$

Usually ships in 3-6 days

0

$44.99

$

Usually ships in 3-6 days

0

25

MTD 711-0299

Clevis Pin .63" Dia. x 2.4" Lg.

$36.99

$

Usually ships in 3-6 days

0

26

MTD 736-0217

L-Wash. 3/8" Scr.- H.D.

$4.49

$

In Stock, Qty 6

0
