143.955024 - Craftsman Engine, Made by Tecumseh Engine Parts List #2 Parts Diagram

Engine, Made by Tecumseh

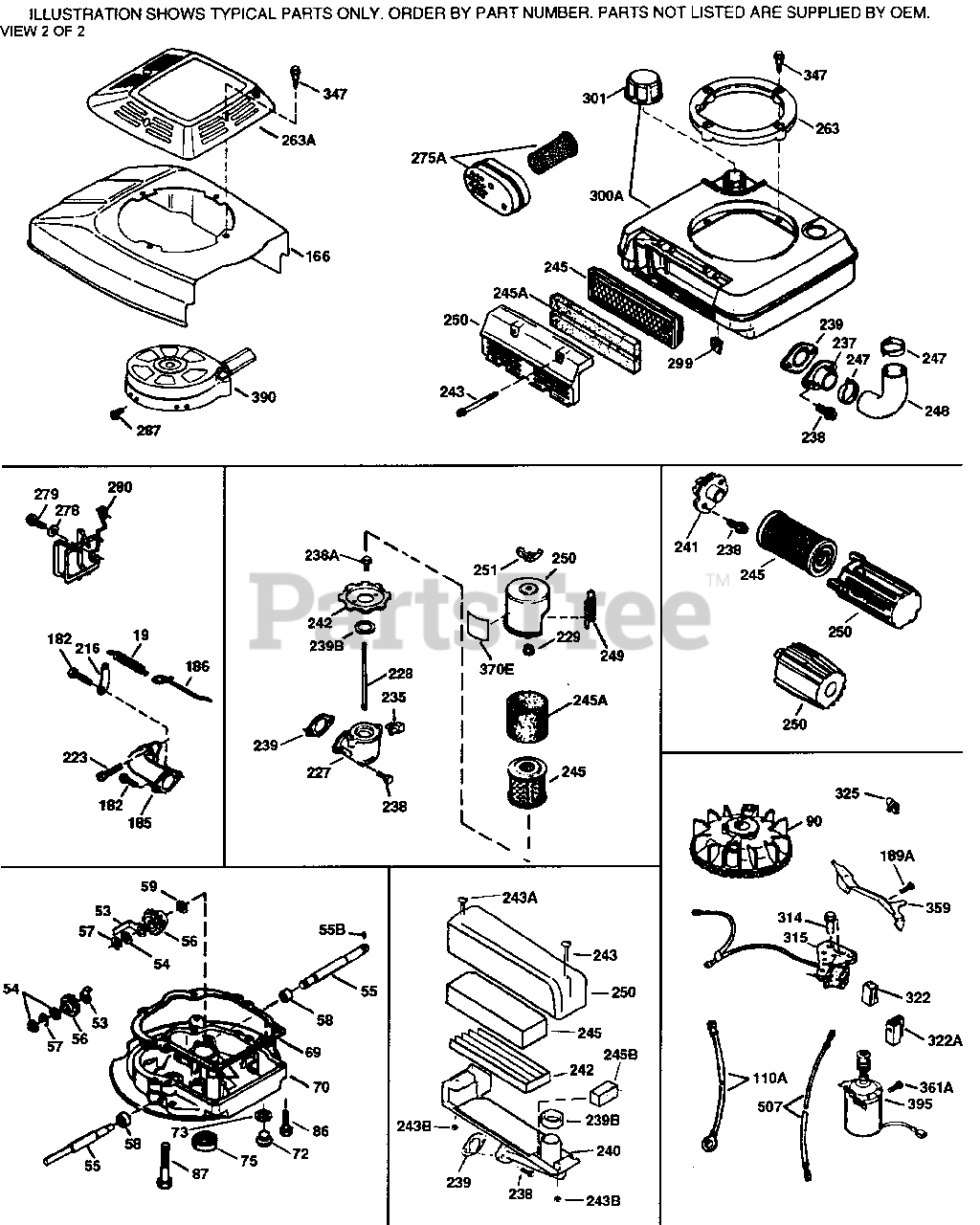

Engine Parts List #2 Parts Diagram

  • Title

19

Tecumseh 36281

Extension Spring

$1.49

$

In Stock, only 3 left!

0

69

Tecumseh 35261

Mounting Flange Gasket
(Superseded to 37609)

$2.99

$

Usually ships in 3-12 days

0

70

Tecumseh 36249A

Mounting Flange (Incl. 72 thru 83)
(Superseded to 37639)

$

$

Not available

72

Tecumseh 30572

Oil Drain Plug (Incl. 73)
(Superseded to 36083)

$6.99

$

In Stock, Qty 5

0

73

Tecumseh 28833

Drain Plug Gasket

$1.99

$

In Stock, only 1 left!

0

75

Tecumseh 27897

Oil Seal

$8.49

$

In Stock, only 3 left!

0

86

Tecumseh 650488

Screw, 1/4-20 x 1-1/4"

$1.99

$

Usually ships in 3-12 days

0

90

Tecumseh 611299

Flywheel

$

$

Not available

110A

Tecumseh 36230

Ground Wire

$1.99

$

In Stock, only 2 left!

0

182

Tecumseh 6201

Screw, 1/4-28 x 7/8"

$

$

Not available

185

Tecumseh 36544

Intake Pipe

$13.99

$

Usually ships in 3-12 days

0

186

Tecumseh 34337

Governor Link

$1.99

$

In Stock, only 1 left!

0

223

Tecumseh 650451

Screw, 1/4-20 x 1"

$1.99

$

In Stock, only 4 left!

0

238

Tecumseh 650932

Screw, 10-32 x 49/64"

$2.99

$

In Stock, Qty 5

0

239

Tecumseh 34338

* Air Cleaner Gasket

$1.99

$

In Stock, Qty 5

0

241

Tecumseh 35797

Air Filter Collar

$3.99

$

In Stock, only 2 left!

0

245

Tecumseh 35066

Air Filter (Paper) (also available in Packaged Part #740095 (Qty.2))

$5.99

$

In Stock, Qty 20+

0

250

Tecumseh 35065

Air Filter Cover (Craftsman)

$8.99

$

In Stock, only 2 left!

0

275A

Tecumseh 36664

Spark Arrestor Muffler (Optional) (In cl. 284,284A,416,417)
(Superseded to 36847)

$43.99

$

Usually ships in 3-12 days

0

287

Tecumseh 650926

Screw, 8-32 x 21/64"

$1.49

$

In Stock, Qty 6

0

301

Tecumseh 36246

Fuel Cap
(Superseded to 37844)

$5.99

$

In Stock, only 1 left!

0

390

Tecumseh 590732

Rewind Starter NOTE: This engine cou ld have been built with 590688 starte r. Refer to the design of the air int ake louvers for part identification. Individual starter parts do not inter change.
(Superseded to 590732A)

$62.99

$

In Stock, only 1 left!

0

999

Tecumseh 730278

Summer Maintenance Kit (incl. Oil, Sp ark Plug, Air Cleaners (2), & Ultra-F resh)

$16.99

$

In Stock, only 1 left!

0
