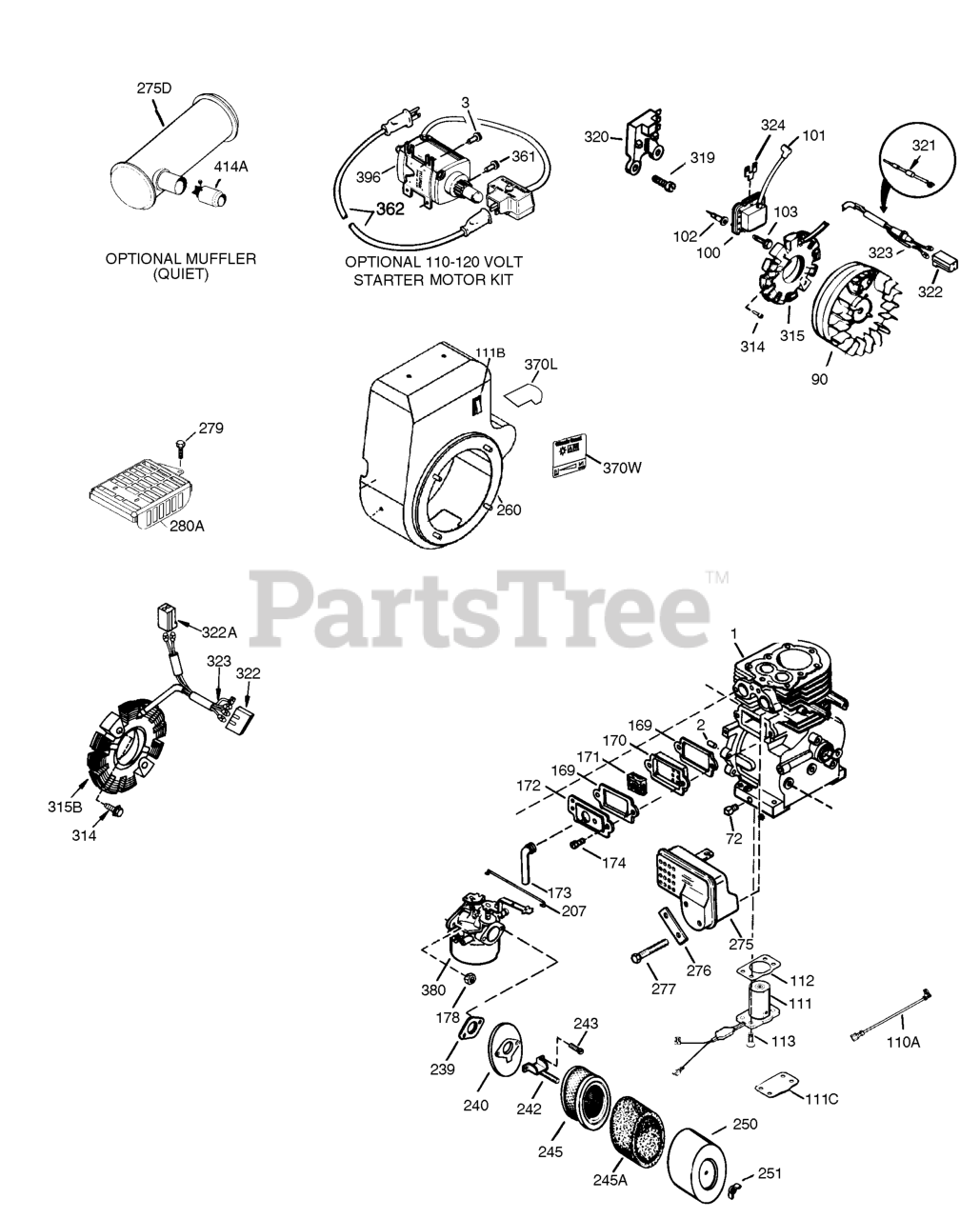

143.816012 - Craftsman Engine, Made by Tecumseh Engine Parts List #HM1003C Parts Diagram

Engine, Made by Tecumseh

Engine Parts List #HM1003C Parts Diagram

  • Title

1

Tecumseh 35371

CYLINDER

$311.99

$

Usually ships in 3-12 days

0

2

Tecumseh 27652

PIN

$2.49

$

Usually ships in 3-12 days

0

3

Tecumseh 650820

SCREW

$3.99

$

In Stock, Qty 11

0

90

Tecumseh 611093

FLYWHEEL

$

$

Not available

100

Tecumseh 35135

LAMINATION
(Superseded to 35135B)

$62.99

$

In Stock, only 1 left!

0

101

Tecumseh 610118

PLUG COVER

$6.49

$

In Stock, only 2 left!

0

102

Tecumseh 650872

STUD
(Superseded to 651024)

$3.99

$

In Stock, only 2 left!

0

103

Tecumseh 650814

SCREW
(Superseded to 651007)

$1.99

$

In Stock, only 4 left!

0

110A

Tecumseh 35305

GROUND WIRE N/A

$

$

Not available

131

Tecumseh 650694A

SCREW

$3.49

$

In Stock, Qty 20+

0

131A

Tecumseh 650713

SCREW
(Superseded to 651055)

$1.99

$

In Stock, only 1 left!

0

169

Tecumseh 27896A

GASKET

$1.49

$

In Stock, Qty 5

0

170

Tecumseh 28423

BREATHER

$13.99

$

In Stock, only 1 left!

0

171

Tecumseh 28424

ELEMENT

$3.99

$

In Stock, Qty 9

0

172

Tecumseh 28425

VALVE COVER

$7.49

$

In Stock, only 1 left!

0

173

Tecumseh 35350

TUBE

$6.49

$

Usually ships in 3-12 days

0

174

Tecumseh 650128

SCREW

$5.49

$

In Stock, only 1 left!

0

174

Tecumseh 650128

SCREW

$5.49

$

In Stock, only 1 left!

0

178

Tecumseh 29752

NUT

$1.99

$

In Stock, Qty 7

0

178

Tecumseh 29752

NUT

$1.99

$

In Stock, Qty 7

0

186

Tecumseh 34667

GOV LINK

$1.99

$

In Stock, only 3 left!

0

207

Tecumseh 33878

GOV LINK

$6.99

$

Usually ships in 3-12 days

0

260

Tecumseh 35447

BLOWER HSG
(Superseded to 37961)

$

$

Not available

276

Tecumseh 31588

LOCK PLATE

$4.99

$

In Stock, Qty 17

0

277

Tecumseh 651002

SCREW

$4.49

$

In Stock, Qty 7

0

314

Tecumseh 650873

SCREW

$1.99

$

Usually ships in 3-12 days

0

315

Tecumseh 611111

ALT COIL

$68.99

$

Usually ships in 3-12 days

0

322

Tecumseh 611117

CONNECTOR

$1.99

$

In Stock, only 1 left!

0

323

Tecumseh 611118

TERMINAL

$1.99

$

Usually ships in 3-12 days

0

380

Tecumseh 632370A

CARBURETOR

$133.99

$

In Stock, only 1 left!

0

702

Tecumseh 650727

SCREW

$3.99

$

In Stock, only 2 left!

0
