143.806022 - Craftsman Engine, Made by Tecumseh Engine Parts List #2 Parts Diagram

Engine, Made by Tecumseh

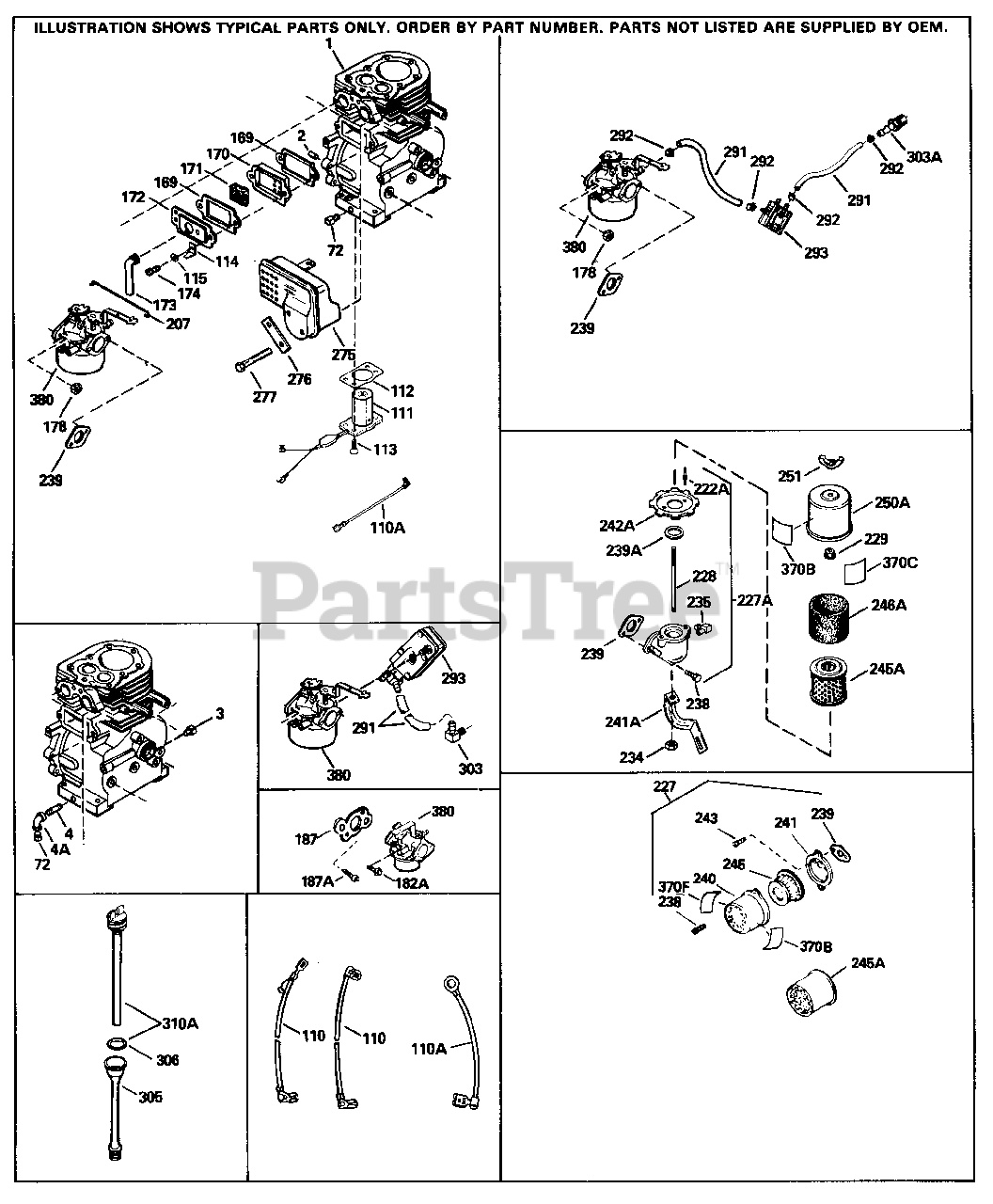

Engine Parts List #2 Parts Diagram

  • Title

1

Tecumseh 35385

"Cylinder Ass'y. (Incl. 2, 20, 72 & 72 A) (3-1/8" Bore) Bore)

$311.99

$

Usually ships in 3-12 days

0

2

Tecumseh 27652

Dowel Pin

$2.49

$

Usually ships in 3-12 days

0

3

Tecumseh 650820

Screw, 1/4-20 x 1/2"

$3.99

$

In Stock, Qty 15

0

4

Tecumseh 30968

Nipple, Pipe

$7.49

$

Usually ships in 3-12 days

0

72

Tecumseh 27642

Oil Drain Plug (Sq. hd., 1/4-18)

$1.99

$

In Stock, only 2 left!

0

110

Tecumseh 35253

Ground Wire (One male, One female, On e eyelet)

$6.49

$

In Stock, only 2 left!

0

169

Tecumseh 27896A

* Gasket, Breather cover

$1.49

$

In Stock, Qty 10

0

170

Tecumseh 28423

Breather Body

$13.99

$

In Stock, only 1 left!

0

171

Tecumseh 28424

Breather Element

$3.99

$

In Stock, only 3 left!

0

172

Tecumseh 28425

Valve Cover

$7.49

$

In Stock, only 1 left!

0

173

Tecumseh 35350

Breather Tube

$6.49

$

Usually ships in 3-12 days

0

178

Tecumseh 29752

Nut & Lock Washer 1/4-28

$1.99

$

In Stock, only 1 left!

0

207

Tecumseh 33878

Link, Governor-to-throttle

$6.99

$

In Stock, only 2 left!

0

227

Tecumseh 730127

Air Cleaner Ass'y. (Incl. 238, 239, 2 40, 241, 243, 245 & 370)(Use as requi red)

$46.99

$

In Stock, Qty 6

0

227

Tecumseh 730164

Air Cleaner Ass'y. (Incl. 238, 239, 2 40, 241, 243 & 245) (Use as required)

$57.99

$

Usually ships in 3-12 days

0

228

Tecumseh 650824

Stud, 1/4-20 x 7.33 (Use as required)

$

$

Not available

228

Tecumseh 650851

Stud, 1/4-20 x 8.1 (Use as required)( Used with drilled thru elbow)

$5.49

$

Usually ships in 3-12 days

0

275

Tecumseh 35056

Muffler

$62.99

$

In Stock, only 2 left!

0

276

Tecumseh 35740

Muffler (Incl. 276)

$78.99

$

Usually ships in 3-12 days

0

277

Tecumseh 651002

Screw, 5/16-18 x 4-3/16"

$4.49

$

In Stock, Qty 12

0

291

Tecumseh 29774

Fuel Line (8.62")

$34.99

$

In Stock, Qty 6

0

292

Tecumseh 26460

Fuel Line Clamp

$1.49

$

In Stock, Qty 20+

0

305

Tecumseh 35554

Oil Fill Tube

$19.99

$

In Stock, only 1 left!

0

306

Tecumseh 35499

"O" Ring

$1.49

$

In Stock, only 3 left!

0

370C

Tecumseh 34417

Decal, Primer
(Superseded to 36501)

$2.49

$

In Stock, only 2 left!

0

370J

Tecumseh 34870

Decal, Instruction Can be used on HM8 0 with diecast starter.

$

$

Currently unavailable

370B

Tecumseh 34387

Decal, Instruction Can be used on HM8 0 with stamped steel recoil starter.

$2.49

$

In Stock, only 1 left!

0

380

Tecumseh 632334A

Carburetor (Incl. 184) (Refer to Divi sion 5, Section A, page A3-10 for bre akdown or Fiche 18A-2, Grid F-3)

$136.99

$

Usually ships in 3-12 days

0

999

Tecumseh 730281

Winter Maintenance Kit incl. 5W30 Oil , Spark Plug, Key, & Ultra-Fresh
(Superseded to 730281A)

$22.99

$

In Stock, only 4 left!

0

999

Tecumseh 730295

Winter Maintenance Kit (incl. 0W30 Sy nthetic Oil, Spark Plug, Key, & Ultra -Fresh)
(Superseded to 730295A)

$26.99

$

Usually ships in 3-12 days

0
