143.794042 - Craftsman Engine, Made by Tecumseh Engine Parts List #2 Parts Diagram

Engine, Made by Tecumseh

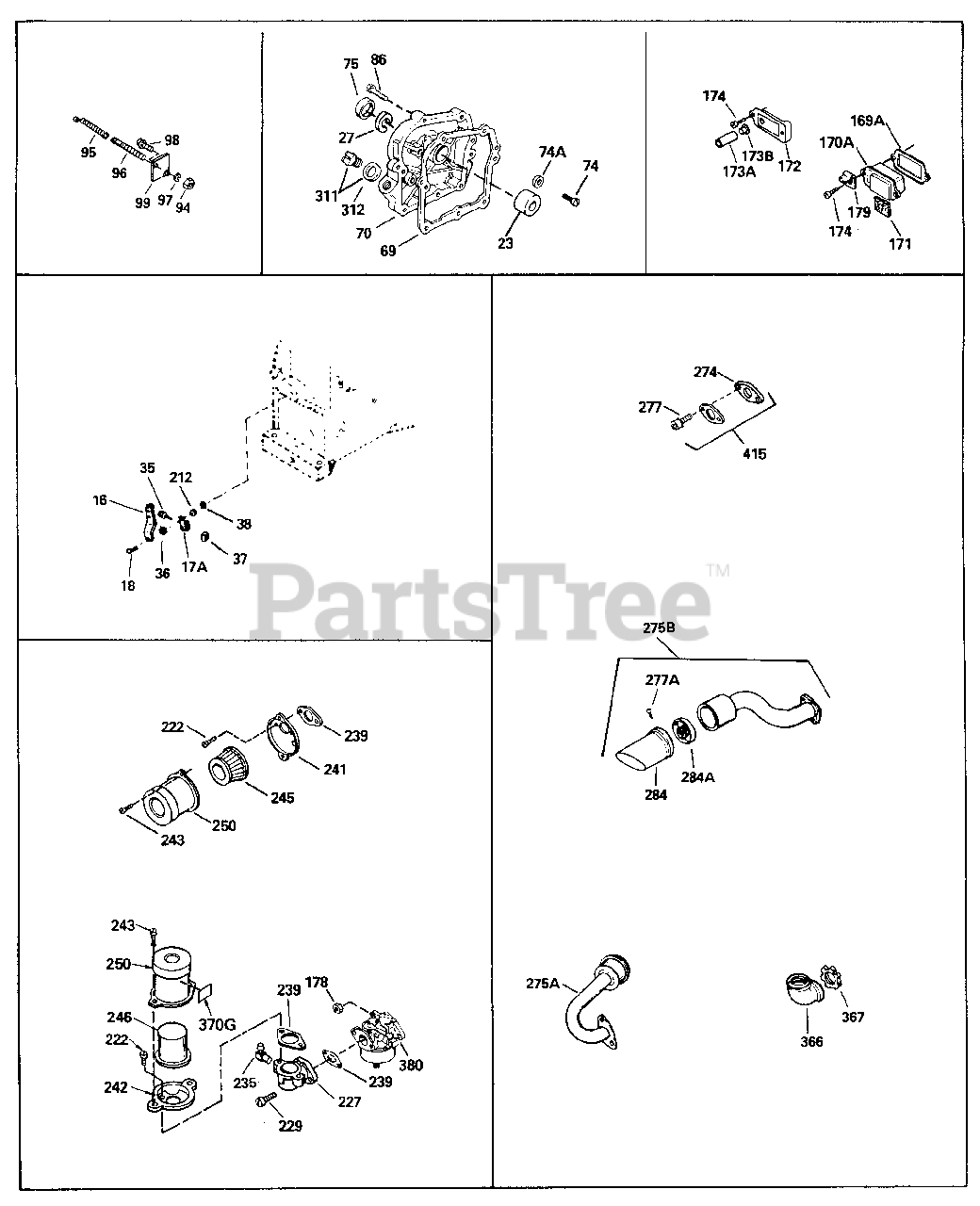

Engine Parts List #2 Parts Diagram

  • Title

16

Tecumseh 31510

Lever, Governor
(Superseded to 37735)

$13.99

$

Usually ships in 3-12 days

0

18

Tecumseh 650548

Screw, 8-32 x 5/16"
(Superseded to 651018)

$1.99

$

In Stock, Qty 5

0

69

Tecumseh 27677A

* Gasket, Cylinder cover

$7.49

$

In Stock, only 4 left!

0

70

Tecumseh 34678

Cover, Cylinder (Incl. 75, 76 & 80)
(Superseded to 34678A)

$

$

Not available

75

Tecumseh 27897

Oil Seal

$8.49

$

In Stock, Qty 14

0

86

Tecumseh 650488

Screw, 1/4-20 x 1-1/4"

$1.99

$

Usually ships in 3-12 days

0

171

Tecumseh 31410

Element, Breather

$1.99

$

In Stock, Qty 18

0

172

Tecumseh 34146

Cover, Breather

$3.99

$

In Stock, only 1 left!

0

174

Tecumseh 650128

Screw, 10-24 x 1/2"

$5.49

$

In Stock, only 1 left!

0

178

Tecumseh 29752

Nut & Lock Washer 1/4-28

$1.99

$

In Stock, Qty 7

0

222

Tecumseh 28820

Screw, 10-32 x 1/2"
(Superseded to 651081)

$4.49

$

In Stock, only 3 left!

0

274

Tecumseh 33670A

* Gasket, Exhaust
(Superseded to 35865)

$2.49

$

In Stock, only 4 left!

0

277

Tecumseh 650327

Screw, 1/4-20 x 2-1/2"
(Superseded to 650327A)

$6.99

$

In Stock, Qty 12

0

380

Tecumseh 632107

Carburetor (Incl. 184) (Refer to Divi sion 5, Section A, page 168 for break down)
(Superseded to 640084B)

$109.99

$

Usually ships in 3-12 days

0

415

Tecumseh 730165

Muffler Adapter Kit (Incl. 64 & 274) As req.

$45.99

$

In Stock, only 2 left!

0

999

Tecumseh 730281

Winter Maintenance Kit incl. 5W30 Oil , Spark Plug, Key, & Ultra-Fresh
(Superseded to 730281A)

$22.99

$

In Stock, only 4 left!

0

999

Tecumseh 730295

Winter Maintenance Kit (incl. 0W30 Sy nthetic Oil, Spark Plug, Key, & Ultra -Fresh)
(Superseded to 730295A)

$26.99

$

Usually ships in 3-12 days

0
