143.754102 - Craftsman Engine, Made by Tecumseh Engine Parts List #1 Parts Diagram

Engine, Made by Tecumseh

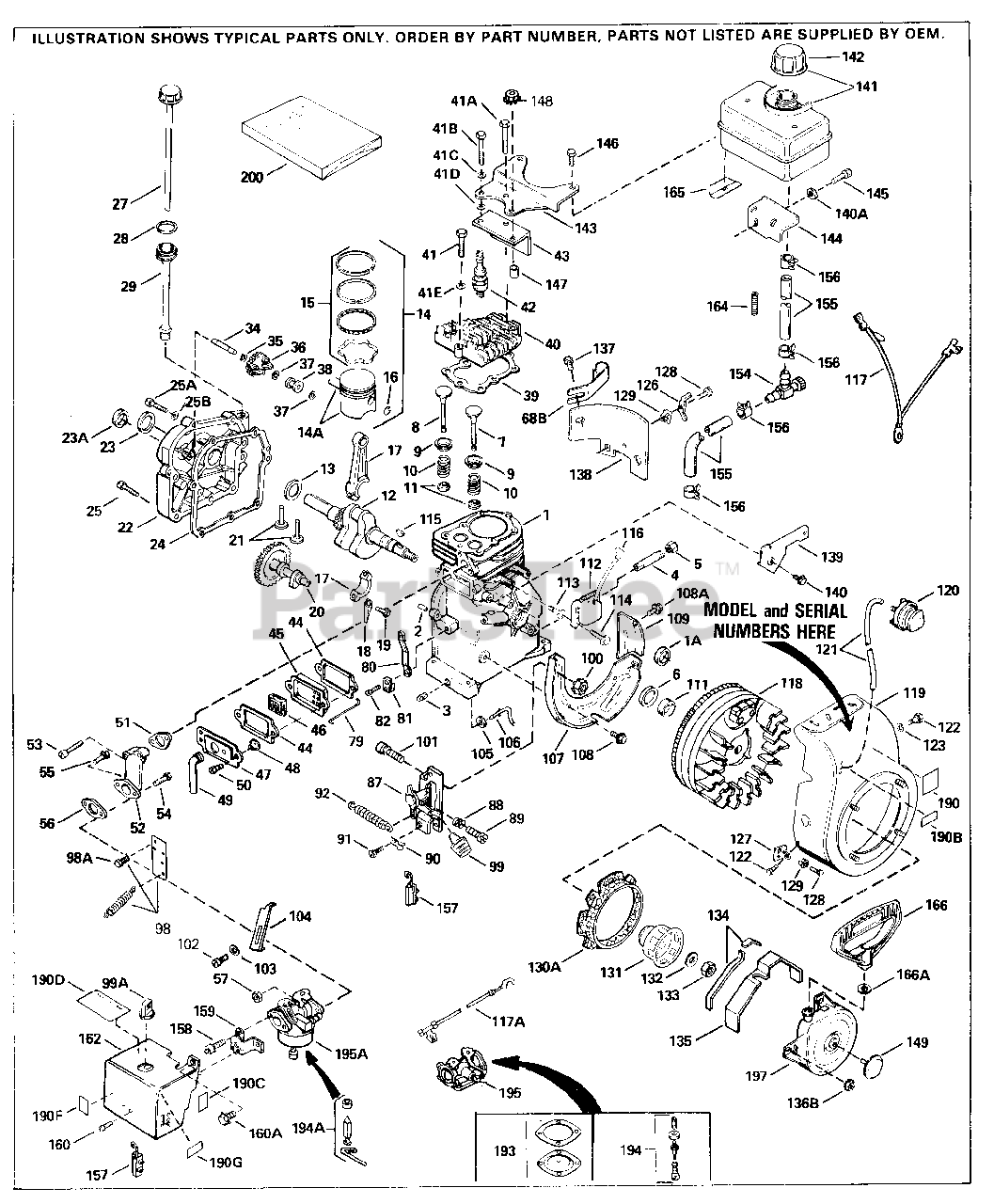

Engine Parts List #1 Parts Diagram

  • Title

1

Tecumseh 34708A

"Cylinder (Incl. 2, 3 & 6) 2-1/2" Bor e
(Superseded to 36560A)

$

$

Not available

2

Tecumseh 26727

Dowel Pin

$1.99

$

In Stock, Qty 5

0

3

Tecumseh 27642

Oil Drain Plug (Sq. hd., 1/4-18)

$1.99

$

In Stock, only 2 left!

0

3

Tecumseh 28582

Oil Drain Plug (Sq. hd., 1/4-18)

$1.99

$

In Stock, only 1 left!

0

6

Tecumseh 32600

Seal, Oil

$

$

Not available

7

Tecumseh 29314B

Intake Valve (Std.) (Incl. 151)
(Superseded to 29314C)

$5.99

$

In Stock, only 1 left!

0

7

Tecumseh 29315C

Exhaust Valve (1/32" OS) (Incl. 151)

$

$

Not available

8

Tecumseh 29313C

Exhaust Valve (Std.) (Incl. 151)

$

$

Not available

8

Tecumseh 29315C

Exhaust Valve (1/32" OS) (Incl. 151)

$

$

Not available

9

Tecumseh 31671

Valve Spring Cap Used in early produc tion

$1.49

$

In Stock, only 2 left!

0

10

Tecumseh 31672

Spring, Valve

$1.99

$

In Stock, Qty 14

0

11

Tecumseh 31673

Valve Spring Cap

$1.99

$

In Stock, Qty 5

0

12

Tecumseh 34734A

Crankshaft

$156.99

$

In Stock, only 1 left!

0

13

Tecumseh 32323

Washer, Thrust

$8.49

$

Usually ships in 3-12 days

0

14

Tecumseh 34514

Piston, Pin & Ring Set (Std.) 2-1/2" Bore

$

$

Not available

14

Tecumseh 34515

Piston, Pin & Ring Set (.010" OS)

$

$

Not available

14

Tecumseh 34516

Piston, Pin & Ring Set (.020" OS)

$79.99

$

Usually ships in 3-12 days

0

14A

Tecumseh 32538B

Piston & Pin Ass'y. (Std.)(2-1/2") In c l.16

$

$

Not available

14A

Tecumseh 32548B

Piston & Pin Ass'y. (.010" OS) Incl. 16

$

$

Not available

14A

Tecumseh 32549B

Piston & Pin Ass'y. (.020" OS) Incl. 16

$50.99

$

Usually ships in 3-12 days

0

15

Tecumseh 28986

Ring Set (Std.)

$

$

Not available

15

Tecumseh 28987

Ring Set (.010" OS)

$

$

Not available

15

Tecumseh 28988

Ring Set (.020" OS)

$

$

Not available

16

Tecumseh 20381

Piston Pin Retaining Ring

$1.99

$

In Stock, Qty 7

0

17

Tecumseh 32875

Rod Assy., Connecting (Incl. 18 & 19)
(Superseded to 32875A)

$47.99

$

Usually ships in 3-12 days

0

18

Tecumseh 32654

Dipper, Oil

$8.99

$

In Stock, only 4 left!

0

19

Tecumseh 32610A

Bolt, Connecting rod

$1.99

$

In Stock, Qty 6

0

20

Tecumseh 34669A

Camshaft

$

$

Currently unavailable

21

Tecumseh 27241

Valve Lifter

$5.49

$

In Stock, only 2 left!

0

22

Tecumseh 34678

Cover, Cylinder (Incl. 23, 23A & 34)
(Superseded to 34678A)

$

$

Not available

23

Tecumseh 27897

Oil Seal

$8.49

$

In Stock, Qty 17

0

23A

Tecumseh 30318

Camshaft Seal

$7.49

$

Usually ships in 3-12 days

0

24

Tecumseh 27677A

* Gasket, Cylinder cover

$7.49

$

In Stock, Qty 7

0

25

Tecumseh 650488

Screw, 1/4-20 x 1-1/4"

$1.99

$

Usually ships in 3-12 days

0

27

Tecumseh 34676

Dipstick, Oil (Incl. 28)
(Superseded to 34676A)

$15.99

$

Usually ships in 3-12 days

0

28

Tecumseh 33590

"O" Ring

$1.99

$

In Stock, only 1 left!

0

29

Tecumseh 33893A

Tube, Oil fill

$

$

Not available

34

Tecumseh 30574

Shaft, Mechanical governor
(Superseded to 30574A)

$7.49

$

In Stock, only 4 left!

0

35

Tecumseh 35479

WASHER
(Superseded to 651080)

$1.99

$

In Stock, Qty 8

0

36

Tecumseh 30591

Gear Assy., Governor (Incl. 35)

$13.99

$

In Stock, only 1 left!

0

37

Tecumseh 29193

Retaining Ring

$1.99

$

In Stock, only 4 left!

0

38

Tecumseh 30588A

Spool, Governor

$1.99

$

In Stock, only 4 left!

0

39

Tecumseh 29953C

* Gasket, Cylinder head

$16.99

$

In Stock, only 1 left!

0

40

Tecumseh 30579A

Head, Cylinder (Incl. 41A)
(Superseded to 36438)

$

$

Not available

41A

Tecumseh 650694A

Screw, 5/16-18 x 2" (Use as required)

$3.49

$

In Stock, Qty 20+

0

41

Tecumseh 6021A

Screw, 5/16-18 x 1-1/2" Use as requir ed

$1.99

$

In Stock, only 3 left!

0

41

Tecumseh 650695A

Screw, 5/16-18 x 2-1/4" Use as requir ed

$

$

Not available

41

Tecumseh 650865

Screw, 5/16-18 x 2" (Use as required)

$

$

Not available

42

Tecumseh 33636

Resistor Spark Plug - RJ17LM

$5.49

$

In Stock, Qty 11

0

43

Tecumseh 33344

Baffle, Heat

$5.49

$

In Stock, only 1 left!

0

44

Tecumseh 31619A

* Gasket, Breather (One required)

$7.49

$

In Stock, only 2 left!

0

45

Tecumseh 31337

Breather Assy. (Incl. 44 & 46)
(Superseded to 31337B)

$18.99

$

In Stock, only 1 left!

0

46

Tecumseh 31410

Element, Breather

$1.99

$

In Stock, Qty 20+

0

50

Tecumseh 650128

Screw, 10-24 x 1/2"

$5.49

$

In Stock, only 2 left!

0

51

Tecumseh 26754A

* Gasket, Intake to cylinder

$1.99

$

In Stock, Qty 8

0

52

Tecumseh 28416A

Intake Pipe

$

$

Not available

53

Tecumseh 650664

Screw, 1/4-20 x 1-19/32"

$1.99

$

In Stock, Qty 9

0

54

Tecumseh 650840

Screw, 1/4-20 x 1-7/32"

$1.99

$

Usually ships in 3-12 days

0

55

Tecumseh 6201

Screw, 1/4-28 x 7/8"

$

$

Not available

56

Tecumseh 26756

* Gasket, Carburetor to intake

$2.99

$

In Stock, Qty 9

0

57

Tecumseh 29752

Nut & Lock Washer 1/4-28

$1.99

$

In Stock, only 1 left!

0

68B

Tecumseh 35539

Fill Tube Clip

$1.99

$

Usually ships in 3-12 days

0

79

Tecumseh 31858

Link, Throttle
(Superseded to 37735)

$13.99

$

In Stock, only 1 left!

0

80

Tecumseh 31510

Lever, Governor
(Superseded to 37735)

$13.99

$

In Stock, only 1 left!

0

81

Tecumseh 31335

Clamp, Governor lever

$1.99

$

In Stock, only 3 left!

0

82

Tecumseh 650548

Screw, 8-32 x 5/16"
(Superseded to 651018)

$1.99

$

In Stock, Qty 9

0

87

Tecumseh 33858A

Control Bracket (Incl. 88,89,100,101 & 157) NOTE: In original productio n the speed control assembly is rivet ed to the blower housing baffle (Ref. #107). Replacement speed control as sembly includes screws (Ref. #101)and nuts (Ref. #100) for mou
(Superseded to 36677)

$47.99

$

In Stock, only 1 left!

0

88

Tecumseh 31342

Spring, Compression

$5.99

$

In Stock, only 1 left!

0

89

Tecumseh 650549

Screw, 5-40 x 7/16"
(Superseded to 651029)

$1.99

$

In Stock, only 2 left!

0

92

Tecumseh 31426

Spring, Extension

$3.99

$

In Stock, Qty 20+

0

98

Tecumseh 33857

Spring Assy., Extension (Incl. 98A)

$7.49

$

In Stock, only 1 left!

0

99A

Tecumseh 35439

Control Knob

$3.99

$

In Stock, only 2 left!

0

99

Tecumseh 35440

Control Knob

$3.99

$

In Stock, only 1 left!

0

100

Tecumseh 30322

Lock Nut, 8-32

$1.99

$

Usually ships in 3-12 days

0

101

Tecumseh 30200

Screw, 10-24 x 9/16"

$1.49

$

In Stock, Qty 10

0

101

Tecumseh 650139

Screw, 8-32 x 1/2" (Use as required)

$1.99

$

In Stock, only 4 left!

0

101

Tecumseh 650152

Screw, 8-32 x 3/8" (Use as required)

$2.49

$

In Stock, only 3 left!

0

105

Tecumseh 28277

Flat Washer

$1.99

$

In Stock, only 4 left!

0

106

Tecumseh 31334

Rod, Governor

$5.49

$

In Stock, only 1 left!

0

107

Tecumseh 33342

Baffle, Blower housing
(Superseded to 36552)

$9.49

$

Usually ships in 3-12 days

0

108A

Tecumseh 650701

Screw, 8-18 x 7/16"

$1.99

$

Usually ships in 3-12 days

0

108

Tecumseh 650561

Screw, 1/4-20 x 5/8"

$1.99

$

In Stock, only 2 left!

0

109

Tecumseh 33341

Baffle, Extension
(Superseded to 35883)

$1.99

$

In Stock, Qty 5

0

111

Tecumseh 34080

Spacer, Flywheel key

$1.99

$

In Stock, only 2 left!

0

112

Tecumseh 34443A

Solid State Ass'y.
(Superseded to 34443D)

$44.99

$

Usually ships in 3-12 days

0

113

Tecumseh 650872

Stud, Solid State mounting
(Superseded to 651024)

$3.99

$

In Stock, only 2 left!

0

114

Tecumseh 650814

Screw, Torx T-15, 10-24 x 1"
(Superseded to 651007)

$1.99

$

In Stock, only 4 left!

0

115

Tecumseh 610961

Flywheel Key (also available in Packa ged Part #740007B)

$1.49

$

In Stock, Qty 20+

0

116

Tecumseh 610118

Cover, Spark plug (Use as required)

$6.49

$

In Stock, only 3 left!

0

117

Tecumseh 35182

Ground Wire

$1.99

$

In Stock, only 4 left!

0

117

Tecumseh 35557

Ground Wire

$3.99

$

Usually ships in 3-12 days

0

118

Tecumseh 611081

Flywheel (w/ring gear)
(Superseded to 611081A)

$

$

Not available

119

Tecumseh 34813A

Housing, Blower NOTE: In original pr oduction, the starter may be riveted to theblower housing. If the starter or blower housing needs replacement, the other may need holes used for po p rivetingenlarged to use standard mo unting hardware. Order 4
(Superseded to 33663E)

$

$

Not available

120

Tecumseh 34814

Primer Assy.
(Superseded to 35769)

$14.99

$

Usually ships in 3-12 days

0

121

Tecumseh 32180C

Line, Primer

$6.99

$

In Stock, only 4 left!

0

122

Tecumseh 29212

Screw, 1/4-28 x 7/16"
(Superseded to 29716)

$1.49

$

In Stock, Qty 6

0

123

Tecumseh 650168

Washer

$1.99

$

Usually ships in 3-12 days

0

127

Tecumseh 34126

Bracket, Grommet mounting

$1.99

$

Usually ships in 3-12 days

0

128

Tecumseh 650760

Screw, 8-32 x 3/8"

$1.99

$

In Stock, only 3 left!

0

129

Tecumseh 28545

Breather Tube Grommet

$1.99

$

In Stock, Qty 5

0

130A

Tecumseh 33668

Screen, Starter

$7.49

$

Usually ships in 3-12 days

0

131

Tecumseh 34694

Cup, Starter

$11.99

$

Usually ships in 3-12 days

0

132

Tecumseh 650815

Washer, Belleville

$1.99

$

In Stock, Qty 10

0

133

Tecumseh 650816

Nut, Flywheel

$4.49

$

In Stock, Qty 6

0

134

Tecumseh 32576

Seal, Snow guard

$3.99

$

Usually ships in 3-12 days

0

135

Tecumseh 31680

Guard, Starter

$5.49

$

Usually ships in 3-12 days

0

136B

Tecumseh 29752

Nut & Lock Washer 1/4-28

$1.99

$

In Stock, only 1 left!

0

137

Tecumseh 650128

Screw, 10-24 x 1/2"

$5.49

$

In Stock, only 2 left!

0

138

Tecumseh 29745

Blower Housing Extension

$3.99

$

Usually ships in 3-12 days

0

139

Tecumseh 34212

Bracket, Hold down

$1.99

$

In Stock, Qty 5

0

140

Tecumseh 30200

Screw, 10-24 x 9/16"

$1.49

$

In Stock, Qty 10

0

140A

Tecumseh 650675

Washer, Flat

$1.99

$

Usually ships in 3-12 days

0

141

Tecumseh 34711

Fuel Tank (Incl. 142 & 156)
(Superseded to 35584)

$45.99

$

In Stock, only 4 left!

0

142

Tecumseh 33032

Fuel Cap (Red 1-1/2" ID) also availab le in Packaged Part #740005B

$7.49

$

In Stock, only 1 left!

0

142

Tecumseh 34210

Cap, Fuel filler

$8.49

$

In Stock, Qty 12

0

142

Tecumseh 410144B

Cap, Fuel filler (Std.) Use as requir ed
(Superseded to 33032)

$7.49

$

In Stock, only 1 left!

0

143

Tecumseh 28371B

Fuel Tank Bracket
(Superseded to 36247)

$11.99

$

Usually ships in 3-12 days

0

144

Tecumseh 34182

Fuel Tank Bracket

$13.99

$

Usually ships in 3-12 days

0

145

Tecumseh 650805

Screw, 1/4-20 x 11/16"
(Superseded to 650561)

$1.99

$

In Stock, only 2 left!

0

146

Tecumseh 650665

Screw, 1/4-15 x 7/8"

$1.99

$

In Stock, only 3 left!

0

147

Tecumseh 28212

Spacer models)

$1.99

$

In Stock, Qty 5

0

154

Tecumseh 32961

Valve, Shut-off
(Superseded to 35857)

$13.99

$

Usually ships in 3-12 days

0

155

Tecumseh 29774

Fuel Line (8.62") equired)

$34.99

$

In Stock, Qty 6

0

155

Tecumseh 30705

Fuel Line (Braided, 16") Use as requi red

$16.99

$

In Stock, only 2 left!

0

156

Tecumseh 26460

Fuel Line Clamp

$1.49

$

In Stock, Qty 20+

0

157

Tecumseh 610973

Terminal Ass'y. (Use as required)

$3.99

$

In Stock, Qty 5

0

158

Tecumseh 28820

Screw, 10-32 x 1/2"
(Superseded to 651081)

$4.49

$

In Stock, only 3 left!

0

159

Tecumseh 32398

Bracket, Choke

$19.99

$

In Stock, only 3 left!

0

160A

Tecumseh 650257

Screw, 8-32 x 5/16"

$1.49

$

In Stock, Qty 17

0

160

Tecumseh 650765

Screw, 10-32 x 1/2"

$1.49

$

In Stock, only 4 left!

0

162

Tecumseh 34411

Cover, Carburetor

$

$

Not available

166A

Tecumseh 650168

Washer, Flat

$1.99

$

Usually ships in 3-12 days

0

166

Tecumseh 590574

Starter Handle (Mitten Grip) also ava ilable in Packaged Part #740053B

$5.49

$

In Stock, only 1 left!

0

190

Tecumseh 34170

Decal, Instruction

$

$

Not available

190D

Tecumseh 34418

Decal, Choke

$

$

Not available

190B

Tecumseh 34144

Decal, Primer

$

$

Not available

190F

Tecumseh 35344

Throttle Decal
(Superseded to 35703)

$2.49

$

Usually ships in 3-12 days

0

190C

Tecumseh 34346

Decal, Instruction
(Superseded to 36261)

$

$

Not available

194A

Tecumseh 631021

Inlet Needle Seat & Clip Assy.
(Superseded to 631021B)

$6.99

$

In Stock, Qty 20+

0

195A

Tecumseh 632378

Carburetor (Incl. 56) (Refer to Divis ion 5, Section A, page 198 for breakd own)
(Superseded to 632378A)

$121.99

$

Usually ships in 3-12 days

0

197

Tecumseh 590576

Starter, Rewind Refer to Division 5, Section C, page 29 for breakdown
(Superseded to 590604)

$

$

Not available

200

Tecumseh 33233A

* Gasket Set (Incl. items marked *)

$16.99

$

In Stock, only 1 left!

0
