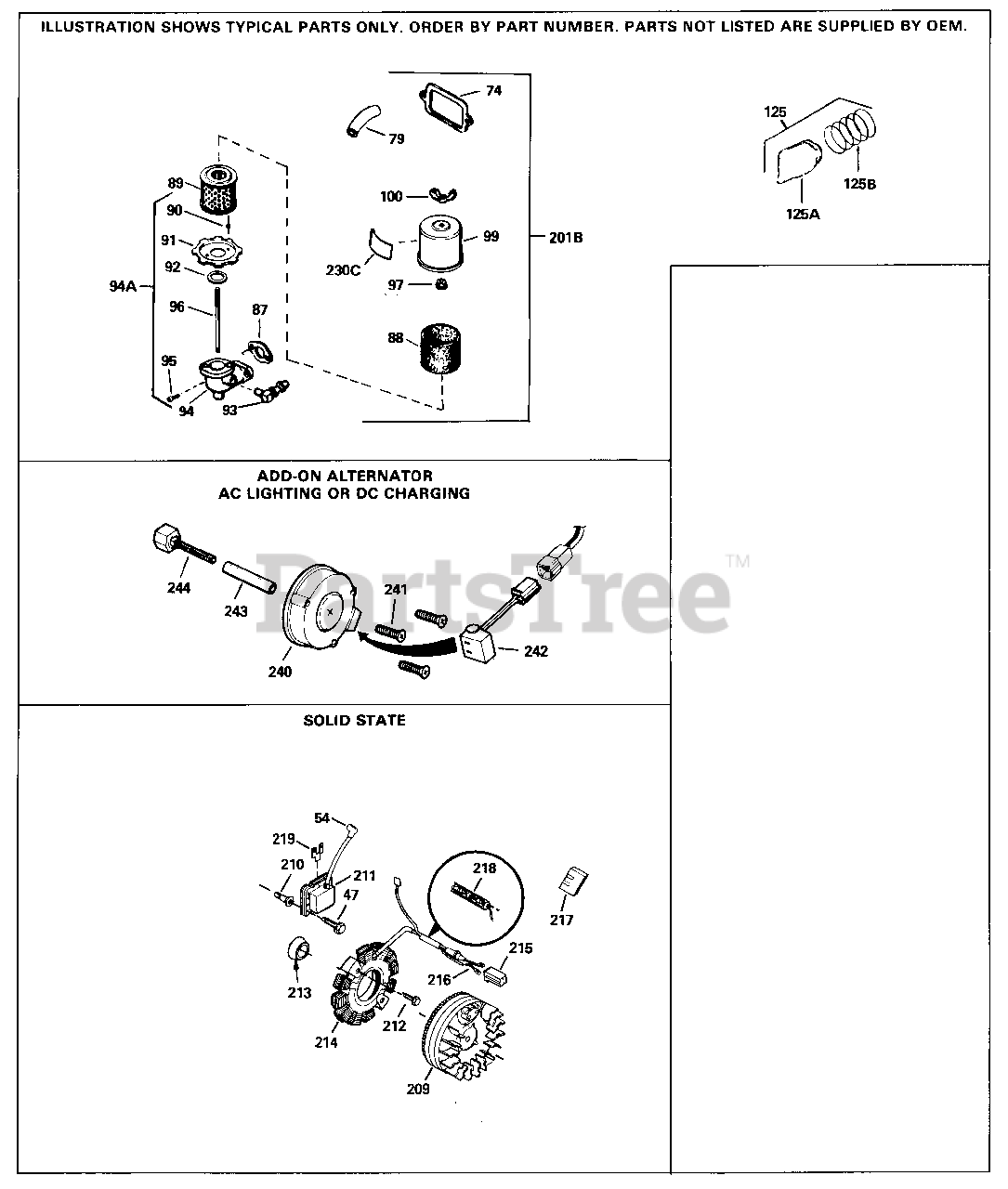

143.726092 - Craftsman Engine, Made by Tecumseh Engine Parts List #3 Parts Diagram

Engine, Made by Tecumseh

Engine Parts List #3 Parts Diagram

  • Title

35

Tecumseh 30588A

Spool, Governor

$1.99

$

In Stock, Qty 5

0

47

Tecumseh 650489

Screw, 1/4-20 x 5/8"

$

$

Not available

54

Tecumseh 610118

Cover, Spark plug (Use as required)

$6.49

$

In Stock, only 2 left!

0

74

Tecumseh 27896A

Valve Cover Gasket

$1.49

$

In Stock, Qty 5

0

79

Tecumseh 35350

Breather Tube

$6.49

$

In Stock, only 1 left!

0

87

Tecumseh 27272A

* Air Cleaner Gasket (Use as required)

$4.49

$

In Stock, Qty 20+

0

87

Tecumseh 30767

Spacer, Cleaner (Use as required)

$

$

Not available

94A

Tecumseh 34819

Elbow Assy., Air cleaner (Incl. 90,91 ,92,93,94,96) (Use in 730561 assembly only)

$

$

Not available

201B

Tecumseh 730561

Air Cleaner Kit (Incl. 74,79,80,87,88 ,89,90,91,92,94,95,96,97,99,100 & 230 C) (Used only on engine with an exter nally vented fully adjustable carbure tor)

$

$

Not available

240

Tecumseh 611077

Alternator (Optional)

$

$

Not available

241

Tecumseh 650868

Screw, 8-18 x 1-1/8" (3 required) Opt .

$

$

Currently unavailable

242

Tecumseh 611078

Connector, A.C. Lighting (Optional)

$

$

Currently unavailable

242

Tecumseh 611079

Connector, D.C. Charging (Optional)

$

$

Currently unavailable

243

Tecumseh 590610

Tube, Centering (Optional)

$

$

Not available

244

Tecumseh 590613

Alternator Shaft (Optional)

$

$

Not available
