143.716332 - Craftsman Engine, Made by Tecumseh Engine Parts List #2 Parts Diagram

Engine, Made by Tecumseh

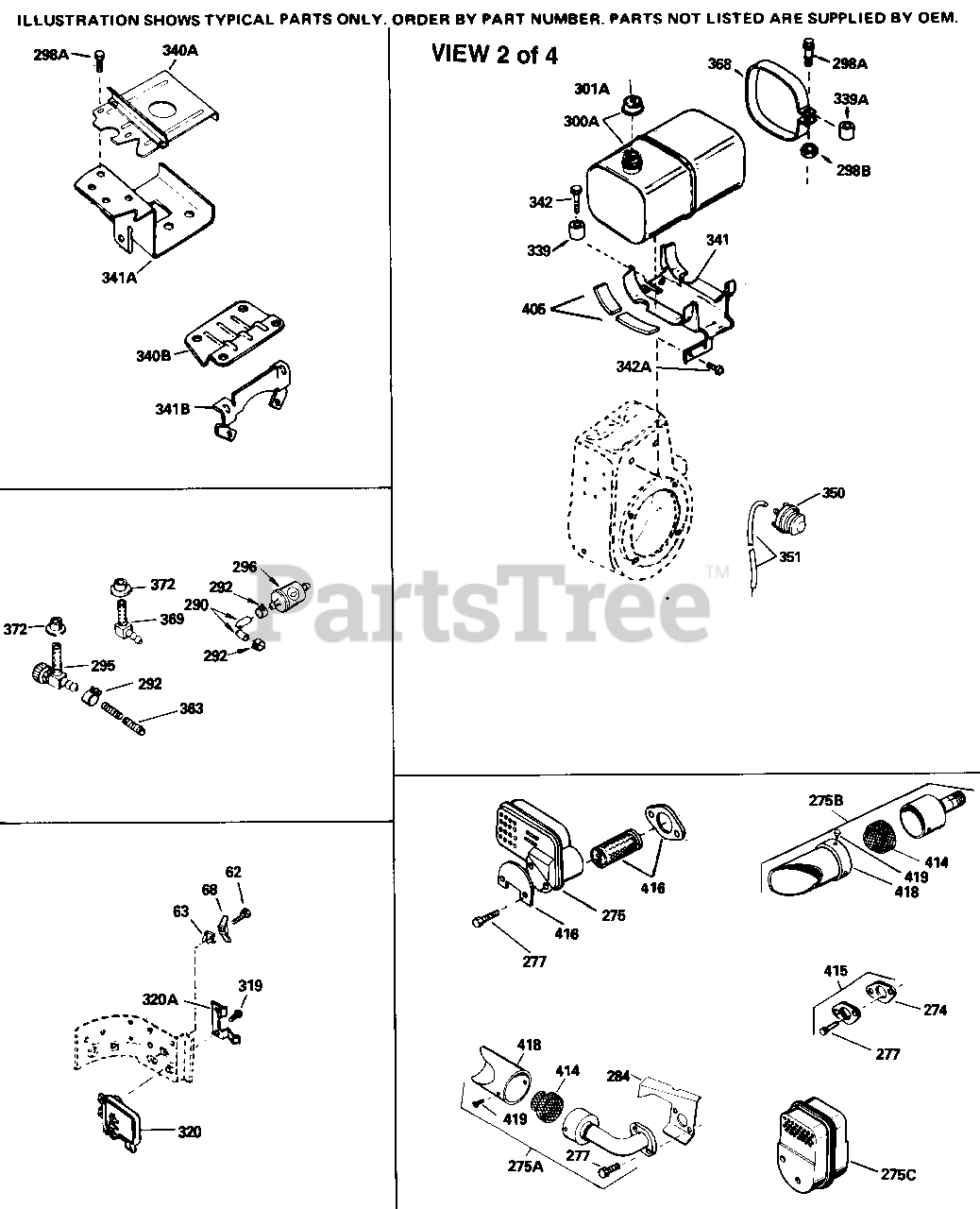

Engine Parts List #2 Parts Diagram

  • Title

37A

Tecumseh 30322

Lock Nut, 8-32

$1.99

$

Usually ships in 3-12 days

0

62

Tecumseh 650760

Screw, 8-32 x 3/8"

$1.99

$

In Stock, only 3 left!

0

63

Tecumseh 28545

Breather Tube Grommet

$1.99

$

In Stock, Qty 5

0

68

Tecumseh 33356

Tab, Ground terminal

$1.99

$

In Stock, Qty 5

0

222A

Pop Rivet (Can be purchased locally)

$

$

Not available

241

Tecumseh 33266

Bracket, Air cleaner

$9.49

$

In Stock, only 1 left!

0

274

Tecumseh 35865

Gasket, Exhaust

$2.49

$

In Stock, only 4 left!

0

275B

Tecumseh 391026

Muffler (Incl. 284, 284A & 416) (This spark arrester mufflercan be used on any model.)
(Superseded to 36248)

$76.99

$

Usually ships in 3-12 days

0

277

Tecumseh 650729

Screw, 5/16-18 x 3-3/16" Use as requi red

$1.99

$

In Stock, Qty 5

0

277

Tecumseh 651002

Screw, 5/16-18 x 4-1/4" Use as requir ed

$4.49

$

In Stock, Qty 12

0

290

Tecumseh 29774

Fuel Line (8.62") equired)

$34.99

$

In Stock, Qty 6

0

290

Tecumseh 30962

Fuel Line (Braided 32")(80cm) As requ ired

$30.99

$

In Stock, Qty 6

0

292

Tecumseh 26460

Fuel Line Clamp

$1.49

$

In Stock, Qty 10

0

301A

Tecumseh 33032

Fuel Cap (Red 1-1/2" ID) (also availa ble in Packaged Part #740005B) (Red Plastic) (Spurt Resistant, Low Profil e) (Use as required) (1.5" I.D.)

$7.49

$

In Stock, only 1 left!

0

301A

Tecumseh 34210

Fuel Cap (Red Plastic) (Spurt Resista nt, High Profile) (Use as required) ( 1.5" I.D.)

$8.49

$

In Stock, Qty 12

0

301A

Tecumseh 35355

Fuel Cap (Red)
(Superseded to 37845)

$8.99

$

In Stock, Qty 11

0

301A

Tecumseh 410144B

Fuel Cap (White Plastic)(Standard) (U se as required) (1.5" I.D.)
(Superseded to 33032)

$7.49

$

In Stock, only 1 left!

0

338A

Tecumseh 31291

Plug, Cover

$

$

Currently unavailable

341

Tecumseh 34155

Bracket, Lower fuel tank mtg.

$

$

Not available

342

Tecumseh 650561

Screw, 1/4-20 x 5/8"

$1.99

$

In Stock, only 2 left!

0

414

Tecumseh 33323

Opt.Muffler Screen Mini-Bike applica tion

$12.99

$

Usually ships in 3-12 days

0

415

Tecumseh 730130

Kit, Exhaust adapter Incl. 274 & 277

$

$

Not available

418

Tecumseh 33700

Cover & Tube, Muffler use as require d

$

$

Currently unavailable

419

Tecumseh 650578

Screw, 8-18 x 3/8" (use as required)

$1.99

$

In Stock, only 2 left!

0

421

Tecumseh 730226A

SAE 5W30 4-Cycle Engine Oil - Quart - Winter
(Superseded to 730226B)

$13.99

$

In Stock, Qty 10

0

422

Tecumseh 35824

Muffler Optional

$123.99

$

Usually ships in 3-12 days

0
