143.716062 - Craftsman Engine, Made by Tecumseh Engine Parts List #3 Parts Diagram

Engine, Made by Tecumseh

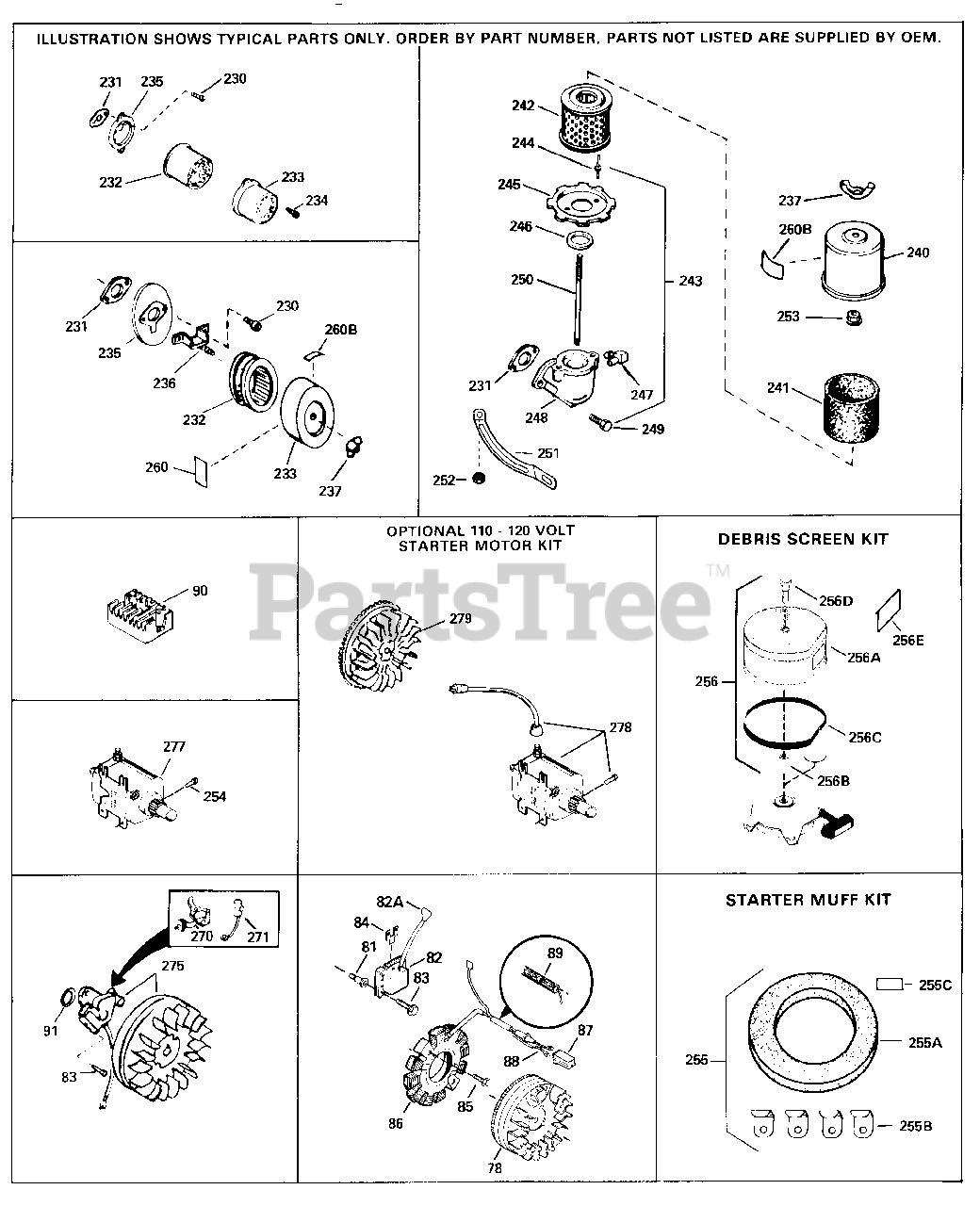

Engine Parts List #3 Parts Diagram

  • Title

82A

Tecumseh 27276

Spark Plug Cover
(Superseded to 610118)

$6.49

$

In Stock, only 3 left!

0

82A

Tecumseh 610118

Cover, Spark plug (Use as required)

$6.49

$

In Stock, only 3 left!

0

83

Tecumseh 650489

Screw, 1/4-20 x 5/8"

$

$

Not available

91

Tecumseh 33876

Gasket, Stator

$5.49

$

Usually ships in 3-12 days

0

98

Tecumseh 6021A

Screw, 5/16-18 x 1-1/2" Use as requir ed, but do notuse No. 650691 washer.

$1.99

$

In Stock, only 3 left!

0

98

Tecumseh 650692

Screw, 5/16-18 x 1-3/4" Use as requir ed

$

$

Not available

98

Tecumseh 650711

Screw, 5/16-18 x 1-5/8" (Use as requi red) (Can use No. 6021A but discard N o. 650691 washer.)

$1.99

$

Usually ships in 3-12 days

0

230

Tecumseh 28820

Screw, 10-32 x 1/2"
(Superseded to 651081)

$4.49

$

In Stock, only 3 left!

0

231

Tecumseh 27272A

* Gasket, Air cleaner

$4.49

$

In Stock, Qty 20+

0

232

Tecumseh 33268

Air Filter (Paper) also available in Packaged Part #740027B

$13.99

$

In Stock, Qty 7

0

233

Tecumseh 33269A

Cover, Air cleaner

$19.99

$

In Stock, only 1 left!

0

235

Tecumseh 33266

Bracket, Air cleaner

$9.49

$

In Stock, only 1 left!

0

236

Tecumseh 33267

Bracket, Air cleaner

$7.49

$

In Stock, only 1 left!

0

237

Tecumseh 650513

Nut, Wing, 1/4-20
(Superseded to 650825)

$1.99

$

In Stock, only 2 left!

0

255A

Tecumseh 34687

Air Cleaner, Starter Can be used on H M70 with diecast starter

$19.99

$

Usually ships in 3-12 days

0

255C

Tecumseh 34870

Instruction Decal Can be used on HM70 with diecast starter.

$

$

Currently unavailable

255

Tecumseh 730572

Starter Muff Kit (Incl. 255A, 255B, & 255C) Can be used on HM70 with diec ast starter

$

$

Not available

255B

Tecumseh 34869

Bracket, Starter air cleaner Can be u sed on HM70 with diecast starter

$7.99

$

Usually ships in 3-12 days

0

256D

Tecumseh 650907

Screw, 5/16-18 x 1-5/8" Can be used o n HM70 with stamped steel recoil star ter

$

$

Not available

256B

Tecumseh 35569

Spacer, Screen Can be used on HM70 wi th stamped steel recoil starter

$7.49

$

Usually ships in 3-12 days

0

256

Tecumseh 730573

Debris Screen Kit (Incl. 256A thru 25 6E) Can be used on HM70 with sta mped steel recoil starter

$

$

Not available

256C

Tecumseh 35570

Seal, Screen Can be used on HM70 with stamped steel recoil starter

$

$

Not available

256A

Tecumseh 35568

Debris Screen Can be used on HM70 wit h stamped steel recoil starter

$

$

Not available

256E

Tecumseh 34387

Instruction Decal Can be used on HM70 with stamped steel recoil starter.

$2.49

$

In Stock, only 1 left!

0

270

Tecumseh 30547A

Breaker Points (also available in Pac kaged Part #740037B)

$18.99

$

In Stock, only 1 left!

0

271

Tecumseh 30548B

Condenser (also available in Packaged Part #740037B)

$13.99

$

In Stock, Qty 9

0

275

Tecumseh 610842

Magneto NOTE: The complete magneto i s not available as an assembly. The magneto number is shown for reference purposes only. Order component part s individually, as shown in parts lis t. (Refer to Division 5, Section B, p age 28 for breakdown)

$

$

Currently unavailable

278

Tecumseh 33329D

Starter Motor Kit (110-120 Volt) This 110-120 volt starter motor kit may h ave been added to this engine. It can be added only if cylinder hasdrilled and tapped starter mounting bosses a nd a ring gear flywheel has been adde d (see #279). Refer to s
(Superseded to 33329E)

$

$

Not available

279

Tecumseh 610847

Flywheel (Ring gear flywheel required on engine using 110-120 Volt starter motor kits listed above.) (Use on Std . point ignition)

$

$

Not available

279

Tecumseh 611091

Flywheel (Minimum ring gear flywheel required on engine using 110-120 Volt starter motor kits listed above.) (U se on Solid State ignition)

$

$

Not available
