143.716062 - Craftsman Engine, Made by Tecumseh Engine Parts List #1 Parts Diagram

Engine, Made by Tecumseh

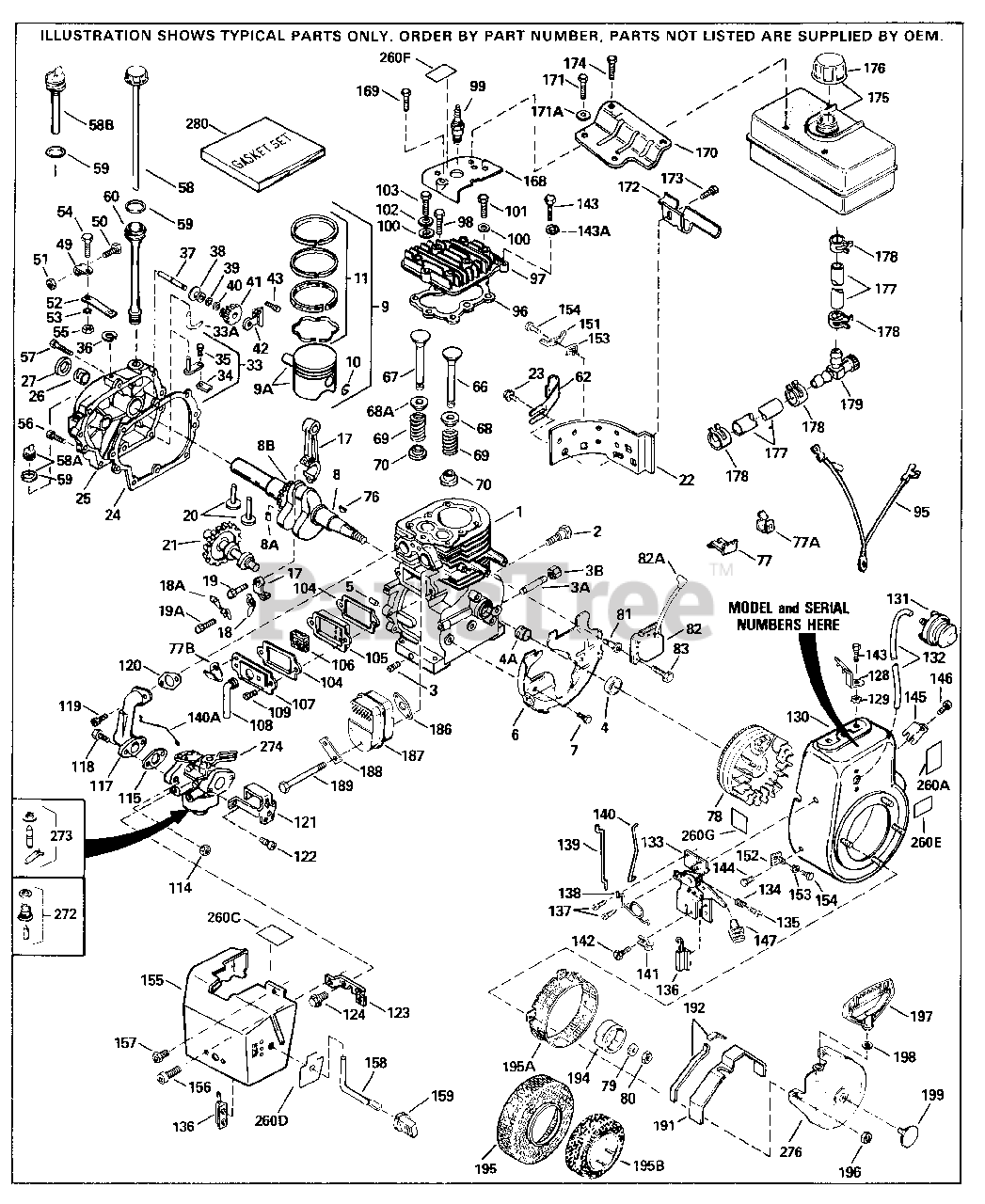

Engine Parts List #1 Parts Diagram

  • Title

1

Tecumseh 34347A

"Cylinder (Incl. 3, 4 & 5) 2-15/16" Bo re

$

$

Currently unavailable

3

Tecumseh 27642

Oil Drain Plug (Sq. hd., 1/4-18)

$1.99

$

In Stock, only 2 left!

0

4

Tecumseh 32630

Seal, Oil

$8.49

$

In Stock, only 1 left!

0

5

Tecumseh 27652

Dowel Pin

$2.49

$

Usually ships in 3-12 days

0

6

Tecumseh 29536

Blower Housing Baffle (No knock-out f or electric start) (Use as required)

$18.99

$

Usually ships in 3-12 days

0

6

Tecumseh 35256A

Blower Housing Baffle (With knock-out for electricstart) (Use as required)

$19.99

$

Usually ships in 3-12 days

0

7

Tecumseh 650561

Screw, 1/4-20 x 5/8"

$1.99

$

In Stock, only 2 left!

0

8B

Tecumseh 33245

Crankshaft Gear Used on early product ion

$

$

Not available

8A

Tecumseh 29783

Pin, Crankshaft gear od.)

$1.99

$

Usually ships in 3-12 days

0

8

Tecumseh 33453A

Crankshaft

$

$

Currently unavailable

9A

Tecumseh 34321A

Piston & Pin Ass'y. (Std.)(Incl. 10) 2-15/16"

$40.99

$

Usually ships in 3-12 days

0

9A

Tecumseh 34322A

Piston & Pin Ass'y. (.010" OS) Incl. 10

$

$

Not available

9A

Tecumseh 34323A

Piston & Pin Ass'y. (.020" OS) Incl. 10

$45.99

$

Usually ships in 3-12 days

0

9

Tecumseh 34549

Piston, Pin & Ring Set (Std.) 2-15/1 6"

$82.99

$

Usually ships in 3-12 days

0

9

Tecumseh 34550

Piston, Pin & Ring Set (.010" OS)

$88.99

$

Usually ships in 3-12 days

0

9

Tecumseh 34551

Piston, Pin & Ring Set (.020" OS)

$94.99

$

Usually ships in 3-12 days

0

10

Tecumseh 27888

Piston Pin Retaining Ring

$1.99

$

Usually ships in 3-12 days

0

11

Tecumseh 34324

Ring Set (Std.) (2-15/16" Bore)

$30.99

$

Usually ships in 3-12 days

0

11

Tecumseh 34325

Ring Set (.010" OS)

$43.99

$

Usually ships in 3-12 days

0

11

Tecumseh 34326

Ring Set (.020" OS)

$44.99

$

In Stock, only 1 left!

0

17

Tecumseh 32591C

Rod Assy., Connecting (Incl. 18 & 19)

$

$

Not available

18

Tecumseh 34242

Dipper, Oil

$

$

Not available

18A

Tecumseh 32590

Plate, Lock & Oil dipper This plate m ay be replaced by No. 34242 oil dippe r but No. 650662C screw must be used.

$

$

Not available

19

Tecumseh 650662C

Bolt, Connecting rod (2 pcs.)

$3.99

$

Usually ships in 3-12 days

0

20

Tecumseh 34034

Lifter, Valve
(Superseded to 34034A)

$10.99

$

In Stock, only 3 left!

0

21

Tecumseh 34143

Camshaft (MCR)

$92.99

$

Usually ships in 3-12 days

0

22

Tecumseh 33273A

Extension, Blower housing

$7.49

$

Usually ships in 3-12 days

0

23

Tecumseh 650128

Screw, 10-24 x 1/2"

$5.49

$

In Stock, only 1 left!

0

24

Tecumseh 35262

* Gasket, Cylinder cover
(Superseded to 37342)

$11.99

$

Usually ships in 3-12 days

0

25

Tecumseh 33367B

Cover, Cylinder Incl. 26, 27, 37, 58 A & 59

$

$

Not available

26

Tecumseh 33368

Bushing, Crankshaft

$

$

Not available

27

Tecumseh 31950

Seal, Oil

$17.99

$

In Stock, only 1 left!

0

33

Tecumseh 30699C

Rod Assy., Governor (Incl. 34 & 35)

$17.99

$

In Stock, only 1 left!

0

33A

Tecumseh 30699B

Rod, Governor This one piece governor rod is no longer used. It is replace d by No. 30699C assembly, Ref. No. 5A .
(Superseded to 30699C)

$17.99

$

In Stock, only 1 left!

0

34

Tecumseh 30700

Yoke, Governor

$1.99

$

Usually ships in 3-12 days

0

35

Tecumseh 650494

Screw, 6-40 x 5/16"

$1.99

$

Usually ships in 3-12 days

0

36

Tecumseh 29642

Retaining Ring

$100.99

$

In Stock, only 1 left!

0

37

Tecumseh 31845

Shaft, Mechanical governor
(Superseded to 37587)

$

$

Not available

38

Tecumseh 30588A

Spool, Governor

$1.99

$

In Stock, Qty 5

0

39

Tecumseh 30590A

Washer, Flat

$1.99

$

In Stock, Qty 5

0

40

Tecumseh 29193

Retaining Ring

$1.99

$

In Stock, only 4 left!

0

41

Tecumseh 30591

Gear Assy., Governor (Incl. 39)

$13.99

$

Usually ships in 3-12 days

0

42

Tecumseh 33369

Bracket, Governor gear

$8.49

$

In Stock, only 1 left!

0

43

Tecumseh 650836

Screw, 10-24 x 1/2"
(Superseded to 650965)

$

$

Not available

49

Tecumseh 29916

Governor Lever Clamp

$1.99

$

In Stock, only 1 left!

0

50

Tecumseh 29826

Screw, 10-32 x 3/4"

$1.99

$

In Stock, only 3 left!

0

51

Tecumseh 29216

Lock Nut, 10-32

$1.99

$

In Stock, only 2 left!

0

52

Tecumseh 33454

Lever Assy., Governor
(Superseded to 33454A)

$10.99

$

In Stock, only 1 left!

0

53

Tecumseh 29918

Lock Washer #8

$1.99

$

In Stock, only 4 left!

0

54

Tecumseh 650548

Screw, 8-32 x 5/16"
(Superseded to 651018)

$1.99

$

In Stock, Qty 5

0

55

Tecumseh 30322

Lock Nut, 8-32

$1.99

$

Usually ships in 3-12 days

0

56

Tecumseh 650832

Screw, 1/4-20 x 1-11/16"

$

$

Not available

57

Tecumseh 650833

Screw, 1/4-20 x 1-3/16"

$1.99

$

Usually ships in 3-12 days

0

58

Tecumseh 34122A

Dipstick (Incl. 59)

$

$

Not available

58A

Tecumseh 27625

Oil Fill Plug (Incl. 312) also availa ble in Packaged Part #740079

$2.49

$

In Stock, Qty 5

0

59

Tecumseh 29673

* Gasket, Oil fill

$1.99

$

In Stock, only 2 left!

0

60

Tecumseh 33951A

Oil Fill Tube

$11.99

$

Usually ships in 3-12 days

0

66

Tecumseh 27878A

Exhaust Valve (Std.)(Incl. 151)

$23.99

$

Usually ships in 3-12 days

0

66

Tecumseh 27880A

Exhaust Valve (1/32" OS) (Incl. 151)

$

$

Not available

67

Tecumseh 34035

Intake Valve (Std.) (Incl. 70)

$15.99

$

Usually ships in 3-12 days

0

67

Tecumseh 34036

Intake Valve (1/32" OS) (Incl. 70)

$

$

Not available

68

Tecumseh 27882

Valve Spring Cap

$1.99

$

In Stock, Qty 5

0

68A

Tecumseh 27882

Valve Spring Cap

$1.99

$

In Stock, Qty 5

0

69

Tecumseh 27881

Valve Spring

$3.99

$

Usually ships in 3-12 days

0

70

Tecumseh 32581

Cap, Lower valve spring

$6.49

$

In Stock, Qty 8

0

76

Tecumseh 32589

Key, Flywheel

$1.49

$

In Stock, only 4 left!

0

79

Tecumseh 650815

Washer, Belleville

$1.99

$

In Stock, Qty 10

0

80

Tecumseh 8116

Nut, Hex

$1.99

$

In Stock, only 4 left!

0

82A

Tecumseh 27276

Spark Plug Cover
(Superseded to 610118)

$6.49

$

In Stock, only 2 left!

0

82A

Tecumseh 610118

Cover, Spark plug (Use as required)

$6.49

$

In Stock, only 2 left!

0

83

Tecumseh 650489

Screw, 1/4-20 x 5/8"

$

$

Not available

95

Tecumseh 30831

Ground Wire (Incl. 164)

$5.49

$

In Stock, only 1 left!

0

96

Tecumseh 34327A

* Gasket, Cylinder head

$

$

Not available

97

Tecumseh 34030

Head, Cylinder
(Superseded to 34030B)

$

$

Not available

98

Tecumseh 6021A

Screw, 5/16-18 x 1-1/2" Use as requir ed, but do notuse No. 650691 washer.

$1.99

$

In Stock, Qty 6

0

98

Tecumseh 650692

Screw, 5/16-18 x 1-3/4" Use as requir ed

$

$

Not available

98

Tecumseh 650711

Screw, 5/16-18 x 1-5/8" (Use as requi red) (Can use No. 6021A but discard N o. 650691 washer.)

$1.99

$

Usually ships in 3-12 days

0

99

Tecumseh 34251

Resistor Spark Plug (RJ17LM)
(Superseded to 33636)

$5.99

$

In Stock, Qty 8

0

100

Tecumseh 650691

Washer (Use as req.) Do not use w/60 21A

$1.99

$

Usually ships in 3-12 days

0

101

Tecumseh 650727

Screw, 5/16-18 x 1-3/4" Use as requir ed

$3.99

$

In Stock, only 2 left!

0

104

Tecumseh 27896A

* Gasket, Breather

$1.49

$

In Stock, only 3 left!

0

105

Tecumseh 28423

Breather Body

$13.99

$

In Stock, only 1 left!

0

106

Tecumseh 28424

Breather Element

$3.99

$

In Stock, Qty 8

0

107

Tecumseh 28425

Valve Cover

$7.49

$

In Stock, only 1 left!

0

108

Tecumseh 35350

Breather Tube

$6.49

$

Usually ships in 3-12 days

0

109

Tecumseh 650128

Screw, 10-24 x 1/2"

$5.49

$

In Stock, only 1 left!

0

114

Tecumseh 29752

Nut & Lock Washer 1/4-28

$1.99

$

In Stock, Qty 7

0

115

Tecumseh 33263

* Gasket, Carburetor

$1.49

$

In Stock, Qty 16

0

117

Tecumseh 34707

Pipe, Intake

$33.99

$

In Stock, only 1 left!

0

118

Tecumseh 30088A

Screw, 1/4-28 x 1"

$1.99

$

In Stock, only 2 left!

0

119

Tecumseh 650378

Screw, Torx T-30, 5/16-18 x 1-1/8"

$1.99

$

In Stock, only 3 left!

0

120

Tecumseh 27915A

* Gasket, Intake

$5.99

$

In Stock, Qty 13

0

128

Tecumseh 30747

Clip, Spark plug shorting

$6.99

$

In Stock, only 2 left!

0

129

Tecumseh 650890

Washer, Lock

$1.99

$

In Stock, only 2 left!

0

130

Tecumseh 33375C

Blower Housing (For electric starter)
(Superseded to 33375E)

$

$

Not available

136

Tecumseh 610973

Terminal Assy. (Use as required)

$3.99

$

In Stock, only 4 left!

0

140

Tecumseh 33878

Link, Governor lever-to-throttle

$6.99

$

Usually ships in 3-12 days

0

143

Tecumseh 650788

Screw, 5/16-18 x 3/4"

$1.99

$

In Stock, only 1 left!

0

144

Tecumseh 29747B

Screw, T-40, 5/16-24 x 21/32"

$1.99

$

In Stock, Qty 9

0

145

Tecumseh 33013

Cover, Starter bubble

$3.99

$

Usually ships in 3-12 days

0

146

Tecumseh 650760

Screw, 8-32 x 3/8"

$1.99

$

In Stock, Qty 7

0

151

Tecumseh 33356

Terminal, Ground

$1.99

$

In Stock, only 4 left!

0

153

Tecumseh 28545

Breather Tube Grommet

$1.99

$

In Stock, only 4 left!

0

154

Tecumseh 650760

Screw, 8-32 x 3/8"

$1.99

$

In Stock, Qty 7

0

158

Tecumseh 34586

Rod, Choke

$5.49

$

Usually ships in 3-12 days

0

168

Tecumseh 33272A

Cover, Cylinder head
(Superseded to 33272D)

$7.49

$

In Stock, only 1 left!

0

169

Tecumseh 650713

Screw, 5/16-18 x 5/8" Use as require d
(Superseded to 651055)

$1.99

$

In Stock, only 1 left!

0

169

Tecumseh 650737

Screw, 1/4-20 x 1/2" Use as required

$1.99

$

In Stock, Qty 6

0

169

Tecumseh 650738

Screw, 1/4-20 x 5/8" Use as required

$3.99

$

In Stock, only 1 left!

0

169

Tecumseh 650802

Screw, 1/4-20 x 5/8" Use as required

$1.99

$

In Stock, Qty 5

0

170

Tecumseh 34154

Plate, Upper fuel tank mounting

$

$

Not available

171

Tecumseh 650713

Screw, 5/16-18 x 5/8" Use as require d
(Superseded to 651055)

$1.99

$

In Stock, only 1 left!

0

172

Tecumseh 34155

Bracket Assy., Lower fuel tank mtg.

$

$

Not available

173

Tecumseh 650561

Screw, 1/4-20 x 5/8"

$1.99

$

In Stock, only 2 left!

0

174

Tecumseh 650665

Screw, 1/4-15 x 7/8"

$1.99

$

Usually ships in 3-12 days

0

175

Tecumseh 34156A

Fuel Tank (Incl. 176 & 178) NOTE: Th ese tanks were built with different s ize fuel inlet openings. Tanks with t he 1-3/16" I.D. opening use fuel cap 33032 or 34210. Tanks with the 1-1/2 " I.D. opening use fuel cap 35355.

$54.99

$

Usually ships in 3-12 days

0

176

Tecumseh 33032

Fuel Cap (Red 1-1/2" ID) (also availa ble in Packaged Part #740005B) (Red Plastic) (Spurt Resistant, Low Profil e) (Use as required)

$7.49

$

Usually ships in 3-12 days

0

176

Tecumseh 34210

Fuel Cap (Ref Plastic) (Spurt Resista nt, High Profile) (Use as required)

$8.49

$

In Stock, Qty 11

0

176

Tecumseh 35355

Fuel Cap (Red) ed)
(Superseded to 37845)

$8.99

$

In Stock, Qty 5

0

176

Tecumseh 410144B

Fuel Cap (White Plastic) (Std) Use as req.
(Superseded to 33032)

$7.49

$

Usually ships in 3-12 days

0

177

Tecumseh 29774

Fuel Line (8.62") 21 cm)

$34.99

$

In Stock, Qty 5

0

177

Tecumseh 30705

Fuel Line (Use as required) (16.0") 41 cm

$16.99

$

In Stock, only 4 left!

0

178

Tecumseh 26460

Fuel Line Clamp

$1.49

$

In Stock, Qty 20+

0

186

Tecumseh 27930A

* Gasket, Exhaust (Use as required)
(Superseded to 35865)

$2.49

$

In Stock, only 4 left!

0

195B

Tecumseh 33662

Hub & Screen Assy., Starter

$25.99

$

In Stock, only 2 left!

0

196

Tecumseh 29752

Nut & Lock Washer 1/4-28

$1.99

$

In Stock, Qty 7

0

273

Tecumseh 631725

Inlet Needle, Seat & Clip Assy.

$

$

Not available

274

Tecumseh 632008

Carburetor (Incl. 115) (Refer to Divi sion 5, Section A, page 150 for break down)
(Superseded to 631864A)

$

$

Not available

276

Tecumseh 590479

Rewind Starter Refer to Division 5, S ection C, page 30 for breakdown
(Superseded to 590685B)

$68.99

$

Usually ships in 3-12 days

0

280

Tecumseh 33279G

* Gasket Set (Incl. items marked *)
(Superseded to 33279L)

$

$

Not available
