143.607022 - Craftsman Engine, Made by Tecumseh Engine Parts List #1 Parts Diagram

Engine, Made by Tecumseh

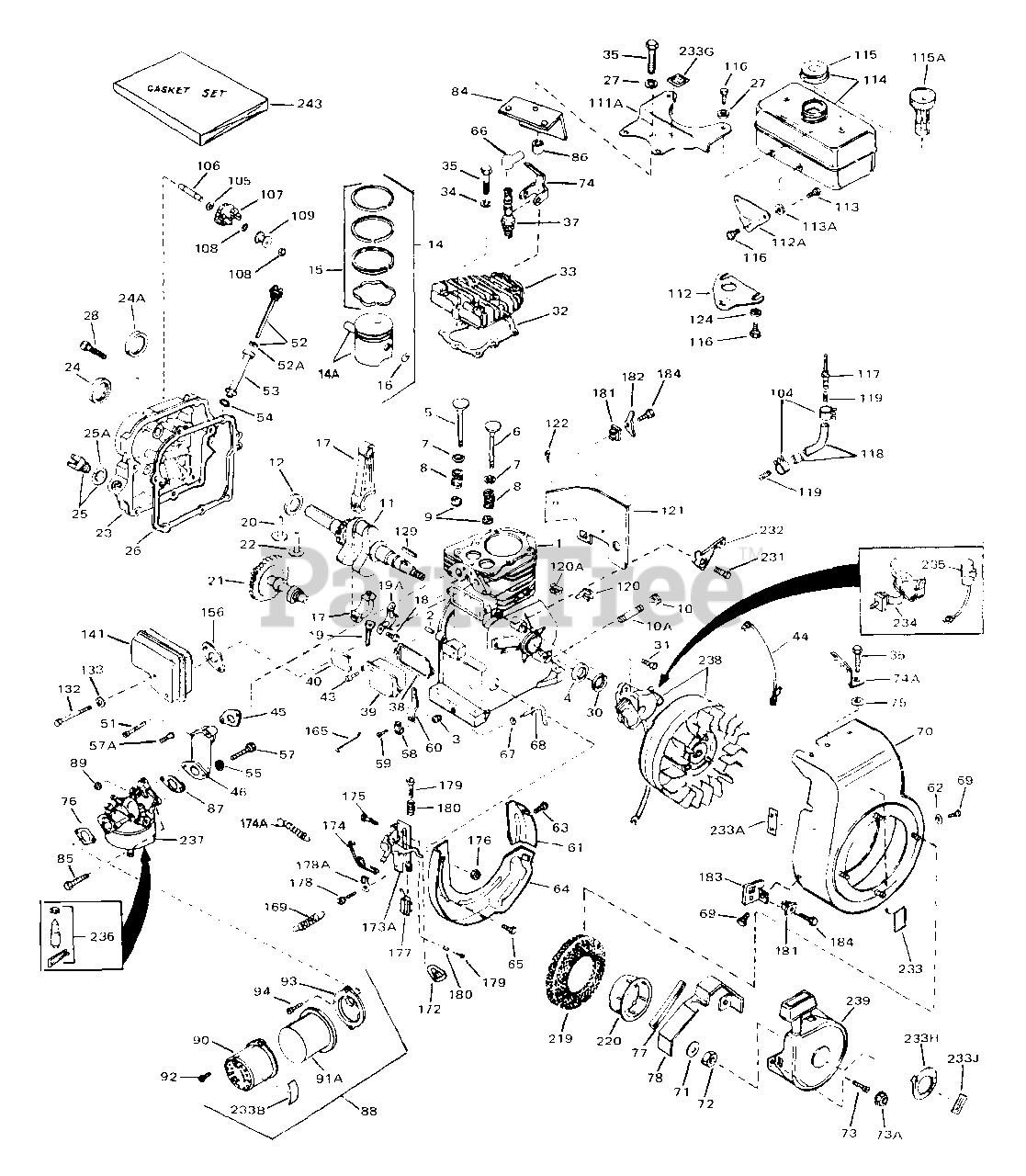

Engine Parts List #1 Parts Diagram

  • Title

1

Tecumseh 33014A

"Cylinder Assy. (2-5/8" Bore)
(Superseded to 36561)

$

$

Not available

2

Tecumseh 26727

Pin, Dowel

$1.99

$

In Stock, Qty 5

0

3

Tecumseh 27642

Plug, Sq. hd. pipe 1/4-18

$1.99

$

In Stock, only 2 left!

0

4

Tecumseh 32600

Seal, Oil

$

$

Not available

5

Tecumseh 32644A

Valve, Intake (Standard)

$9.99

$

In Stock, only 1 left!

0

5

Tecumseh 32645A

Valve, Intake (1/32" oversize)

$61.99

$

In Stock, only 2 left!

0

6

Tecumseh 29313C

Valve, Exhaust (Standard)

$

$

Not available

6

Tecumseh 29315C

Valve, Exhaust (1/32" oversize)

$

$

Not available

7

Tecumseh 31671

Cap, Upper valve spring

$1.49

$

In Stock, only 2 left!

0

8

Tecumseh 31672

Spring, Valve

$1.99

$

In Stock, Qty 14

0

9

Tecumseh 31673

Cap, Lower valve spring

$1.99

$

In Stock, only 1 left!

0

11

Tecumseh 32877A

Crankshaft Assy.

$

$

Not available

12

Tecumseh 32323

Washer, Thrust

$8.49

$

In Stock, only 1 left!

0

14

Tecumseh 34851

Piston, Pin & Ring Assy. (Std.) (2-5/ 8 Bore)
(Superseded to 35544A)

$60.99

$

In Stock, only 2 left!

0

14

Tecumseh 34852

Piston, Pin & Ring Assy. (.010 oversi ze)
(Superseded to 35545A)

$

$

Not available

14

Tecumseh 34853

Piston, Pin & Ring Assy. (.020 oversi ze)
(Superseded to 35546)

$

$

Not available

14A

Tecumseh 32603B

Piston & Pin Assy. (Standard) (2-5/8" Bore)
(Superseded to 35544A)

$60.99

$

In Stock, only 2 left!

0

14A

Tecumseh 32604B

Piston & Pin Assy. (.010 oversize)
(Superseded to 35545A)

$

$

Not available

14A

Tecumseh 32605B

Piston & Pin Assy. (.020 oversize)
(Superseded to 35546)

$

$

Not available

15

Tecumseh 34854

Ring Set, Piston (Standard) (2-5/8")

$

$

Not available

15

Tecumseh 34855

Ring Set, Piston (.010 oversize)

$

$

Not available

15

Tecumseh 34856

Ring Set, Piston (.020 oversize)

$

$

Not available

16

Tecumseh 20381

Ring, Piston pin retaining

$1.99

$

In Stock, Qty 7

0

17

Tecumseh 32875

Rod Assy., Connecting
(Superseded to 32875A)

$47.99

$

Usually ships in 3-12 days

0

18

Tecumseh 32610A

Screw, Connecting rod

$1.99

$

In Stock, Qty 6

0

19A

Tecumseh 32609

Plate, Lock

$0.99

$

Usually ships in 3-12 days

0

19

Tecumseh 32654

Dipper, Oil

$8.99

$

In Stock, only 4 left!

0

20

Tecumseh 32646

Lifter, Intake valve

$

$

Currently unavailable

21

Tecumseh 32701

Camshaft (Mech. Compression Release)

$

$

Currently unavailable

22

Tecumseh 27241

Lifter, Exhaust valve

$5.49

$

In Stock, only 2 left!

0

23

Tecumseh 30756B

Cover, Cylinder
(Superseded to 30756C)

$108.99

$

Usually ships in 3-12 days

0

23

Tecumseh 32700A

Cover, Cylinder
(Superseded to 32700B)

$

$

Not available

24

Tecumseh 27897

Seal, Oil

$8.49

$

In Stock, only 2 left!

0

25

Tecumseh 27625

Plug, Oil filler

$2.49

$

In Stock, Qty 7

0

25A

Tecumseh 29673

Gasket, Oil filler

$1.99

$

In Stock, only 3 left!

0

26

Tecumseh 27677

Gasket, Cylinder cover
(Superseded to 27677A)

$7.49

$

In Stock, Qty 7

0

28

Tecumseh 30564

Screw, Hex hd. Sems, 1/4-20 x 1
(Superseded to 650451)

$1.99

$

In Stock, only 4 left!

0

32

Tecumseh 33015

Gasket, Cylinder head
(Superseded to 33015A)

$11.99

$

Usually ships in 3-12 days

0

33

Tecumseh 33016

Head, Cylinder
(Superseded to 37675)

$41.99

$

In Stock, only 1 left!

0

34

Tecumseh 26073

Washer, Flat

$

$

Not available

35

Tecumseh 6021A

Screw, Hex flange hd., 5/16-18 x 1-1/ 2

$1.99

$

In Stock, only 3 left!

0

35

Tecumseh 650694A

Screw, Hex flange hd., 5/16-18 x 2

$3.49

$

In Stock, Qty 20+

0

35

Tecumseh 650696

Screw, Hex hd., 5/16-18 x 2-3/4

$3.99

$

In Stock, only 2 left!

0

37

Tecumseh 33636

Plug, Spark (Champion J-8 or equivale nt)

$5.49

$

In Stock, Qty 13

0

37

Tecumseh 34251

Resistor Spark Plug
(Superseded to 33636)

$5.49

$

In Stock, Qty 13

0

38

Tecumseh 31619

Gasket, Breather
(Superseded to 31619A)

$7.49

$

In Stock, only 2 left!

0

39

Tecumseh 31337

Breather Assy.
(Superseded to 31337B)

$18.99

$

In Stock, only 1 left!

0

40

Tecumseh 31410

Element, Breather

$1.99

$

In Stock, Qty 20+

0

43

Tecumseh 650128

Screw, Fil. hd. Sems, 10-24 x 1/2

$5.49

$

In Stock, only 2 left!

0

44

Tecumseh 30831

Wire, Ground (Female fittings both en ds)

$5.49

$

In Stock, only 1 left!

0

45

Tecumseh 32649

Gasket, Intake
(Superseded to 32649A)

$2.99

$

In Stock, Qty 18

0

46

Tecumseh 32699

Pipe, Intake

$

$

Not available

51

Tecumseh 30646

Screw, Fil. hd. Sems, 1/4-20 x 1-3/8

$8.99

$

In Stock, only 2 left!

0

57

Tecumseh 6202

Screw, Hex hd., 1/4-28 x 1
(Superseded to 6201)

$

$

Not available

57A

Tecumseh 650601

Screw, Fil. hd., 1/4-28 x 2

$

$

Currently unavailable

59

Tecumseh 650548

Screw, Hex washer hd., 8-32 x 5/16
(Superseded to 651018)

$1.99

$

In Stock, Qty 9

0

60

Tecumseh 31510

Lever, Governor
(Superseded to 37735)

$13.99

$

In Stock, only 1 left!

0

64

Tecumseh 30658

Baffle, Blower housing

$

$

Currently unavailable

65

Tecumseh 650561

Screw, Hex washer hd. Durlok, 1/4-20 x 5/8

$1.99

$

In Stock, only 2 left!

0

66

Tecumseh 27276

Cover, Spark plug
(Superseded to 610118)

$6.49

$

In Stock, only 3 left!

0

66

Tecumseh 610118

Cover, Spark plug

$6.49

$

In Stock, only 3 left!

0

67

Tecumseh 28277

Washer, Flat

$1.99

$

In Stock, only 4 left!

0

68

Tecumseh 31334

Rod, Governor

$5.49

$

In Stock, only 1 left!

0

69

Tecumseh 29212

Screw, Hex hd. Sems, 1/4-28 x 7/16
(Superseded to 29716)

$1.49

$

In Stock, Qty 5

0

70

Tecumseh 30655A

Housing, Blower (5.56 Dia. starter mt g. bolt

$

$

Currently unavailable

71

Tecumseh 650815

Washer, Belleville

$1.99

$

In Stock, Qty 10

0

72

Tecumseh 650607

Nut, Flywheel

$1.99

$

In Stock, Qty 7

0

73

Tecumseh 29716

Screw, Pan hd. Sems, 1/4-28 x 7/16

$1.49

$

In Stock, Qty 5

0

74A

Tecumseh 30747

Clip, Spark plug shorting

$6.99

$

In Stock, only 2 left!

0

75

Tecumseh 16645

Lockwasher, 5/16
(Superseded to 650890)

$1.99

$

In Stock, only 2 left!

0

76

Tecumseh 27272

Gasket, Air cleaner
(Superseded to 27272A)

$4.49

$

In Stock, Qty 20+

0

84

Tecumseh 33344

Baffle, Heat

$5.49

$

In Stock, only 1 left!

0

86

Tecumseh 28212

Spacer

$1.99

$

In Stock, Qty 5

0

87

Tecumseh 26756

Gasket, Carburetor

$2.99

$

In Stock, Qty 8

0

88

Tecumseh 730127

Cleaner Assy., Air (Poly)

$46.99

$

In Stock, Qty 6

0

89

Tecumseh 29752

Nut & Lockwasher Assy., 1/4-28

$1.99

$

In Stock, Qty 5

0

90

Tecumseh 31715

Body, Air cleaner

$21.99

$

In Stock, Qty 7

0

92

Tecumseh 650152

Screw, Fil. hd. Sems, 8-32 x 3/8

$2.49

$

In Stock, only 3 left!

0

93

Tecumseh 31691

Bracket, Air cleaner

$22.99

$

In Stock, only 1 left!

0

94

Tecumseh 28820

Screw, Fil. hd. Sems, 10-32 x 1/2
(Superseded to 651081)

$4.49

$

Usually ships in 3-12 days

0

104

Tecumseh 26460

Clamp, Fuel line

$1.49

$

In Stock, Qty 6

0

105

Tecumseh 30590A

Washer, Flat

$1.99

$

In Stock, Qty 7

0

106

Tecumseh 30574

Shaft, Mechanical governor
(Superseded to 30574A)

$7.49

$

In Stock, only 4 left!

0

107

Tecumseh 30591

Gear Assy., Governor

$13.99

$

In Stock, only 1 left!

0

108

Tecumseh 29193

Ring, Retaining

$1.99

$

In Stock, only 4 left!

0

109

Tecumseh 30588A

Spool, Governor

$1.99

$

In Stock, only 4 left!

0

111A

Tecumseh 28371B

Bracket, Fuel tank upper
(Superseded to 36247)

$11.99

$

Usually ships in 3-12 days

0

112

Tecumseh 32762

Bracket, Fuel tank lower

$

$

Currently unavailable

112A

Tecumseh 28209

Bracket, Fuel tank lower

$

$

Currently unavailable

113A

Tecumseh 8345

Washer, Flat (1/4" Plain)

$1.99

$

In Stock, only 2 left!

0

113A

Tecumseh 650675

Washer, Flat (1/4")

$1.99

$

Usually ships in 3-12 days

0

113

Tecumseh 30688

Screw, Hex hd. Sems, 1/4-20 x 1/2
(Superseded to 30063)

$1.99

$

In Stock, Qty 20+

0

113

Tecumseh 650561

Screw, Hex hd. Durlok, 1/4-20 x 5/8

$1.99

$

In Stock, only 2 left!

0

113

Tecumseh 650751

Screw, Hex hd. w/conical spring washe r,

$1.99

$

In Stock, Qty 5

0

113

Tecumseh 650805

Screw, Hex hd. w/belleville washer, 1 /4-20 x
(Superseded to 650561)

$1.99

$

In Stock, only 2 left!

0

114

Tecumseh 34711

Tank Assy., Fuel (Black Poly) (2 qt.)
(Superseded to 35584)

$45.99

$

In Stock, only 4 left!

0

115

Tecumseh 410144B

Cap, Fuel filler (White plastic) (Sta ndard)
(Superseded to 33032)

$7.49

$

Usually ships in 3-12 days

0

115

Tecumseh 33032

Cap, Fuel filler (Red plastic)

$7.49

$

Usually ships in 3-12 days

0

115

Tecumseh 34210

Cap, Fuel filler (Red plastic) (Spurt

$8.49

$

In Stock, Qty 12

0

116

Tecumseh 650665

Screw, Hex washer hd. Sems, self-tap, 1/4-14

$1.99

$

Usually ships in 3-12 days

0

118

Tecumseh 29774

Line, Fuel (Braided 8.25")

$34.99

$

In Stock, Qty 6

0

118

Tecumseh 30705

Line, Fuel (Braided 16")

$16.99

$

In Stock, only 3 left!

0

118

Tecumseh 30962

Line, Fuel (Braided 32")

$30.99

$

In Stock, Qty 6

0

119

Tecumseh 28819

Spring, Fuel line

$

$

Not available

120

Tecumseh 29443

Clip, Fuel line

$1.99

$

In Stock, Qty 5

0

121

Tecumseh 29745

Extension, Blower housing

$3.99

$

Usually ships in 3-12 days

0

129

Tecumseh 610951

Key, Flywheel

$1.99

$

In Stock, only 3 left!

0

132

Tecumseh 650327

Screw, Fil. hd. Sems, 1/4-20 x 2-1/2
(Superseded to 650327A)

$6.99

$

In Stock, Qty 13

0

132

Tecumseh 650561

Screw, Hex washer hd. Durlok, 1/4-20 x 5/8

$1.99

$

In Stock, only 2 left!

0

132

Tecumseh 650774

Screw, Hex hd., 1/4-20 x 2-3/8

$1.99

$

In Stock, only 2 left!

0

132

Tecumseh 650795

Screw, Hex hd., 1/4-20 x 2-1/4

$1.99

$

In Stock, only 2 left!

0

165

Tecumseh 32698

Link, Governor-to-throttle

$1.99

$

Usually ships in 3-12 days

0

169

Tecumseh 31426

Spring, Extension

$3.99

$

In Stock, Qty 20+

0

173A

Tecumseh 730136A

Speed Control Assy.

$38.99

$

In Stock, only 2 left!

0

174

Tecumseh 32923

Spring, Torsion

$10.99

$

In Stock, Qty 11

0

174

Tecumseh 33857

Spring, Torsion

$7.49

$

In Stock, only 1 left!

0

175

Tecumseh 30200

Screw, Hex washer hd. Sems, self-tap, 10-24

$1.49

$

In Stock, Qty 10

0

175

Tecumseh 650139

Screw, Fil. hd., Sems, 8-32 x 1/2

$1.99

$

In Stock, only 4 left!

0

176

Tecumseh 30322

Nut, Lock, 8-32

$1.99

$

Usually ships in 3-12 days

0

177

Tecumseh 610973

Terminal Assy.

$3.99

$

In Stock, only 1 left!

0

179

Tecumseh 29500

Screw, Fil. hd. Sems, 8-32 x 3/4

$1.99

$

Usually ships in 3-12 days

0

179

Tecumseh 650688

Screw, Hex hd., 10-32 x 1 (Drilled th ru)

$3.99

$

Usually ships in 3-12 days

0

180

Tecumseh 28569

Spring, Compression

$11.99

$

In Stock, Qty 5

0

180

Tecumseh 32924

Spring, Compression

$1.99

$

In Stock, only 3 left!

0

219

Tecumseh 590417

Screen, Starter cup

$7.49

$

In Stock, only 1 left!

0

220

Tecumseh 590416

Cup, Starter

$9.99

$

Usually ships in 3-12 days

0

233A

Tecumseh 34374

Decal, Instruction
(Superseded to 36261)

$

$

Not available

233B

Tecumseh 31752

Decal, Air cleaner

$

$

Not available

234

Tecumseh 30547A

Contact Assy., Breaker

$18.99

$

In Stock, only 1 left!

0

235

Tecumseh 30548B

Condenser

$13.99

$

In Stock, Qty 9

0

236

Tecumseh 631021

Inlet Needle, Seat & Clip Assy.
(Superseded to 631021B)

$6.99

$

In Stock, Qty 5

0

237

Tecumseh 631537

Carburetor
(Superseded to 631795A)

$110.99

$

In Stock, only 1 left!

0

238

Tecumseh 610755

Magneto, Tecumseh

$

$

Currently unavailable

239

Tecumseh 590420

Starter, Rewind
(Superseded to 590420A)

$68.99

$

In Stock, only 2 left!

0

243

Tecumseh 33240

Gasket Set
(Superseded to 33240B)

$34.99

$

In Stock, only 2 left!

0
