143.434252 - Craftsman Engine, Made by Tecumseh Engine Parts List #1 Parts Diagram

Engine, Made by Tecumseh

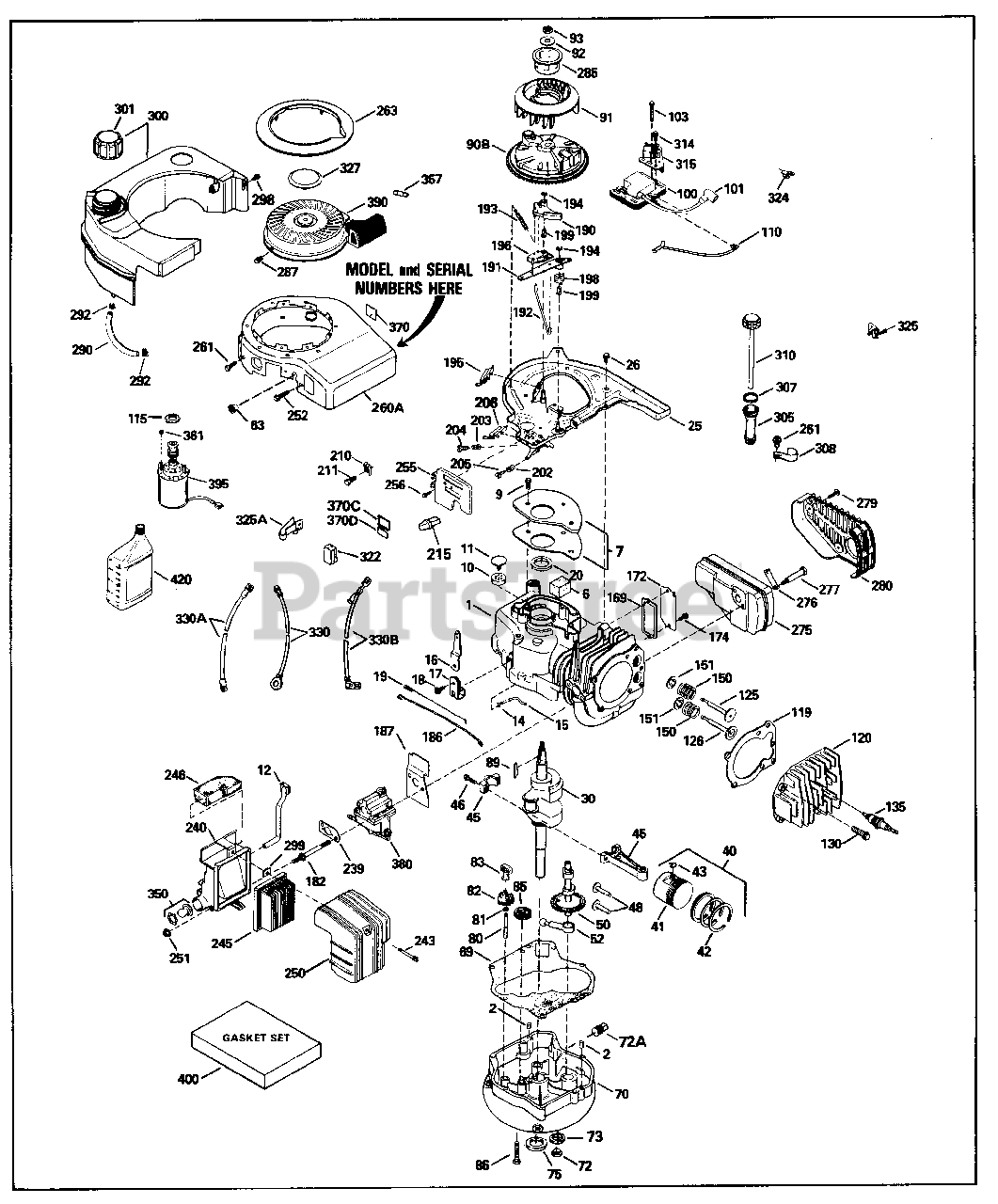

Engine Parts List #1 Parts Diagram

  • Title

1

Tecumseh 36084

"Cylinder (Incl. 2, 10, & 20)
(Superseded to 36177)

$154.99

$

Usually ships in 3-12 days

0

2

Tecumseh 27652

Dowel Pin

$2.49

$

Usually ships in 3-12 days

0

6

Tecumseh 36059

Breather Element

$1.99

$

In Stock, Qty 5

0

9

Tecumseh 650836

Screw, 10-24 x 1/2"
(Superseded to 650965)

$

$

Not available

10

Tecumseh 36002

Breather Valve Body

$1.99

$

Usually ships in 3-12 days

0

11

Tecumseh 36003

Check Valve
(Superseded to 36003A)

$3.99

$

In Stock, only 1 left!

0

12C

Tecumseh 36005A

* Breather Cover & Gasket

$7.49

$

Usually ships in 3-12 days

0

12

Tecumseh 36001

Breather Tube

$5.49

$

In Stock, only 1 left!

0

14

Tecumseh 28277

Flat Washer

$1.99

$

In Stock, only 3 left!

0

15

Tecumseh 36006

Governor Rod (Machined)

$3.99

$

In Stock, only 1 left!

0

16

Tecumseh 36008

Governor Lever

$1.99

$

In Stock, only 2 left!

0

17

Tecumseh 31335

Governor Lever Clamp

$1.99

$

In Stock, only 1 left!

0

18

Tecumseh 650548

Screw, 8-32 x 5/16"
(Superseded to 651018)

$1.99

$

In Stock, Qty 5

0

19

Tecumseh 36103

Governor Spring

$3.99

$

Usually ships in 3-12 days

0

20

Tecumseh 36010

Oil Seal

$9.49

$

In Stock, only 1 left!

0

25

Tecumseh 36011

Blower Housing Baffle Ass'y. Incl.l95

$51.99

$

Usually ships in 3-12 days

0

26

Tecumseh 650802

Screw, 1/4-20 x 5/8"

$1.99

$

In Stock, Qty 5

0

30

Tecumseh 36111

Crankshaft Ass'y.
(Superseded to 37112)

$131.99

$

Usually ships in 3-12 days

0

40

Tecumseh 36073

Piston,Pin,Ring Set (Std.)
(Superseded to 40004)

$74.99

$

In Stock, only 1 left!

0

40

Tecumseh 36074

Piston,Pin,Ring Set (.010 OS)
(Superseded to 40045)

$

$

Not available

40

Tecumseh 36075

Piston,Pin,Ring Set (.020 OS)

$

$

Not available

41

Tecumseh 36070

Piston & Pin Ass'y.(Std.) (Incl. 43)
(Superseded to 40004)

$74.99

$

In Stock, only 1 left!

0

41

Tecumseh 36071

Piston & Pin Ass'y.(.010 OS)(Incl.43)
(Superseded to 40045)

$

$

Not available

41

Tecumseh 36072

Piston & Pin Ass'y.(.020 OS)(Incl.43)
(Superseded to 36075)

$

$

Not available

42

Tecumseh 36076

Ring Set (Std.)
(Superseded to 40006)

$42.99

$

In Stock, only 1 left!

0

42

Tecumseh 36077

Ring Set (.010 OS)
(Superseded to 40045)

$

$

Not available

42

Tecumseh 36078

Ring Set (.020 OS)

$

$

Not available

43

Tecumseh 20381

Piston Pin Retaining Ring

$1.99

$

In Stock, Qty 7

0

45

Tecumseh 36023

Connecting Rod Ass'y. (Incl. 46)
(Superseded to 36023A)

$29.99

$

Usually ships in 3-12 days

0

46

Tecumseh 650923

Connecting Rod Bolt

$

$

Not available

48

Tecumseh 36030

Valve Lifter

$5.49

$

Usually ships in 3-12 days

0

50

Tecumseh 36031

Camshaft (MCR)
(Superseded to 36031A)

$47.99

$

Usually ships in 3-12 days

0

52

Tecumseh 29914

Oil Pump Ass'y.

$9.49

$

Usually ships in 3-12 days

0

69

Tecumseh 36032

* Mounting Flange Gasket
(Superseded to 36032A)

$8.99

$

In Stock, only 1 left!

0

70

Tecumseh 36033A

Mounting Flange (Incl. 72 thru 85)
(Superseded to 37271)

$105.99

$

Usually ships in 3-12 days

0

72

Tecumseh 30572

Oil Drain Plug
(Superseded to 36083)

$6.99

$

In Stock, Qty 5

0

73

Tecumseh 28833

Drain Plug Gasket

$1.99

$

In Stock, only 1 left!

0

75

Tecumseh 36010

Oil Seal

$9.49

$

In Stock, only 1 left!

0

80

Tecumseh 30574A

Governor Shaft

$7.49

$

In Stock, only 2 left!

0

81

Tecumseh 30590A

Flat Washer

$1.99

$

In Stock, Qty 5

0

82

Tecumseh 30591

Governor Gear Ass'y. (Incl.81)

$13.99

$

Usually ships in 3-12 days

0

83

Tecumseh 36057

Governor Spool

$1.99

$

In Stock, only 4 left!

0

85

Tecumseh 36034

Idler Gear

$1.99

$

In Stock, only 2 left!

0

86

Tecumseh 650924

Screw, 1/4-20 x 1-9/16"

$

$

Not available

89

Tecumseh 611154

Flywheel Key

$1.49

$

In Stock, only 4 left!

0

91

Tecumseh 611156

Flywheel Fan

$5.49

$

Usually ships in 3-12 days

0

92

Tecumseh 650815

Belleville Washer

$1.99

$

In Stock, Qty 10

0

93

Tecumseh 650816

Flywheel Nut

$4.49

$

In Stock, Qty 6

0

100

Tecumseh 34443A

Solid State Ignition
(Superseded to 34443D)

$44.99

$

In Stock, only 2 left!

0

101

Tecumseh 610118

Spark Plug Cover

$6.49

$

In Stock, only 2 left!

0

103

Tecumseh 650814

Screw, Torx T-15, 10-24 x 1"
(Superseded to 651007)

$1.99

$

In Stock, only 4 left!

0

110

Tecumseh 36054

Ground Wire

$3.99

$

Usually ships in 3-12 days

0

119

Tecumseh 36061

* Cylinder Head Gasket

$9.99

$

Usually ships in 3-12 days

0

120

Tecumseh 36037A

Cylinder Head
(Superseded to 36187)

$48.99

$

Usually ships in 3-12 days

0

125

Tecumseh 29313C

Exhaust Valve (Std.) (Incl. 151)

$

$

Not available

125

Tecumseh 29315C

Exhaust Valve (1/32" OS) (Incl. 151)

$

$

Not available

126

Tecumseh 29314B

Intake Valve (Std.) (Incl. 151)
(Superseded to 29314C)

$5.99

$

Usually ships in 3-12 days

0

126

Tecumseh 29315C

Exhaust Valve (1/32" OS) (Incl. 151)

$

$

Not available

130

Tecumseh 6021A

Screw, 5/16-18 x 1-1/2"

$1.99

$

In Stock, Qty 6

0

135

Tecumseh 35395

Resistor Spark Plug (RJ19LM) also ava ilable in Packaged Part #740081

$3.99

$

In Stock, Qty 10

0

150

Tecumseh 31672

Valve Spring

$1.99

$

In Stock, Qty 14

0

151

Tecumseh 31673

Lower Valve Spring Cap

$1.99

$

In Stock, Qty 5

0

169

Tecumseh 27234A

* Valve Spring Box Gasket

$5.99

$

In Stock, only 1 left!

0

172

Tecumseh 32755

Valve Spring Box Cover

$5.49

$

Usually ships in 3-12 days

0

174

Tecumseh 30200

Screw, 10-24 x 9/16"

$1.49

$

In Stock, Qty 10

0

177

Tecumseh 650925

Carburetor Mounting Stud
(Superseded to 650925A)

$7.49

$

In Stock, only 2 left!

0

186

Tecumseh 36009

Governor Link

$1.99

$

Usually ships in 3-12 days

0

187

Tecumseh 36035

* Carburetor Mounting Spacer
(Superseded to 37136)

$10.99

$

In Stock, only 1 left!

0

190

Tecumseh 36013

Brake Lever Ass'y.

$15.99

$

In Stock, only 1 left!

0

191B

Tecumseh 36012

Brake Control Lever

$5.49

$

Usually ships in 3-12 days

0

192

Tecumseh 36016

Brake Control Lever Link

$1.99

$

In Stock, only 3 left!

0

193

Tecumseh 36015

Brake Spring

$1.99

$

Usually ships in 3-12 days

0

194

Tecumseh 36014

Retaining Ring

$1.99

$

Usually ships in 3-12 days

0

195

Tecumseh 610973

Terminal Ass'y.

$3.99

$

In Stock, only 4 left!

0

198

Tecumseh 36017

Brake Control Lever Spring

$3.49

$

Usually ships in 3-12 days

0

199

Tecumseh 36018

Brake Levers Bushing

$1.99

$

In Stock, only 3 left!

0

202

Tecumseh 33802

Compression Spring
(Superseded to 36482)

$3.99

$

In Stock, only 1 left!

0

203

Tecumseh 31342

Compression Spring

$5.99

$

In Stock, only 1 left!

0

204

Tecumseh 650549

Screw, 5-40 x 7/16"
(Superseded to 651029)

$1.99

$

In Stock, only 2 left!

0

205

Tecumseh 650777

Screw, 6-32 x 21/32"
(Superseded to 651019)

$1.99

$

In Stock, Qty 5

0

215

Tecumseh 36051

Control Knob

$1.99

$

Usually ships in 3-12 days

0

239

Tecumseh 36048

* Carburetor to Air Cleaner Gasket

$3.49

$

In Stock, Qty 8

0

240

Tecumseh 36044A

Air Cleaner Body (Incl.239,299 & 350)
(Superseded to 36044B)

$

$

Not available

243

Tecumseh 650899

Screw, 10-32 x 2-3/32"

$

$

Not available

245

Tecumseh 36046

Air Filter (Paper) (also available in Packaged Part #740031B for model VLV only) (also available in Packaged Pa rt #740061C for model OH195)

$8.99

$

In Stock, only 4 left!

0

250

Tecumseh 36047

Air Cleaner Cover

$5.49

$

In Stock, Qty 8

0

251

Tecumseh 650928

Lock Nut 1/4-20

$1.99

$

Usually ships in 3-12 days

0

255

Tecumseh 36110

Control Plate

$

$

Not available

256

Tecumseh 650926

Screw, 8-32 x 21/64"

$1.49

$

Usually ships in 3-12 days

0

261

Tecumseh 650929

Screw, 1/4-20 x 11/16"

$1.99

$

Usually ships in 3-12 days

0

262

Tecumseh 650737

Screw, 1/4-20 x 1-1/2"

$1.99

$

In Stock, Qty 6

0

263

Tecumseh 36108

Trim Ring

$9.49

$

Usually ships in 3-12 days

0

275

Tecumseh 36107

Muffler Ass'y.
(Superseded to 36107A)

$

$

Not available

276

Tecumseh 36043

Locking Plate

$1.99

$

Usually ships in 3-12 days

0

277

Tecumseh 650927

Screw, 5/6-18 x 2-11/32"

$

$

Not available

285

Tecumseh 34449

Starter Cup
(Superseded to 34449A)

$10.99

$

Usually ships in 3-12 days

0

287

Tecumseh 650926

Screw, 8-32 x 21/64"

$1.49

$

Usually ships in 3-12 days

0

290

Tecumseh 34357

Fuel Line
(Superseded to 29774)

$34.99

$

In Stock, Qty 5

0

292

Tecumseh 26460

Fuel Line Clamp

$1.49

$

In Stock, Qty 20+

0

299

Tecumseh 650900

"U" Type Nut Clip

$

$

Not available

300

Tecumseh 36066

Fuel Tank (Incl. 301)

$33.99

$

Usually ships in 3-12 days

0

301

Tecumseh 35355

Fuel Cap (Red)
(Superseded to 37845)

$8.99

$

In Stock, Qty 5

0

305

Tecumseh 36063

Oil Fill Tube

$1.99

$

In Stock, Qty 5

0

307

Tecumseh 35499

"O" Ring

$1.49

$

In Stock, only 2 left!

0

308

Tecumseh 36040

Fill Tube Clip

$1.99

$

Usually ships in 3-12 days

0

310

Tecumseh 36064

Oil Dipstick

$5.49

$

Usually ships in 3-12 days

0

327

Tecumseh 35392

Starter Plug this)

$1.99

$

In Stock, Qty 5

0

346A

Tecumseh 28763

Screw, 10-32 x 35/64"

$1.99

$

In Stock, only 3 left!

0

350

Tecumseh 36045

Primer
(Superseded to 36045A)

$6.49

$

In Stock, only 1 left!

0

370

Tecumseh 36055

Control Decal
(Superseded to 36155)

$2.49

$

In Stock, only 1 left!

0

380

Tecumseh 632671

Carburetor (Incl. 187 & 239)
(Superseded to 632671C)

$109.99

$

Usually ships in 3-12 days

0

390

Tecumseh 590686

Rewind Starter
(Superseded to 590785)

$41.99

$

In Stock, only 2 left!

0

400

Tecumseh 36062A

* Gasket Set (Incl. items marked PK in notes). Incl. part #'s 27234A (1),36 005A (1), 36032 (1), 36035 (1),36048 (1), 36061 (1)
(Superseded to 36062D)

$44.99

$

Usually ships in 3-12 days

0

420

Tecumseh 730225

4 Cycle Oil, SAE 30 (Quart)
(Superseded to 730225A)

$8.99

$

In Stock, only 1 left!

0

999

Tecumseh 730279

Summer Maintenance Kit (incl. Oil, Sp ark Plug, Air Cleaner, & Ultra Fresh)

$17.99

$

In Stock, only 3 left!

0
