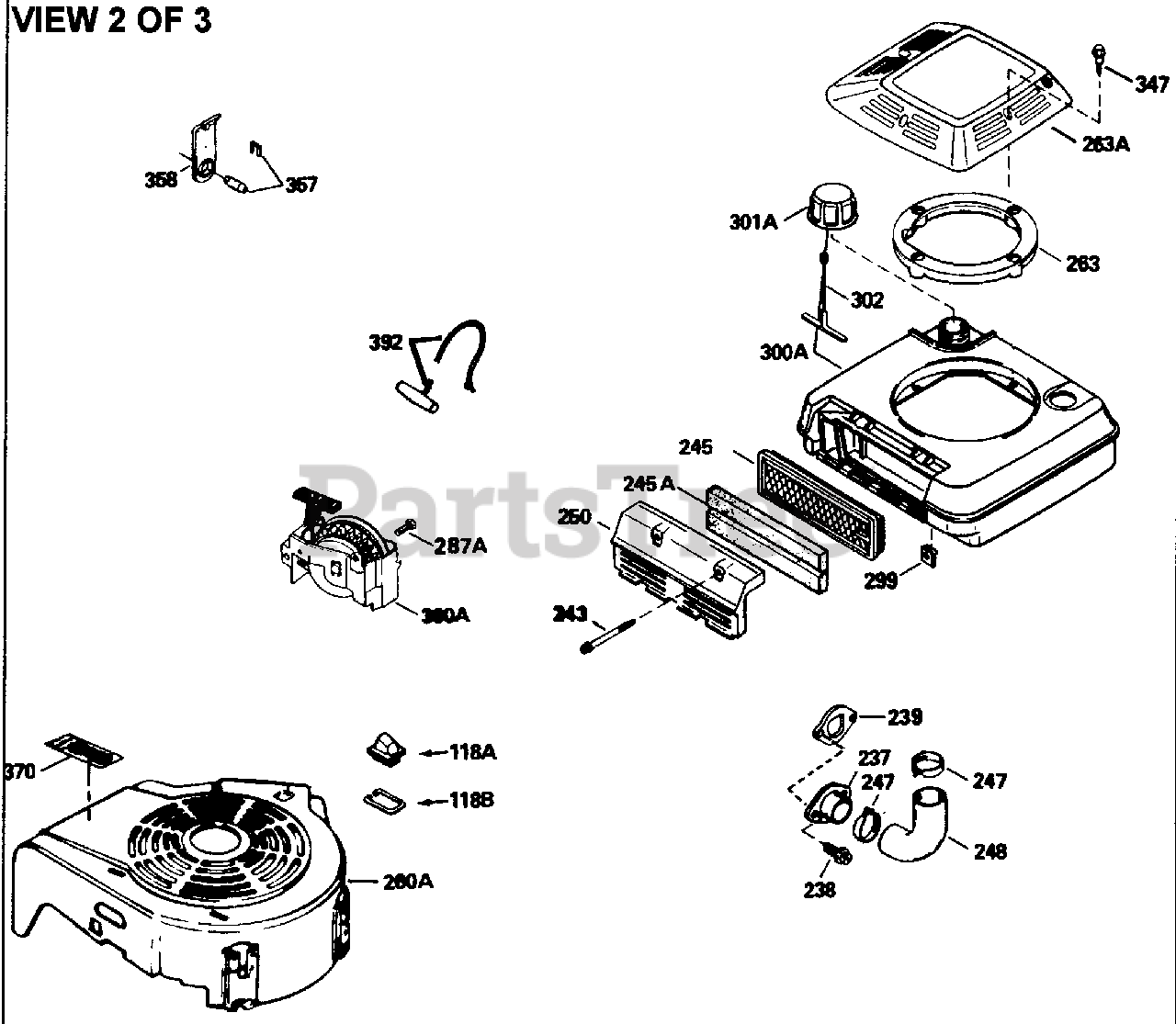

143.384422 - Craftsman Engine, Made by Tecumseh Engine Parts List #2 Parts Diagram

Engine, Made by Tecumseh

Engine Parts List #2 Parts Diagram

  • Title

55A

Tecumseh 34647

Shaft, P.T.O.

$28.99

$

Usually ships in 3-12 days

0

118

Tecumseh 730194

Rope Guide Kit (Use as required)

$2.99

$

Usually ships in 3-12 days

0

237

Tecumseh 32971

Adapter, Air cleaner

$5.49

$

Usually ships in 3-12 days

0

238

Tecumseh 650709

Screw, 10-32 x 7/16"

$1.99

$

In Stock, only 1 left!

0

239A

Tecumseh 35815

Air Filter Gasket

$1.49

$

In Stock, Qty 20+

0

245F

Tecumseh 35500

Air Filter (also available in Package d Part #740013B)

$8.49

$

In Stock, only 1 left!

0

246E

Tecumseh 35435

Filter, Pre-air (Use as required)

$2.99

$

In Stock, only 2 left!

0

247C

Tecumseh 35505

Clamp, Air cleaner tube

$1.99

$

In Stock, only 4 left!

0

248

Tecumseh 35504

Tube, Air cleaner

$6.49

$

In Stock, only 1 left!

0

250E

Tecumseh 35503

Cover, Air cleaner

$

$

Not available

260B

Tecumseh 35497

Housing, Blower

$29.99

$

Usually ships in 3-12 days

0

263

Tecumseh 35519

Ring, Shroud

$6.49

$

Usually ships in 3-12 days

0

287B

Tecumseh 650884

Screw, 8-32 x 1/2"
(Superseded to 650926)

$1.49

$

In Stock, only 3 left!

0

287A

Pop Rivet (3/16" Dia.) Purchase local ly

$

$

Not available

287A

Tecumseh 650735

Screw, 10-24 x 3/8" (Use as required)

$1.99

$

In Stock, only 1 left!

0

299

Tecumseh 650900

Clip, "U" type nut, 10-32

$

$

Not available

300C

Tecumseh 35501A

Shroud & Tank Ass'y. Incl. 299 & 301 A

$

$

Not available

301A

Tecumseh 35355

Fuel Cap (Red)
(Superseded to 37845)

$8.99

$

In Stock, Qty 6

0

347

Tecumseh 650898

Screw, 10-32 x 27/32"
(Superseded to 650898A)

$1.99

$

In Stock, Qty 6

0

370J

Tecumseh 34870

Decal, Instruction (Optional)

$

$

Currently unavailable

370H

Tecumseh 34387

Decal, Instruction (Optional)

$2.49

$

In Stock, only 1 left!

0

390B

Tecumseh 590621

Rewind Starter Refer to Division 5, S ection C, page 34 or Fiche 8A, Grid G -5 for breakdown
(Superseded to 590785)

$41.99

$

In Stock, only 2 left!

0

425

Tecumseh 730571

Starter Muff Kit (Incl. 370J,426,427) Opt.

$19.99

$

Usually ships in 3-12 days

0

426

Tecumseh 32203

Starter Air Cleaner (Optional)

$20.99

$

Usually ships in 3-12 days

0

427

Tecumseh 32204

Starter Air Cleaner Bracket Optional

$

$

Not available

436

Tecumseh 611006

Stator Plate Ass'y. Incl. 377,378,437 , 442-448

$

$

Not available

437

Tecumseh 30551

Spring, Breaker box cover

$

$

Not available

438

Tecumseh 610947

Cover, Dust

$3.99

$

Usually ships in 3-12 days

0

439

Tecumseh 610955

Gasket, Stator cover

$

$

Not available

440

Tecumseh 30992

Cam, Breaker

$

$

Not available

442

Tecumseh 610385

Washer

$

$

Not available

443

Tecumseh 610408

Nut, 8-32

$

$

Currently unavailable

444

Tecumseh 29181

Breaker Fastening Screw & Washer

$

$

Not available

445

Tecumseh 610593

Condenser Fastening Screw

$1.99

$

Usually ships in 3-12 days

0

446

Tecumseh 33356

Terminal, Ground

$1.99

$

In Stock, only 4 left!

0
