143.346152 - Craftsman Engine, Made by Tecumseh Engine Parts List #2 Parts Diagram

Engine, Made by Tecumseh

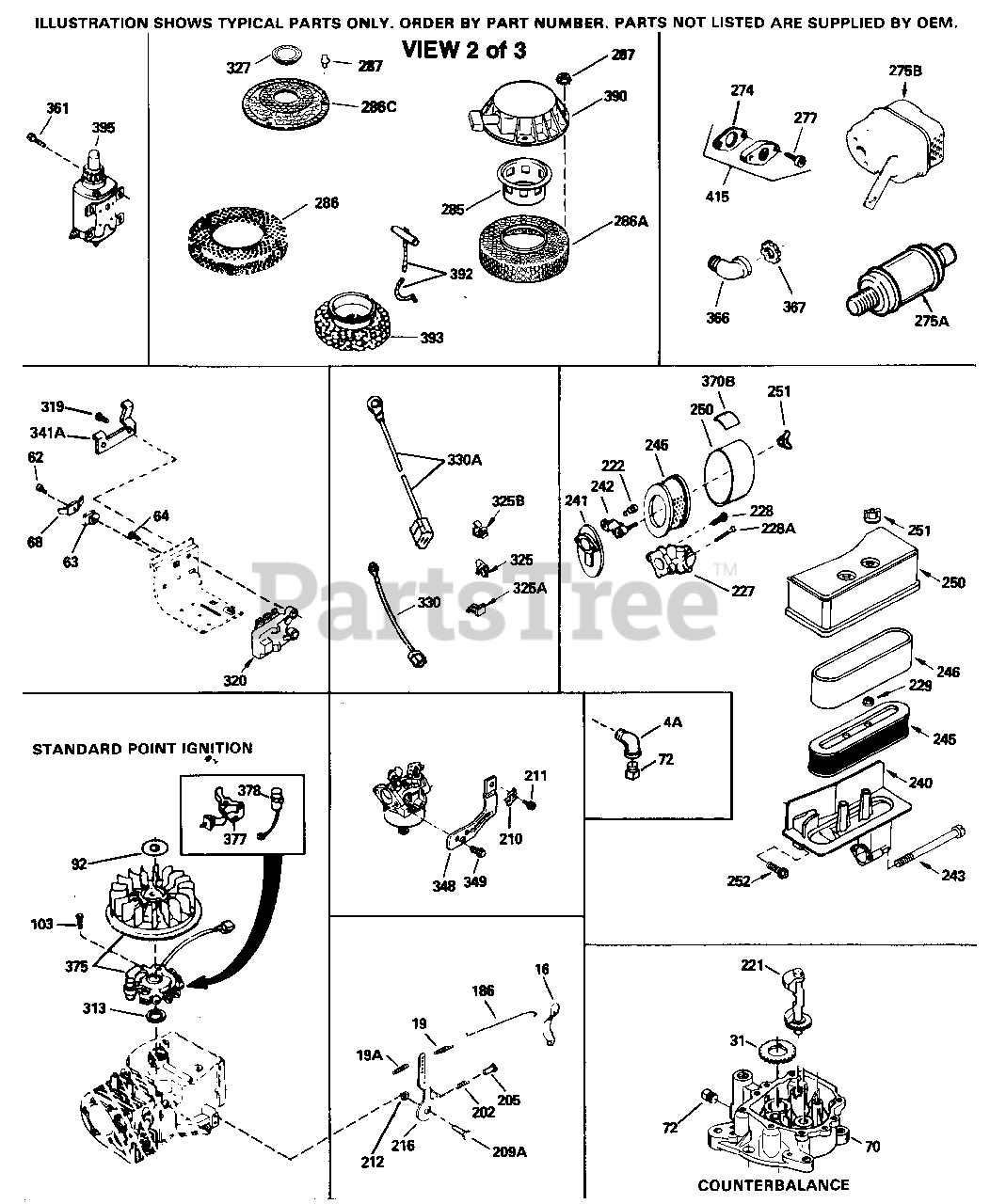

Engine Parts List #2 Parts Diagram

  • Title

16

Tecumseh 32651

Lever, Governor

$

$

Not available

19A

Tecumseh 34043

Spring, Extension

$1.99

$

In Stock, Qty 5

0

19

Tecumseh 34043

Spring, Extension

$1.99

$

In Stock, Qty 5

0

64

Tecumseh 30063

Screw, T-30, 1/4-20 x 1/2"

$1.99

$

In Stock, Qty 20+

0

70

Tecumseh 33580

Flange Ass'y. (Incl. 72, 75, 80 & 81)

$148.99

$

Usually ships in 3-12 days

0

72

Tecumseh 31927

Plug, Pipe

$1.99

$

Usually ships in 3-12 days

0

92

Tecumseh 650793

Washer, Flat

$

$

Currently unavailable

92

Tecumseh 650815

Washer, Belleville

$1.99

$

In Stock, Qty 10

0

103

Tecumseh 650489

Screw, 1/4-20 x 5/8"

$

$

Not available

186

Tecumseh 33860

Link, Governor-to-throttle

$1.99

$

In Stock, only 2 left!

0

202

Tecumseh 31342

Spring, Compression

$5.99

$

In Stock, only 1 left!

0

205

Tecumseh 650549

Screw, 5-40 x 7/16"
(Superseded to 651029)

$1.99

$

In Stock, only 2 left!

0

210

Tecumseh 27793

Conduit Clip

$1.99

$

In Stock, only 2 left!

0

211

Tecumseh 28942

Screw, 10-32 x 3/8"

$1.49

$

In Stock, only 4 left!

0

240

Tecumseh 34909

Body, Air cleaner

$11.99

$

Usually ships in 3-12 days

0

243

Tecumseh 650834

Screw, 10-32 x 1-17/32"

$1.99

$

In Stock, only 3 left!

0

274

Tecumseh 27930

* Exhaust Gasket (use as required)
(Superseded to 35865)

$2.49

$

In Stock, only 2 left!

0

277

Tecumseh 30196

Screw, 5/16-18 x 3/4" .)

$1.99

$

In Stock, Qty 8

0

277

Tecumseh 650729

Screw, 5/16-18 x 3-3/16" Use As Req.

$1.99

$

In Stock, Qty 5

0

277

Tecumseh 651002

Screw, 5/16-18 x 4-3/16" Use As Req.

$4.49

$

In Stock, Qty 12

0

286

Tecumseh 33816

Hub & Screen Assy., Starter

$20.99

$

Usually ships in 3-12 days

0

313

Tecumseh 33876

Gasket, Stator

$5.49

$

Usually ships in 3-12 days

0

327

Tecumseh 33817

Plug, Screen

$3.99

$

Usually ships in 3-12 days

0

375

Tecumseh 610848

Magneto NOTE: The following completem agnetos are not available as an assem bly. The magneto numbers are shown fo r reference purposes only. Order com ponent parts individually, as shown i n parts breakdown. (Refer to Division 5, Section B, page 28

$

$

Currently unavailable

377

Tecumseh 30547A

Breaker Points (also available in Pac kaged Part #740037B)

$18.99

$

In Stock, only 1 left!

0

378

Tecumseh 30548B

Condenser (also available in Packaged Part #740037B)

$13.99

$

In Stock, Qty 9

0

415

Tecumseh 730130

Exh.Adapter Kit (Incl. 274 & 277) As req.

$

$

Not available
