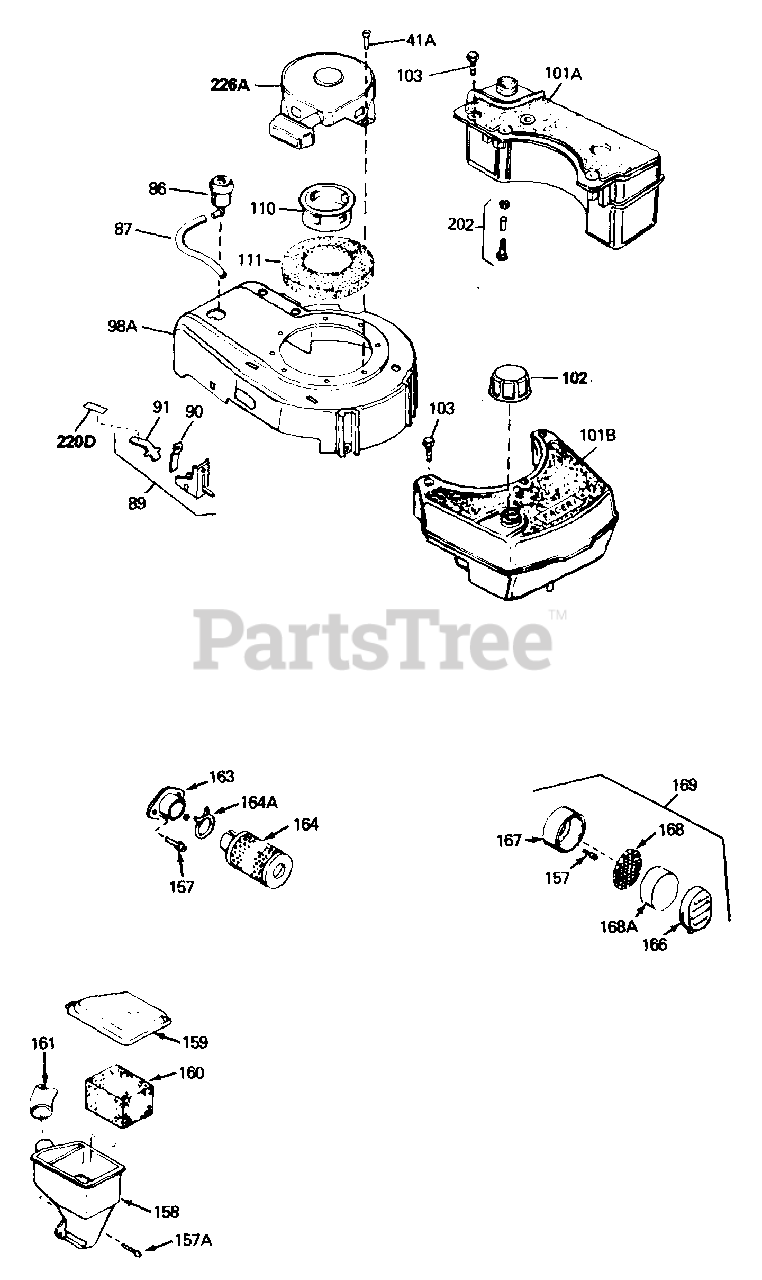

143.294442 - Craftsman Engine, Made by Tecumseh Engine Parts List #2 Parts Diagram

Engine, Made by Tecumseh

Engine Parts List #2 Parts Diagram

  • Title

41A

Tecumseh 0

Rivet, Pop (3/16" Dia.)

$

$

Not available

41A

Tecumseh 650735

Screw, Hex hd. Sems taptite, 10-24 x 3/8

$1.99

$

In Stock, only 1 left!

0

89

Tecumseh 34657

Footproof Spark Plug Stop Lever

$3.99

$

Usually ships in 3-12 days

0

90

Tecumseh 34438

Spring, Stop switch

$

$

Currently unavailable

91

Tecumseh 34439

Clip, Stop switch

$

$

Currently unavailable

98A

Tecumseh 34793

Housing, Blower (5.56 dia. starter mt g. bolt

$

$

Not available

102

Tecumseh 33032

Cap, Fuel filler (Red Plastic) (Spurt

$7.49

$

Usually ships in 3-12 days

0

110

Tecumseh 34449

Hub, Starter
(Superseded to 34449A)

$10.99

$

Usually ships in 3-12 days

0

111

Tecumseh 590417

Screen, Starter cup

$7.49

$

In Stock, only 1 left!

0

157

Tecumseh 650806

Screw, Hex washer hd. shoulder, 10-32 x 5/8

$1.99

$

Usually ships in 3-12 days

0

202

Tecumseh 730194

Rope Guide Kit

$2.99

$

Usually ships in 3-12 days

0

220D

Tecumseh 34407

Decal, Stop control (Bilingual)

$

$

Currently unavailable

226A

Tecumseh 590420

Starter, Rewind
(Superseded to 590420A)

$68.99

$

In Stock, only 1 left!

0
