143.284222 - Craftsman Engine, Made by Tecumseh Engine Parts List #1 Parts Diagram

Engine, Made by Tecumseh

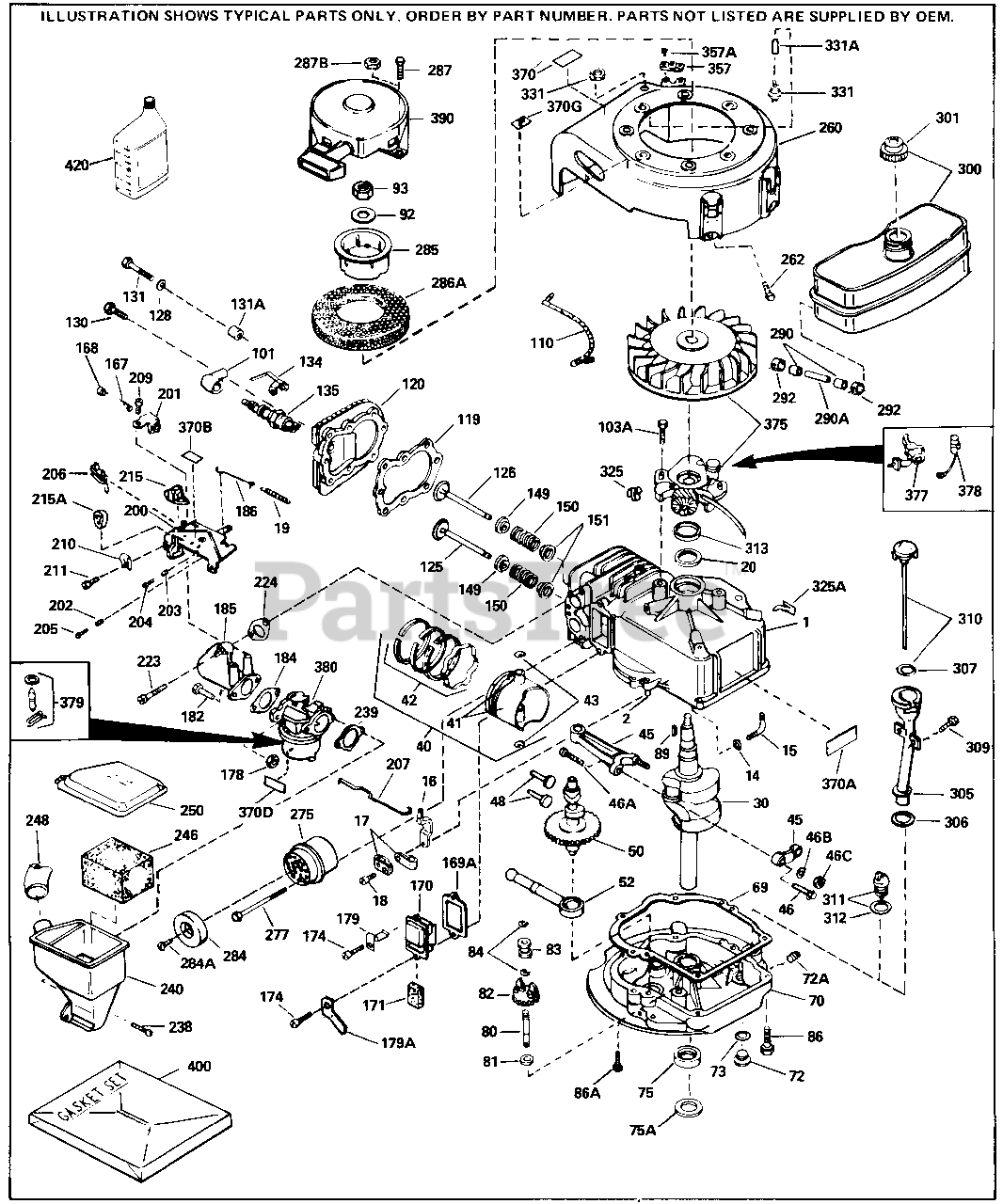

Engine Parts List #1 Parts Diagram

  • Title

1

Tecumseh 33389

"Cylinder (Incl. 2 & 20) 2-5/16" Bore

$

$

Currently unavailable

2

Tecumseh 26727

Dowel Pin

$1.99

$

In Stock, Qty 5

0

14

Tecumseh 28277

Flat Washer

$1.99

$

In Stock, only 4 left!

0

15

Tecumseh 30589

Governor Rod (Incl. 14)

$5.49

$

In Stock, only 1 left!

0

16

Tecumseh 32651

Governor Lever

$

$

Not available

17

Tecumseh 31335

Governor Lever Clamp Clamp is positio ned towardsspark plug end on 1977-78 and latermodels. It is positioned opp osite spark plugend on earlier models .

$1.99

$

In Stock, only 3 left!

0

18

Tecumseh 650548

Screw, 8-32 x 5/16"
(Superseded to 651018)

$1.99

$

In Stock, Qty 9

0

19

Tecumseh 31361

Spring, Governor

$1.99

$

Usually ships in 3-12 days

0

20

Tecumseh 29183

Oil Seal

$7.49

$

In Stock, only 1 left!

0

30

Tecumseh 32520

Crankshaft

$

$

Currently unavailable

40

Tecumseh 34499

Piston, Pin & Ring Ass'y. (Std.) 2-5 /16"

$

$

Not available

40

Tecumseh 34526

Piston, Pin & Ring Ass'y. (.010" OS)

$49.99

$

Usually ships in 3-12 days

0

40

Tecumseh 34527

Piston, Pin & Ring Ass'y. (.020" OS)

$

$

Not available

41

Tecumseh 31761B

Piston & Pin Ass'y. (Std.)(Incl. 43) 2-5/16"

$40.99

$

Usually ships in 3-12 days

0

41

Tecumseh 32662B

Piston & Pin Ass'y. (.010" OS) Incl. 43

$30.99

$

Usually ships in 3-12 days

0

41

Tecumseh 32663B

Piston & Pin Ass'y. (.020" OS) Incl. 43

$

$

Not available

42

Tecumseh 27565

Ring Set (Std.) (2-5/16" Bore)

$24.99

$

Usually ships in 3-12 days

0

42

Tecumseh 27566

Ring Set (.010" OS)

$18.99

$

Usually ships in 3-12 days

0

42

Tecumseh 27567

Ring Set (.020" OS)

$

$

Not available

43

Tecumseh 20381

Piston Pin Retaining Ring

$1.99

$

In Stock, Qty 7

0

45

Tecumseh 30963B

Rod Assy., Connecting (Incl. No. 46)

$29.99

$

Usually ships in 3-12 days

0

46B

Tecumseh 20747

Washer (Used on early production)

$

$

Currently unavailable

46A

Tecumseh 26706

Connecting Rod Bolt Used on early pro duction

$

$

Currently unavailable

46C

Tecumseh 27573

Nut (Used on early production)

$

$

Currently unavailable

46

Tecumseh 32610A

Bolt, Connecting rod

$1.99

$

In Stock, Qty 6

0

48

Tecumseh 27241

Valve Lifter

$5.49

$

In Stock, only 2 left!

0

50

Tecumseh 33148A

Camshaft
(Superseded to 35990)

$39.99

$

Usually ships in 3-12 days

0

52

Tecumseh 29914

Oil Pump Ass'y.

$9.49

$

Usually ships in 3-12 days

0

69

Tecumseh 35261

* Gasket, Mounting flange
(Superseded to 37609)

$2.99

$

Usually ships in 3-12 days

0

70

Tecumseh 30571A

Flange Ass'y. Incl. 72, 75, 80 & 311
(Superseded to 37620)

$80.99

$

Usually ships in 3-12 days

0

72

Tecumseh 30572

Plug, Oil drain (Incl. No. 73)
(Superseded to 36083)

$6.99

$

In Stock, Qty 5

0

73

Tecumseh 28833

* Oil Plug Gasket Do not use w/plastic plug

$1.99

$

In Stock, only 1 left!

0

75

Tecumseh 26208

Oil Seal

$8.49

$

In Stock, only 1 left!

0

80

Tecumseh 30574

Shaft, Governor
(Superseded to 30574A)

$7.49

$

In Stock, only 4 left!

0

81

Tecumseh 30590A

Washer, Flat

$1.99

$

In Stock, Qty 7

0

82

Tecumseh 30591

Gear Assy., Governor (Incl. No. 81)

$13.99

$

In Stock, only 2 left!

0

83

Tecumseh 30588A

Spool, Governor

$1.99

$

In Stock, Qty 5

0

84

Tecumseh 29193

Retaining Ring

$1.99

$

In Stock, Qty 6

0

86

Tecumseh 650488

Screw, 1/4-20 x 1-1/4"

$1.99

$

Usually ships in 3-12 days

0

89

Tecumseh 610961

Flywheel Key (also available in Packa ged Part #740007B)

$1.49

$

In Stock, Qty 20+

0

92

Tecumseh 650815

Washer Belleville

$1.99

$

In Stock, Qty 10

0

93

Tecumseh 650607

Nut, Flywheel

$1.99

$

In Stock, Qty 7

0

103A

Tecumseh 650489

Screw, 1/4-20 x 5/8"

$

$

Not available

119

Tecumseh 29953C

* Gasket, Cylinder head

$16.99

$

In Stock, only 1 left!

0

120

Tecumseh 30579A

Head, Cylinder (Incl. 131)
(Superseded to 36438)

$

$

Not available

125

Tecumseh 29313C

Exhaust Valve (Std.) (Incl. 151)

$

$

Not available

125

Tecumseh 29315C

Exhaust Valve (1/32" OS) (Incl. 151)

$

$

Not available

126

Tecumseh 29314B

Intake Valve (Std.) (Incl. 151)
(Superseded to 29314C)

$5.99

$

In Stock, only 1 left!

0

126

Tecumseh 29315C

Exhaust Valve (1/32" OS) (Incl. 151)

$

$

Not available

128

Tecumseh 26073

Washer n)

$

$

Not available

130

Tecumseh 6021A

Screw, 5/16-18 x 1-1/2" (Use as requi red)(Do not usewith 26073)

$1.99

$

In Stock, only 3 left!

0

131

Tecumseh 650694A

Screw, 5/16-18 x 2" (Use as required)

$3.49

$

In Stock, Qty 20+

0

131

Tecumseh 650697A

Screw, 5/16-18 x 2-1/2" Use as requir ed

$1.99

$

In Stock, Qty 11

0

135

Tecumseh 34277

Resistor Spark Plug (RJ-8C)

$4.99

$

Usually ships in 3-12 days

0

149

Tecumseh 31671

Valve Spring Cap Used on early produc tion

$1.49

$

In Stock, only 2 left!

0

150

Tecumseh 31672

Spring, Valve

$1.99

$

In Stock, Qty 14

0

151

Tecumseh 31673

Cap, Lower valve spring

$1.99

$

In Stock, only 1 left!

0

169A

Tecumseh 31619A

* Gasket, Breather

$7.49

$

In Stock, only 2 left!

0

170

Tecumseh 31337A

Breather Assy. (Incl. 169A & 171)
(Superseded to 31337B)

$18.99

$

In Stock, only 1 left!

0

171

Tecumseh 31410

Element, Breather

$1.99

$

In Stock, Qty 20+

0

174

Tecumseh 650128

Screw, 10-24 x 1/2"

$5.49

$

In Stock, only 2 left!

0

178

Tecumseh 29752

Nut & Lock Washer 1/4-28

$1.99

$

In Stock, Qty 5

0

179

Tecumseh 30593

Clip

$1.99

$

In Stock, only 1 left!

0

182

Tecumseh 6201

Screw, 1/4-28 x 7/8"

$

$

Not available

184

Tecumseh 26756

* Gasket, Carburetor

$2.99

$

In Stock, Qty 12

0

185

Tecumseh 33004A

Pipe, Intake

$23.99

$

Usually ships in 3-12 days

0

186

Tecumseh 32653

Link, Governor spring

$1.99

$

In Stock, only 2 left!

0

203

Tecumseh 31342

Spring, Compression

$5.99

$

In Stock, only 1 left!

0

207

Tecumseh 34336

Link, Throttle
(Superseded to 34336A)

$1.99

$

Usually ships in 3-12 days

0

223

Tecumseh 650451

Screw, 1/4-20 x 1"

$1.99

$

In Stock, only 4 left!

0

224

Tecumseh 32649A

* Gasket, Intake pipe

$2.99

$

In Stock, Qty 18

0

238

Tecumseh 650707

Screw, 10-32 x 5/8"

$1.99

$

Usually ships in 3-12 days

0

239

Tecumseh 33051

* Gasket, Air cleaner

$1.49

$

In Stock, Qty 9

0

240

Tecumseh 33005

Body, Air cleaner

$18.99

$

Usually ships in 3-12 days

0

246

Tecumseh 33006

Air Filter

$8.49

$

In Stock, only 1 left!

0

248

Tecumseh 33008

Tube, Air Cleaner

$20.99

$

Usually ships in 3-12 days

0

250

Tecumseh 33007

Cover, Air cleaner

$7.49

$

In Stock, only 1 left!

0

260

Tecumseh 32455B

Housing, Blower NOTE: Replacement har dware may differ when servicing start er assy. or blower housing. Refer to Service Bulletin 508.

$

$

Currently unavailable

262

Tecumseh 650561

Screw

$1.99

$

In Stock, only 2 left!

0

275

Tecumseh 27181B

Muffler Kit (Incl. Nos. 274 & 277)
(Superseded to 27181C)

$10.99

$

Usually ships in 3-12 days

0

277

Tecumseh 650795

Screw, 1/4-20 x 2-1/4"

$1.99

$

In Stock, only 2 left!

0

285

Tecumseh 590416

Cup, Starter

$9.99

$

Usually ships in 3-12 days

0

286A

Tecumseh 590417

Screen, Starter cup

$7.49

$

In Stock, only 1 left!

0

287

Tecumseh 29716

Screw, 1/4-28 x 7/16"

$1.49

$

In Stock, only 2 left!

0

290

Tecumseh 29774

Fuel Line (8.62") as req.)

$34.99

$

In Stock, Qty 6

0

290

Tecumseh 30705

Fuel Line (Braided 16")(40cm) Use as req.

$16.99

$

In Stock, Qty 5

0

292

Tecumseh 26460

Fuel Line Clamp

$1.49

$

In Stock, Qty 12

0

300

Tecumseh 32170A

Fuel Tank Ass'y. (Incl. 292 & 301)
(Superseded to 37947)

$

$

Not available

301

Tecumseh 33032

Fuel Cap (Red 1-1/2" ID) (also availa ble in Packaged Part #740005B) )

$7.49

$

In Stock, only 1 left!

0

301

Tecumseh 410144B

Fuel Cap (Use as required)
(Superseded to 33032)

$7.49

$

In Stock, only 1 left!

0

306

Tecumseh 34282

"O" Ring This "O" ring is required wi th metal fill tube only when replacem ent mounting flange with .777 dia. oi l fill hole has been used.

$1.99

$

In Stock, Qty 20+

0

311

Tecumseh 27625

Oil Fill Plug (Incl. 312) also availa ble in Packaged Part #740079

$2.49

$

In Stock, Qty 8

0

312

Tecumseh 29673

* Gasket, Oil fill plug

$1.99

$

In Stock, only 3 left!

0

313

Tecumseh 33876

Gasket, Stator

$5.49

$

Usually ships in 3-12 days

0

325

Tecumseh 27275

Wire Clip

$1.99

$

In Stock, Qty 7

0

375

Tecumseh 610794A

Magneto NOTE: The complete magneto is not available as an assembly. The ma gneto number is shown for reference p urposes only. Order component parts i ndividually, as shown in parts list. (Refer to Division 5, Sec. B, page 35 or Fiche 7A, Grid G-1 fo

$

$

Currently unavailable

377

Tecumseh 30547A

Breaker Points (also available in Pac kaged Part #740037B)

$18.99

$

In Stock, only 2 left!

0

378

Tecumseh 30548B

Condenser (also available in Packaged Part #740037B)

$13.99

$

In Stock, Qty 10

0

379

Tecumseh 631021

Inlet Needle, Seat & Clip Assy.
(Superseded to 631021B)

$6.99

$

In Stock, Qty 13

0

380

Tecumseh 632051

Carburetor (Incl. 184) (Refer to Divi sion 5, Section A, page A2-10 or Fich e 7A, Grid E-13 for breakdown)
(Superseded to 632046A)

$109.99

$

In Stock, only 2 left!

0

390

Tecumseh 590420

Rewind Starter NOTE: Hardware may dif fer when servicing blower housing or starter assy. Refer to Service Bullet in 508. (Refer to Division 5, Section C, page 25 or Fiche 7A, Grid G-4 for breakdown)
(Superseded to 590420A)

$68.99

$

In Stock, only 2 left!

0

400

Tecumseh 33238D

* Gasket Set (Incl. items marked *)
(Superseded to 33238E)

$50.99

$

In Stock, only 1 left!

0

420

Tecumseh 730225

SAE 30 4-Cycle Engine Oil (Quart)
(Superseded to 730225A)

$8.99

$

In Stock, only 4 left!

0
