143.217062 - Craftsman Engine, Made by Tecumseh Engine Parts List #1 Parts Diagram

Engine, Made by Tecumseh

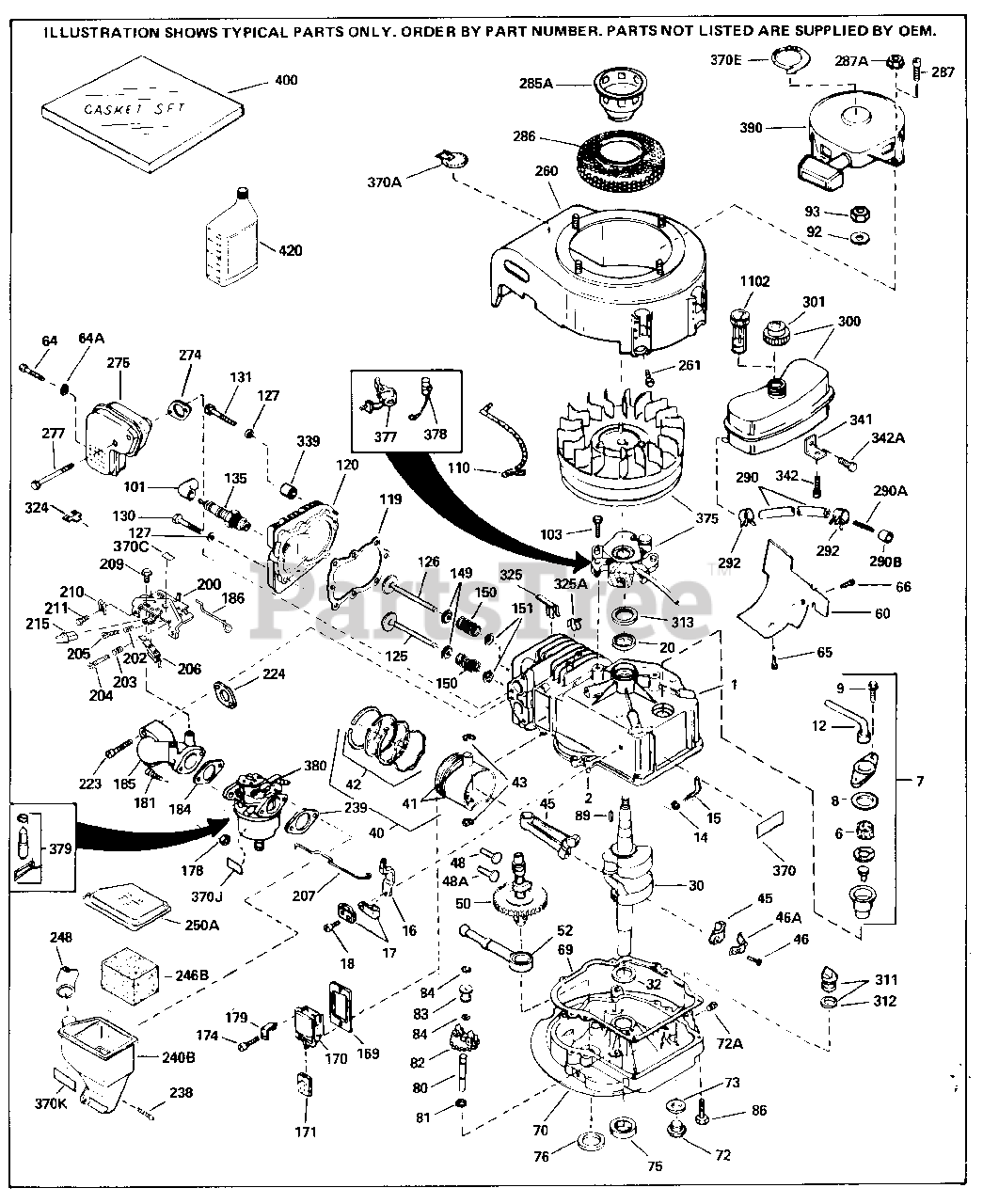

Engine Parts List #1 Parts Diagram

  • Title

1

Tecumseh 33027B

"Cylinder (Incl. 2, 8, 9 & 20) 2-5/8" Bore

$

$

Currently unavailable

2

Tecumseh 26727

Dowel Pin

$1.99

$

In Stock, Qty 5

0

14

Tecumseh 28277

Flat Washer

$1.99

$

In Stock, only 4 left!

0

15

Tecumseh 30589

Rod, Governor (Incl. 14)

$5.49

$

In Stock, only 1 left!

0

16

Tecumseh 31383A

Lever, Governor

$1.99

$

In Stock, only 3 left!

0

17

Tecumseh 31335

Clamp, Governor lever Clamp is positi oned towardsspark plug end on 1977-78 and latermodels. It is positioned op posite spark plugend on earlier model s.

$1.99

$

In Stock, only 3 left!

0

18

Tecumseh 650548

Screw, 8-32 x 5/16"
(Superseded to 651018)

$1.99

$

In Stock, Qty 9

0

19

Tecumseh 31386

Spring, Governor

$4.49

$

In Stock, Qty 15

0

20

Tecumseh 32600

Seal, Oil

$

$

Not available

30

Tecumseh 32886B

Crankshaft

$

$

Currently unavailable

32

Tecumseh 32323

Washer, Thrust

$8.49

$

In Stock, only 1 left!

0

40

Tecumseh 34851

Piston, Pin & Ring Set (Std.) 2-5/8" Bore
(Superseded to 35544A)

$60.99

$

In Stock, only 2 left!

0

40

Tecumseh 34852

Piston, Pin & Ring Set (.010" OS)
(Superseded to 35545A)

$

$

Not available

40

Tecumseh 34853

Piston, Pin & Ring Set (.020" OS)
(Superseded to 35546)

$

$

Not available

41

Tecumseh 32603B

Piston & Pin Ass'y. (Std.)(Incl. 43) 2-5/8"
(Superseded to 35544A)

$60.99

$

In Stock, only 2 left!

0

41

Tecumseh 32604B

Piston & Pin Ass'y. (.010" OS) Incl. 43
(Superseded to 35545A)

$

$

Not available

41

Tecumseh 32605B

Piston & Pin Ass'y. (.020" OS) Incl. 43
(Superseded to 35546)

$

$

Not available

42

Tecumseh 34854

Ring Set (Std.) (2-5/8" Bore)

$

$

Not available

42

Tecumseh 34855

Ring Set (.010" OS)

$

$

Not available

42

Tecumseh 34856

Ring Set (.020" OS)

$

$

Not available

43

Tecumseh 20381

Piston Pin Retaining Ring

$1.99

$

In Stock, Qty 7

0

45

Tecumseh 32875

Rod Assy., Connecting (Incl. 18)
(Superseded to 32875A)

$47.99

$

In Stock, only 1 left!

0

46A

Tecumseh 32609

Plate, Lock Do not use with 32610A lo cking type screw

$0.99

$

Usually ships in 3-12 days

0

46

Tecumseh 32610

Connecting Rod Bolt Early Production
(Superseded to 32610A)

$1.99

$

In Stock, Qty 6

0

46

Tecumseh 32610A

Bolt, Connecting rod

$1.99

$

In Stock, Qty 6

0

48A

Tecumseh 27241

Valve Lifter

$5.49

$

In Stock, only 2 left!

0

48

Tecumseh 27241

Valve Lifter

$5.49

$

In Stock, only 2 left!

0

50

Tecumseh 33154

Camshaft

$47.99

$

In Stock, only 1 left!

0

52

Tecumseh 29914

Oil Pump Ass'y.

$9.49

$

Usually ships in 3-12 days

0

60

Tecumseh 29745

Blower Housing Extension

$3.99

$

Usually ships in 3-12 days

0

66

Tecumseh 30063

Screw, T-30, 1/4-20 x 1/2"

$1.99

$

In Stock, Qty 20+

0

69

Tecumseh 35261

* Gasket, Mounting flange
(Superseded to 37609)

$2.99

$

Usually ships in 3-12 days

0

70

Tecumseh 34311C

Mounting Flange Ass'y. Incl. 72, 75 & 80
(Superseded to 37608A)

$77.99

$

Usually ships in 3-12 days

0

72A

Tecumseh 9556

Oil Drain Plug (Use as required)
(Superseded to 28534)

$1.99

$

In Stock, only 4 left!

0

72

Tecumseh 30572

Plug, Oil drain (Incl. 73)
(Superseded to 36083)

$6.99

$

In Stock, Qty 5

0

73

Tecumseh 28833

* Drain Plug Gasket Do not use w/plast ic plug

$1.99

$

In Stock, only 1 left!

0

75

Tecumseh 27897

Oil Seal

$8.49

$

In Stock, only 3 left!

0

80

Tecumseh 30574

Shaft, Mechanical governor
(Superseded to 30574A)

$7.49

$

In Stock, only 4 left!

0

81

Tecumseh 30590A

Washer, Flat

$1.99

$

In Stock, Qty 7

0

82

Tecumseh 30591

Gear Assy., Governor (Incl. 81)

$13.99

$

In Stock, only 1 left!

0

83

Tecumseh 30588A

Spool, Governor

$1.99

$

In Stock, only 4 left!

0

84

Tecumseh 29193

Retaining Ring

$1.99

$

In Stock, only 4 left!

0

86

Tecumseh 650488

Screw, 1/4-20 x 1-1/4"

$1.99

$

Usually ships in 3-12 days

0

89

Tecumseh 610951

Key, Flywheel

$1.99

$

In Stock, only 3 left!

0

92

Tecumseh 650815

Washer, Belleville

$1.99

$

In Stock, Qty 10

0

93

Tecumseh 650607

Nut, Flywheel

$1.99

$

In Stock, Qty 7

0

103

Tecumseh 650489

Screw, 1/4-20 x 5/8"

$

$

Not available

110

Tecumseh 35349

Ground Wire

$

$

Not available

119

Tecumseh 33015A

* Gasket, Cylinder head

$11.99

$

In Stock, only 1 left!

0

120

Tecumseh 33016A

Head, Cylinder (Incl. 131)
(Superseded to 37675)

$41.99

$

In Stock, only 1 left!

0

125

Tecumseh 32644A

Intake Valve (STD)(Incl. 151) Inverte d Ports

$9.99

$

In Stock, only 2 left!

0

125

Tecumseh 32645A

Intake Valve (1/32" OS) (Incl. 151) ( Inverted Ports)

$61.99

$

In Stock, only 2 left!

0

126

Tecumseh 29313C

Exhaust Valve (Std.) (Incl. 151) (Inv erted Ports)

$

$

Not available

126

Tecumseh 29315C

Exhaust Valve (1/32" OS) (Incl. 151) (Inverted Ports)

$

$

Not available

127

Tecumseh 26073

Washer

$

$

Not available

127

Tecumseh 650691

Washer (Used on late production)

$1.99

$

Usually ships in 3-12 days

0

130

Tecumseh 6021A

Screw, 5/16-18 x 1-1/2" Use as requir ed

$1.99

$

In Stock, only 3 left!

0

130

Tecumseh 650818

Screw, 5/16-18 x 1-1/2" Use as requir ed

$3.99

$

In Stock, only 2 left!

0

131

Tecumseh 650694A

Screw, 5/16-18 x 2" (Use as required)

$3.49

$

In Stock, Qty 20+

0

131

Tecumseh 650697A

Screw, 5/16-18 x 2-1/2" Use as requir ed

$1.99

$

In Stock, Qty 11

0

135

Tecumseh 33636

Resistor Spark Plug - RJ17LM

$5.49

$

In Stock, Qty 15

0

149

Tecumseh 31671

Valve Spring Cap) Used in early produ ction

$1.49

$

In Stock, only 2 left!

0

150

Tecumseh 31672

Spring, Valve

$1.99

$

In Stock, Qty 14

0

151

Tecumseh 31673

Cap, Lower valve spring

$1.99

$

In Stock, only 1 left!

0

169

Tecumseh 31619A

* Gasket, Valve spring cover

$7.49

$

In Stock, only 2 left!

0

170

Tecumseh 31337A

Body Assy., Breather Incl. 169 & 171
(Superseded to 31337B)

$18.99

$

In Stock, only 1 left!

0

171

Tecumseh 31410

Element, Breather

$1.99

$

In Stock, Qty 20+

0

174

Tecumseh 650128

Screw, 10-24 x 1/2"

$5.49

$

In Stock, only 2 left!

0

178

Tecumseh 29752

Nut & Lock Washer 1/4-28

$1.99

$

In Stock, Qty 5

0

181

Tecumseh 6201

Screw, 1/4-28 x 7/8"

$

$

Not available

182

Tecumseh 6201

Screw, 1/4-28 x 7/8"

$

$

Not available

184

Tecumseh 31688A

* Gasket, Carburetor

$2.49

$

In Stock, only 3 left!

0

185

Tecumseh 32656

Pipe, Intake

$

$

Currently unavailable

186

Tecumseh 33151

Link, Governor spring

$1.99

$

In Stock, only 3 left!

0

200

Tecumseh 32415

Control Bracket Incl. 203, 204 & 206

$

$

Currently unavailable

203

Tecumseh 31342

Spring, Compression

$5.99

$

In Stock, only 1 left!

0

204

Tecumseh 650549

Screw, 5-40 x 7/16"
(Superseded to 651029)

$1.99

$

In Stock, only 2 left!

0

206

Tecumseh 610973

Terminal Assy.

$3.99

$

In Stock, only 1 left!

0

207

Tecumseh 32652

Link, Governor-to-throttle

$1.99

$

In Stock, only 3 left!

0

209

Tecumseh 30200

Screw, 10-24 x 9/16"

$1.49

$

In Stock, Qty 10

0

223

Tecumseh 650517

Screw, 1/4-20 x 13/16"

$1.99

$

In Stock, only 1 left!

0

224

Tecumseh 32649A

* Gasket, Intake

$2.99

$

In Stock, Qty 18

0

238

Tecumseh 650709

Screw, 10-32 x 7/16"

$1.99

$

In Stock, only 1 left!

0

239

Tecumseh 27272A

* Gasket, Air cleaner

$4.49

$

In Stock, Qty 20+

0

260

Tecumseh 32455B

Housing, Blower NOTE: Replacement har dware may differ when servicing start er assy. or blower housing. Refer to Service Bulletin 508.

$

$

Currently unavailable

261

Tecumseh 650561

Screw, 1/4 20 x 5/8"

$1.99

$

In Stock, only 2 left!

0

274

Tecumseh 26754A

* Gasket, Exhaust

$1.99

$

In Stock, Qty 9

0

275

Tecumseh 35771

Muffler (Incl. 274)
(Superseded to 35771A)

$32.99

$

In Stock, only 1 left!

0

277

Tecumseh 30063

Screw, T-30, 1/4-20 x 1/2" as req.)

$1.99

$

In Stock, Qty 20+

0

287

Pop Rivet (Purchase locally) 3/16" di a.

$

$

Not available

287

Tecumseh 29716

Screw, 1/4-28 x 7/16" Use as require d

$1.49

$

In Stock, Qty 5

0

287

Tecumseh 30513

Screw & Lockwasher, 1/4-28 x 1/2"

$0.99

$

Usually ships in 3-12 days

0

287A

Tecumseh 29752

Nut & Lock Washer 1/4-28 ired)

$1.99

$

In Stock, Qty 5

0

290B

Tecumseh 29774

Fuel Line (8.62") (21cm)

$34.99

$

In Stock, Qty 6

0

290A

Tecumseh 31400

Fuel Line (Metal 3-3/8")
(Superseded to 33754)

$

$

Not available

290

Tecumseh 29774

Fuel Line (8.62") as req.)

$34.99

$

In Stock, Qty 6

0

290

Tecumseh 30705

Fuel Line (Braided 16")(40 cm) Use as req.

$16.99

$

In Stock, only 2 left!

0

290

Tecumseh 34357

Fuel Line (Epichlorohydrin 6-3/4") 1 7 cm
(Superseded to 29774)

$34.99

$

In Stock, Qty 6

0

292

Tecumseh 26460

Fuel Line Clamp

$1.49

$

In Stock, Qty 6

0

300

Tecumseh 31862A

Fuel Tank (Incl. 301)

$

$

Not available

301

Tecumseh 33032

Fuel Cap (Red 1-1/2" ID) also availab le in Packaged Part #740005B

$7.49

$

Usually ships in 3-12 days

0

301

Tecumseh 34210

Fuel Cap (use as required)

$8.49

$

In Stock, Qty 12

0

301

Tecumseh 410144B

Fuel Cap (Std.) (Use as required)
(Superseded to 33032)

$7.49

$

Usually ships in 3-12 days

0

325A

Tecumseh 27275

Wire Clip

$1.99

$

In Stock, Qty 7

0

370

Tecumseh 31353

Decal, Instruction

$

$

Not available

375

Tecumseh 610755

Magneto (W/Ring Gear) NOTE: This mag neto is not available as an assembly. The magneto number is shown for ref erence purposes only. Order componen t parts individually, as shown in par ts breakdown. Refer to Division 5, Se ction B, page24 or Fiche

$

$

Currently unavailable

377

Tecumseh 30547A

Breaker Points (also available in Pac kaged Part #740037B)

$18.99

$

In Stock, only 1 left!

0

378

Tecumseh 30548B

Condenser (also available in Packaged Part #740037B)

$13.99

$

In Stock, Qty 9

0

379

Tecumseh 630932A

Inlet Needle, Seat, Gasket & Spring A ssy.

$9.49

$

In Stock, Qty 12

0

400

Tecumseh 33238D

* Gasket Set (Incl. items marked *)
(Superseded to 33238E)

$50.99

$

In Stock, only 1 left!

0

420

Tecumseh 730225

SAE 30 4-Cycle Engine Oil (Quart)
(Superseded to 730225A)

$8.99

$

In Stock, only 4 left!

0

1102

Tecumseh 29553A

Gauge, Visual fuel

$

$

Currently unavailable
