143.051001 - Craftsman Engine, Made by Tecumseh Engine Parts List #1 Parts Diagram

Engine, Made by Tecumseh

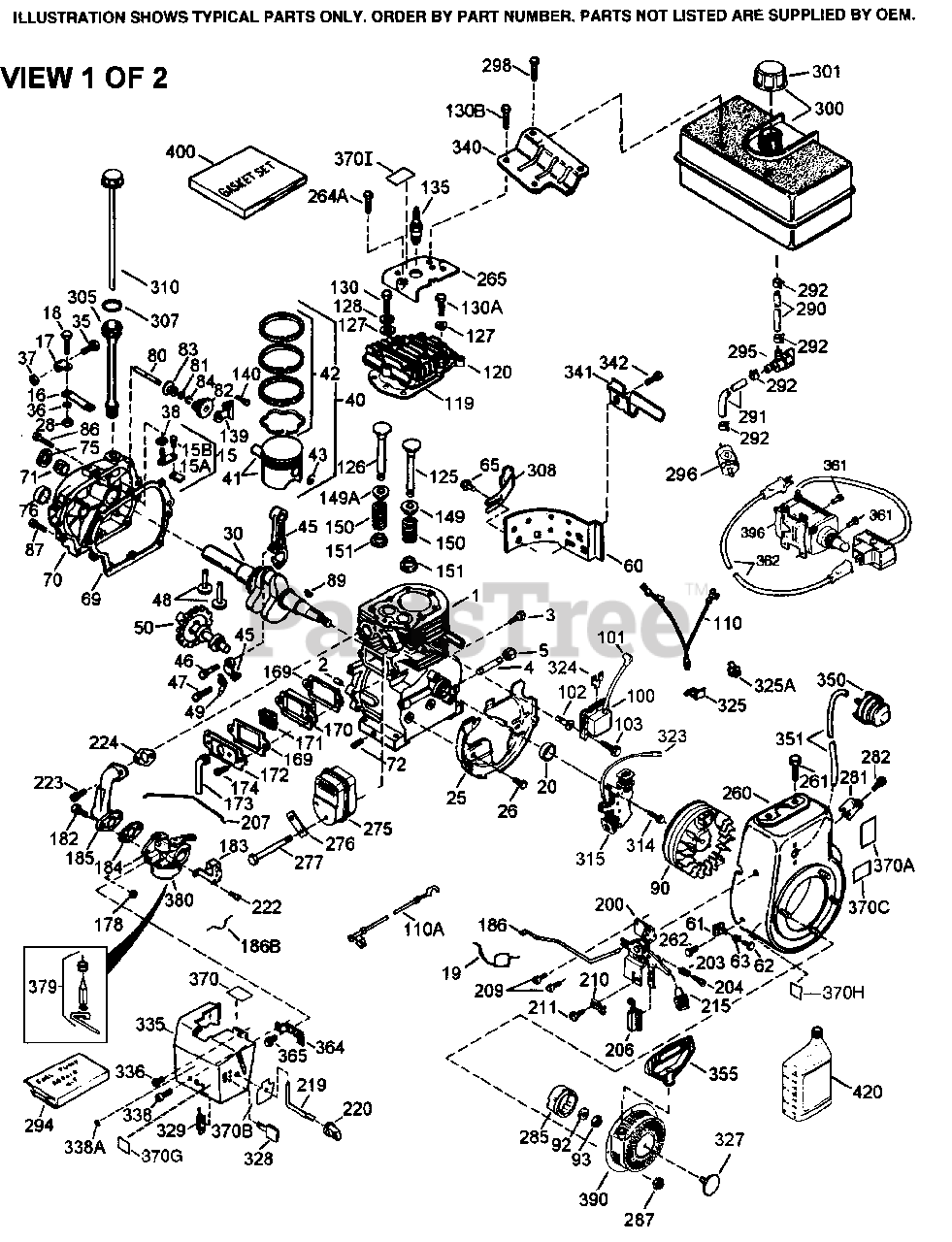

Engine Parts List #1 Parts Diagram

  • Title

Tecumseh 29763

"Crankshaft
(Superseded to 31771)

$

$

Currently unavailable

1

Tecumseh 35371

Cylinder (Cast Iron Liner)(3-5/16") I ncl. 2, 20, 72, 72A & 72B

$311.99

$

Usually ships in 3-12 days

0

2

Tecumseh 27652

Dowel Pin

$2.49

$

Usually ships in 3-12 days

0

3

Tecumseh 650820

Screw, 1/4-20 x 1/2"

$3.99

$

In Stock, Qty 15

0

4

Tecumseh 0

Oil Drain Extension Purchase Locally

$

$

Not available

5

Tecumseh 30969

Extension Cap

$5.49

$

In Stock, only 1 left!

0

14

Tecumseh 28277

Flat Washer

$1.99

$

In Stock, only 4 left!

0

15B

Tecumseh 650494

Screw, 6-40 x 5/16"

$1.99

$

Usually ships in 3-12 days

0

15

Tecumseh 30699C

Governor Rod (Incl. 15A & 15B)

$17.99

$

In Stock, only 1 left!

0

15A

Tecumseh 30700

Governor Yoke

$1.99

$

In Stock, only 1 left!

0

16

Tecumseh 33454A

Governor Lever

$10.99

$

In Stock, only 1 left!

0

17

Tecumseh 29916

Governor Lever Clamp

$1.99

$

In Stock, only 2 left!

0

18

Tecumseh 651028

Screw, Torx T-15, 8-32 x 3/8"

$1.99

$

In Stock, only 4 left!

0

19

Tecumseh 34663

Throttle Spring

$1.99

$

In Stock, Qty 5

0

20

Tecumseh 35319

Oil Seal

$4.99

$

In Stock, only 2 left!

0

20

Tecumseh 35319

Oil Seal

$4.99

$

In Stock, only 2 left!

0

25

Tecumseh 36460

Blower Housing Baffle
(Superseded to 37853)

$11.99

$

In Stock, only 1 left!

0

26

Tecumseh 650561

Screw, 1/4-20 x 19/32"

$1.99

$

In Stock, only 2 left!

0

26

Tecumseh 650561

Screw, 1/4-20 x 5/8"

$1.99

$

In Stock, only 2 left!

0

28

Tecumseh 30322

Lock Nut, 8-32

$1.99

$

Usually ships in 3-12 days

0

30

Tecumseh 37862

Crankshaft

$145.99

$

Usually ships in 3-12 days

0

35

Tecumseh 29826

Screw, 10-32 x 3/4"

$1.99

$

In Stock, only 4 left!

0

36

Tecumseh 29918

Lock Washer #8

$1.99

$

In Stock, Qty 5

0

37

Tecumseh 29216

Lock Nut, 10-32

$1.99

$

In Stock, only 3 left!

0

38

Tecumseh 29642

Retaining Ring

$100.99

$

In Stock, only 2 left!

0

40

Tecumseh 35776A

Piston, Pin & Ring Set (Std) (Incl. 4 1, 42 & 43)
(Superseded to 35776B)

$54.99

$

In Stock, only 1 left!

0

40

Tecumseh 35777A

Piston, Pin & Ring Set (.010" OS) (In cl. 41, 42 & 43)

$

$

Not available

40

Tecumseh 35778A

Piston, Pin & Ring Set (.020" OS) (In cl. 41, 42 & 43)
(Superseded to 34862A)

$158.99

$

Usually ships in 3-12 days

0

41

Tecumseh 35773A

Piston & Pin Assembly (Std) (Incl. 43 )
(Superseded to 35776B)

$54.99

$

In Stock, only 1 left!

0

41

Tecumseh 35774A

Piston & Pin Ass'y. (.010" OS) (Incl. 43)
(Superseded to 35777A)

$

$

Not available

41

Tecumseh 35775A

Piston & Pin Ass'y. (.020" OS) (Incl. 43)
(Superseded to 35778A)

$158.99

$

Usually ships in 3-12 days

0

42

Tecumseh 35779

Ring Set (Std.) (3-5/16")

$44.99

$

In Stock, only 1 left!

0

42

Tecumseh 35780

Ring Set (.010" OS)

$

$

Not available

42

Tecumseh 35781

Ring Set (.020" OS)

$

$

Not available

43

Tecumseh 35772

Piston Pin Retaining Ring

$1.99

$

In Stock, only 4 left!

0

45

Tecumseh 36898

Connecting Rod Ass'y. (Incl. 47 & 49)
(Superseded to 36898A)

$52.99

$

In Stock, only 1 left!

0

47

Tecumseh 651033

Connecting Rod Bolt
(Superseded to 651033A)

$

$

Not available

48

Tecumseh 34034

Valve Lifter
(Superseded to 34034A)

$10.99

$

In Stock, only 3 left!

0

49

Tecumseh 36896

Oil Dipper

$1.99

$

Usually ships in 3-12 days

0

50

Tecumseh 35375

Camshaft (MCR)

$

$

Not available

60

Tecumseh 33273A

Blower Housing Extension

$7.49

$

Usually ships in 3-12 days

0

69

Tecumseh 35262A

* Cylinder Cover Gasket
(Superseded to 37342)

$11.99

$

In Stock, only 1 left!

0

70

Tecumseh 35376A

Cylinder Cover (Incl. 71, 75, 80 thru 84))
(Superseded to 38027)

$

$

Not available

71

Tecumseh 35377

Crankshaft Bushing

$11.99

$

In Stock, only 3 left!

0

72

Tecumseh 27642

Oil Drain Plug (Sq. hd., 1/4-18)

$1.99

$

In Stock, only 2 left!

0

76

Tecumseh 28926

Camshaft Seal

$9.49

$

In Stock, only 1 left!

0

80

Tecumseh 37587

Governor Shaft

$

$

Not available

81

Tecumseh 651080

Washer

$1.99

$

In Stock, Qty 8

0

82

Tecumseh 37588

Governor Gear Ass'y. (Incl. 81)

$9.49

$

In Stock, only 1 left!

0

83

Tecumseh 30588A

Governor Spool

$1.99

$

In Stock, only 4 left!

0

84

Tecumseh 29193

Retaining Ring

$1.99

$

In Stock, only 4 left!

0

86

Tecumseh 650833

Screw, 1/4-20 x 1-3/16"

$1.99

$

Usually ships in 3-12 days

0

87

Tecumseh 650832

Screw, 1/4-20 x 1-11/16"

$

$

Not available

89

Tecumseh 32589

Flywheel Key

$1.49

$

In Stock, only 4 left!

0

90

Tecumseh 611093

Flywheel (W/Ring Gear)

$

$

Not available

92

Tecumseh 650880

Lock Washer

$1.99

$

In Stock, only 3 left!

0

93

Tecumseh 650881

Flywheel Nut

$1.99

$

Usually ships in 3-12 days

0

100

Tecumseh 35135A

Solid State Ignition (Incl. 101)
(Superseded to 35135B)

$62.99

$

Usually ships in 3-12 days

0

101

Tecumseh 610118

Spark Plug Cover

$6.49

$

In Stock, only 3 left!

0

102

Tecumseh 651024

Solid State Mounting Stud

$3.99

$

In Stock, only 2 left!

0

103

Tecumseh 651007

Screw, Torx T-15, 10-24 x 15/16"

$1.99

$

In Stock, only 4 left!

0

110

Tecumseh 35187

Ground Wire

$

$

Not available

110A

Tecumseh 37047

Ground Wire (10.50" with male & femal e flag terminals)

$1.99

$

In Stock, Qty 5

0

119

Tecumseh 36451

* Cylinder Head Gasket

$9.99

$

Usually ships in 3-12 days

0

120

Tecumseh 36449

Cylinder Head

$

$

Not available

125

Tecumseh 27878A

Exhaust Valve (Std.)(Incl. 151)

$23.99

$

Usually ships in 3-12 days

0

125

Tecumseh 27880A

Exhaust Valve (1/32" OS) (Incl. 151)

$

$

Not available

126

Tecumseh 34035

Intake Valve (Std.) (Incl. 151)

$15.99

$

In Stock, only 1 left!

0

127

Tecumseh 650691

Washer

$1.99

$

Usually ships in 3-12 days

0

128

Tecumseh 650690

Belleville Washer
(Superseded to 730324)

$9.99

$

Usually ships in 3-12 days

0

130C

Tecumseh 650694A

Screw, 5/16-18 x 2"

$3.49

$

In Stock, Qty 20+

0

130C

Tecumseh 651055

Screw, 5/16-18 x 39/64"
(Superseded to 650273)

$1.99

$

In Stock, Qty 5

0

130A

Tecumseh 650727

Screw, 5/16-18 x 1-3/4"

$3.99

$

In Stock, only 1 left!

0

130

Tecumseh 6021A

Screw, 5/16-18 x 1-1/2"

$1.99

$

In Stock, only 3 left!

0

135

Tecumseh 35395

Resistor Spark Plug (RJ19LM) also ava ilable in Packaged Part #740081

$3.49

$

In Stock, Qty 14

0

139

Tecumseh 33369

Governor Gear Bracket

$8.49

$

In Stock, only 1 left!

0

140

Tecumseh 650836

Screw, 10-24 x 1/2"
(Superseded to 650965)

$

$

Not available

149A

Tecumseh 35862

Valve Spring Cap

$9.49

$

Usually ships in 3-12 days

0

149

Tecumseh 27882

Valve Spring Cap

$1.99

$

In Stock, only 4 left!

0

150

Tecumseh 27881

Valve Spring

$3.99

$

In Stock, only 2 left!

0

151

Tecumseh 32581

Valve Spring Keeper

$6.49

$

In Stock, Qty 10

0

169

Tecumseh 27896A

* Valve Cover Gasket

$1.49

$

In Stock, Qty 10

0

170

Tecumseh 28423

Breather Body

$13.99

$

In Stock, only 1 left!

0

171

Tecumseh 28424

Breather Element

$3.99

$

In Stock, only 3 left!

0

172

Tecumseh 28425

Valve Cover

$7.49

$

In Stock, only 1 left!

0

173

Tecumseh 35350

Breather Tube

$6.49

$

Usually ships in 3-12 days

0

174

Tecumseh 650128

Screw, 10-24 x 1/2"

$5.49

$

In Stock, only 1 left!

0

174

Tecumseh 650128

Screw, 10-24 x 1/2"

$5.49

$

In Stock, only 1 left!

0

178

Tecumseh 29752

Nut & Lock Washer 1/4-28

$1.99

$

In Stock, only 3 left!

0

178

Tecumseh 29752

Nut & Lock Washer 1/4-28

$1.99

$

In Stock, only 3 left!

0

182

Tecumseh 30088A

Screw, 1/4-28 x 1"

$1.99

$

In Stock, only 2 left!

0

183

Tecumseh 34587A

Choke Bracket
(Superseded to 34587B)

$9.49

$

In Stock, only 1 left!

0

184

Tecumseh 33263

* Carburetor To Intake Pipe Gasket

$1.49

$

In Stock, Qty 20+

0

185

Tecumseh 33877

Intake Pipe

$48.99

$

Usually ships in 3-12 days

0

186

Tecumseh 34667

Governor Link

$1.99

$

Usually ships in 3-12 days

0

186B

Tecumseh 36652

Choke Spring

$7.49

$

In Stock, Qty 5

0

200

Tecumseh 34677

Control Bracket (Incl.19,203,204,206)

$54.99

$

In Stock, only 1 left!

0

203

Tecumseh 31342

Compression Spring

$5.99

$

In Stock, only 1 left!

0

204

Tecumseh 651029

Screw, Torx T-10, 5-40 x 7/16"

$1.99

$

In Stock, only 2 left!

0

206

Tecumseh 610973

Terminal

$3.99

$

In Stock, Qty 5

0

206

Tecumseh 610973

Terminal

$3.99

$

In Stock, Qty 5

0

207

Tecumseh 33878

Throttle Link

$6.99

$

In Stock, only 2 left!

0

215

Tecumseh 35440

Control Knob

$3.99

$

Usually ships in 3-12 days

0

219

Tecumseh 34586

Choke Rod

$5.49

$

In Stock, only 1 left!

0

220

Tecumseh 35438

Control Knob

$3.99

$

In Stock, only 1 left!

0

222

Tecumseh 28820

Screw, 10-32 x 1/2"
(Superseded to 651081)

$4.49

$

In Stock, only 3 left!

0

223

Tecumseh 650378

Screw, Torx T-30, 5/16-18 x 1-1/8"

$1.99

$

In Stock, only 3 left!

0

224

Tecumseh 27915A

* Intake Pipe Gasket

$5.99

$

In Stock, Qty 20+

0

260

Tecumseh 35447A

Blower Housing Electric Starter Compa tible
(Superseded to 37961)

$

$

Not available

261

Tecumseh 651084

Screw, 5/16-18 x 9/16"

$1.99

$

Usually ships in 3-12 days

0

262

Tecumseh 29747B

Screw, T-40, 5/16-24 x 21/32"

$1.99

$

In Stock, Qty 9

0

264A

Tecumseh 650802

Screw, 1/4-20 x 5/8"

$1.99

$

In Stock, Qty 5

0

265

Tecumseh 33272D

Cylinder Head Cover (Black)

$7.49

$

Usually ships in 3-12 days

0

275

Tecumseh 35056

Muffler

$62.99

$

In Stock, only 2 left!

0

276

Tecumseh 31588

Locking Plate

$4.99

$

In Stock, Qty 20+

0

277

Tecumseh 651002

Screw, 5/16-18 x 4-3/16"

$4.49

$

In Stock, Qty 12

0

285

Tecumseh 35985B

Starter Cup
(Superseded to 35985C)

$13.99

$

In Stock, only 1 left!

0

290

Tecumseh 30705

Fuel Line

$16.99

$

In Stock, Qty 9

0

292

Tecumseh 26460

Fuel Line Clamp

$1.49

$

In Stock, Qty 20+

0

298

Tecumseh 650665

Screw, 1/4-15 x 3/4"

$1.99

$

In Stock, only 3 left!

0

300

Tecumseh 34156A

Fuel Tank (Incl. 292 & 301)

$54.99

$

Usually ships in 3-12 days

0

301

Tecumseh 37845

Fuel Cap (Red Plastic)(1-1/2" I.D.)

$8.99

$

In Stock, Qty 9

0

305

Tecumseh 35554

Oil Fill Tube

$19.99

$

In Stock, only 1 left!

0

307

Tecumseh 35499

"O" Ring

$1.49

$

In Stock, only 3 left!

0

311

Tecumseh 35942

Oil Fill Plug

$9.49

$

In Stock, only 1 left!

0

314

Tecumseh 650873

Screw, 1/4-20 x 3/4"

$1.99

$

Usually ships in 3-12 days

0

315

Tecumseh 611111

Alternator Coil (18 Watt) (Incl. 323)

$68.99

$

Usually ships in 3-12 days

0

323

Tecumseh 611118

Terminal

$1.99

$

Usually ships in 3-12 days

0

325

Tecumseh 29443

Wire Clip

$1.99

$

In Stock, Qty 5

0

328

Tecumseh 35593

Ignition Key
(Superseded to 35062)

$3.99

$

Usually ships in 3-12 days

0

329A

Tecumseh 651060

Screw, 10-32 x 23/64"

$1.99

$

Usually ships in 3-12 days

0

335

Tecumseh 36547

Carburetor Cover
(Superseded to 36547A)

$70.99

$

In Stock, only 1 left!

0

336

Tecumseh 650765

Screw, 10-32 x 1/2"

$1.49

$

In Stock, only 4 left!

0

338

Tecumseh 28942

Screw, 10-32 x 3/8"

$1.49

$

In Stock, only 4 left!

0

338

Tecumseh 650821

Screw, 10-32 x 1/2"

$1.99

$

In Stock, only 3 left!

0

340

Tecumseh 34154

Fuel Tank Bracket

$

$

Not available

341

Tecumseh 34155

Fuel Tank Bracket

$

$

Not available

343

Tecumseh 35079A

Key Switch Bracket (Incl. 343A)

$16.99

$

Usually ships in 3-12 days

0

350

Tecumseh 570682A

Primer Assembly (also available in Pa ckaged Part #740101) also available i n Packaged Part #740101

$10.99

$

In Stock, only 4 left!

0

351

Tecumseh 32180C

Primer Line

$6.99

$

In Stock, only 4 left!

0

355

Tecumseh 590574

Starter Handle (Mitten Grip) also ava ilable in Packaged Part #740053B

$5.49

$

Usually ships in 3-12 days

0

361

Tecumseh 650990

Screw, T-30, 1/4-20 x 15/32"

$3.99

$

In Stock, only 4 left!

0

364

Tecumseh 33377

Carburetor Cover Bracket
(Superseded to 37659)

$

$

Not available

365

Tecumseh 650767

Screw, 8-32 x 27/64"

$1.49

$

In Stock, only 4 left!

0

370

Tecumseh 34686A

Decal - Cast Iron Cylinder Liner for Model TC

$

$

Not available

370

Tecumseh 35077

Decal - Speed Control & Choke

$

$

Not available

370

Tecumseh 35392

Starter Plug

$1.99

$

Usually ships in 3-12 days

0

370

Tecumseh 35878

Decal - Start Instrucitons - Warning - Hot Areas

$

$

Not available

370

Tecumseh 36501

Decal - Primer - International Symbol

$2.49

$

In Stock, only 2 left!

0

380

Tecumseh 640054

Carburetor (Incl. 184)
(Superseded to 640349)

$109.99

$

Usually ships in 3-12 days

0

390

Tecumseh 590749

Rewind Starter NOTE: This engine cou ld have been built with 590733 starte r.
(Superseded to 590789)

$87.99

$

In Stock, only 1 left!

0

396

Tecumseh 33329D

Electric Starter Motor (120 Volt)
(Superseded to 33329E)

$

$

Not available

400

Tecumseh 36452B

* Gasket Set

$21.99

$

Usually ships in 3-12 days

0

420

Tecumseh 730226A

SAE 5W30 4-Cycle Engine Oil - Quart - Winter
(Superseded to 730226B)

$13.99

$

In Stock, Qty 9

0
