143.008501 - Craftsman Engine, Made by Tecumseh Engine Parts List #2 Parts Diagram

Engine, Made by Tecumseh

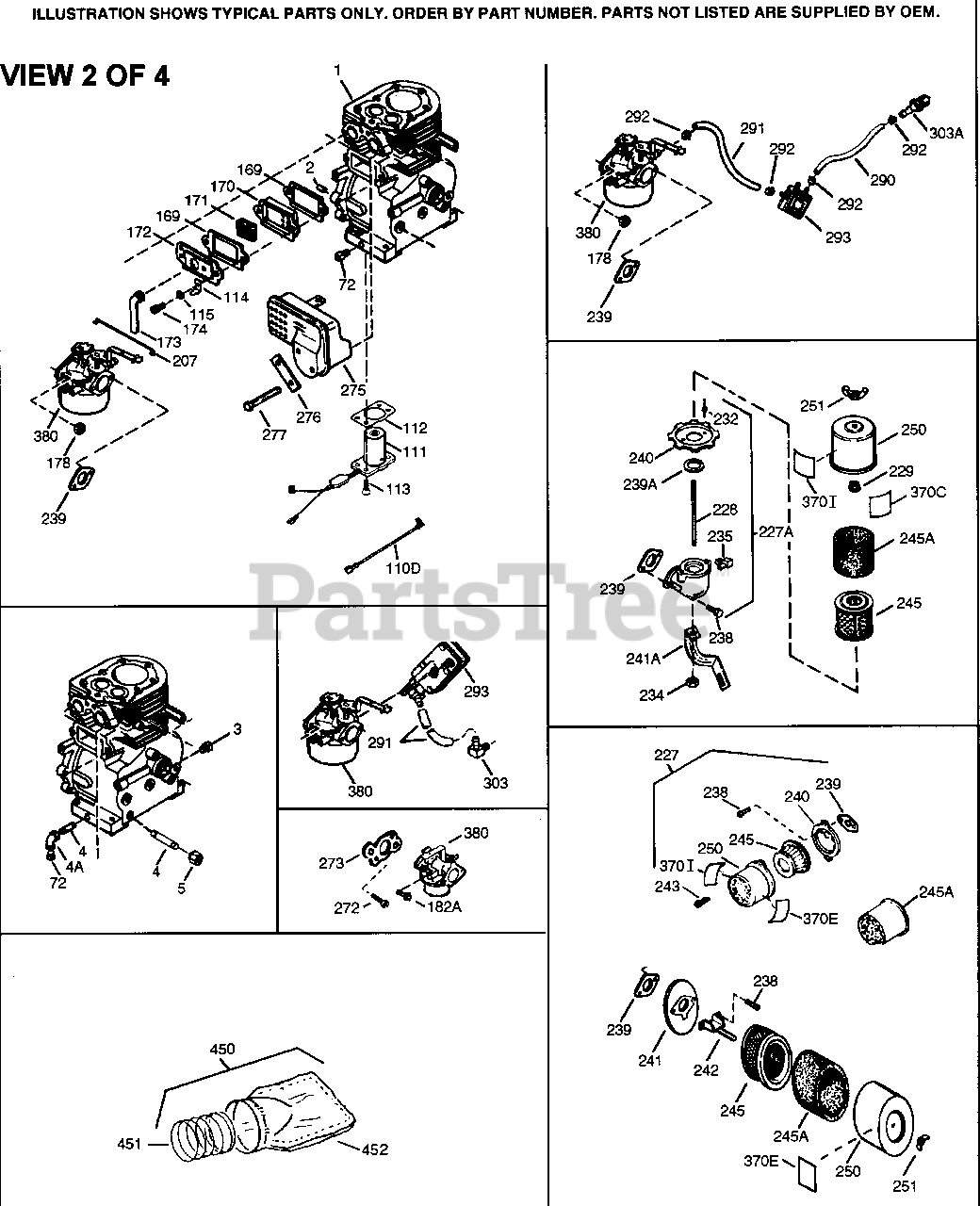

Engine Parts List #2 Parts Diagram

  • Title

1

Tecumseh 35385

"Cylinder Ass'y. (Incl. 2, 20, 72 & 72 A)(3-1/8" Bore)

$311.99

$

Usually ships in 3-12 days

0

2

Tecumseh 27652

Dowel Pin

$2.49

$

Usually ships in 3-12 days

0

4

Tecumseh 0

Oil Drain Extension Purchase Locally

$

$

Not available

5

Tecumseh 30969

Extension Cap

$5.49

$

In Stock, only 1 left!

0

14

Tecumseh 28277

Flat Washer

$1.99

$

In Stock, only 4 left!

0

72

Tecumseh 28582

Oil Drain Plug (Sq. hd., 1/4-18)

$1.99

$

In Stock, only 1 left!

0

169

Tecumseh 27896A

* Breather Gasket

$1.49

$

In Stock, Qty 10

0

170

Tecumseh 28423

Breather Body

$13.99

$

In Stock, only 1 left!

0

171

Tecumseh 28424

Breather Element

$3.99

$

In Stock, only 3 left!

0

172

Tecumseh 28425

Valve Cover

$7.49

$

In Stock, only 1 left!

0

173

Tecumseh 35350

Breather Tube

$6.49

$

Usually ships in 3-12 days

0

174

Tecumseh 650128

Screw, 10-24 x 1/2"

$5.49

$

Usually ships in 3-12 days

0

178

Tecumseh 29752

Nut & Lock Washer 1/4-28

$1.99

$

In Stock, only 3 left!

0

207

Tecumseh 37448

Choke Link
(Superseded to 37858)

$8.49

$

In Stock, only 1 left!

0

212

Tecumseh 36288

Bushing

$1.99

$

In Stock, only 2 left!

0

239

Tecumseh 27272A

* Air Cleaner Gasket

$4.49

$

In Stock, Qty 20+

0

240

Tecumseh 33266

Air Cleaner Bracket

$9.49

$

In Stock, only 1 left!

0

242

Tecumseh 33267

Air Cleaner Bracket

$7.49

$

In Stock, only 1 left!

0

243

Tecumseh 28820

Screw, 10-32 x 1/2"
(Superseded to 651081)

$4.49

$

In Stock, only 3 left!

0

245A

Tecumseh 35881

Poly Pre-Filter (also available in Pa ckaged Part #740027B)

$5.49

$

Usually ships in 3-12 days

0

245

Tecumseh 33268

Air Filter (Paper) also available in Packaged Part #740027B

$13.99

$

In Stock, Qty 7

0

250

Tecumseh 33269A

Air Cleaner Cover

$19.99

$

In Stock, only 1 left!

0

251

Tecumseh 37444

Wing Nut, 1/4-20
(Superseded to 37444A)

$5.49

$

In Stock, only 1 left!

0

275

Tecumseh 34185B

Muffler

$46.99

$

In Stock, only 1 left!

0

276

Tecumseh 31588

Locking Plate

$4.99

$

In Stock, Qty 20+

0

277

Tecumseh 650729

Screw, 5/16-18 x 3/3-16"

$1.99

$

In Stock, Qty 5

0

277A

Tecumseh 651036

Screw, 5/16-18 x 3-31/32"

$

$

Not available

278

Tecumseh 36908

Spacer

$

$

Not available

280

Tecumseh 36799A

Heat Shield

$39.99

$

Usually ships in 3-12 days

0

291

Tecumseh 30962

Fuel Line

$30.99

$

In Stock, Qty 6

0

292

Tecumseh 26460

Fuel Line Clamp

$1.49

$

In Stock, Qty 20+

0

380

Tecumseh 640260

Carburetor (Incl. 184)
(Superseded to 640260B)

$109.99

$

In Stock, only 1 left!

0

900

Tecumseh 0

Replacement engine None.

$

$

Not available

900

Tecumseh 0

Replacement short block 756331B, orde r from 71-999.

$

$

Not available
