143.002072 - Craftsman Engine, Made by Tecumseh Engine Parts List #2 Parts Diagram

Engine, Made by Tecumseh

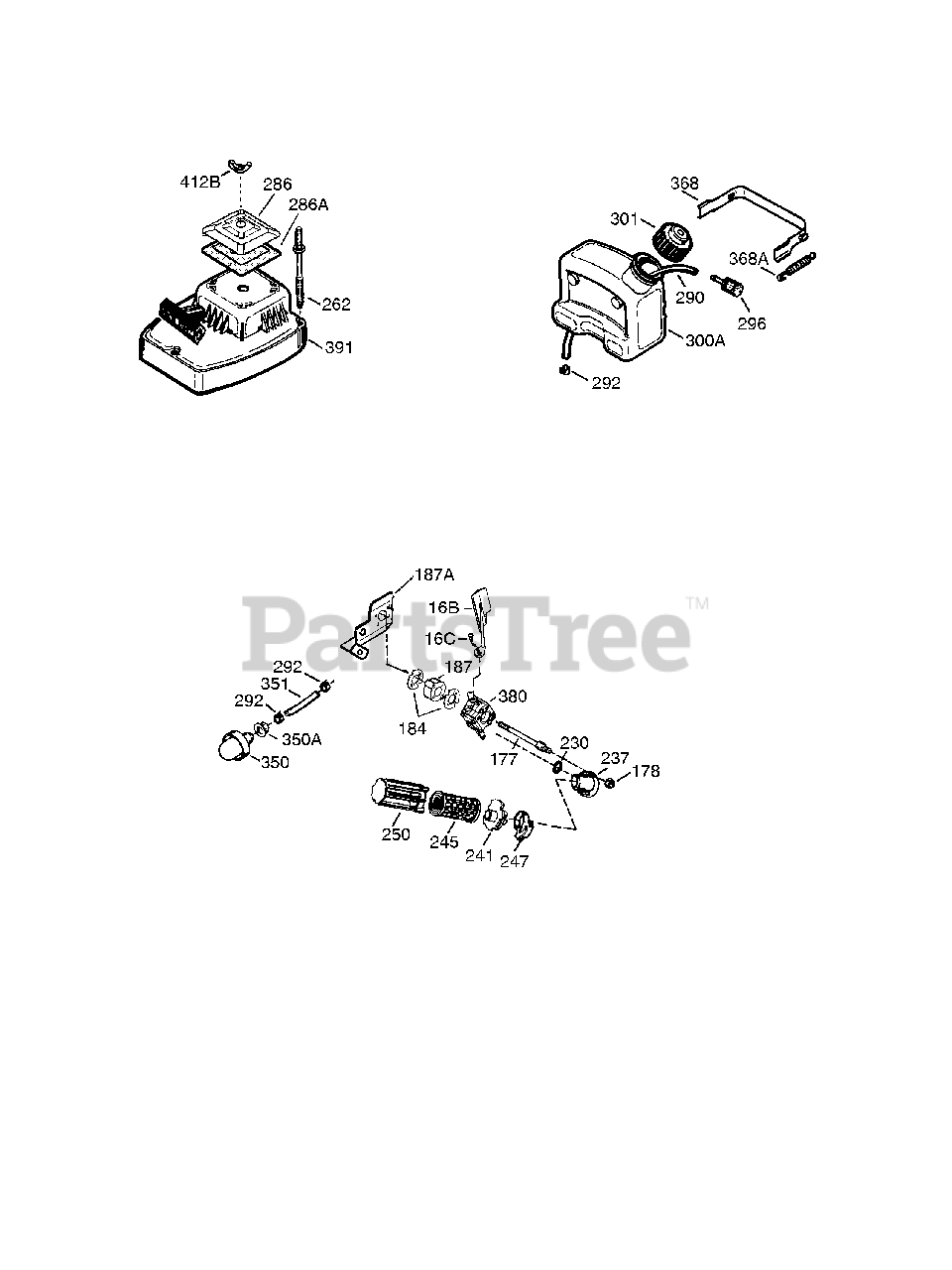

Engine Parts List #2 Parts Diagram

  • Title

16B

Tecumseh 490324

Air Vane

$3.99

$

In Stock, Qty 12

0

16C

Tecumseh 650986

Screw, T-8, 3-48 x 7/32"

$1.99

$

In Stock, Qty 12

0

177

Tecumseh 650858

Carburetor Mounting Stud

$1.99

$

In Stock, Qty 11

0

178

Tecumseh 650580

Lock Nut, 10-24

$1.49

$

In Stock, Qty 5

0

184

Tecumseh 510327B

Carburetor Gasket

$5.49

$

In Stock, Qty 12

0

187

Tecumseh 570648A

Spacer

$14.99

$

In Stock, Qty 5

0

187A

Tecumseh 570698A

Air Baffle (Incl. 184 & 187)

$7.49

$

In Stock, only 4 left!

0

230

Tecumseh 570649A

"O" Ring

$1.99

$

In Stock, Qty 10

0

245

Tecumseh 450252

Air Filter (Poly) (also available in Packaged Part #740097 (incl. 450255 & 450257))

$3.99

$

In Stock, only 2 left!

0

250

Tecumseh 450253

Air Cleaner Cover

$10.99

$

In Stock, only 1 left!

0

262

Tecumseh 650939

Stud

$1.99

$

In Stock, only 1 left!

0

290

Tecumseh 410246A

Fuel Line

$9.49

$

In Stock, only 2 left!

0

292

Tecumseh 410253

Fuel Line Clamp

$1.99

$

In Stock, Qty 5

0

301

Tecumseh 410280

Fuel Cap

$7.49

$

In Stock, only 1 left!

0

380

Tecumseh 640231

Carburetor (Incl. 184)

$85.99

$

In Stock, only 1 left!

0

391

Tecumseh 590690

Recoil Starter & Housing Ass'y.
(Superseded to 730323)

$93.99

$

In Stock, only 1 left!

0

520

Tecumseh 0

Clutch (Supplied by OEM)

$

$

Not available

900

Tecumseh 0

Replacement engine 710580, order from 71-999

$

$

Not available

900

Tecumseh 0

Replacement S/B 710542B, order from 7 1-999

$

$

Not available
