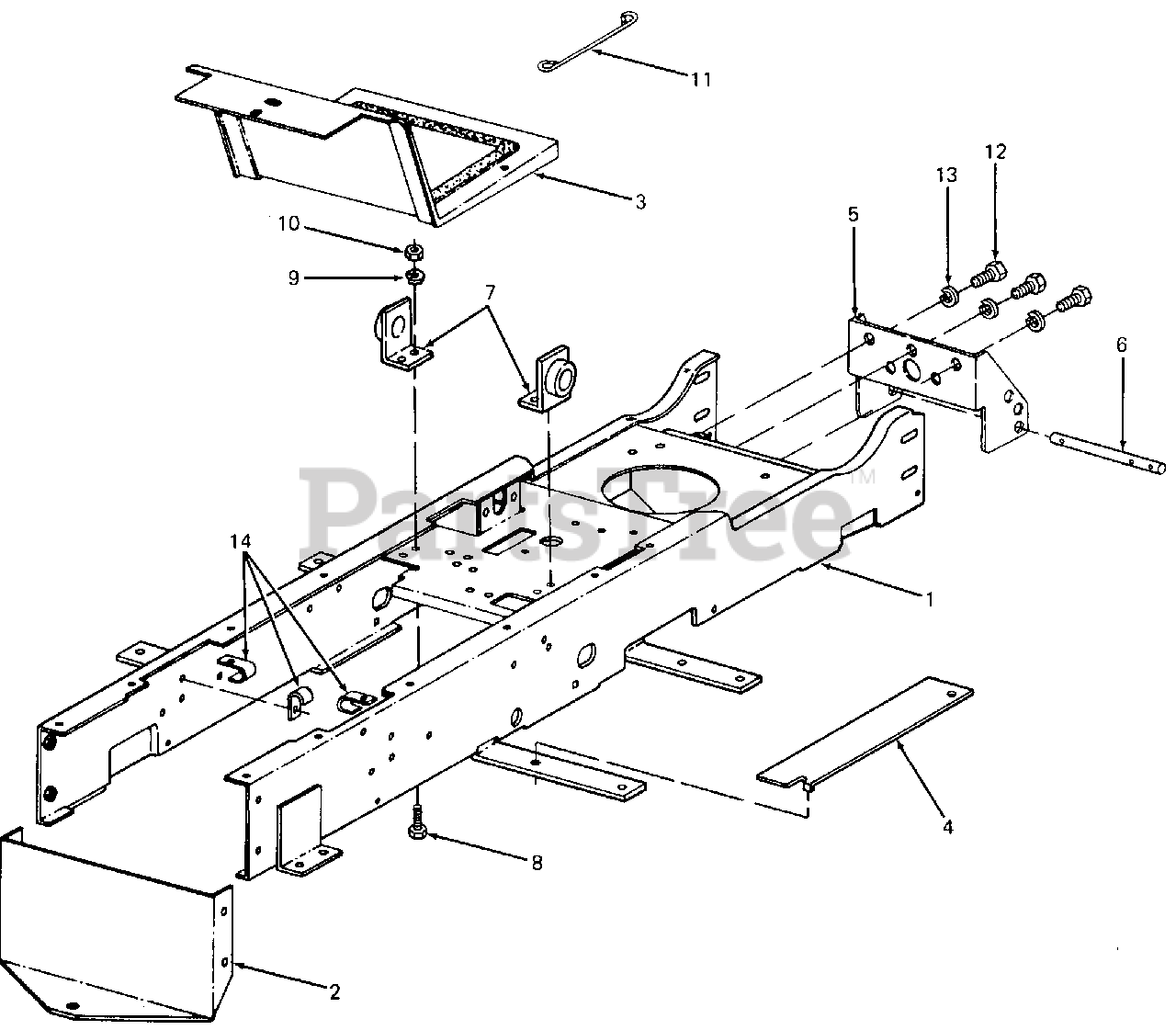

1420 (138-251-100) - Cub Cadet Garden Tractor (SN: 126001 - 147087) Frame & Drawbar Parts Diagram

Garden Tractor

Frame & Drawbar Parts Diagram

  • Title

$

$

Not available

2

Cub Cadet 703-1119

Drawbar
(Superseded to 703-1119-0498)

Variations

Cub Cadet 703-1119-0498

Drawbar - OLD CUB YELLOW (0498)

$

$

Not available

$

$

Cub Cadet 710-3000

Screw, Hex Cap, 3/8-16 X .75 Lg GR5
(Superseded to 710-0216)

$4.49

$

In Stock, Qty 15

0

Cub Cadet 736-0169

Washer, Lock, 3/8

$3.99

$

In Stock, Qty 20+

0

3

Cub Cadet 759-3194

Cover w/Graphic

$

$

Not available

Cub Cadet 779-3432

Graphic, Caution

$

$

Not available

Cub Cadet 710-3149

Screw, #10 AB X 1.0 Lg Oval Hd Cnt Snk

$

$

Not available

Cub Cadet 726-3039

Nut, Speed

$

$

Not available

Cub Cadet 710-3000

Screw, Hex Cap, 3/8-16 X.75 Lg GR5
(Superseded to 710-0216)

$4.49

$

In Stock, Qty 15

0

Cub Cadet 736-3032

Washer, Flat, .406 X 1.0 X .054 Thk

$

$

Not available

Cub Cadet 736-0169

Washer, Lock, 3/8 Dia

$3.99

$

In Stock, Qty 20+

0

4

Cub Cadet 703-1631

Guard, Fender

$

$

Currently unavailable

5

Cub Cadet 703-1288

Bracket, Front Deck
(Superseded to 703-1964-0716)

$

$

Not available

6

Cub Cadet 703-1297

Rod, Deck Support

$57.99

$

In Stock, only 1 left!

0

Cub Cadet 736-0272

Washer, Flat, .510 X 1.0 X .06

$4.99

$

In Stock, Qty 20+

0

Cub Cadet 714-0149

Pin, Internal Cotter
(Superseded to 914-0149B)

$

$

Not available

7

Cub Cadet 703-1535

Bracket, Lift Shaft

$

$

Not available

8

Cub Cadet 710-3008

Screw, Hex Cap, 5/16-18 X .75 Lg GR5

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 736-0119

Washer, Lock, 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

10

Cub Cadet 712-3010

Nut, Hex, 5/16-18 GR5

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 747-3106

Rod, Link Retaining

$

$

Not available

Cub Cadet 736-0206

Washer, Flat, .378 X 1.0 X .125 Thk
(Superseded to 936-0206)

$4.49

$

In Stock, only 3 left!

0

Cub Cadet 712-3005

Nut, Hex Flange, 3/8-16

$6.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 710-3000

Screw, Hex Cap, 3/8-16 X .75 Lg GR5
(Superseded to 710-0216)

$4.49

$

In Stock, Qty 15

0

13

Cub Cadet 736-0169

Washer, Lock, 3/8

$3.99

$

In Stock, Qty 20+

0

14

Cub Cadet 726-3008

Clip, Cable

$4.99

$

Usually ships in 3-6 days

0
