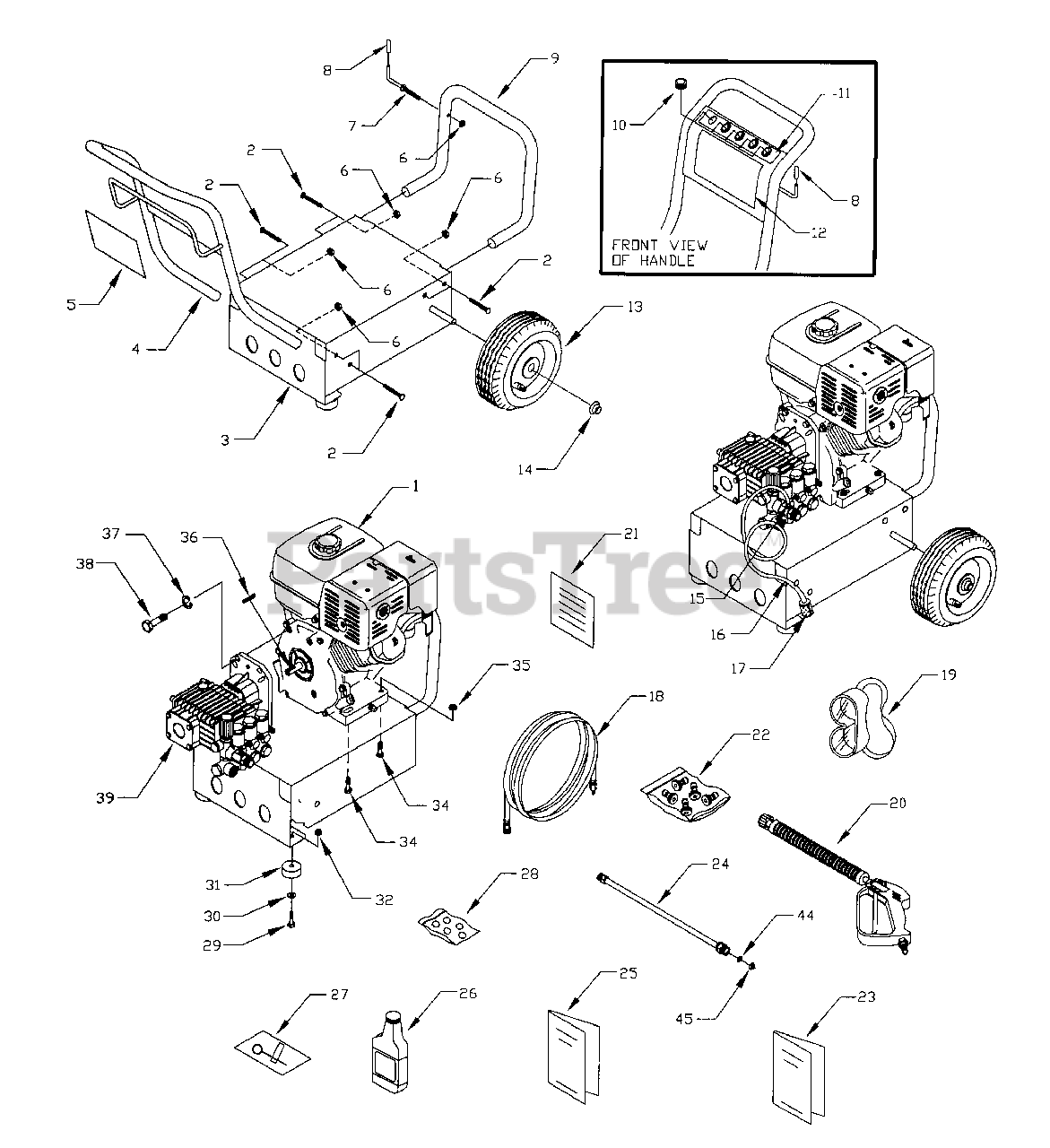

1420-0 - Generac 3,500 PSI Pressure Washer Main Unit Parts Diagram

3,500 PSI Pressure Washer

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton ~NSP

ENGINE

$

$

Currently unavailable

2

Briggs & Stratton B2043

BOLT, 5/16" - 18 x 1-3/4" Carriage
(Superseded to B2043GS)

$2.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton BB5205

BASE, Powder Coat Black

$

$

Not available

4

Briggs & Stratton CB3861A

HANDLE, Powder Coat Blk Wrnkle

$

$

Not available

5

Briggs & Stratton 84160

DECAL, Instructions

$

$

Currently unavailable

6

Briggs & Stratton 99583

NUT, 5/16" - 18 Hex Flange
(Superseded to 99583GS)

$2.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 82150

HOOK, 5/16" Square Neck Gun

$

$

Currently unavailable

8

Briggs & Stratton 82516

CAP, Black Vinyl .280"

$

$

Currently unavailable

9

Briggs & Stratton CB4105

BUMPER, Powder Coat Blk Wrnkle
(Superseded to CB4105GS)

$

$

Not available

10

Briggs & Stratton 30809

GROMMET, 1 /8" - 11 /16"
(Superseded to 30809GS)

$4.49

$

Usually ships in 2-12 days

0

11

Briggs & Stratton B4159

DECAL, 5 QD Nozzles
(Superseded to B4159GS)

$

$

Not available

12

Briggs & Stratton 186011

DECAL, Unit 1420-0
(Superseded to 186011GS)

$20.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 88521

ASSEMBLY, Wheel 10" Dia. x 4"
(Superseded to 88521GS)

$

$

Not available

14

Briggs & Stratton 75402

PUSHNUT,.50"
(Superseded to 194062GS)

$4.49

$

In Stock, only 2 left!

0

15

Briggs & Stratton 48031G

CLAMP, Hose 7/16" Dia.
(Superseded to 48031GGS)

$3.49

$

Usually ships in 2-12 days

0

16

Briggs & Stratton A1040D

HOSE, 54" Chemical Inject
(Superseded to A1040DGS)

$12.99

$

In Stock, only 1 left!

0

17

Briggs & Stratton A1041

FILTER, Chemical Hose
(Superseded to 709496)

$6.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton B4805

HOSE, 3/8" x 50'
(Superseded to 205734GS)

$168.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 87815

GOGGLES, Safety
(Superseded to 87815GS)

$12.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton B1436B

GUN, with Molded Grip
(Superseded to 704311)

$115.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 88681

CARD, Owners Registration

$

$

Currently unavailable

22

Briggs & Stratton B4847

KIT, Nozzles OD
(Superseded to B4847GS)

$32.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 185829

MANUAL, Owners 1420-0

$

$

Not available

24

Briggs & Stratton 83858

ASSY, Wand Ext. with OD

$

$

Currently unavailable

25

NSP

MANUAL, Honda

$

$

Not available

26

Briggs & Stratton BB3061B

OIL BOTTLE
(Superseded to 100005)

$8.99

$

In Stock, Qty 20+

0

27

Briggs & Stratton B2509

KIT, Nozzle Cleaning

$

$

Currently unavailable

28

Briggs & Stratton B5830

KIT, O-Ring Maintenance
(Superseded to 191922GS)

$18.99

$

In Stock, Qty 20+

0

29

Briggs & Stratton 42909

HHCS, M8 - 1.25 x 30
(Superseded to 42909GS)

$

$

Not available

30

Briggs & Stratton 50190

FLAT WASHER, 10GA - .34" x 1"
(Superseded to 50190GS)

$3.99

$

In Stock, only 1 left!

0

31

Briggs & Stratton 27007

VIB MOUNT, Donut Type
(Superseded to 191413GS)

$6.49

$

In Stock, only 1 left!

0

32

Briggs & Stratton 52858

NUT, Locking M8 - 1.25
(Superseded to 52858GS)

$3.99

$

In Stock, only 2 left!

0

34

Briggs & Stratton 64416

BOLT, M10 - 1.5 x 45 mm
(Superseded to 64416GS)

$3.49

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 52859

NUT, Locking M10 - 1.50
(Superseded to 52859GS)

$

$

Not available

36

Briggs & Stratton 63281

KEY, 1 /4" sq. x 2"
(Superseded to 703890)

$4.99

$

In Stock, Qty 6

0

37

Briggs & Stratton 22237

LOCKWASHER, 3/8"

$

$

Not available

38

Briggs & Stratton 23645

SHCS, 3/8" - 1 1/4"
(Superseded to 23645GS)

$4.49

$

Usually ships in 2-12 days

0

39

Briggs & Stratton 187263

ASSY, Complete Pump

Note: (See "Pump and Unloader" Illustration and Parts List)

$

$

Currently unavailable

44

Briggs & Stratton B4224

SCREEN, Gun Inlet
(Superseded to B4224GS)

$

$

Not available

45

Briggs & Stratton 97837

O-RING, Hi Pressure Transfer
(Superseded to 97837GS)

$

$

Not available
