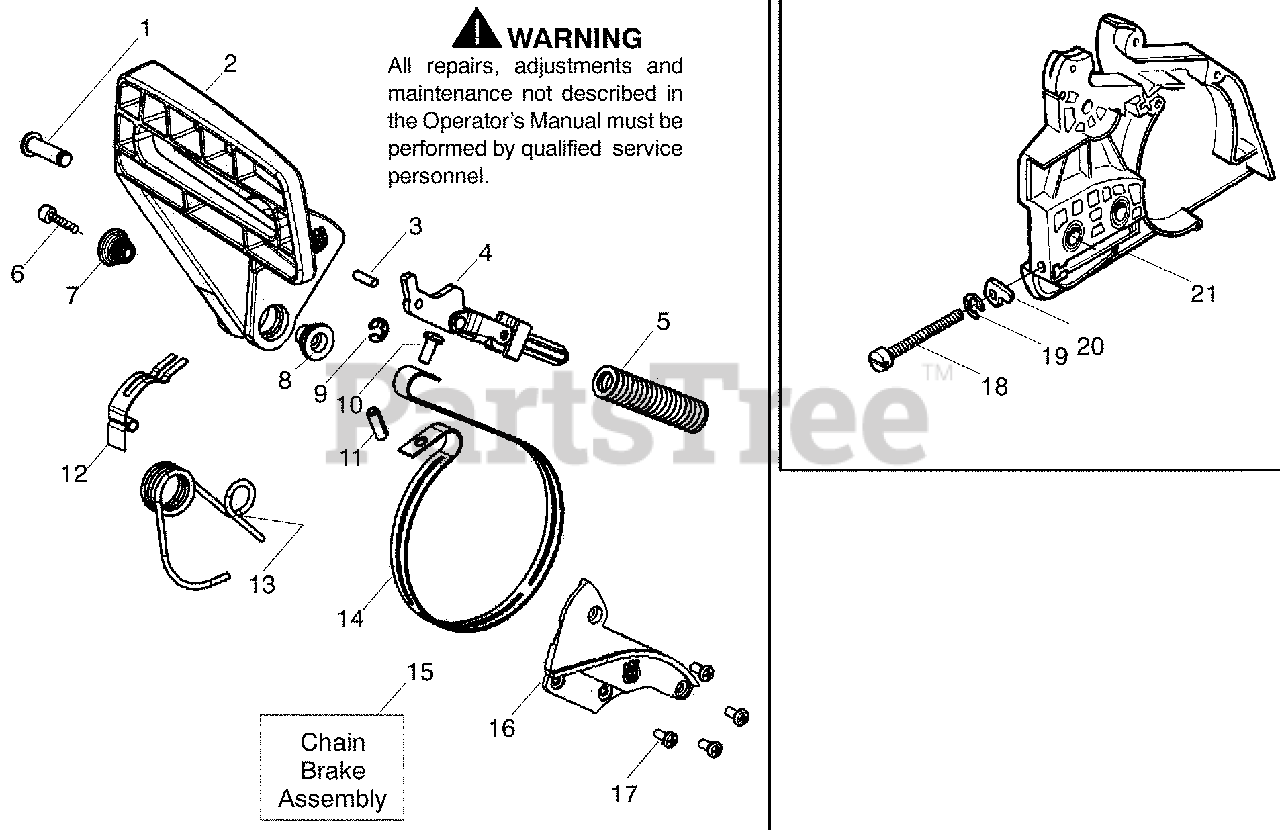

142 - Husqvarna Chainsaw (2009-03) Repair Parts Parts Diagram

Chainsaw

Repair Parts Parts Diagram

  • Title

1

Husqvarna 530029879

Pin--Pivot

$4.99

$

In Stock, only 2 left!

0

2

Husqvarna 530071348

Kit-- Lever & Link Assy.

Note: (Incl. 4,14)

$26.99

$

Usually ships in 3-10 days

0

3

Husqvarna 530015915

Pin--Link

$

$

Not available

4

Husqvarna 530054741

Assy--Front Link

$6.49

$

Usually ships in 3-10 days

0

5

Husqvarna 545137301

Spring--Chain Brake

$8.99

$

Usually ships in 3-10 days

0

6

Husqvarna 530016384

Screw

$4.99

$

Usually ships in 3-10 days

0

7

Husqvarna 530056531

Journal--Right

$4.99

$

Usually ships in 3-10 days

0

8

Husqvarna 530029881

Journal--Left

$3.99

$

In Stock, only 1 left!

0

9

Husqvarna 530024419

Retainer

$6.49

$

In Stock, Qty 9

0

10

Husqvarna 530015911

Screw
(Superseded to 574780301)

$7.49

$

Usually ships in 3-10 days

0

11

Husqvarna 530015913

Pin--Spring

$4.99

$

In Stock, only 4 left!

0

12

Husqvarna 530029878

Spring--Position

$6.49

$

In Stock, Qty 8

0

13

Husqvarna 530015910

Spring--Handguard

$6.49

$

In Stock, only 1 left!

0

14

Husqvarna 545137401

Band--Brake

$7.49

$

In Stock, Qty 7

0

15

Husqvarna 530054802

Assy--Chain Brake

Note: (Incl. 1,2,3,4,5,6,7,8,9,10,11,12,13,14,16,17,18,19,20,21)

$45.99

$

In Stock, only 2 left!

0

16

Husqvarna 530053035

Cover--Chain Brake Spring

$3.99

$

In Stock, only 2 left!

0

17

Husqvarna 530015911

Screw
(Superseded to 574780301)

$7.49

$

Usually ships in 3-10 days

0

18

Husqvarna 530016110

Screw--Bar Adjusting

$4.99

$

In Stock, Qty 20+

0

19

Husqvarna 530038593

Retainer

$4.99

$

In Stock, Qty 20+

0

20

Husqvarna 530015826

Pin--Bar Adjusting

$4.99

$

In Stock, Qty 20+

0

21

Husqvarna 530049483

Cover--Clutch

$17.99

$

In Stock, only 3 left!

0

Husqvarna 530031135

Scrench
(Superseded to 587417201)

Note: Not Shown

$9.49

$

In Stock, only 2 left!

0

Husqvarna 530047839

Decal--Warning

Note: Not Shown

$

$

Not available
