142 - Husqvarna Chainsaw (2004-10) Air Filter/Carburetor Parts Diagram

Chainsaw

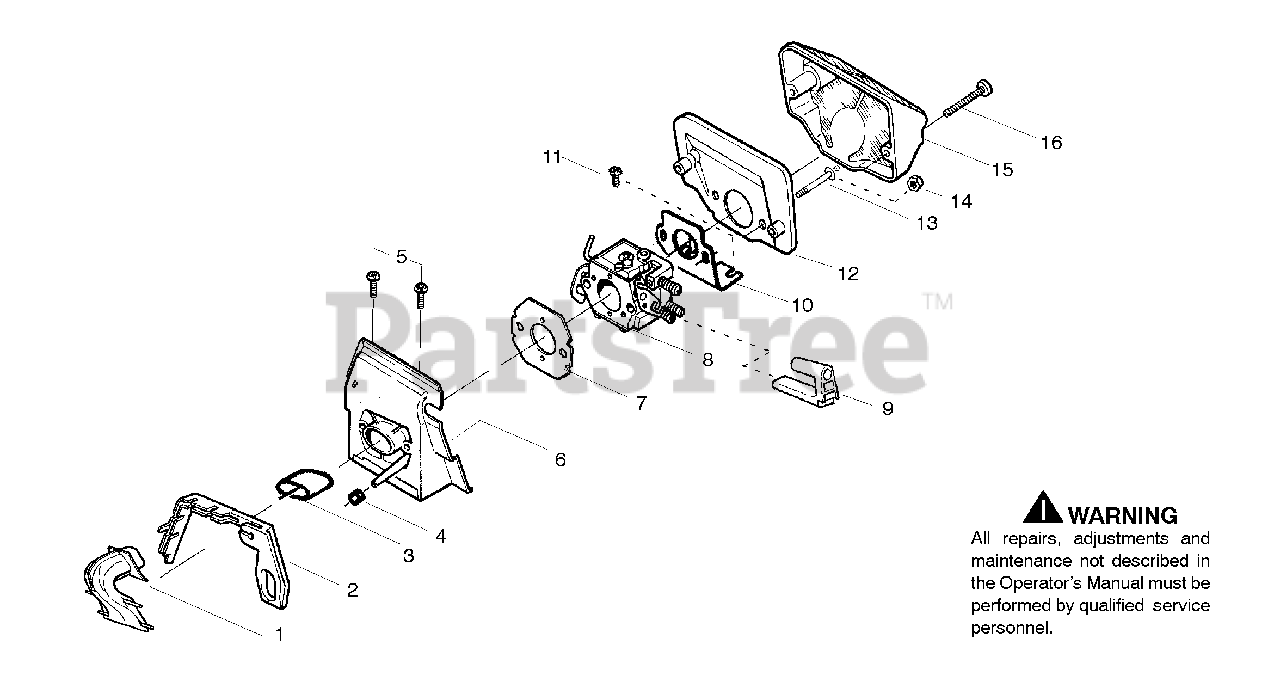

Air Filter/Carburetor Parts Diagram

  • Title

1

Husqvarna 530029813

Assy-Turbo Air Cleaner

$

$

Not available

2

Husqvarna 530019203

Seal - Turbo Clean

$4.99

$

Usually ships in 3-10 days

0

3

Husqvarna 530029814

Sleeve-Intake

$13.99

$

In Stock, Qty 8

0

4

Husqvarna 530053435

Seal-Impulse

$4.99

$

In Stock, Qty 7

0

5

Husqvarna 530015814

Screw

$6.49

$

In Stock, Qty 16

0

6

Husqvarna 530037465

Adapter - Carb.

$

$

Not available

7

Husqvarna 530019172

Gasket-Carburetor

$6.49

$

In Stock, Qty 9

0

8

Husqvarna 53007198701

Carburetor-W-29

$

$

Currently unavailable

9

Husqvarna 530035587

Grommet-Final

$4.99

$

In Stock, Qty 6

0

10

Husqvarna 530047767

Plate - Support

$

$

Not available

11

Husqvarna 530015896

Screw

$6.49

$

In Stock, Qty 13

0

12

Husqvarna 530036582

Air Filter - Bottom

$

$

Not available

13

Husqvarna 530015968

Stud - Carb.

$

$

Not available

14

Husqvarna 530016008

Nut

$3.49

$

In Stock, only 3 left!

0

15

Husqvarna 530029811

Air-Filter - Top

$

$

Not available

16

Husqvarna 530015899

Screw

$6.49

$

In Stock, Qty 11

0
