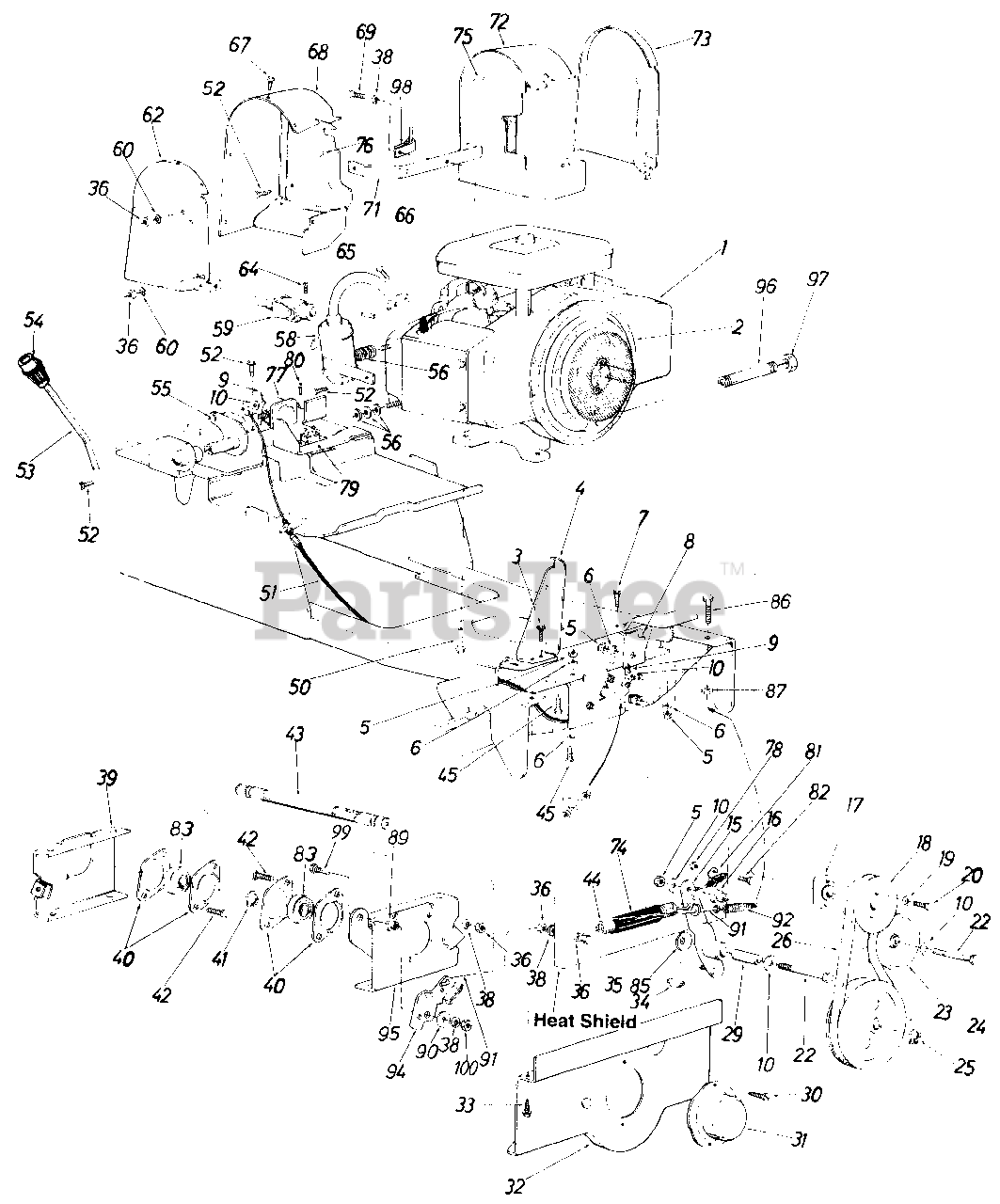

142-995-205 - Ranch King Garden Tractor (1992) Muffler Assembly Parts Diagram

Garden Tractor

Muffler Assembly Parts Diagram

  • Title

1

Engine

$

$

Not available

2

MTD 722-0148

Mylar Foam Strip

$

$

Currently unavailable

3

MTD 710-0642

Hex Wash. Hd. Self-Tap Scr. 1/4-20 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

4

MTD 13590

Belt Guard

Variations

MTD 13590-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

5

MTD 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, only 2 left!

0

6

MTD 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

7

MTD 710-0601

Hex Wash. Hd. Self-Tap Scr. 5/16-18 x .75" Lg.
(Superseded to 710-1260A)

$3.99

$

In Stock, Qty 20+

0

8

MTD 13554

PTO Support Brkt.

Variations

MTD 13554-0637

No Longer Available BRACKET-PT - POWDER BLACK (0637)

$

$

Not available

$

$

9

MTD 714-0101

Hairpin Cotter 1/2" Dia.

$4.99

$

In Stock, only 2 left!

0

10

MTD 736-0133

Fl-Wash. .38" I.D. x 1.25" O.D. x .100" Thk.

$5.49

$

In Stock, Qty 7

0

15

MTD 13550

PTO Idler Ass'y.

Variations

MTD 13550-0637

PTO Idler Ass'y. - POWDER BLACK (0637)

$

$

Not available

$

$

16

MTD 711-0598

Idler Adapter

$

$

Not available

17

MTD 748-0271

Pulley Spacer

$

$

Not available

18

MTD 756-0312

1/2" V-Pulley 4.75" O.D. (Engine)

$

$

Not available

19

MTD 736-0217

L-Wash. 3/8" I.D. H.D.

$4.49

$

In Stock, Qty 9

0

20

MTD 710-0427

Hex Scr. 3/8-16 x 2.00" Lg.
(Superseded to 710-3144)

$4.49

$

In Stock, Qty 7

0

22

MTD 710-0937

Hex Bolt 3/8-16 x 2.50" Lg.
(Superseded to 710-0859)

$6.99

$

In Stock, Qty 16

0

23

MTD 711-0306

Flat Idler Pulley

$115.99

$

Usually ships in 3-6 days

0

24

MTD 756-0309

1/2" V-Pulley 7.00" O.D. (PTO)

$

$

Not available

25

MTD 716-0127

Snap Ring

$12.99

$

Usually ships in 3-6 days

0

26

MTD 754-0234

"V"-Belt 1/2" x 41" Lg. (PTO)
(Superseded to 954-0234)

$52.99

$

Usually ships in 3-6 days

0

29

MTD 750-0374

Spacer .375" I.D. x .62" O.D. x 1.830" Lg.

$

$

Not available

30

MTD 710-0224

Hex "B" Tap Scr. #10 x .50" Lg.
(Superseded to 910-0224)

$3.99

$

In Stock, only 2 left!

0

31

MTD 13546

PTO Cup

Variations

MTD 13546-0637

PTO Cup - POWDER BLACK (0637)

$

$

Not available

MTD 13546-0648

No Longer Available CUP-PTO - TECH GRAY (0648)

$

$

Not available

$

$

32

MTD 13542

PTO Belt Guard Ass'y.

Variations

MTD 13542-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

33

MTD 710-0601

Hex Wash. Self-Tap Scr. 5/16-18 x .75
(Superseded to 710-1260A)

$3.99

$

In Stock, Qty 20+

0

34

MTD 714-0154

#91 Hi-Pro Key

$

$

Not available

35

MTD 710-0528

Hex Bolt 5/16-18 x 1.25" Lg.

$4.49

$

In Stock, Qty 20+

0

36

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

38

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

39

UNKNOWN

$

$

Not available

40

MTD 741-0242

1.00" Dia. Brg. w/Flangette

$11.99

$

In Stock, only 4 left!

0

41

MTD 716-0127

Snap Ring

$12.99

$

Usually ships in 3-6 days

0

42

MTD 710-0451

Carr. Bolt 5/16-18 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

43

MTD 738-0395

Spline Shaft

$225.99

$

Usually ships in 3-6 days

0

44

MTD 732-0262

Extension Spring (PTO Clutch)
(Superseded to 932-0262)

$

$

Not available

45

MTD 710-0253

Hex Scr. 3/8-16 x 1.00" Lg.
(Superseded to 710-0514)

$4.49

$

In Stock, Qty 20+

0

50

MTD 710-0502

Hex Wash. Hd. Self-Tap Scr. 3/8-16 x 1.25" Lg.
(Superseded to 710-0502A)

$6.99

$

In Stock, only 2 left!

0

51

MTD 746-0341

PTO Control Cable
(Superseded to 946-0341)

$106.99

$

In Stock, only 1 left!

0

52

MTD 710-0599

Hex Wash. Hd. Self-Tap Scr. 1/4-20 x .50"

$4.49

$

In Stock, Qty 20+

0

53

MTD 747-0211

PTO Handle

$

$

Not available

54

MTD 720-0218

Shift Knob

$19.99

$

In Stock, only 1 left!

0

55

MTD 13587

PTO Actuator Lever Ass'y.

$

$

Not available

56

MTD 736-0288

Fl-Wash. .312" I.D. x 1.620" O.D. x .060

$

$

Not available

58

MTD 751-0242

Muffler Ass'y. Comp.- R.H.

$

$

Not available

59

MTD 717-0402

Universal Joint Ass'y. Comp.

$

$

Not available

60

MTD 736-0264

Fl-Wash. .312" I.D. x .630" O.D.

$6.99

$

In Stock, only 1 left!

0

62

MTD 13722

Shroud Outer - R.H.

$

$

Currently unavailable

64

MTD 710-0666

Sq. Hd. Set Scr. 5/16-18 x .38" Lg. (Cup Point)

$

$

Not available

65

MTD 714-0114

Sq. Key 1/4" x 2.00" Lg.
(Superseded to 914-0114)

$4.49

$

In Stock, only 1 left!

0

66

MTD 710-0751

Hex Wash. Hd. Scr. 1/4-20 x 5/8" Lg.- Grade 5

$3.99

$

In Stock, Qty 20+

0

67

MTD 710-0224

Hex "AB" Tap Scr. #10 x .50" Lg.
(Superseded to 910-0224)

$3.99

$

In Stock, only 2 left!

0

68

MTD 13720

Shroud Cover - R.H.

$

$

Not available

69

MTD 710-0157

Hex Bolt 5/16-24 x .75" Lg.

$4.49

$

In Stock, Qty 8

0

71

MTD 13723

Shroud Support Brkt.

$

$

Not available

72

MTD 13719

Shroud Cover - L.H.

$

$

Not available

73

MTD 13721

Shroud Outer - L.H.

$

$

Currently unavailable

74

MTD 731-0466

Spring Cover Tubing (PTO Clutch)

$

$

Not available

75

MTD 13714A

Shroud Inner Ass'y.- L.H.

$

$

Not available

76

MTD 13717A

Shroud Inner Ass'y.- R.H.

$

$

Not available

77

MTD 725-1426

Solenoid
(Superseded to 925-1426A)

$26.99

$

In Stock, Qty 20+

0

78

MTD 710-0289

Hex Bolt 1/4-20 x 1/2" Lg.
(Superseded to 910-0289)

$3.99

$

In Stock, only 3 left!

0

79

MTD 725-0459

Circuit Breaker
(Superseded to 753-0685)

$

$

Not available

80

MTD 710-0351

Truss Mach. Scr. #10 x .50" Lg.

$4.49

$

In Stock, only 2 left!

0

81

MTD 725-3169A

Safety Switch (PTO)
(Superseded to 925-04039)

$24.99

$

In Stock, Qty 9

0

82

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

83

MTD 741-0303

Ball Bearing

$114.99

$

In Stock, only 2 left!

0

?84

MTD 751-0241

Muffler Ass'y. Comp.- L.H.

Note: (Not Shown)

$

$

Currently unavailable

85

MTD 736-0331

Bell-Wash. .39" I.D. x 1.13"

$3.99

$

In Stock, Qty 16

0

86

MTD 710-0344

Hex Bolt 3/8-16 x 1.5" Lg.

$5.99

$

In Stock, only 1 left!

0

87

MTD 712-3000

Hex Cent. L-Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 9

0

?88

MTD 712-0123

Hex Nut 5/16-24 Thd.
(Superseded to 912-3057)

$6.99

$

In Stock, only 3 left!

0

89

MTD 736-0289

Shoulder Spacer
(Superseded to 936-0289)

$6.99

$

In Stock, only 1 left!

0

90

MTD 736-0362

Fl-Wash. .33" I.D. x 1.25" O.D.

$4.49

$

In Stock, Qty 9

0

91

MTD 747-0874

PTO Brake Rod

$

$

Not available

92

MTD 732-0339

Extension Spring 2.15" Lg.
(Superseded to 932-0339)

$

$

Not available

?93

MTD 13550

PTO Idler Arm Ass'y.

Variations

MTD 13550-0637

PTO Idler Ass'y. - POWDER BLACK (0637)

$

$

Not available

$

$

94

MTD 17116

Brake Ass'y.
(Superseded to 97116)

$52.99

$

Usually ships in 3-6 days

0

95

MTD 683-0013

PTO Brg. Retainer Brkt. Ass'y.

$

$

Not available

96

MTD 737-0164

Pipe Nipple 3/8" x 5" Lg.
(Superseded to 937-0164)

$

$

Not available

97

MTD 737-0143

Oil Drain Cap

$

$

Not available

98

MTD 726-0272

Clamp

$7.49

$

Usually ships in 3-6 days

0

99

MTD 710-0157

Hex Bolt 5/16-24 x .75" Lg.

$4.49

$

In Stock, Qty 8

0

100

MTD 712-0123

Hex Nut 5/16-24 Thd.
(Superseded to 912-3057)

$6.99

$

In Stock, only 3 left!

0
