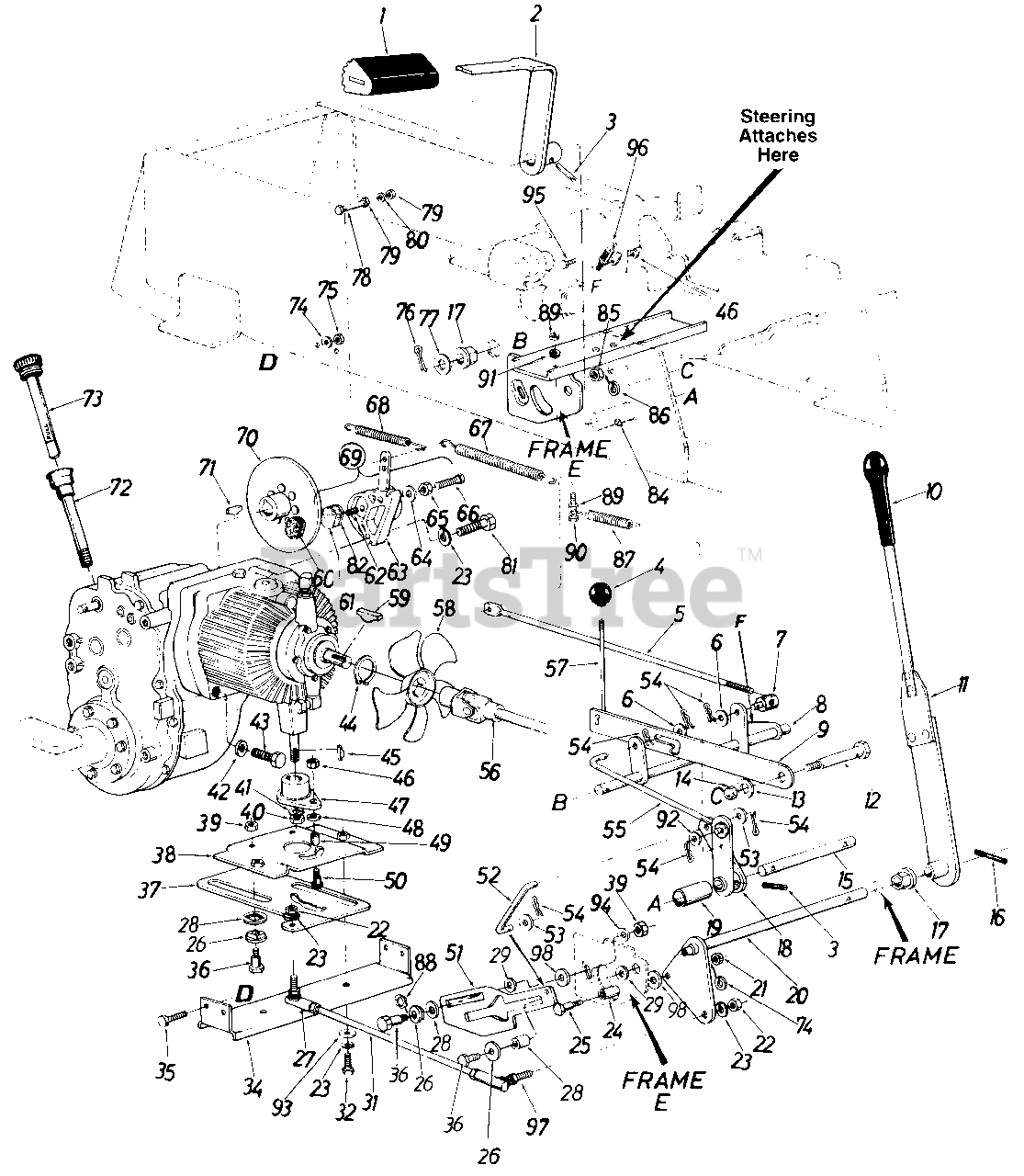

142-995-205 - Ranch King Garden Tractor (1992) Disc Brake Assembly (Part I) Parts Diagram

Garden Tractor

Disc Brake Assembly (Part I) Parts Diagram

  • Title

1

MTD 735-0189

Foot Pad

$

$

Not available

2

MTD 13080

Foot Pedal Brkt. Ass'y.- R.H.

Variations

MTD 13080-0637

No Longer Available BRACKET-FO - POWDER BLACK (0637)

$

$

Not available

$

$

3

MTD 715-0114

Spring Pin Spiral 1/4" Dia. x 1.50" Lg

$9.49

$

In Stock, Qty 5

0

4

MTD 720-0166

Ball Knob - Brake

$

$

Not available

5

MTD 747-0283

Brake Rod

$

$

Not available

6

MTD 736-0101

Fl-Wash. .375" I.D. x 1.00" O.D. x .030"
(Superseded to 936-0101)

$4.99

$

Usually ships in 3-6 days

0

7

MTD 711-0198

Ferrule
(Superseded to 911-0198)

$13.99

$

In Stock, Qty 17

0

8

MTD 13548A

Brake Transfer Shaft Ass'y.

$

$

Not available

9

MTD 13523

Parking Brake Cam

$

$

Currently unavailable

10

MTD 720-0223

Grip

$14.99

$

In Stock, Qty 6

0

11

MTD 13787

Control Arm Ass'y. Comp.

$

$

Currently unavailable

12

MTD 738-0186

Shld. Bolt .62" Dia. x 2.75" Lg.

$

$

Not available

13

MTD 736-0187

Fl-Wash. .460" I.D. x 1.24" O.D. x .06"

$4.49

$

In Stock, Qty 20+

0

14

MTD 712-0222

Push Speed Nut for .625" Dia. Shaft

$

$

Currently unavailable

15

MTD 738-0402

Brake Pivot Shaft

$

$

Not available

16

MTD 715-0114

Spring Pin Spiral 1/4" Dia. x 1.50" Lg

$9.49

$

In Stock, Qty 5

0

17

MTD 741-0225

Hex Flange Brg. Plastic .62" I.D.
(Superseded to 941-0225)

$7.49

$

In Stock, Qty 20+

0

18

MTD 13505A

Brake Hub Ass'y.

$

$

Not available

19

MTD 750-0181

Spacer

$

$

Not available

20

MTD 683-0020

Control Handle Shaft Ass'y.

$

$

Not available

21

MTD 712-0158

Hex Cent. L-Nut 5/16-18 Thd.
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 13

0

22

MTD 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 13

0

23

MTD 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

24

MTD 748-0270

Spacer

$

$

Not available

25

MTD 738-0138

Shoulder Bolt
(Superseded to 738-0138A)

$6.99

$

Usually ships in 3-6 days

0

26

MTD 736-0406

Fl-Wash. 7/16" I.D. x 1-3/8" O.D.
(Superseded to 936-0406)

$6.99

$

In Stock, only 1 left!

0

27

MTD 723-0351

Ball Joint Ass'y. 3/8-24 Thd.- L.H.
(Superseded to 923-0351)

$44.99

$

Usually ships in 3-6 days

0

28

MTD 750-0915

Spacer

$

$

Not available

29

MTD 736-0362

Fl-Wash. .325" I.D. x 1.25" O.D.

$4.49

$

In Stock, Qty 9

0

?30

MTD 710-0643

Hex Ins. Bolt 5/16-18 x 1.00" Lg.

$6.99

$

In Stock, Qty 5

0

31

MTD 747-0365

Tie Rod
(Superseded to 747-0365A)

$

$

Not available

32

MTD 710-0216

Hex Bolt 3/8-16 x .75" Lg.

$4.49

$

In Stock, Qty 16

0

34

MTD 13562

Support Channel

$

$

Not available

35

MTD 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

36

MTD 738-0296

Shld. Bolt .437" Dia. x .268"

$4.49

$

In Stock, Qty 20+

0

37

MTD 13555

Cam Plate

$

$

Not available

38

MTD 13557

Slide Mtg. Plate Ass'y.

$

$

Not available

39

MTD 712-0158

Hex Cent. L-Nut 5/16-18 Thd.
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 13

0

40

MTD 712-0206

Hex Nut 1/2-13 Thd.

$4.49

$

In Stock, Qty 20+

0

41

MTD 736-0921

L-Wash. 1/2" I.D.

$4.49

$

In Stock, Qty 5

0

42

MTD 736-0300

Fl-Wash. .385" I.D. x .87" O.D. x .060"

$4.49

$

In Stock, Qty 20+

0

43

MTD 710-0492

Socket Hd. Scr. 3/8-16 x 2.75" Lg.

$

$

Not available

44

MTD 716-0123

Snap Ring

$

$

Not available

45

MTD 714-0131

#5 Hi-Pro Key 1/8" x 5/8" Dia.

$

$

Not available

46

MTD 712-0107

Hex Cent. L-Nut 1/4-20 Thd.
(Superseded to 912-0107)

$4.99

$

In Stock, only 1 left!

0

47

MTD 13559

Pintle Plate Ass'y.

$

$

Not available

48

MTD 736-0142

Fl-Wash. .281" I.D. x .50" O.D. x .063"

$4.99

$

In Stock, only 4 left!

0

49

MTD 741-0154

Needle Brg. .31" I.D. x .50" O.D. x .437" Lg.

$

$

Not available

50

MTD 710-0491

Shld. Bolt .31" Dia. x .500

$12.99

$

Usually ships in 3-6 days

0

51

MTD 13556A

Neutral Control Slide

$

$

Not available

52

MTD 747-0873

Neutral Control Rod

$

$

Not available

53

MTD 736-0264

Fl-Wash. .312" I.D. x.630" O.D. x .063"

$6.99

$

In Stock, only 1 left!

0

54

MTD 714-0104

Hairpin Cotter

$4.49

$

In Stock, Qty 20+

0

55

MTD 13702

Brake Link Rod Ass'y.

$

$

Not available

56

MTD 717-0402

Universal Joint Ass'y. Comp.

$

$

Not available

57

MTD 747-0282

Parking Brake Link

$

$

Not available

58

MTD 731-0317

Fan Ass'y.
(Superseded to 931-0317)

$42.99

$

In Stock, only 1 left!

0

59

MTD 714-0388

#61 Hi-Pro Key 3/16 x 5/8" Dia.
(Superseded to 914-0388)

$7.99

$

In Stock, Qty 5

0

60

MTD HU-24-13772

Lining - Brake
(Superseded to 761-04060)

$32.99

$

In Stock, Qty 9

0

61

MTD HU-24-13772

Lining - Brake
(Superseded to 761-04060)

$32.99

$

In Stock, Qty 9

0

62

MTD HU-39-13774

Actuator Pin

$

$

Not available

63

MTD HU-39-14232

Housing with Lever and Pin

$

$

Currently unavailable

64

MTD HU-20-9764

Washer

$

$

Currently unavailable

65

MTD HU-37-13818

Nut
(Superseded to 912-0240)

$4.49

$

In Stock, Qty 20+

0

66

MTD HU-39-13775

Adjustment Pin
(Superseded to HU-A611030003)

$

$

Not available

67

MTD 732-0260

Extension Spring .50" O.D. x 6.5" Lg.
(Superseded to 932-0260)

$20.99

$

In Stock, only 3 left!

0

68

MTD 732-0429A

Extension Spring (Brake Return)
(Superseded to 932-0429A)

$8.99

$

In Stock, Qty 20+

0

69

MTD 761-0170

Disc Brake Ass'y. Comp.

$

$

Not available

70

MTD 761-0142

Brake Disc Ass'y.

$

$

Not available

71

MTD 714-0137

Hi-Pro Key 3/16 x 3/4" Dia.

$

$

Not available

72

MTD 751-0239

Dipstick Tube Ass'y.

$

$

Not available

73

MTD 751-0240

Dipstick Ass'y.
(Superseded to 951-0240)

$

$

Not available

74

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

75

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

76

MTD 714-0115

Cotter Pin 1/8" Dia. x 1.00" Lg.

$3.99

$

Usually ships in 3-6 days

0

77

MTD 736-0162

Fl-Wash. .635" I.D. x 1.00" O.D. x .120" Thk.

$4.49

$

In Stock, Qty 14

0

78

MTD 710-0102

Hex Scr. 1/4-20 x 2.50" Lg.
(Superseded to 710-1122)

$7.49

$

Usually ships in 3-6 days

0

79

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

Usually ships in 3-6 days

0

80

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

81

MTD 710-0342

Hex Scr. 3/8-16 x 1.25" Lg.
(Superseded to 710-3005)

$3.99

$

In Stock, Qty 12

0

82

MTD HU-25-13808

Backing Plate
(Superseded to HU-A611950129)

$

$

Not available

84

MTD 737-0280

Grease Fitting

$7.99

$

In Stock, Qty 8

0

85

MTD 712-0240

Hex Nut 7/16-20 Thd.
(Superseded to 912-0240)

$4.49

$

In Stock, Qty 20+

0

86

MTD 736-0171

L-Wash. 7/16" I.D.

$4.49

$

In Stock, Qty 5

0

87

MTD 732-0121

Extension Spring
(Superseded to 932-0121)

$14.99

$

In Stock, only 1 left!

0

88

MTD 736-0141

Wave Wash.
(Superseded to 936-0141)

$6.99

$

Usually ships in 3-6 days

0

89

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

Usually ships in 3-6 days

0

90

MTD 710-0106

Hex Bolt 1/4-20 x 1.25" Lg.

$3.99

$

In Stock, only 2 left!

0

91

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

92

MTD 736-0101

Fl-Wash.
(Superseded to 936-0101)

$4.99

$

Usually ships in 3-6 days

0

93

MTD 736-0427

Fl-Wash. .38" I.D. x 1.25" O.D.
(Superseded to 936-0427)

$

$

Not available

94

MTD 736-0242

Bell-Wash.

$4.49

$

In Stock, Qty 20+

0

95

MTD 710-0289

Hex Bolt 1/4-20 x 1/2" Lg.
(Superseded to 910-0289)

$3.99

$

In Stock, only 3 left!

0

96

MTD 725-3169A

Safety Switch (Clutch)
(Superseded to 925-04039)

$24.99

$

In Stock, Qty 9

0

97

MTD 723-0156

Ball Joint Ass'y. 3/8-24 Thd.- R.H.
(Superseded to 923-0156)

$16.99

$

In Stock, Qty 20+

0

98

MTD 736-3081

Fl-Wash. .32" I.D. x .6" O.D.

$3.99

$

In Stock, only 2 left!
