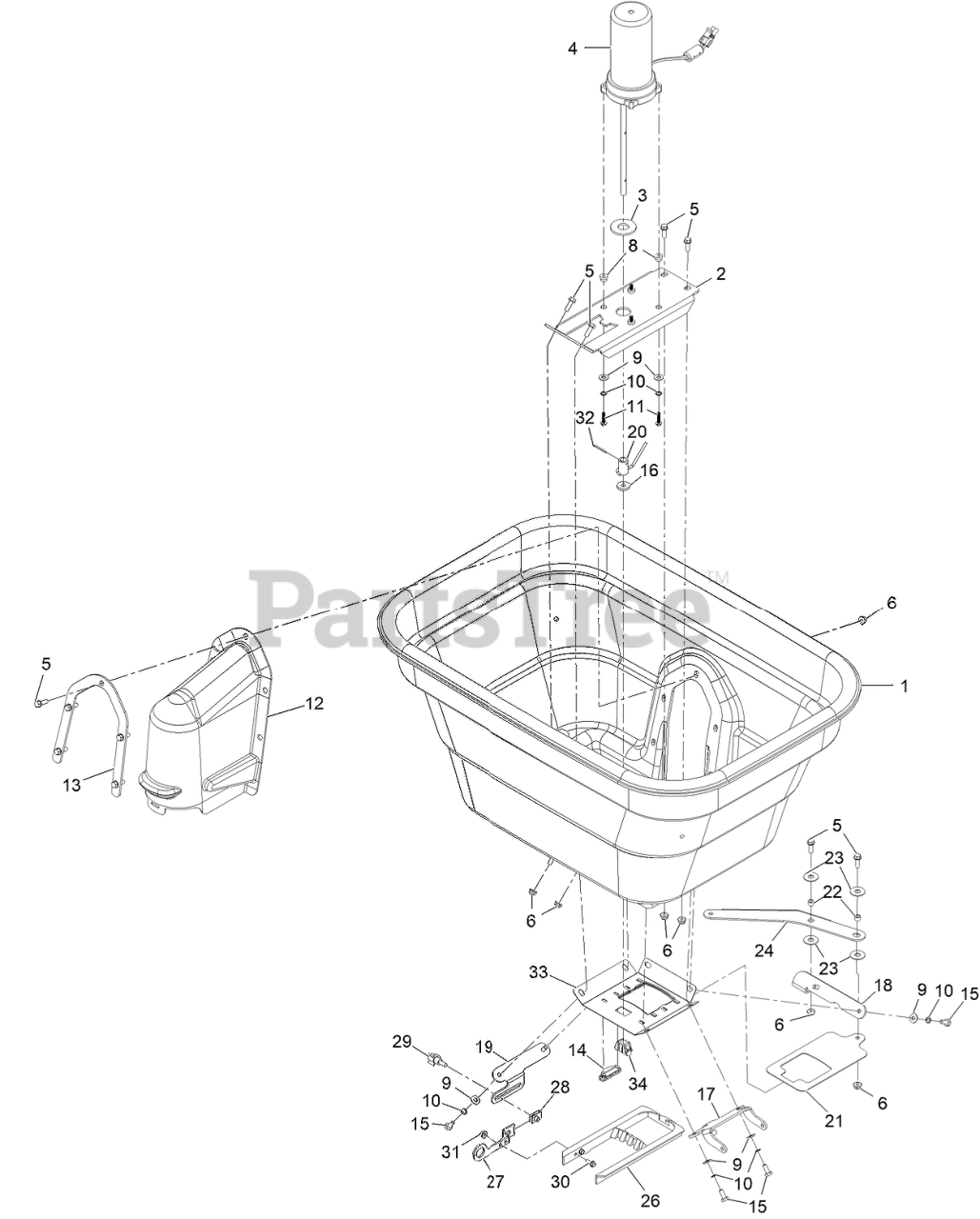

142-5462 - Exmark Spreader Attachment (SN: 411294212 - 413950473) (Rev A) (2022) Spreader Hopper Assembly Parts Diagram

Spreader Attachment

Spreader Hopper Assembly Parts Diagram

  • Title

1

Exmark 142-2734

Hopper-Spreader, 175 Lb

$402.99

$

Usually ships in 3-6 days

0

2

Exmark 126-8616-03

MOUNT-MOTOR

$37.99

$

Usually ships in 3-6 days

0

3

Exmark 83-2400

SPACER

$7.49

$

In Stock, only 4 left!

0

4

Exmark 126-0379

MOTOR-SPREADER

$664.99

$

In Stock, only 1 left!

0

5

Exmark 32105-15

SCREW-HWH

$2.99

$

In Stock, Qty 20+

0

6

Exmark 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

8

Exmark 135-3989

SPACER-FLANGED

$5.49

$

Usually ships in 3-6 days

0

9

Exmark 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

10

Exmark 363-8641

WASHER-LOCK, INT

$0.99

$

In Stock, Qty 10

0

11

Exmark 739001

SCREW-SHWH

$1.49

$

In Stock, Qty 9

0

12

Exmark 126-1348

COVER-MOTOR

$137.99

$

Usually ships in 3-6 days

0

13

Exmark 126-8621-03

SUPPORT-COVER

$13.99

$

Usually ships in 3-6 days

0

14

Exmark 142-3316

GUIDE-RATE, GATE

$2.49

$

In Stock, Qty 20+

0

15

Exmark 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

16

Exmark 142-3665

WASHER-FELT

$2.49

$

Usually ships in 3-6 days

0

17

Exmark 126-8622-03

MOUNT-DEFLECTOR

$20.99

$

Usually ships in 3-6 days

0

18

Exmark 135-0697-03

MOUNT-GATE, PIVOT

$15.99

$

Usually ships in 3-6 days

0

19

Exmark 135-0701-03

MOUNT-GATE, PIVOT

$14.99

$

Usually ships in 3-6 days

0

20

Exmark 135-0714

WELD-AGITATOR

$42.99

$

Usually ships in 3-6 days

0

21

Exmark 142-7644

GATE-SPREADER SEED

$

$

Currently unavailable

22

Exmark 126-3684

SPACER

$6.99

$

Usually ships in 3-6 days

0

23

Exmark 93-1633

WASHER

$2.99

$

In Stock, Qty 14

0

24

Exmark 135-0698-03

ARM-ENGAGEMENT

$16.99

$

Usually ships in 3-6 days

0

26

Exmark 142-7460

DIFFUSER-ACCESSORY

$17.99

$

Usually ships in 3-6 days

0

27

Exmark 135-0702-03

BRACKET-ACCUWAY, SLIDE

$15.99

$

Usually ships in 3-6 days

0

28

Exmark 107069

CLIP

$2.99

$

In Stock, Qty 20+

0

29

Exmark 233-70

KNOB-STAR, THREE

$23.99

$

Usually ships in 3-6 days

0

30

Exmark 32105-23

Screw

$1.49

$

In Stock, only 3 left!

0

31

Exmark 32128-17

NUT-LOCK, FLANGE

$0.99

$

In Stock, Qty 17

0

32

Exmark 3272-7

Pin-Cotter

$1.49

$

In Stock, Qty 14

0

33

Exmark 142-7645

BOTTOM-MULCH

$52.99

$

Usually ships in 3-6 days

0

34

Exmark 142-4042

HOPPER BOTTOM BEARING

$1.99

$

In Stock, only 1 left!

0
