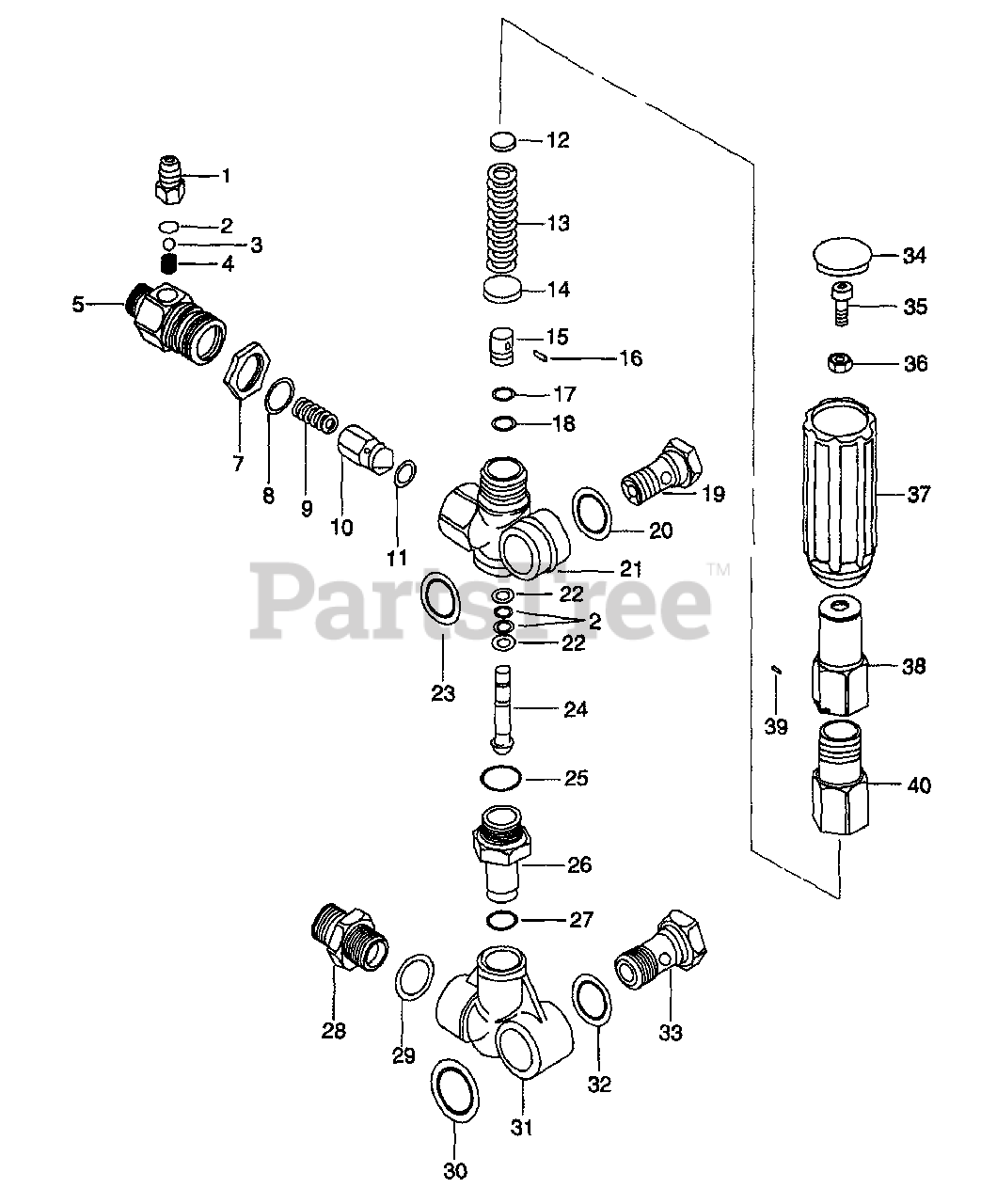

1418-1 - Generac 3,000 PSI Pressure Washer Unloader Parts Diagram

3,000 PSI Pressure Washer

Unloader Parts Diagram

  • Title
1

Briggs & Stratton 210B2327

Hose Tail
(Superseded to 190642GS)

$21.99

$

In Stock, only 1 left!

0

2

Briggs & Stratton 231B2327

O-Ring
(Superseded to 192914GS)

$24.99

$

In Stock, only 1 left!

0

3

Briggs & Stratton 211B2327

Stainless Ball
(Superseded to 211B2327GS)

$5.49

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 212B2327

Spring
(Superseded to 212B2327GS)

$3.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 213B2126

Injector Body
(Superseded to 213B2126GS)

$110.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 215B2327

Injector Nut
(Superseded to 215B2327GS)

$38.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 137B2327

O-Ring
(Superseded to 137B2327GS)

$5.49

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 216B2327

Spring
(Superseded to 216B2327GS)

$9.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 217B2327

Plunger
(Superseded to 217B2327GS)

$59.99

$

In Stock, only 1 left!

0

11

Briggs & Stratton 218B2327

O-Ring
(Superseded to 218B2327GS)

$3.49

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 220B2327

Spacer Plate
(Superseded to 220B2327GS)

$66.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 221B2327

Spring
(Superseded to 221B2327GS)

$14.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 222B2327

Spring, Spacer Plate
(Superseded to 222B2327GS)

$14.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 219B2327

Upper Piston
(Superseded to 219B2327GS)

$71.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 223B2327

Pin
(Superseded to 223B2327GS)

$8.99

$

In Stock, only 1 left!

0

17

Briggs & Stratton 224B2327

Ring
(Superseded to 224B2327GS)

$5.99

$

In Stock, only 1 left!

0

18

Briggs & Stratton 225B2327

O-Ring
(Superseded to 225B2327GS)

$2.99

$

In Stock, only 1 left!

0

19

Briggs & Stratton 226B2327

Inlet Bolt
(Superseded to 226B2327GS)

$54.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 227B2327

Washer
(Superseded to 227B2327GS)

$12.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 228B2327

Valve Housing
(Superseded to 228B2327GS)

$219.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 229B2327

Ring
(Superseded to 229B2327GS)

$8.49

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 230B2327

Washer
(Superseded to 230B2327GS)

$22.99

$

In Stock, only 1 left!

0

24

Briggs & Stratton 232B2327

Lower Piston
(Superseded to 232B2327GS)

$139.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 234B2327

O-Ring
(Superseded to 234B2327GS)

$4.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 233B2327

Piston Guide
(Superseded to 233B2327GS)

$83.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 235B2327

O-Ring
(Superseded to 235B2327GS)

$3.49

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 241B2327

Suction Fitting
(Superseded to 241B2327GS)

$39.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 240B2327

O-Ring
(Superseded to 240B2327GS)

$4.49

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 239B2327

Washer
(Superseded to 239B2327GS)

$22.99

$

In Stock, only 1 left!

0

31

Briggs & Stratton 238B2327

Bypass Fitting
(Superseded to 238B2327GS)

$153.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 237B2327

Washer
(Superseded to 237B2327GS)

$15.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 236B2327

Inlet Bolt
(Superseded to 236B2327GS)

$60.99

$

In Stock, only 2 left!

0

34

Briggs & Stratton 248B2327

Plug
(Superseded to 248B2327GS)

$12.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 155B2327

Screw
(Superseded to 155B2327GS)

$4.49

$

Usually ships in 2-12 days

0

36

Briggs & Stratton 246B2327

Nut
(Superseded to 246B2327GS)

$0.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 245B2327

Knob
(Superseded to 245B2327GS)

$7.49

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 243B2327

Housing
(Superseded to 243B2327GS)

$104.99

$

Usually ships in 2-12 days

0

39

Briggs & Stratton 244B2327

Pin
(Superseded to 244B2327GS)

$13.99

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 242B2327

Spring Guide
(Superseded to 242B2327GS)

$113.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 153B2126

Complete Unloader
(Superseded to 153B2126GS)

$250.99

$

In Stock, only 1 left!

0

Briggs & Stratton 250B2327

Kit, Unloader Repair
(Superseded to 250B2327GS)

Note: Includes items 11, 17, 18, 20, 22, 23, 2, 25, 27, 32, 30, 29, and 8

$57.99

$

In Stock, only 1 left!

0
