14110 - Troy-Bilt 36" Side-Discharge Mower Deck (SN: 141100100101 & Above) 36" SIDE DISCHARGE MOWER Parts Diagram

36" Side-Discharge Mower Deck

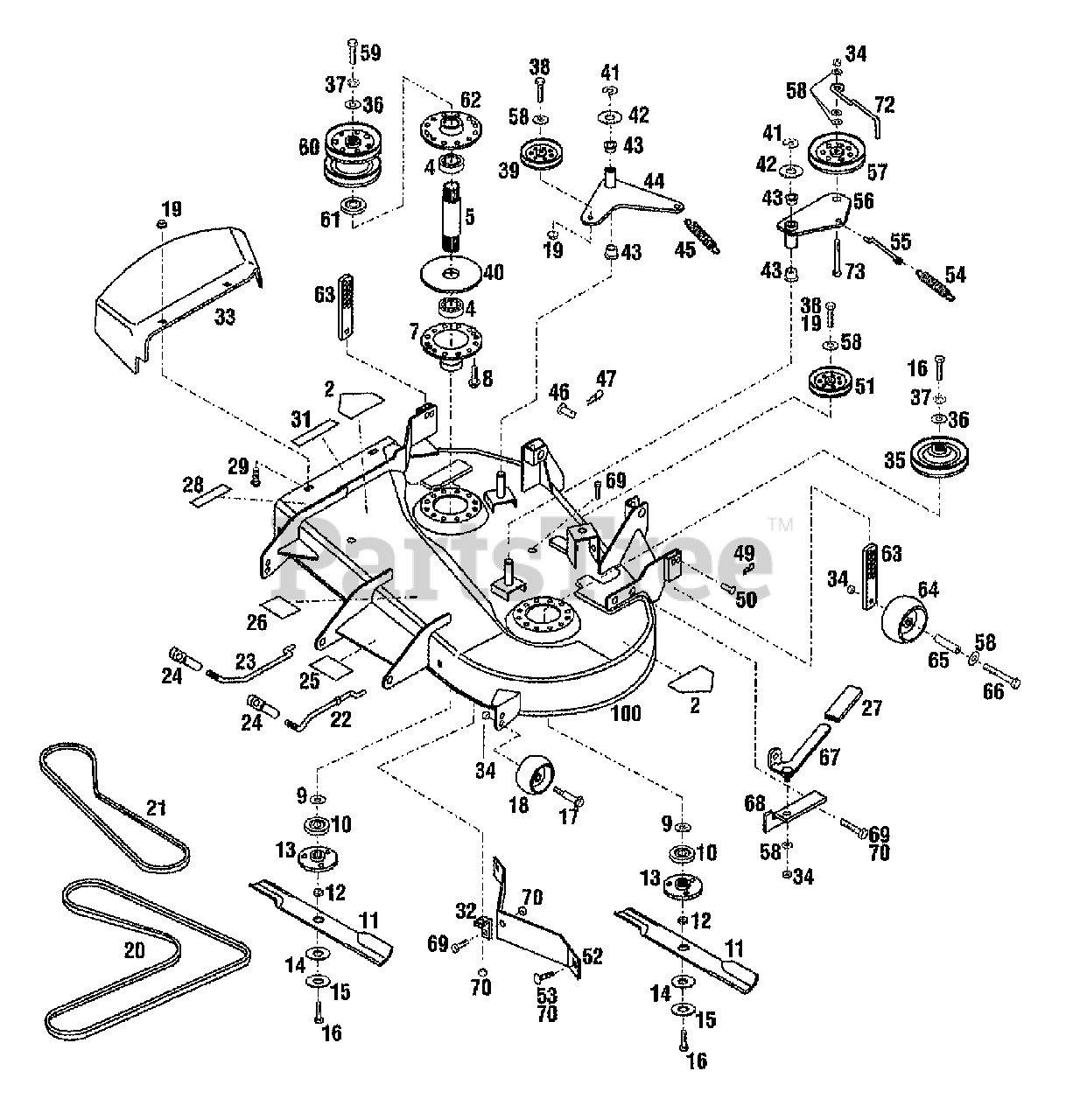

36" SIDE DISCHARGE MOWER Parts Diagram

  • Title

2

Troy-Bilt 1739687

DECAL-OPEI CAUTION

$7.49

$

Usually ships in 3-6 days

0

4

Troy-Bilt 1185574

BEARING-BALL
(Superseded to 1185574P)

$34.99

$

In Stock, Qty 13

0

5

Troy-Bilt 1754681

SHAFT-ARBOR

$162.99

$

Usually ships in 3-6 days

0

7

Troy-Bilt 1772395001

HOUSING-ARBOR BOTTOM

$

$

Currently unavailable

8

Troy-Bilt 1740496

SCR-HFLK 5/16-18X.625 STH
(Superseded to 710-1260A)

$3.99

$

In Stock, Qty 20+

0

9

Troy-Bilt 1747643

WASHER-SHIM

$2.99

$

In Stock, only 3 left!

0

10

MTD 1747641

SHIELD-GRASS

$

$

Not available

11

Troy-Bilt 1772335

BLADE-MOWER

$48.99

$

Usually ships in 3-6 days

0

12

MTD 1748409

COLLAR-ARBOR

$

$

Not available

13

Troy-Bilt 1747639

ADAPTER-BLADE

$

$

Currently unavailable

14

Troy-Bilt 1747638

WASHER-SPLINED

$

$

Currently unavailable

15

Troy-Bilt 1747637

WASHER-LK CONICAL .49 ID

$

$

Currently unavailable

16

Troy-Bilt 1747656

SCR-HH 1/2-14X1.00
(Superseded to 1765196)

$3.99

$

In Stock, Qty 10

0

17

Troy-Bilt 1763219

SCR-SHLDR 3/8-16

$10.99

$

In Stock, only 2 left!

0

18

Troy-Bilt 1762138

WHEEL-GAGE

$24.99

$

In Stock, only 1 left!

0

19

Troy-Bilt 1186393

NUT-HFLK 3/8-16 ZP

$3.49

$

In Stock, only 2 left!

0

20

MTD 1765339

BELT-V

$

$

Not available

21

MTD 1772383

BELT-V

$

$

Not available

22

MTD 1766052

ROD-LIFT FRONT LH

$

$

Not available

23

MTD 1766051

ROD-LIFT FRONT RH

$

$

Not available

24

Troy-Bilt 1752554

ROD-END

$64.99

$

Usually ships in 3-6 days

0

25

Troy-Bilt 1768862

DECAL-LIFT ROD

$

$

Currently unavailable

26

Troy-Bilt 1768540

DECAL-BELT DRIVE

$

$

Currently unavailable

27

MTD 1734591

GRIP

$

$

Not available

28

MTD 1744491

DECAL-CUTTING LINE

$

$

Not available

29

MTD 1739656

SCR-CARR 3/8-16X.75 G5 ZP

$

$

Not available

31

MTD 1763407

DECAL-DANGER

$

$

Not available

32

MTD 1747633

BRACKET-MOWER

$

$

Not available

33

MTD 1747635001

DEFLECTOR-MOWER

$

$

Not available

34

Troy-Bilt 1733398

NUT-LOCK 3/8-16
(Superseded to 912-3000)

$4.49

$

In Stock, Qty 9

0

35

MTD 1772368

ASSM-SHEAVE

$

$

Not available

36

Troy-Bilt 1736484

WASHER-1.37X.453X.179 ZP
(Superseded to 736-0322)

$9.49

$

In Stock, Qty 8

0

37

Troy-Bilt 1100244

WASHER-LK .438 ZP
(Superseded to 936-0171)

$4.49

$

In Stock, only 4 left!

0

38

Troy-Bilt 1100047

SCR-HH 3/8-16X1.5 G5 ZP
(Superseded to 710-0520)

$4.49

$

In Stock, Qty 6

0

39

Troy-Bilt 1724488

PULLEY
(Superseded to 756-0405)

$71.99

$

Usually ships in 3-6 days

0

40

Troy-Bilt 1772204

GASKET-FOAM

$

$

Currently unavailable

41

Troy-Bilt 1177567

RING-RETAINING
(Superseded to 716-0106)

$4.49

$

In Stock, only 2 left!

0

42

Troy-Bilt 1107386

WASHER-1.305X.649X.098 ZP
(Superseded to 736-0237)

$4.49

$

In Stock, Qty 20+

0

43

MTD 1185802

BEARING-FLANGE

$

$

Not available

44

MTD 1772361

ASSM-IDLER ARM

$

$

Not available

45

Troy-Bilt 1756595

SPRING-EXTENSION

$17.99

$

In Stock, only 1 left!

0

46

MTD 1719367

PIN-CLEVIS .625X2.25

$

$

Not available

47

MTD 1723478

PIN-HITCH .125X2.56 ZP

$

$

Not available

49

Troy-Bilt 1703011

CLIP-HAIRPIN .07 DIA
(Superseded to 914-0145)

$4.99

$

In Stock, Qty 20+

0

50

Troy-Bilt 1112587

PIN-CLEVIS .375 X .937 ZP

$4.99

$

Usually ships in 3-6 days

0

51

MTD 1768125

IDLER 4" B-GROOVE

$

$

Not available

52

Troy-Bilt 1747631001

BAFFLE

$

$

Not available

53

Troy-Bilt 1186469

SCR-CARR 5/16-18X.75
(Superseded to 710-0451)

$4.49

$

In Stock, Qty 20+

0

54

MTD 1765899

SPRING

$

$

Not available

55

MTD 1761797

ROD-IDLER

$

$

Not available

56

MTD 1772359

ASSM-IDLER ARM

$

$

Not available

57

Troy-Bilt 1749764

PULLEY

$

$

Not available

58

Troy-Bilt 1100256

WASHER-.986X.437X.083 ZP
(Superseded to 736-3052)

$4.49

$

In Stock, Qty 20+

0

59

MTD 1772308

SCR-HHC 7/16-14X2 1/4

$

$

Not available

60

MTD 1772367

ASSM-SHEAVE

$

$

Not available

61

Troy-Bilt 1747642

BEARING-UPPER SHIELD

$

$

Currently unavailable

62

Troy-Bilt 1747644001

HOUSING-ARBOR TOP

$

$

Currently unavailable

63

Troy-Bilt 1766189001

LEVER-GAGE WHEEL ADJUST

$

$

Not available

64

Troy-Bilt 1766087

WHEEL-GAGE
(Superseded to 753-04856A)

$20.99

$

In Stock, Qty 20+

0

65

Troy-Bilt 1766342

SPACER-GAGE WHEEL

$

$

Not available

66

Troy-Bilt 1111615

SCR-HH 3/8-16X3.5 G5 ZP
(Superseded to 710-3085)

$4.49

$

In Stock, Qty 7

0

67

MTD 1772363

ASSM-LEVER ENGAGEMENT

$

$

Not available

68

MTD 1772371

BRACKET-LEVER

$

$

Not available

69

Troy-Bilt 1100044

SCR-HHC 5/16-18X.75 GR 5 ZP
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

70

Troy-Bilt 1732499

NUT-TOP/LK 5/16-18 ZP
(Superseded to 712-3004A)

$3.99

$

In Stock, Qty 20+

0

72

Troy-Bilt 1760096

GUIDE-BELT

$

$

Not available

73

Troy-Bilt 1100049

SCR-HH 3/8-16X2.25 G5 ZP
(Superseded to 710-3011)

$6.99

$

In Stock, Qty 20+

0

100

MTD 1772380

BASE-MOWER 36" W/DECALS

$

$

Not available

?101

Troy-Bilt 1735222

PAINT-BLACK SPRAY
(Superseded to 788-0637A)

$30.99

$

In Stock, only 1 left!

0
