14104 - Troy-Bilt 38" Mulching Mower Deck (SN: 141040100101 & Above) 38" MULCHING MOWER DECK Parts Diagram

38" Mulching Mower Deck

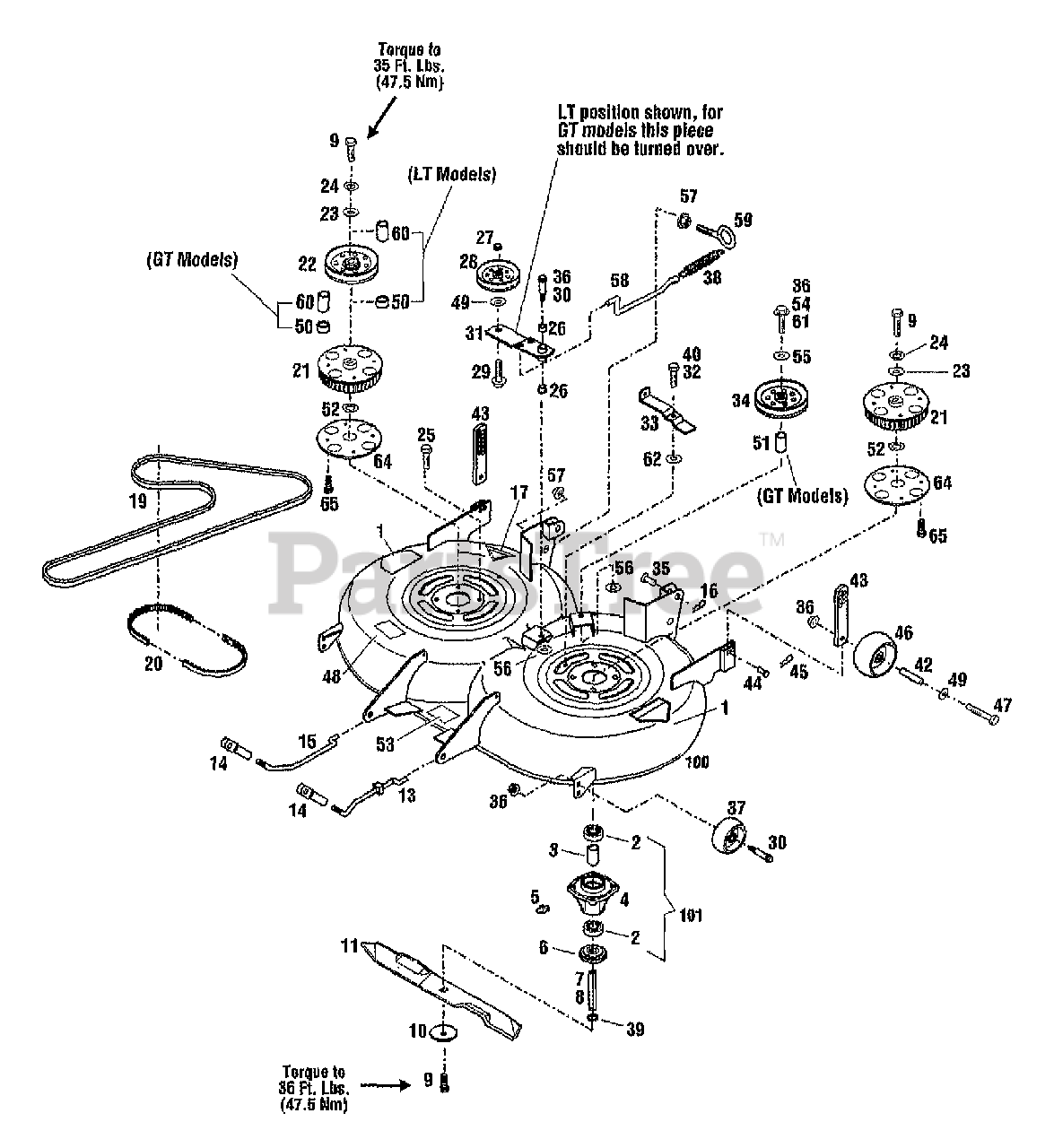

38" MULCHING MOWER DECK Parts Diagram

  • Title

1

Troy-Bilt 1739687

DECAL-OPEI CAUTION

$7.49

$

Usually ships in 3-6 days

0

2

Troy-Bilt 1185574

BEARING-BALL
(Superseded to 1185574P)

$34.99

$

In Stock, Qty 11

0

3

Troy-Bilt 1746869

SPACER

$19.99

$

In Stock, only 2 left!

0

4

Troy-Bilt 1765092

HOUSING-SPINDLE
(Superseded to 1769048099)

$175.99

$

In Stock, Qty 12

0

5

Troy-Bilt 1185976

FITTING-GREASE 1/4-28X2.00
(Superseded to 937-0146)

$5.49

$

In Stock, only 2 left!

0

6

Troy-Bilt 1765029

SPACER-BLADE

$13.99

$

In Stock, Qty 10

0

7

Troy-Bilt 1766061

SHAFT-SPINDLE MED. H/T
(Superseded to 1918880)

$97.99

$

In Stock, Qty 20+

0

8

Troy-Bilt 1770962

SHAFT-LONG SPINDLE (RH)

$

$

Not available

9

Troy-Bilt 1765196

SCR-HH 1/2-14X1.00

$3.99

$

In Stock, Qty 20+

0

10

Troy-Bilt 1765197

WASHER-BELLEVILLE

$26.99

$

In Stock, only 4 left!

0

11

Troy-Bilt 1772303

BLADE-MULCHING

$49.99

$

In Stock, only 4 left!

0

13

MTD 1766052

ROD-LIFT FRONT LH

$

$

Not available

14

Troy-Bilt 1752554

ROD-END

$64.99

$

Usually ships in 3-6 days

0

15

MTD 1766051

ROD-LIFT FRONT RH

$

$

Not available

16

MTD 1723478

PIN-HITCH .125X2.56 ZP

$

$

Not available

17

Troy-Bilt 1763823

DECAL-OPEI

$

$

Currently unavailable

19

Troy-Bilt 1739080

BELT-V

$37.99

$

Usually ships in 3-6 days

0

20

Troy-Bilt 1773601

BELT-DRIVE 38"

$65.99

$

In Stock, only 3 left!

0

21

Troy-Bilt 1774220

SPROCKET-56T GRIVORY
(Superseded to 913-04050)

$162.99

$

In Stock, only 1 left!

0

22

Troy-Bilt 1771870

ASSM-SHEAVE DRIVE
(Superseded to 1771870001)

$

$

Not available

23

Troy-Bilt 1736484

WASHER-1.37X.453X.179 ZP
(Superseded to 736-0322)

$9.49

$

In Stock, Qty 8

0

24

Troy-Bilt 1100244

WASHER-LK .438 ZP
(Superseded to 936-0171)

$4.49

$

In Stock, Qty 5

0

25

Troy-Bilt 1766984

SCR-HFLK 5/16-18X.75

$3.99

$

Usually ships in 3-6 days

0

26

Troy-Bilt 1715538

BUSHING-.5X.5 NYLON FLNG

$

$

Not available

27

Troy-Bilt 1186393

NUT-HFLK 3/8-16 ZP

$3.49

$

In Stock, only 2 left!

0

28

MTD 1764001

PULLEY-IDLER

$

$

Not available

29

Troy-Bilt 1100086

SCR-HH 3/8-16X1.75 G5 ZP
(Superseded to 710-0347)

$5.49

$

In Stock, Qty 20+

0

30

Troy-Bilt 1763219

SCR-SHLDR 3/8-16

$10.99

$

In Stock, only 2 left!

0

31

Troy-Bilt 1770963

ASSM-IDLER ARM

$

$

Currently unavailable

32

Troy-Bilt 1100044

SCR-HHC 5/16-18X.75 GR 5 ZP
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

33

MTD 1769768001

BRKT-BELT TENSION ADJ

$

$

Not available

34

Troy-Bilt 1749911

PULLEY

$

$

Not available

35

MTD 1719367

PIN-CLEVIS .625X2.25

$

$

Not available

36

Troy-Bilt 1733398

NUT-LOCK 3/8-16
(Superseded to 912-3000)

$4.49

$

In Stock, Qty 9

0

37

Troy-Bilt 1762138

WHEEL-GAGE

$24.99

$

In Stock, only 1 left!

0

38

MTD 1765899

SPRING

$

$

Not available

39

Troy-Bilt 1185649

RING-RETAINING EXT .694 ID

$

$

Not available

40

Troy-Bilt 1732499

NUT-TOP/LK 5/16-18 ZP
(Superseded to 712-3004A)

$3.99

$

In Stock, Qty 20+

0

42

Troy-Bilt 1766342

SPACER-GAGE WHEEL

$

$

Not available

43

Troy-Bilt 1766189001

LEVER-GAGE WHEEL ADJUST

$

$

Not available

44

Troy-Bilt 1112587

PIN-CLEVIS .375 X .937 ZP

$4.99

$

Usually ships in 3-6 days

0

45

Troy-Bilt 1703011

CLIP-HAIRPIN .07 DIA
(Superseded to 914-0145)

$4.99

$

In Stock, Qty 20+

0

46

Troy-Bilt 1766087

WHEEL-GAGE
(Superseded to 753-04856A)

$20.99

$

In Stock, Qty 20+

0

47

Troy-Bilt 1111615

SCR-HH 3/8-16X3.5 G5 ZP
(Superseded to 710-3085)

$4.49

$

In Stock, Qty 20+

0

48

Troy-Bilt 1768540

DECAL-BELT DRIVE

$

$

Currently unavailable

49

Troy-Bilt 1100256

WASHER-.986X.437X.083 ZP
(Superseded to 736-3052)

$4.49

$

In Stock, Qty 20+

0

50

MTD 1773608

SPACER-1.25X.76X.50

$

$

Not available

51

MTD 1770992

SPACER

$

$

Not available

52

Troy-Bilt 1766787

HARDENED WASHER

$6.49

$

In Stock, only 2 left!

0

53

Troy-Bilt 1768862

DECAL-LIFT ROD

$

$

Currently unavailable

54

Troy-Bilt 1111614

SCR-HH 3/8-16X3.0 G5 ZP
(Superseded to 710-0521)

$5.49

$

In Stock, Qty 11

0

55

Troy-Bilt 1100243

WASHER-LK .375 @ DEPL
(Superseded to 936-0169)

$3.99

$

In Stock, Qty 20+

0

56

MTD 1760269

SPACER-SPECIAL 1/4

$

$

Not available

57

Troy-Bilt 1186391

NUT-HFLK 5/16-18 ZP
(Superseded to 712-04054)

$4.99

$

In Stock, Qty 20+

0

58

MTD 1770960

ROD-IDLER

$

$

Not available

59

MTD 1739796

BOLT-EYE SC

$

$

Not available

60

MTD 1773609

SPACER-1.25X.77X.88

$

$

Not available

61

Troy-Bilt 1100086

SCR-HH 3/8-16X1.75 G5 ZP
(Superseded to 710-0347)

$5.49

$

In Stock, Qty 20+

0

62

Troy-Bilt 1982935

WASHER-.312 X .75
(Superseded to 936-3008)

$6.99

$

Usually ships in 3-6 days

0

?63

Troy-Bilt 1757032

LOCTITE-242 (.5 ML TUBE)
(Superseded to GW-97092)

$17.99

$

Usually ships in 3-6 days

0

64

Troy-Bilt 1771922001

PLATE-SPROCKET COVER

$

$

Not available

65

Troy-Bilt 1771925

SCR 1/4-20.75 TRI-PLASK
(Superseded to 710-04065)

$6.49

$

In Stock, Qty 20+

0

100

Troy-Bilt 1773614

BASE-MOWER 38" W/DECALS

$

$

Currently unavailable

101

Troy-Bilt 1769048

ASSM-MOWER SPINDLE
(Superseded to 1769048099)

$175.99

$

In Stock, Qty 12

0

?102

Troy-Bilt 1735222

PAINT-BLACK SPRAY
(Superseded to 788-0637A)

$30.99

$

In Stock, only 1 left!

0
