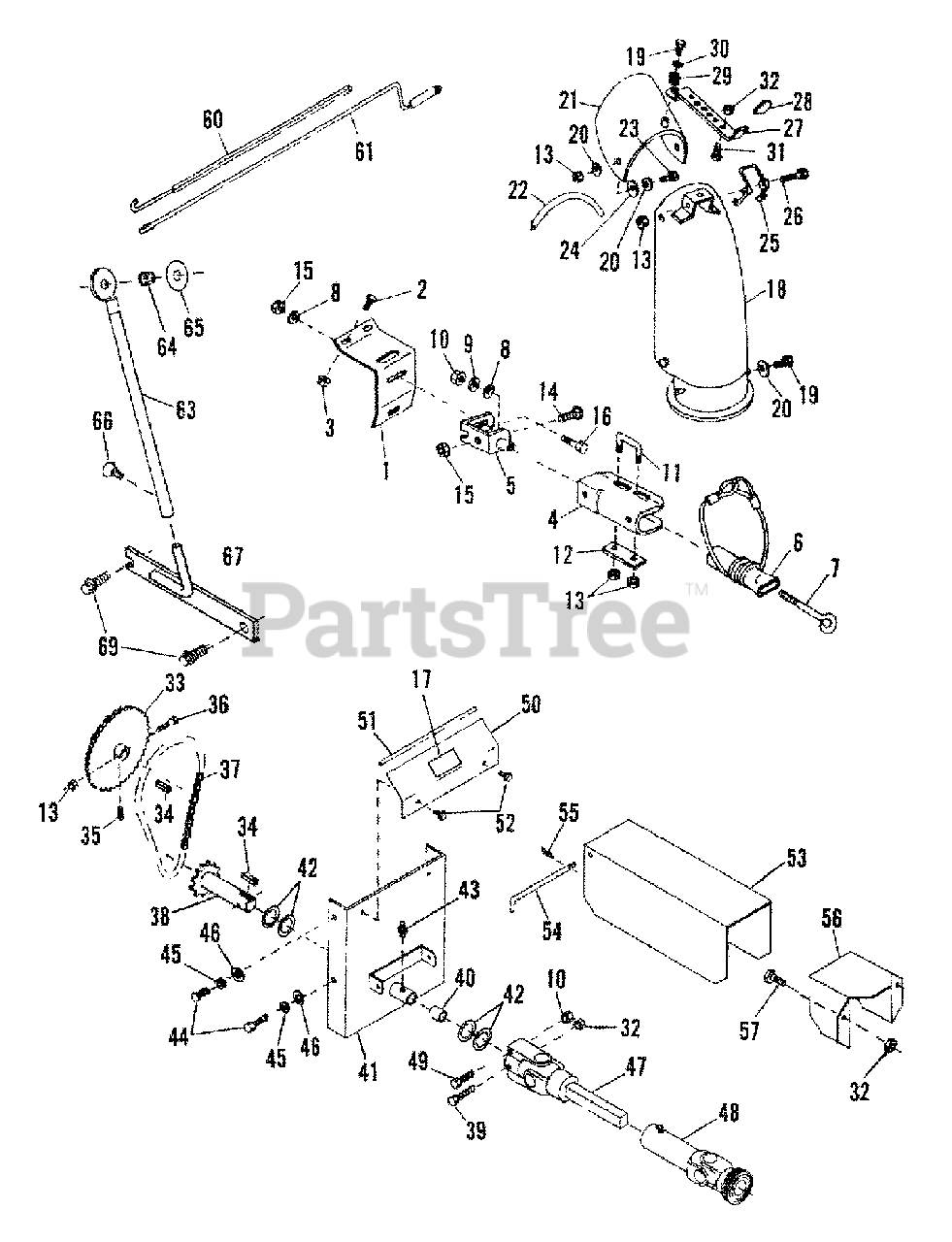

14100 - Troy-Bilt 46" Snow Thrower Attachment General Assembly Parts Diagram

46" Snow Thrower Attachment

General Assembly Parts Diagram

  • Title

1

MTD 1773300

Stack Drive Support Brkt

$

$

Not available

2

Troy-Bilt 1186098

Bolt-Carriage, 5/16-18 x 3/4

$

$

Not available

3

Troy-Bilt 1186391

Nut-Flg lock, 5/16-18
(Superseded to 712-04054)

$4.99

$

In Stock, Qty 20+

0

4

MTD 1773301

Stack Drive Shroud

$

$

Not available

5

MTD 1773302

Bracket and Tube Assy

$

$

Not available

6

Troy-Bilt 1773303

Cable, Tube, & Sleeve Assy

$

$

Currently unavailable

7

MTD 1773304

Eye Bolt

$

$

Not available

8

Troy-Bilt 1100256

Washer - Flat, 7/16
(Superseded to 736-3052)

$4.49

$

In Stock, Qty 20+

0

9

MTD 1177042

Spring Washer 3/8

$

$

Not available

10

Troy-Bilt 1733398

Nut - Lock, 3/8-16
(Superseded to 912-3000)

$4.49

$

In Stock, Qty 9

0

11

MTD 1773305

Level Wind "U" Bolt

$

$

Not available

12

MTD 1773306

Friction Strap

$

$

Not available

13

Troy-Bilt 1734396

Nut-Lock, 3/8-16

$

$

Currently unavailable

14

Troy-Bilt 1186126

Bolt - Carriage, 3/8-16 x 3/4
(Superseded to 710-0389)

$4.49

$

In Stock, Qty 10

0

15

Troy-Bilt 1733398

Nut - Top Lock - Hex, 3/8-16
(Superseded to 912-3000)

$4.49

$

In Stock, Qty 9

0

16

Troy-Bilt 1186128

Bolt - Carriage, 3/8-16 x 1
(Superseded to 710-3168)

$3.99

$

In Stock, Qty 20+

0

17

Troy-Bilt 1773396

Decal - Warning
(Superseded to 936-0921)

$4.49

$

In Stock, Qty 5

0

18

MTD 1773308

Elbow

$

$

Not available

19

Troy-Bilt 1100804

Bolt - Hex Hd., 1/4-20 x 1/2
(Superseded to 710-3013)

$4.99

$

In Stock, only 1 left!

0

20

Troy-Bilt 1100254

Washer - Flat, 1/4
(Superseded to 936-0159)

$

$

Not available

21

MTD 1773309

Deflector & Decal Assy

$

$

Not available

22

MTD 1773310

Seal Trim

$

$

Not available

23

Troy-Bilt 1100805

Bolt - Hex Hd, 1/4-20 x 3/4
(Superseded to 710-3015)

$3.99

$

In Stock, Qty 20+

0

24

MTD 1703052

Washer - Flat, 3/8

$

$

Not available

25

MTD 1773311

Deflector Lock Spring

$

$

Not available

26

Troy-Bilt 1111601

Bolt - Hex Hd, 1/4-20 x 1-3/4

$

$

Not available

27

MTD 1773312

Deflector Lock Strap

$

$

Not available

28

MTD 1773313

Rubber Handle Grip

$

$

Not available

29

MTD 1773314

Rubber Grommet

$

$

Not available

30

Troy-Bilt 1107381

Washer - Flat, 1/4
(Superseded to 936-3020)

$

$

Not available

31

MTD 1103195

Bolt - Hex Hd 3/8-16 x 3/4

$

$

Not available

32

Troy-Bilt 1732499

Nut - Top Lock, 5/16-18
(Superseded to 712-3004A)

$3.99

$

In Stock, Qty 20+

0

33

Troy-Bilt 1773315

Sprocket and Hub Assy

$

$

Currently unavailable

34

Troy-Bilt 1104336

Key - Square, 1/4 x 1
(Superseded to 714-0128)

$4.99

$

In Stock, Qty 6

0

35

MTD 1103470

Setscrew - Sq. Hd, 5/16-18 x 1/2

$

$

Not available

36

MTD 1100807

Bolt - Hex Hd, 1/4-20 x 2

$

$

Not available

37

MTD 1773316

Drive Chain

$

$

Not available

38

Troy-Bilt 1773317

Jackshaft Assy

$

$

Currently unavailable

39

MTD 1111606

Bolt - Hex Hd, 5/16-18 x 2

$

$

Not available

40

MTD 1773318

Roller Bearing

$

$

Not available

41

MTD 1773319

Jackshaft Housing Assy

$

$

Not available

42

Troy-Bilt 1773320

Washer - Flat

$

$

Currently unavailable

43

MTD 1773343

Grease Fitting

$

$

Not available

44

Troy-Bilt 1100046

Bolt - Hex Hd, 3/8-16 x 1
(Superseded to 710-0514)

$4.49

$

In Stock, Qty 20+

0

45

Troy-Bilt 1100243

Washer - Lock, 3/8
(Superseded to 936-0169)

$3.99

$

In Stock, Qty 20+

0

46

Troy-Bilt 1100256

Flat Washer, 3/8
(Superseded to 736-3052)

$4.49

$

In Stock, Qty 20+

0

47

MTD 1773322

PTO Shaft Assy - Male

$

$

Not available

48

MTD 1773323

PTO Shaft Assy - Quick disc.

$

$

Not available

49

Troy-Bilt 1100086

Bolt - Hex Hd, 3/8-16 x 1-3/4
(Superseded to 710-0347)

$5.49

$

In Stock, Qty 20+

0

50

MTD 1773324

Chain Guard

$

$

Not available

51

MTD 1773325

Molding

$

$

Not available

52

Troy-Bilt 1766984

Screw - Self Tap, 5/16-18 x 1/2

$3.99

$

Usually ships in 3-6 days

0

53

Troy-Bilt 1773326

PTO Guard

$

$

Currently unavailable

54

MTD 1773327

Pin

$

$

Not available

55

Troy-Bilt 1717897

Hitch Pin

$3.49

$

Usually ships in 3-6 days

0

56

MTD 1773328

PTO Cover

$

$

Not available

57

Troy-Bilt 1100045

Bolt - 5/16-18 x 1" Hex Head
(Superseded to 710-0376)

$3.99

$

In Stock, only 4 left!

0

60

Troy-Bilt 1773329

Crank Rod Extension

$

$

Currently unavailable

61

Troy-Bilt 1773330

Crank Rod

$

$

Currently unavailable

63

Troy-Bilt 1773331

Crank Rod Support

$

$

Currently unavailable

64

MTD 1773332

Crank Rod Guide Bushing

$

$

Not available

65

MTD 1773333

Crank Rod Decal

$

$

Not available

66

MTD 1773334

Thumb Screw

$

$

Not available

67

MTD 1773335

Crank Rod Support Anchor

$

$

Not available

69

Troy-Bilt 1186347

Bolt - Flange Head 3/8-16 x 1"
(Superseded to 710-04042)

$4.99

$

In Stock, only 2 left!

0

N/P

Troy-Bilt 1773394

Repair Kit (Cross Bearings)

$

$

Currently unavailable
