14100 - Troy-Bilt 46" Snow Thrower Attachment Auger Assembly Parts Diagram

46" Snow Thrower Attachment

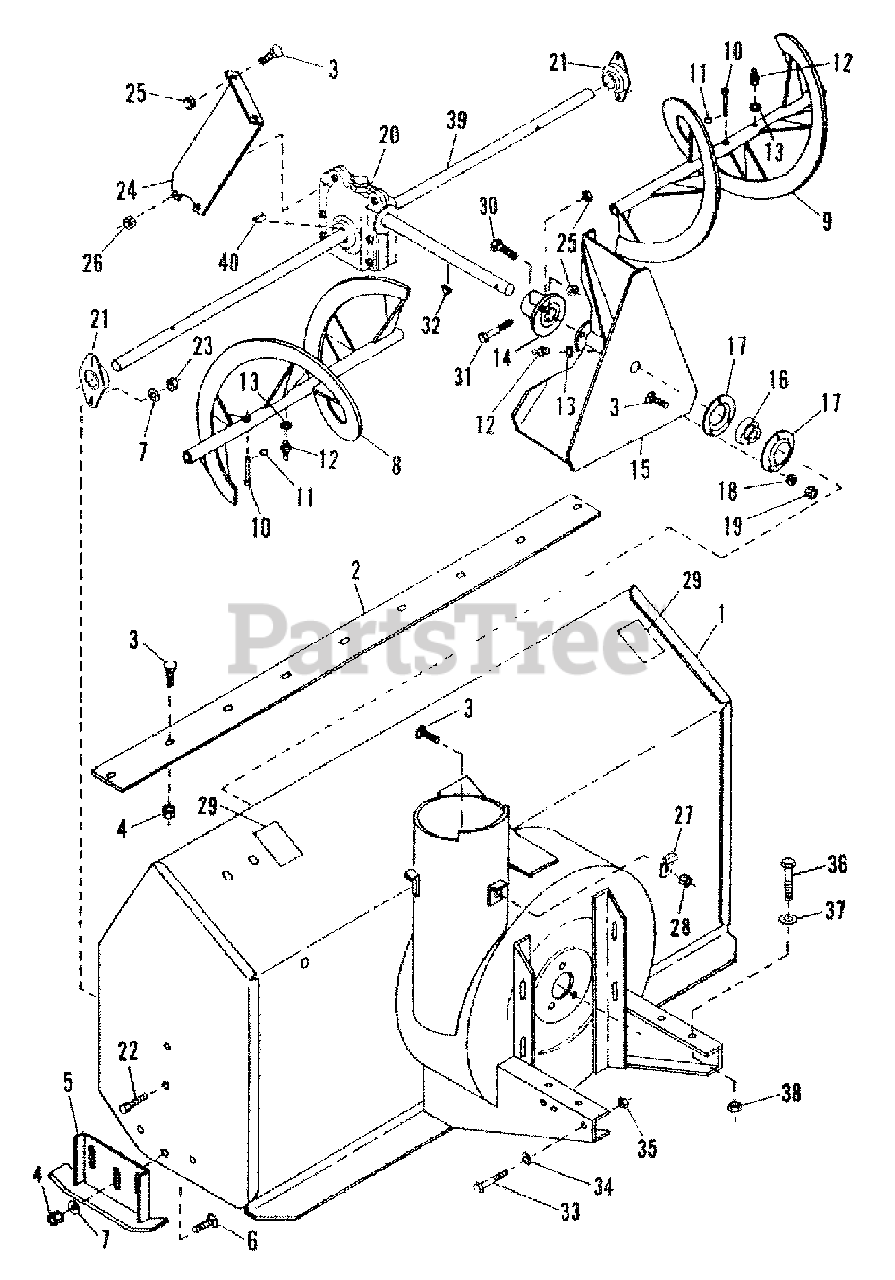

Auger Assembly Parts Diagram

  • Title

1

MTD 1773336

Header Housing

$

$

Not available

2

MTD 1773337

Scraper Blade

$

$

Not available

3

Troy-Bilt 1186098

Bolt, 5/16-18 x 3/4 Carriage

$

$

Not available

4

Troy-Bilt 1732499

Nut and lockwasher Assy 5/16-18
(Superseded to 712-3004A)

$3.99

$

In Stock, Qty 20+

0

5

MTD 1773338

Skid Shoe

$

$

Not available

6

Troy-Bilt 1186100

Bolt, 5/16-18 x 1" Carriage

$

$

Not available

7

Troy-Bilt 1100256

Washer, 3/8 x 7/8 x .083
(Superseded to 736-3052)

$4.49

$

In Stock, Qty 20+

0

8

Troy-Bilt 1773339

Auger Assembly Left Hand

$

$

Currently unavailable

9

Troy-Bilt 1773340

Auger Assembly Right Hand

$

$

Currently unavailable

10

Troy-Bilt 1773397

Shear Pin and Clip

Note: (Includes Ref. 11.)

$

$

Currently unavailable

11

MTD 1773342

Spring Clip

$

$

Not available

12

MTD 1773343

Grease Fitting

$

$

Not available

13

Troy-Bilt 1890234

Washer, 17/32 x 5/8 x .049
(Superseded to GW-20546)

$

$

Not available

14

MTD 1773344

Fan Drive Plate

$

$

Not available

15

MTD 1773345

Thower Fan

$

$

Not available

16

MTD 1773346

Bearing

$

$

Not available

17

MTD 1773347

Flangette

$

$

Not available

18

Troy-Bilt 1100242

Lockwasher 5/16 Medium
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

19

Troy-Bilt 1186230

Nut, 5/16-18 Hex
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

20

Troy-Bilt 1773348

Worm Drive Gearbox Assy

$

$

Currently unavailable

21

Troy-Bilt 1773348

Bearing Assy

$

$

Currently unavailable

22

Troy-Bilt 1100068

Bolt, 3/8-16 x 3/4 Hex Hd
(Superseded to 710-0216)

$4.49

$

In Stock, Qty 14

0

23

MTD 1983037

Nylock Nut, 3/8-16 Hex

$

$

Not available

24

MTD 1773350

Gearbox Support Bracket

$

$

Not available

25

Troy-Bilt 1732499

Lock Nut, 5/16-18
(Superseded to 712-3004A)

$3.99

$

In Stock, Qty 20+

0

26

MTD 1860255

Nut, Metric MB x 1.25

$

$

Not available

27

MTD 1773351

Stack Anchor

$

$

Not available

28

Troy-Bilt 1983038

Nylock Nut, 5/16-18
(Superseded to 912-0429)

$4.49

$

In Stock, Qty 20+

0

29

MTD 1773352

Danger Decal

$

$

Not available

30

Troy-Bilt 1773398

Shear Bolt, 5/16-18 x 3/4 & Nut

Note: (Inc. Ref. 25.)

$

$

Currently unavailable

31

MTD 1111606

Bolt, 5/16-18 x 2" Hex

$

$

Not available

32

MTD 1100279

Key - #15 Woodruff

$

$

Not available

33

Troy-Bilt 1100049

Bolt, 3/8-16 x 2 1/4" Hex Hd.
(Superseded to 710-3011)

$6.99

$

In Stock, Qty 19

0

34

Troy-Bilt 1107383

Washer, 13/32 x 3/16 x .065 Flat
(Superseded to 736-3050)

$4.49

$

In Stock, Qty 16

0

35

Troy-Bilt 1733398

Nut, 3/8-16 Hex Lock
(Superseded to 912-3000)

$4.49

$

In Stock, Qty 9

0

36

Troy-Bilt 1100075

Bolt, 1/2-13 x 2 1/4" Hex Hd.
(Superseded to 710-3104)

$8.49

$

Usually ships in 3-6 days

0

37

Troy-Bilt 1107385

Washer, 17/32 x 1 1/16 x .095 Flat
(Superseded to 936-0326)

$4.49

$

In Stock, only 2 left!

0

38

Troy-Bilt 1734514

Nut, 1/2-13 Hex Lock
(Superseded to 712-3022)

$3.99

$

In Stock, Qty 20+

0

39

Troy-Bilt 1773376

Auger Shaft

$

$

Currently unavailable

40

Troy-Bilt 1773377

Key - #91 Woodruff

$

$

Currently unavailable
