141 - Husqvarna Chainsaw (2003-01) Carburetor Assembly (WT-542) Parts Diagram

Chainsaw

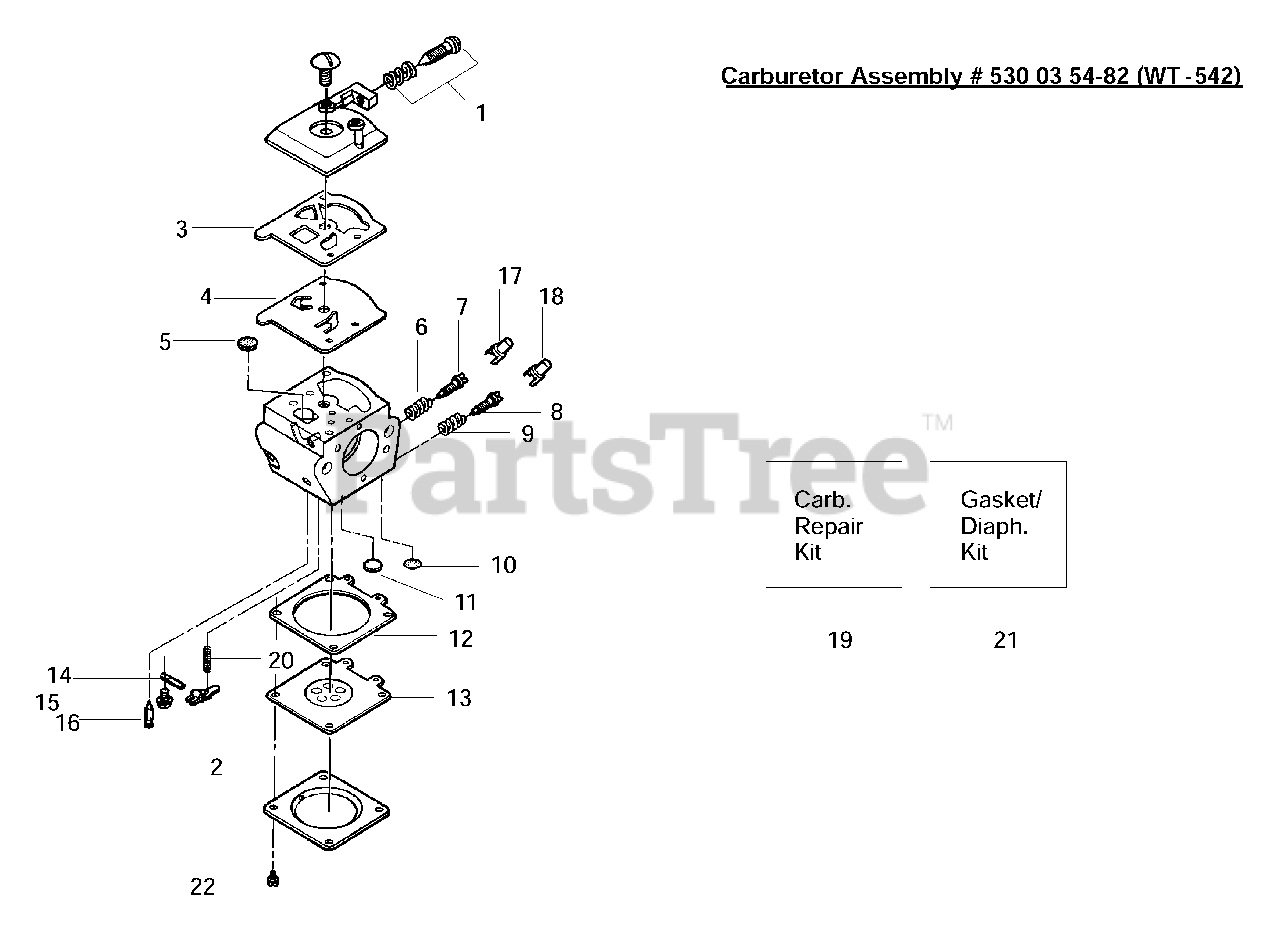

Carburetor Assembly (WT-542) Parts Diagram

  • Title
1

Husqvarna 530035296

Idle Adv. Screw Kit

$10.99

$

Usually ships in 3-10 days

0

2

Husqvarna 530035031

Metering Lever
(Superseded to 505520127)

$5.99

$

Usually ships in 3-10 days

0

3

Husqvarna 530035164

Fuel Pump Gasket
(Superseded to 504130906)

$11.99

$

In Stock, only 3 left!

0

4

Husqvarna 530035166

Fuel Pump Diaphragm
(Superseded to 504130807)

$31.99

$

In Stock, Qty 6

0

5

Husqvarna 507432582

Fuel Inlet Screen
(Superseded to 530035249)

$14.99

$

In Stock, Qty 5

0

6

Husqvarna 530035293

Needle Spring (Low Speed)

$4.99

$

Usually ships in 3-10 days

0

7

Husqvarna 530035281

Low Speed Needle

$9.99

$

In Stock, only 1 left!

0

8

Husqvarna 530037259

High Speed Needle

$

$

Not available

9

Husqvarna 530035295

Needle Spring (High Speed)

$3.99

$

In Stock, only 1 left!

0

10

Husqvarna 530035162

Welch Plug (5/16)

$

$

Not available

11

$3.99

$

Usually ships in 3-10 days

0

12

Husqvarna 530035165

Metering Diaphragm Gasket

$

$

Not available

13

Husqvarna 530035014

Metering Diaphragm
(Superseded to 503896701)

$51.99

$

In Stock, Qty 10

0

14

Husqvarna 530035028

Metering Lever Pin
(Superseded to 505520125)

$7.99

$

In Stock, only 3 left!

0

15

Husqvarna 530035016

Metering Lever Pin Screw

$7.99

$

In Stock, Qty 6

0

16

Husqvarna 530035106

Inlet Needle Valve
(Superseded to 503117001)

$22.99

$

In Stock, Qty 8

0

17

Husqvarna 530038479

Limiter Cap High

$3.99

$

Usually ships in 3-10 days

0

18

Husqvarna 530038478

Limiter Cap Low

$3.99

$

In Stock, Qty 19

0

19

Husqvarna 530069826

Carburetor Repair Kit Walbro

Note: (Incl. 3-5 & 10-18)

$34.99

$

In Stock, only 1 left!

0

19

Husqvarna 530035269

Carburetor Repair Kit Zama

Note: (Incl. 3-5 & 10-18)

$47.99

$

In Stock, only 1 left!

0

20

Husqvarna 530035188

Metering Lever Spring

$4.99

$

In Stock, Qty 10

0

21

Husqvarna 530069844

Gasket/Diaphragm Kit Walbro

Note: (Incl. 3, 4, 12 & 13)

$20.99

$

In Stock, Qty 5

0

21

Husqvarna 530035270

Gasket/Diaphragm Kit Zama

Note: (Incl. 3, 4, 12 & 13)

$18.99

$

Usually ships in 3-10 days

0

22

Husqvarna 530035021

Metering Cover Screw Ass'y

$3.99

$

Usually ships in 3-10 days

0

22

Husqvarna 530031157

Limiter Cap Removal Tool
(Superseded to 540068201)

Note: Not Shown

$13.99

$

Usually ships in 3-10 days

0

22

Husqvarna 530031161

Limiter Cap Insertion Tool

Note: Not Shown

$

$

Not available

530035482

Husqvarna 530035482

Carburetor Assembly (WT - 542)
(Superseded to 530071987)

$113.99

$

Usually ships in 3-10 days

0
