14099 - Troy-Bilt 46" Snow Blade General Assembly Parts Diagram

46" Snow Blade

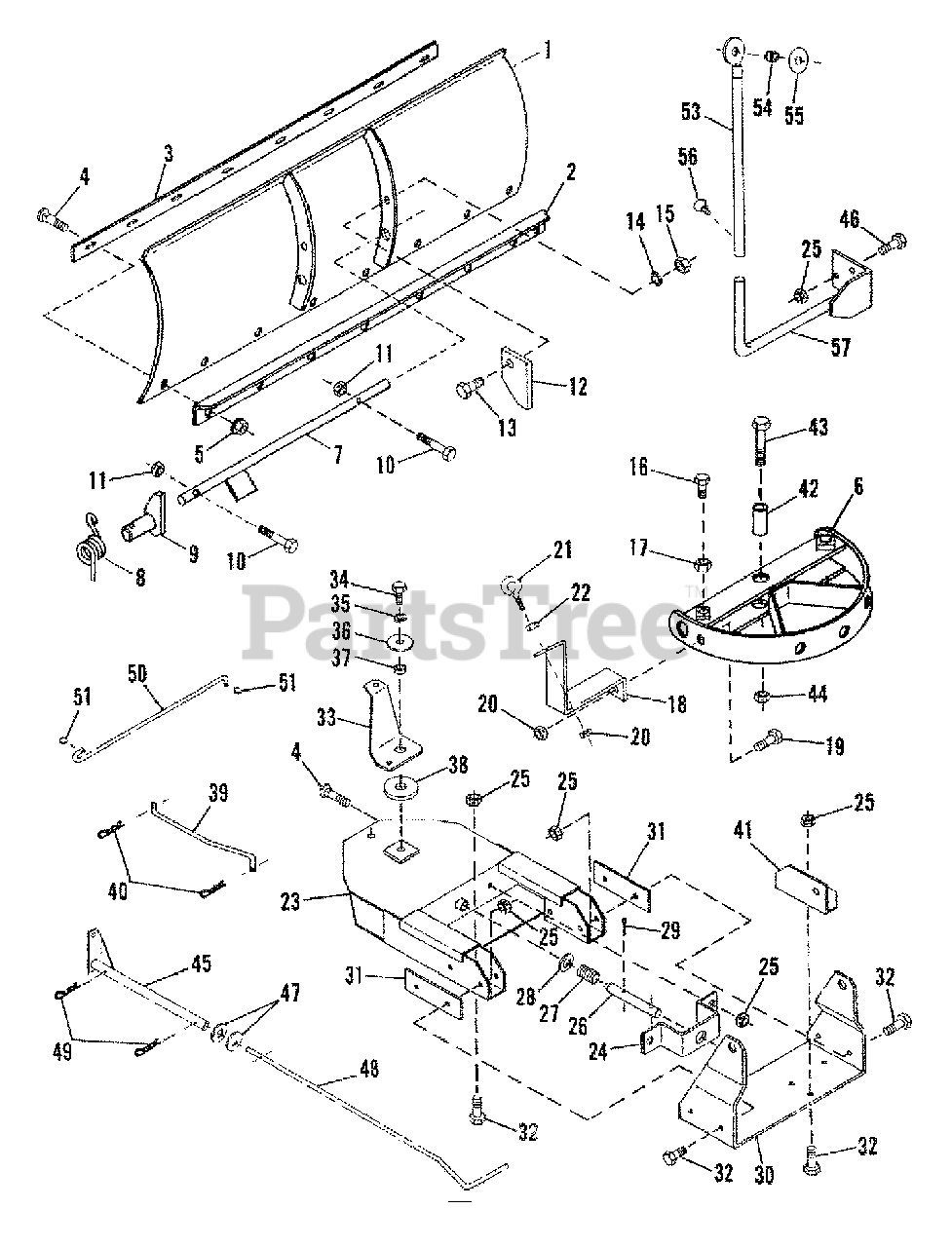

General Assembly Parts Diagram

  • Title

1

Troy-Bilt 1774150

Blade Assembly 46"

$

$

Currently unavailable

2

Troy-Bilt 1774151

Blade Back up Angle 46"

$

$

Currently unavailable

3

MTD 1774152

Scraper Blade 46"

$

$

Not available

4

Troy-Bilt 1186098

Bolt-5/16 x 3/4 Carriage

$

$

Not available

5

Troy-Bilt 1186391

Nut-5/16-18 Serrated
(Superseded to 712-04054)

$4.99

$

In Stock, Qty 20+

0

6

Troy-Bilt 1774153

Pivot Quadrant Assembly

$

$

Currently unavailable

7

MTD 1773361

Breakover Pin Assembly

$

$

Not available

8

Troy-Bilt 1773362

Torsion Spring

$

$

Currently unavailable

9

MTD 1773363

Spring Anchor Assembly

$

$

Not available

10

Troy-Bilt 1100811

Bolt-1/4-20 x 1-1/2 Hex Head
(Superseded to 710-0606)

$5.49

$

In Stock, Qty 10

0

11

Troy-Bilt 1734398

Nut Lock
(Superseded to 912-0291)

$

$

Not available

12

MTD 1773364

Blade Stop Strap

$

$

Not available

13

MTD 1773365

Bolt-5/8-11 x 1-1/4

$

$

Not available

14

MTD 1100247

Washer-5/8" Med. Lock

$

$

Not available

15

Troy-Bilt 1108891

Nut-5/8-11 Hex Jam
(Superseded to 912-3015)

$4.99

$

In Stock, Qty 20+

0

16

Troy-Bilt 1100064

Bolt-1/2-13 x 1-1/2 Hex Head
(Superseded to 710-3181)

$6.99

$

In Stock, only 1 left!

0

17

Troy-Bilt 1186261

Nut-1/2-13 Hex Jam
(Superseded to 912-3048)

$4.99

$

In Stock, Qty 20+

0

18

MTD 1773367

Pivot Control Bracket

$

$

Not available

19

Troy-Bilt 1100046

Bolt-3/8-16 x 1" Hex Head
(Superseded to 710-0514)

$4.49

$

In Stock, Qty 20+

0

20

Troy-Bilt 1733398

Nut-3/8-16 Hex Lock
(Superseded to 912-3000)

$4.49

$

In Stock, Qty 9

0

21

MTD 1773368

Eye Bolt-3/8-16 x 2"

$

$

Not available

22

Troy-Bilt 1186231

Nut-3/8-16 Lt. Hex
(Superseded to 912-3017)

$4.49

$

In Stock, Qty 20+

0

23

Troy-Bilt 1774154

Pivot Bracket Assembly

$

$

Currently unavailable

24

MTD 1773358

Lock Pin Bracket

$

$

Not available

25

Troy-Bilt 1732499

Nut-5/16-18 Hex Lock
(Superseded to 712-3004A)

$3.99

$

In Stock, Qty 20+

0

26

MTD 1773359

Lock Pin

$

$

Not available

27

MTD 1773360

Coupler Spring

$

$

Not available

28

Troy-Bilt 1107386

Washer-21/32 x 1-5/16
(Superseded to 736-0237)

$4.49

$

In Stock, Qty 20+

0

29

MTD 1100351

Cotter Pin-1/8" x 1-1/4"

$

$

Not available

30

Troy-Bilt 1774155

Mounting Bracket

$

$

Currently unavailable

31

Troy-Bilt 1774156

Strap

$

$

Currently unavailable

32

Troy-Bilt 1100045

Bolt-5/16-18 x 1 Hex Head
(Superseded to 710-0376)

$3.99

$

In Stock, Qty 20+

0

33

Troy-Bilt 1774157

Pivot Release Bracket

$

$

Currently unavailable

34

Troy-Bilt 1100086

Bolt-3/8-16 x 3/4 Hex
(Superseded to 710-0347)

$5.49

$

In Stock, Qty 20+

0

35

Troy-Bilt 1100243

Washer-3/8 Med. Lock
(Superseded to 936-0169)

$3.99

$

In Stock, Qty 20+

0

36

Troy-Bilt 1805077

Flat Washer

$

$

Currently unavailable

37

MTD 1773370

Spacer

$

$

Not available

38

Troy-Bilt 1774158

Flat Washer

$

$

Currently unavailable

39

Troy-Bilt 1774159

Lock Pin Release Rod

$

$

Currently unavailable

40

Troy-Bilt 1717897

Hair Cotter Pin

$3.49

$

Usually ships in 3-6 days

0

41

Troy-Bilt 1774160

Lift Bracket

$

$

Currently unavailable

42

Troy-Bilt 1773375

Spacer

$

$

Currently unavailable

43

Troy-Bilt 1100057

Bolt-1/2-13 x 3 Hex Head
(Superseded to 710-0182A)

$7.99

$

In Stock, only 2 left!

0

44

Troy-Bilt 1734514

Nut-1/2-13 Hex Lock
(Superseded to 712-3022)

$3.99

$

In Stock, Qty 20+

0

45

Troy-Bilt 1774176

Pivot Control Arm

$

$

Currently unavailable

46

Troy-Bilt 1100044

Bolt-5/15-18 x 3/4 Hex 3
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

47

Troy-Bilt 1185023

Washer-19/32 x 1-3/16

$

$

Currently unavailable

48

Troy-Bilt 1774161

Control Handle Rod

$

$

Currently unavailable

49

Troy-Bilt 1717897

Hair Cotter Pin

$3.49

$

Usually ships in 3-6 days

0

50

MTD 1773374

Pivot Release Rod

$

$

Not available

51

Troy-Bilt 1751908

Spring Clip

$5.99

$

Usually ships in 3-6 days

0

53

Troy-Bilt 1774162

Control Support Assembly

$

$

Currently unavailable

54

MTD 1773332

Control Rod Guide Bushing

$

$

Not available

55

Troy-Bilt 1774163

Angling Control Decal

$

$

Currently unavailable

56

MTD 1773334

Thumb Screw

$

$

Not available

57

Troy-Bilt 1774164

Control Rod Support Assembly

$

$

Currently unavailable

?58

Troy-Bilt 1774113

Owner's/Instruction Manual

$

$

Currently unavailable
