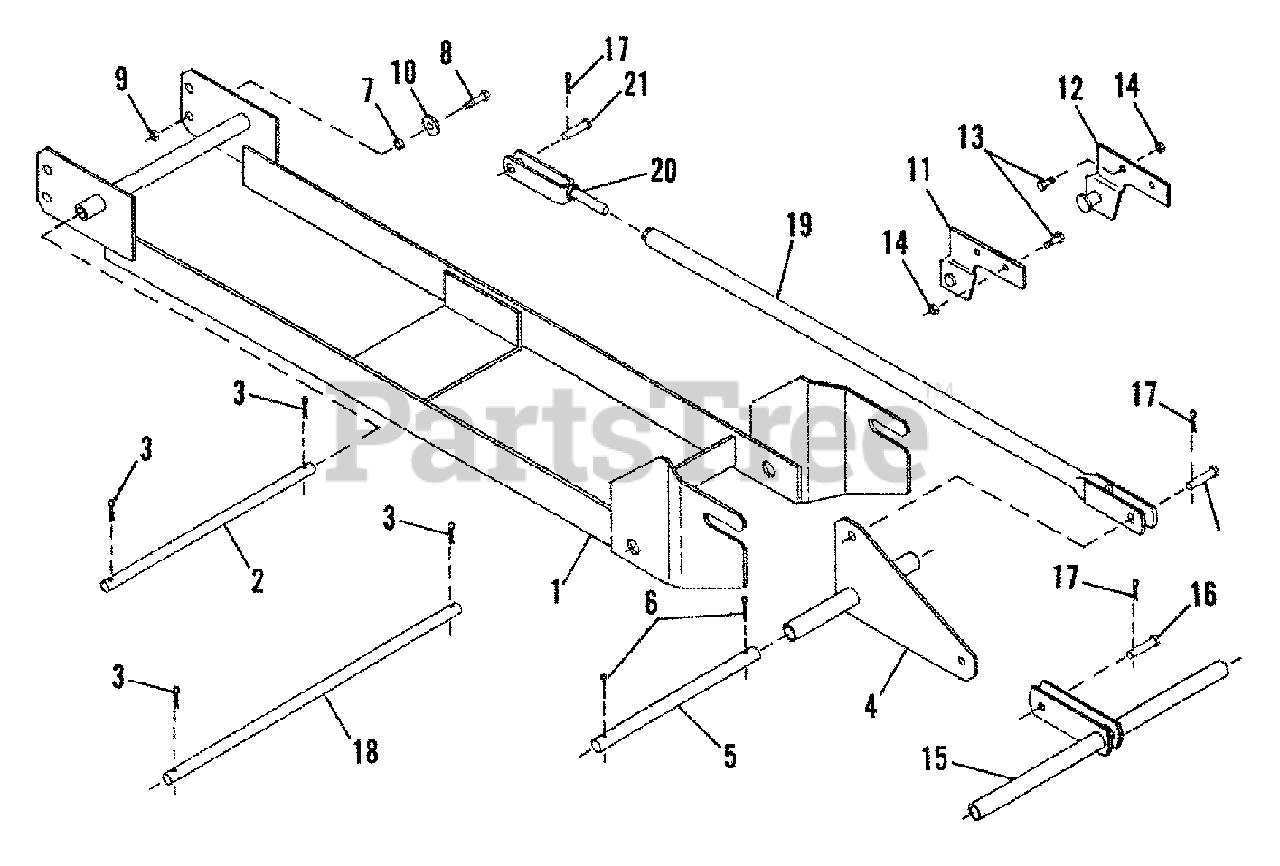

14099 - Troy-Bilt 46" Snow Blade Frame Parts Diagram

46" Snow Blade

Frame Parts Diagram

  • Title

1

Troy-Bilt 1774165

Mounting Frame Assembly

$

$

Currently unavailable

2

Troy-Bilt 1774166

Front Mounting Pin

$

$

Currently unavailable

3

MTD 1723478

Hair Cotter Pin

$

$

Not available

4

Troy-Bilt 1774167

Lift Pivot Assembly

$

$

Currently unavailable

5

Troy-Bilt 1774168

Lift Pivot Pin

$

$

Currently unavailable

6

Troy-Bilt 1100352

Cotter Pin-3/16 x 1-3/4

$4.49

$

In Stock, Qty 7

0

7

Troy-Bilt 1774169

Spacer

$

$

Currently unavailable

8

Troy-Bilt 1100043

Bolt-1/2-13 x 1-1/4 Hex Head
(Superseded to 710-3005)

$3.99

$

In Stock, Qty 20+

0

9

Troy-Bilt 1734514

Nut-1/2-13 Hex Lock
(Superseded to 712-3022)

$3.99

$

In Stock, Qty 20+

0

10

Troy-Bilt 1107385

Washer-9/16 x 1-3/8
(Superseded to 936-0326)

$4.49

$

In Stock, only 4 left!

0

11

Troy-Bilt 1774170

LH Rear Mounting Bracket

$

$

Currently unavailable

12

Troy-Bilt 1774171

RH Rear Mounting Bracket

$

$

Currently unavailable

13

Troy-Bilt 1100044

Bolt-5/16-18 X 3/4 Hex
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

14

Troy-Bilt 1732499

Nut-5/16-18 Hex Lock
(Superseded to 712-3004A)

$3.99

$

In Stock, Qty 20+

0

15

Troy-Bilt 1774172

Rear Lift Link Assembly

$

$

Currently unavailable

16

Troy-Bilt 1705593

Clevis Pin

$

$

Currently unavailable

17

Troy-Bilt 1717897

Hair Cotter Pin

$3.49

$

Usually ships in 3-6 days

0

18

Troy-Bilt 1774173

Rear Lift Pin

$

$

Currently unavailable

19

Troy-Bilt 1774174

Lift Tube Assembly

$

$

Currently unavailable

20

Troy-Bilt 1774175

Adjusting Clevis

$

$

Currently unavailable

21

MTD 1724632

Clevis Pin

$

$

Not available
