14082 - Troy-Bilt Sleeve Hitch Attachment (SN: 140820100101 & Above) SLEEVE HITCH ATTACHMENT Parts Diagram

Sleeve Hitch Attachment

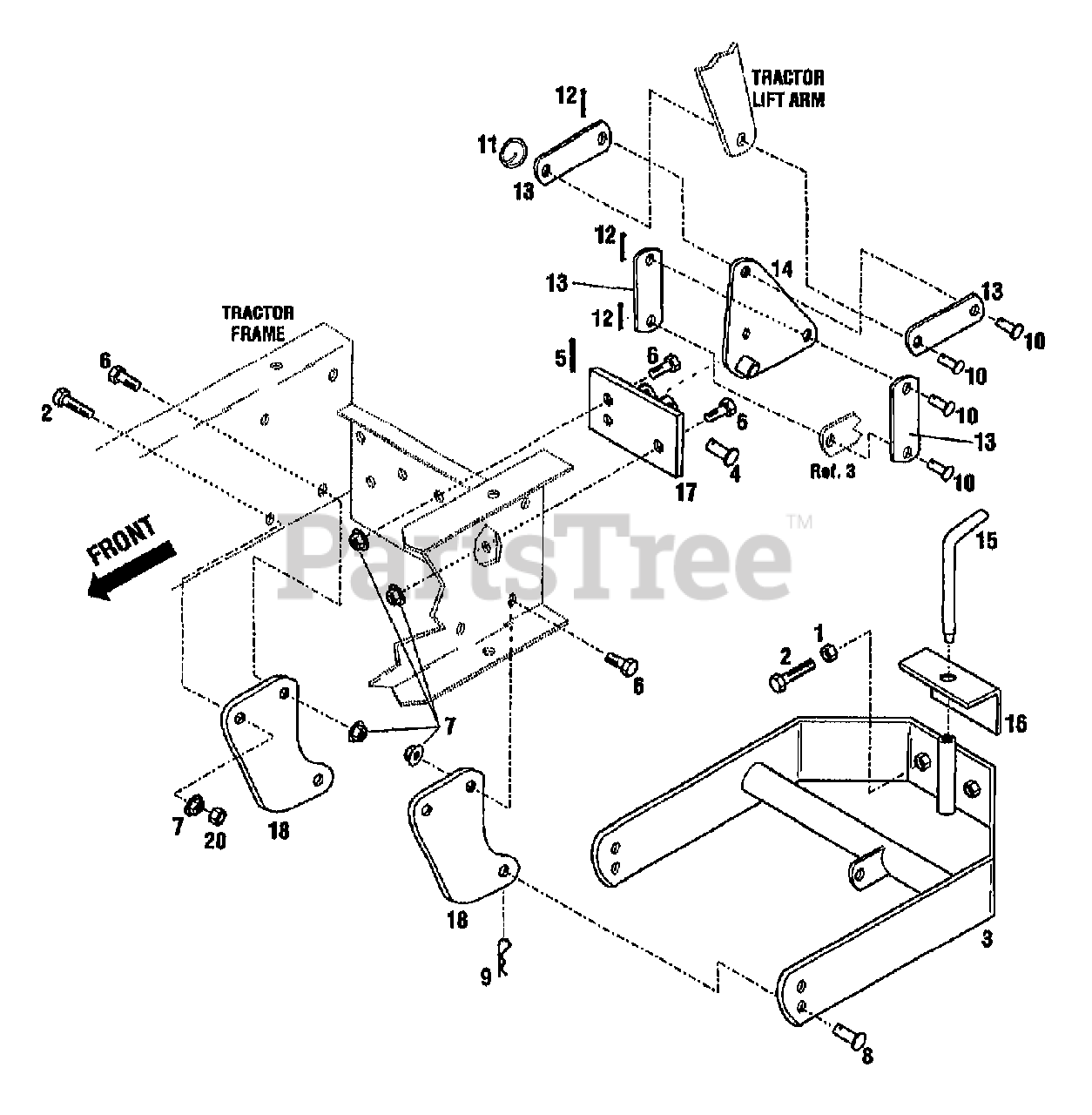

SLEEVE HITCH ATTACHMENT Parts Diagram

  • Title

1

Troy-Bilt 1186233

NUT-HEX JAM 1/2-13
(Superseded to 912-0206)

$4.49

$

In Stock, Qty 20+

0

2

MTD 1731412

SCR-HH 1/2-13 X 2.00

$

$

Not available

3

Troy-Bilt 1766244001

ASSM-HITCH

$

$

Currently unavailable

4

Troy-Bilt 1752687

PIN-CLEVIS .75X2.5

$

$

Currently unavailable

5

MTD 1100351

PIN-COTTER .120X1.25 ZP

$

$

Not available

6

Troy-Bilt 1100054

SCR-HH 1/2-13X1.0 G5 ZP
(Superseded to 710-3131)

$5.49

$

In Stock, only 1 left!

0

7

Troy-Bilt 1186397

NUT-TOP LOCK 1/2-13 ZP
(Superseded to 712-3022)

$3.99

$

In Stock, Qty 20+

0

8

MTD 1746208

PIN-CLEVIS

$

$

Not available

9

MTD 1723478

PIN-HITCH .125X2.56 ZP

$

$

Not available

10

Troy-Bilt 1730851

PIN-CLEVIS .5X1.25

$

$

Not available

11

Troy-Bilt 1751908

RING-CIRCLE COTTER

$5.99

$

Usually ships in 3-6 days

0

12

Troy-Bilt 1100350

PIN-COTTER .120X1.00 ZP
(Superseded to 914-0115)

$3.99

$

In Stock, Qty 20+

0

13

Troy-Bilt 1766253001

LINK-HITCH

$

$

Currently unavailable

14

Troy-Bilt 1766251001

ASSM-PIVOT

$

$

Currently unavailable

15

Troy-Bilt 1730809

PIN-HITCH .625 DIA

$

$

Currently unavailable

16

Troy-Bilt 1731147001

PLATE-STABLIZER

$

$

Currently unavailable

17

Troy-Bilt 1766248001

ASSM-BRKT MOUNTING HITCH

$

$

Currently unavailable

18

Troy-Bilt 1766223001

BRKT-HANGER ATTACH

$

$

Currently unavailable

20

Troy-Bilt 1734514

NUT-TOP LOCK 1/2-13 ZP
(Superseded to 712-3022)

$3.99

$

In Stock, Qty 20+

0

MTD 1768809

KIT-SHIFT ON FLY LOCKOUT

$

$

Not available

Troy-Bilt 1735222

PAINT-BLACK SPRAY
(Superseded to 788-0637A)

$30.99

$

In Stock, only 1 left!

0
