14080 - Troy-Bilt 54" Snowblade (SN: 140800100101 & Above) SNOWBLADE Parts Diagram

54" Snowblade

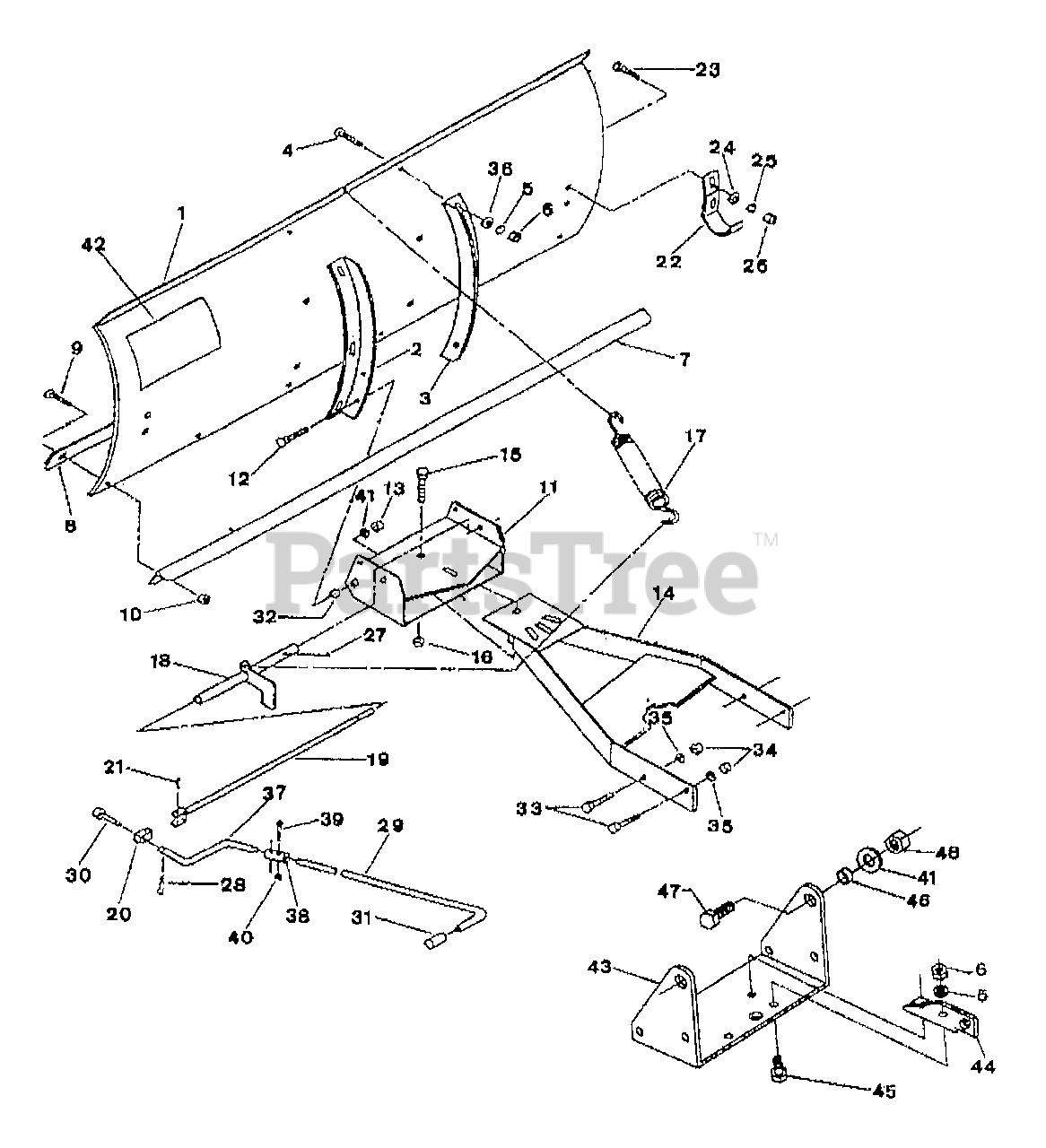

SNOWBLADE Parts Diagram

  • Title

1

MTD 1825563

MOLDBOARD 44" {14079}

$

$

Not available

1

MTD 1825564

MOLDBOARD 54" {14080}

$

$

Not available

2

MTD 1825565

ANGLE-REINFORCEMENT LH

$

$

Not available

3

MTD 1825566

ANGLE-REINFORCEMENT RH

$

$

Not available

4

Troy-Bilt 1186128

SCR-CARR 3/8-16X1.00
(Superseded to 710-3168)

$3.99

$

In Stock, Qty 20+

0

5

Troy-Bilt 1100243

WASHER-LK .375 @ DEPL
(Superseded to 936-0169)

$3.99

$

In Stock, Qty 20+

0

6

Troy-Bilt 1186231

NUT-HEX 3/8-16 ZP
(Superseded to 912-3017)

$4.49

$

In Stock, Qty 20+

0

7

MTD 1825567

MOLDBOARD REINFORCEMENT (44) {14079}

$

$

Not available

7

MTD 1825568

MOLDBOARD REINFORCEMENT (54) {14080}

$

$

Not available

8

Troy-Bilt 1825569

EDGE-CUTTING (44)

$

$

Currently unavailable

8

MTD 1825570

EDGE-CUTTING (54)

$

$

Not available

9

Troy-Bilt 1186098

SCR-CARR 5/16-18X.75 G2 ZP {14079}

$

$

Not available

9

Troy-Bilt 1186098

SCR-CARR 5/16-18X.75 G2 ZP {14080}

$

$

Not available

10

Troy-Bilt 1110107

NUT-H/LK 5/16-18 {14079}
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 18

0

10

Troy-Bilt 1110107

NUT-H/LK 5/16-18 {14080}
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 18

0

11

MTD 1825571

FEMALE ATTACHMENT

$

$

Not available

12

Troy-Bilt 1186183

BOLT-CARR .500-13X1.50

$

$

Currently unavailable

13

Troy-Bilt 1734514

NUT-TOP LOCK 1/2-13 ZP
(Superseded to 712-3022)

$3.99

$

In Stock, Qty 20+

0

14

Troy-Bilt 1825572

MALE ATTACHMENT

$

$

Currently unavailable

15

MTD 1825583

SCR-CARR 5/8X4.0

$

$

Not available

16

Troy-Bilt 1758231

NUT-H/LK 5/8-11
(Superseded to 712-3016)

$6.99

$

In Stock, Qty 13

0

17

MTD 1825453

SPRING

$

$

Not available

18

Troy-Bilt 1825573

LEVER-LOCKING

$

$

Currently unavailable

19

MTD 1825574

ROD-ANGLE LINKAGE

$

$

Not available

20

MTD 1825575

BLOCK

$

$

Not available

21

Troy-Bilt 1185348

PIN-ROLL 1/4 X 1-1/4
(Superseded to 915-0143)

$

$

Not available

22

Troy-Bilt 1825576

SHOE-SKID

$

$

Currently unavailable

23

Troy-Bilt 1186100

SCR-CARR 5/16-18X1.0 G2 ZP

$

$

Not available

24

Troy-Bilt 1107383

WASHER-FLAT 3/8 SAE
(Superseded to 736-3050)

$4.49

$

In Stock, Qty 16

0

25

Troy-Bilt 1100242

WASHER-LK .312 ZP
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

26

Troy-Bilt 1186230

NUT-HEX 5/16-18 ZP
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

27

MTD 1120209

PIN-ROLL .188X.75

$

$

Not available

28

MTD 1723478

PIN-HITCH .125X2.56 ZP

$

$

Not available

29

Troy-Bilt 1825577

ARM-ANGLE ADJUSTING

$

$

Currently unavailable

30

MTD 1825578

PIN (SPECIAL)

$

$

Not available

31

MTD 1825537

GRIP-HANDLE

$

$

Not available

32

MTD 1825579

BUSHING

$

$

Not available

33

Troy-Bilt 1825552

BOLT

$

$

Currently unavailable

34

Troy-Bilt 1186232

NUT-HH 7/16-14X.375
(Superseded to 912-3019)

$6.99

$

In Stock, only 1 left!

0

35

Troy-Bilt 1100244

WASHER-LK .438 ZP
(Superseded to 936-0171)

$4.49

$

In Stock, only 4 left!

0

36

Troy-Bilt 1100086

SCR-HH 3/8-16X1.75 G5 ZP
(Superseded to 710-0347)

$5.49

$

In Stock, Qty 20+

0

37

Troy-Bilt 1825580

ARM-LOWER ADJ

$

$

Currently unavailable

38

MTD 1825581

TUBE-UNION

$

$

Not available

39

Troy-Bilt 1825584

HEX. SOCKET CAPSCREW

$

$

Currently unavailable

40

Troy-Bilt 1734398

NUT-HT LK 1/4-20
(Superseded to 912-0291)

$

$

Not available

41

Troy-Bilt 1185023

WASHER-FLAT 19/32X1 3/16X.

$

$

Currently unavailable

42

MTD 1825582

DECAL-SAFETY

$

$

Not available

43

Troy-Bilt 1825550

BRACKET-PIVOT

$

$

Currently unavailable

44

Troy-Bilt 1825556

BRACKET-PUSH

$

$

Currently unavailable

45

Troy-Bilt 1100046

SCR-HH 3/8-16X1.0 G5 ZP
(Superseded to 710-0514)

$4.49

$

In Stock, Qty 20+

0

46

MTD 1730681

SPACER-TUBULAR

$

$

Not available

47

MTD 1100015

SCR-HH 1/4-20X1.25 G5 ZP

$

$

Not available

48

Troy-Bilt 1734514

NUT-TOP LOCK 1/2-13 ZP
(Superseded to 712-3022)

$3.99

$

In Stock, Qty 20+

0
