14078 - Troy-Bilt Subframe Kit SUBFRAME KIT Parts Diagram

Subframe Kit

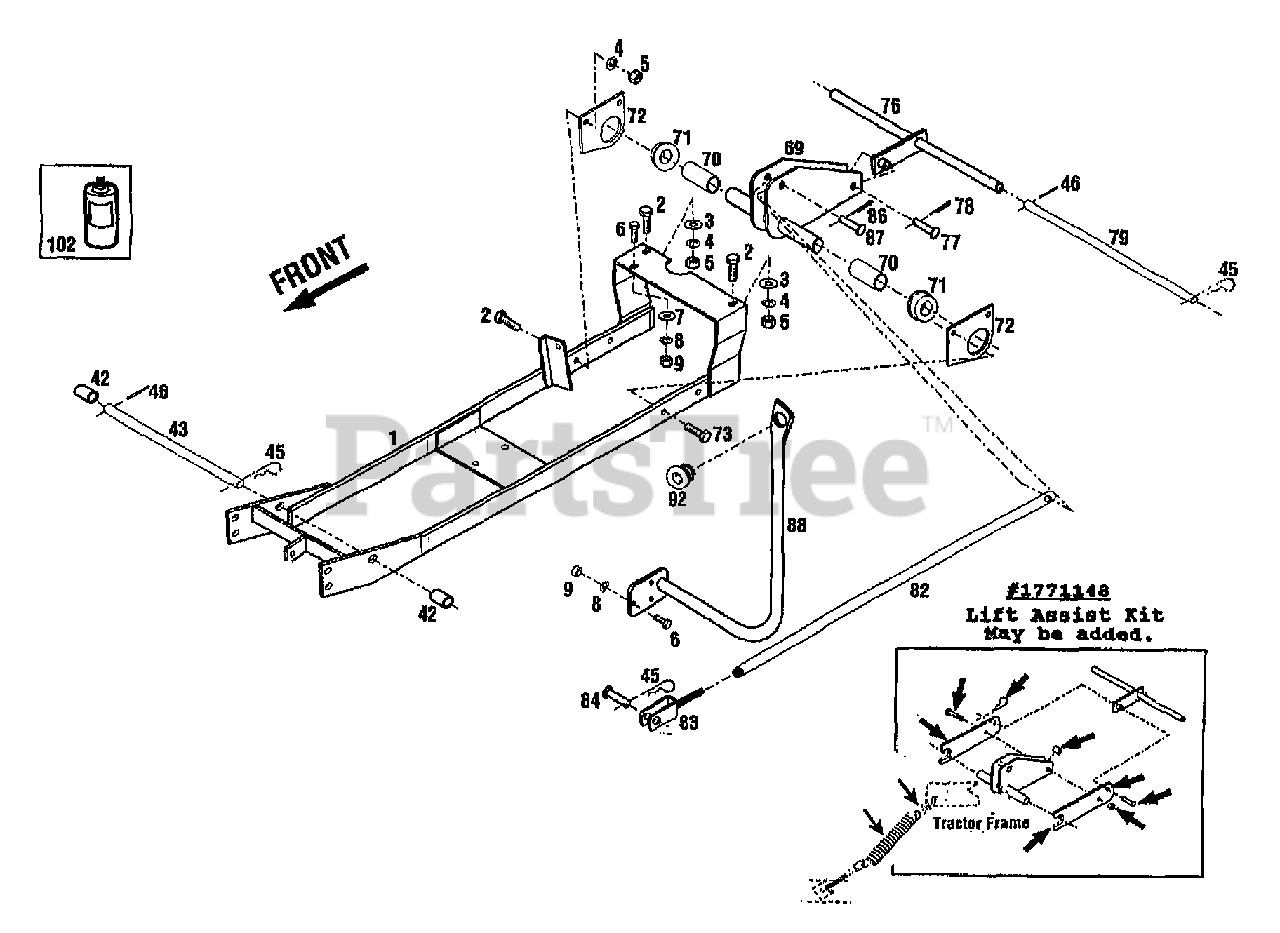

SUBFRAME KIT Parts Diagram

  • Title

MTD 1100056

SCR-HH 1/2-13X2.5 G5 ZP

$

$

Not available

Troy-Bilt 1100350

PIN-COTTER .120X1.00 ZP
(Superseded to 914-0115)

$3.99

$

In Stock, Qty 20+

0

MTD 1708336

PIN-CLEVIS .5X2.25

$

$

Not available

MTD 1723478

PIN-HITCH .125X2.56 ZP

$

$

Not available

Troy-Bilt 1734514

NUT-TOP LOCK 1/2-13 ZP
(Superseded to 712-3022)

$3.99

$

In Stock, Qty 8

0

Troy-Bilt 1739934

SPACER

$

$

Currently unavailable

Troy-Bilt 1771302

S-HOOK

$

$

Currently unavailable

Troy-Bilt 1770999001

LIFT BRACKET

$

$

Currently unavailable

Troy-Bilt 1771148

LIFT ASSIST KIT

$

$

Currently unavailable

1

MTD 1825496

ASSM-SUBFRAME (14078)

$

$

Not available

2

Troy-Bilt 1100046

SCR-HH 3/8-16X1.0 G5 ZP
(Superseded to 710-0514)

$4.49

$

In Stock, Qty 20+

0

3

Troy-Bilt 1107383

WASHER-FLAT 3/8 SAE
(Superseded to 736-3050)

$4.49

$

In Stock, Qty 16

0

4

Troy-Bilt 1100243

WASHER-LK .375 @ DEPL
(Superseded to 936-0169)

$3.99

$

In Stock, Qty 20+

0

5

Troy-Bilt 1186231

NUT-HEX 3/8-16 ZP
(Superseded to 912-3017)

$4.49

$

In Stock, Qty 20+

0

6

Troy-Bilt 1100045

SCR-HH 5/16-18X1.0 G5 ZP
(Superseded to 710-0376)

$3.99

$

In Stock, only 4 left!

0

7

Troy-Bilt 1107382

WASHER-FLAT 5/16 SAE
(Superseded to 936-0275)

$

$

Not available

8

Troy-Bilt 1100242

WASHER-LK .312 ZP
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

9

Troy-Bilt 1186230

NUT-HEX 5/16-18 ZP
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

42

MTD 1825497

SPACER (14078)

$

$

Not available

43

MTD 1825498

ROD-SUPPORT (14078)

$

$

Not available

45

MTD 1723478

PIN-HITCH .125X2.56 ZP

$

$

Not available

46

Troy-Bilt 1185232

PIN-ROLL
(Superseded to 915-0246)

$6.99

$

In Stock, Qty 7

0

69

MTD 1825499

ROD-LIFT WELDMENT (14078)

$

$

Not available

70

MTD 1825500

TUBE-TORQUE (14078)

$

$

Not available

71

MTD 1825501

BEARING-1" (14078)

$

$

Not available

72

MTD 1825502

PLATE-END (14078)

$

$

Not available

73

UNKNOWN

$

$

Not available

76

Troy-Bilt 1825503

ASSM-LIFT (14078)

$

$

Currently unavailable

77

MTD 1706419

PIN-CLEVIS .5X2.0 ZP

$

$

Not available

78

Troy-Bilt 1100350

PIN-COTTER .120X1.00 ZP
(Superseded to 914-0115)

$3.99

$

In Stock, Qty 20+

0

79

Troy-Bilt 1825504

ROD-LIFT (14078)

$

$

Currently unavailable

82

MTD 1825505

SHAFT-LIFT (14078)

$

$

Not available

83

MTD 1825506

CLEVIS

$

$

Not available

84

Troy-Bilt 1713553

PIN-CLEVIS

$

$

Not available

86

Troy-Bilt 1100350

PIN-COTTER .120X1.00 ZP
(Superseded to 914-0115)

$3.99

$

In Stock, Qty 20+

0

87

MTD 1720869

PIN-CLEVIS

$

$

Not available

88

Troy-Bilt 1825507

HANDLE-SUPPORT

$

$

Currently unavailable

92

MTD 1825463

GROMMET

$

$

Not available

?101

MTD 1768809

KIT-SHIFT ON FLY LOCKOUT

$

$

Not available

102

Troy-Bilt 1735222

PAINT-BLACK SPRAY
(Superseded to 788-0637A)

$30.99

$

In Stock, only 1 left!

0
