14072 - Troy-Bilt 3 Point Hitch Kit (SN: 140720100101 - 140720199999) 3 PT. HITCH KIT Parts Diagram

3 Point Hitch Kit

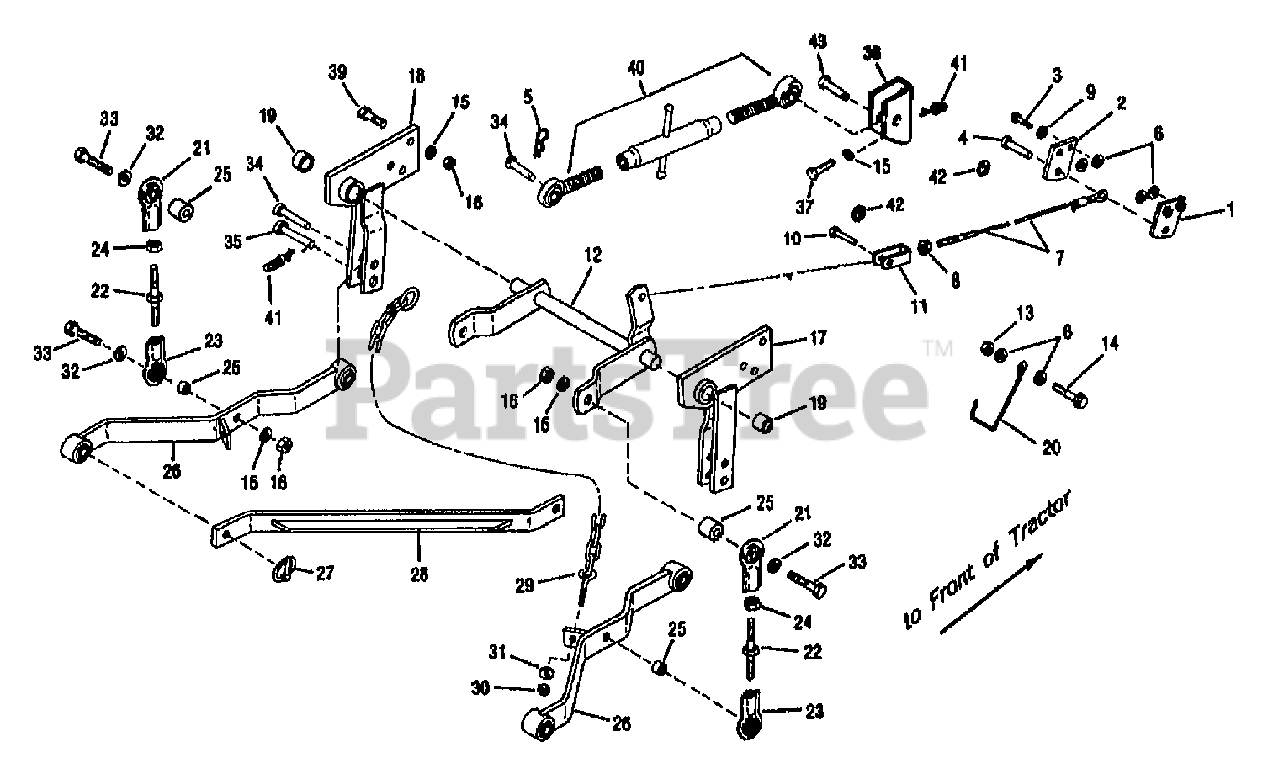

3 PT. HITCH KIT Parts Diagram

  • Title

1

MTD 1751171001

ASSM-LIFT ARM

$

$

Not available

2

MTD 1744937001

ARM-LIFT

$

$

Not available

3

Troy-Bilt 1100047

SCR-HH 3/8-16X1.5 G5 ZP
(Superseded to 710-0520)

$4.49

$

In Stock, Qty 5

0

4

MTD 1724632

PIN-CLEVIS .5X1.437 ZP

$

$

Not available

5

MTD 1723478

PIN-HITCH .125X2.56 ZP

$

$

Not available

6

MTD 1708755

WASHER-.875X.390X.134

$

$

Not available

7

Troy-Bilt 1754316

CABLE-LIFT

$

$

Currently unavailable

8

MTD 1186259

NUT-HEX/JAM 3/8-16

$

$

Not available

9

Troy-Bilt 1100243

WASHER-LK .375 @ DEPL
(Superseded to 936-0169)

$3.99

$

In Stock, Qty 20+

0

10

Troy-Bilt 1730851

PIN-CLEVIS .5X1.25

$

$

Not available

11

MTD 1734192

YOKE-CABLE

$

$

Not available

12

Troy-Bilt 1754315001

ASSM-PIVOT SHAFT

$

$

Currently unavailable

13

Troy-Bilt 1110108

NUT-H/LK 3/8-16
(Superseded to 712-0375)

$4.49

$

In Stock, Qty 6

0

14

MTD 1186348

SCR-HFLK 3/8-16X1.25 ZP

$

$

Not available

15

Troy-Bilt 1100245

WASHER-LK .5
(Superseded to 936-0921)

$4.49

$

In Stock, only 2 left!

0

16

Troy-Bilt 1186233

NUT-HEX JAM 1/2-13
(Superseded to 912-0206)

$4.49

$

In Stock, Qty 20+

0

17

Troy-Bilt 1754312001

ASSM-HITCH RH

$

$

Currently unavailable

18

Troy-Bilt 1754313001

ASSM-HITCH LH

$

$

Currently unavailable

19

Troy-Bilt 1751150

BEARING

$

$

Currently unavailable

20

MTD 1731956

GUIDE-CABLE

$

$

Not available

21

Troy-Bilt 1725754

ROD-END

$

$

Currently unavailable

22

Troy-Bilt 1751167

ASSM-STUD

$

$

Currently unavailable

23

Troy-Bilt 1751168

ROD-END

$

$

Currently unavailable

24

Troy-Bilt 1186247

NUT-JAM
(Superseded to 712-3029)

$6.99

$

In Stock, Qty 6

0

25

MTD 1747523

SPACER-.656X.512X.297

$

$

Not available

26

MTD 1751165001

ASSM-LOWER LINK

$

$

Not available

27

Troy-Bilt 1719349

PIN-RETAIN

$

$

Currently unavailable

28

Troy-Bilt 1751162001

ASSM-SWAG BAR

$

$

Currently unavailable

29

Troy-Bilt 1725434

CHAIN

$

$

Currently unavailable

30

Troy-Bilt 1732499

NUT-TOP/LK 5/16-18 ZP
(Superseded to 712-3004A)

$3.99

$

In Stock, Qty 20+

0

31

MTD 1803327

WASHER-.88X.343X.1345

$

$

Not available

32

MTD 1707397

WASHER-.685X.515X.059

$

$

Not available

33

Troy-Bilt 1100075

SCR-HH 1/2-13X2.25 G5 ZP
(Superseded to 710-3104)

$8.49

$

Usually ships in 3-6 days

0

34

Troy-Bilt 1752308

PIN-CLEVIS .62X2.50 ZP
(Superseded to 711-1626)

$43.99

$

Usually ships in 3-6 days

0

35

Troy-Bilt 1752687

PIN-CLEVIS .75X2.5

$

$

Currently unavailable

37

Troy-Bilt 1100054

SCR-HH 1/2-13X1.0 G5 ZP
(Superseded to 710-3131)

$5.49

$

In Stock, only 1 left!

0

38

Troy-Bilt 1754317001

BRACKET-HITCH

$

$

Currently unavailable

39

Troy-Bilt 1100055

SCR-HH 1/2-13X1.25 G5 ZP
(Superseded to 710-3032)

$6.49

$

Usually ships in 3-6 days

0

40

Troy-Bilt 1751169

ASSM-UPPER LINK

$

$

Currently unavailable

41

Troy-Bilt 1751909

RING-COTTER
(Superseded to 714-3020)

$4.49

$

In Stock, Qty 20+

0

42

Troy-Bilt 1751908

RING-CIRCLE COTTER

$5.99

$

Usually ships in 3-6 days

0

43

Troy-Bilt 1746200

PIN-CLEVIS
(Superseded to 711-0299)

$36.99

$

Usually ships in 3-6 days

0

?101

Troy-Bilt 1735222

PAINT-BLACK SPRAY
(Superseded to 788-0637A)

$30.99

$

In Stock, only 1 left!

0
