14069 - Troy-Bilt 2-Bag Hopper System (SN: 140690100101 - 140690199999) 2-BAG HOPPER SYSTEM Parts Diagram

2-Bag Hopper System

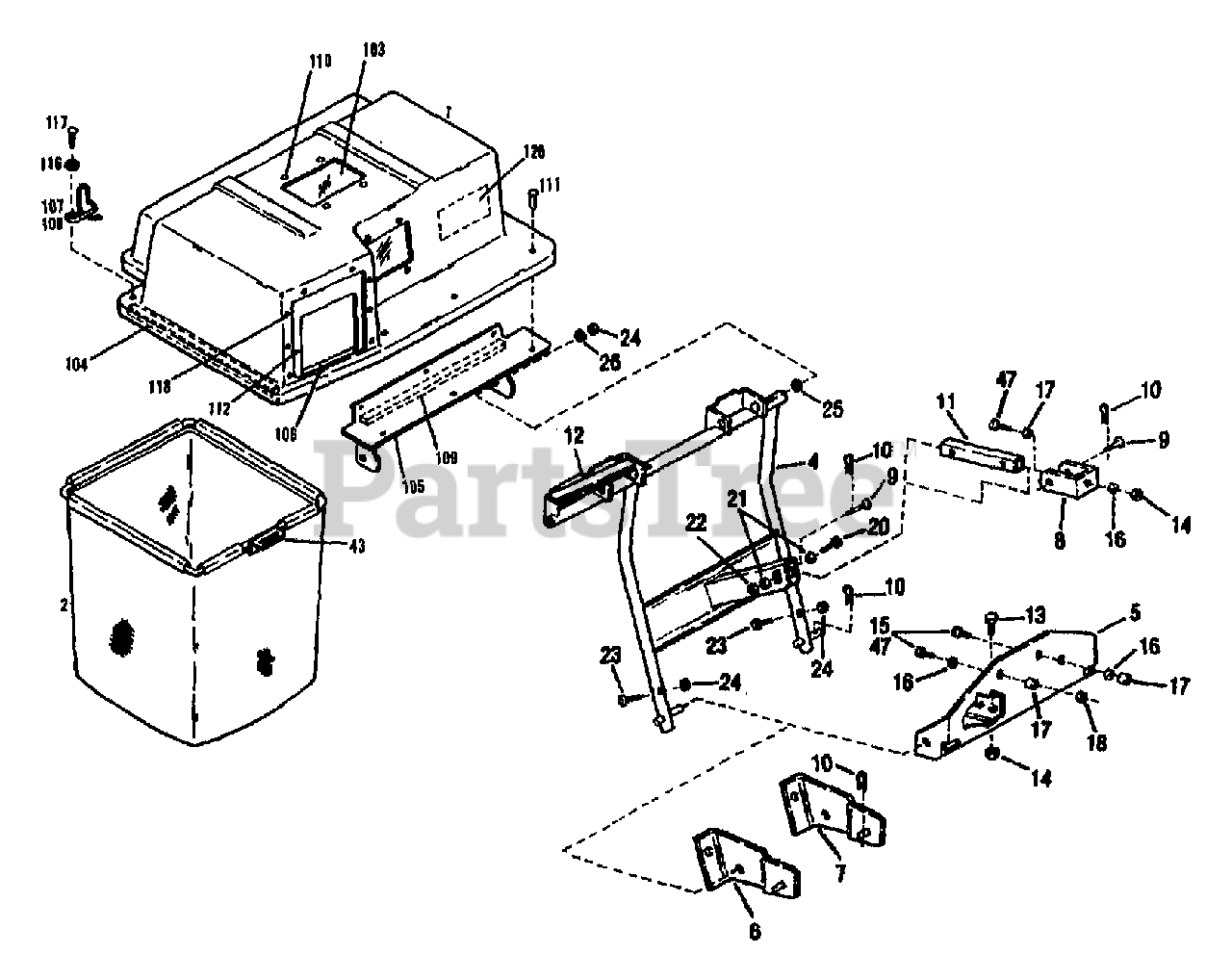

2-BAG HOPPER SYSTEM Parts Diagram

  • Title

1

Troy-Bilt 1755351

ASSM-CVR GRASS BAG

$

$

Currently unavailable

2

MTD 1756717

ASSM-GRASS BAG

$

$

Not available

4

MTD 1755821001

SUPPORT-GRASSBAG

$

$

Not available

5

MTD 1755902001

PLATE-MOUNTING GRASSBAG

$

$

Not available

6

MTD 1755912001

ARM-EXTENSION RH

$

$

Not available

7

MTD 1755913001

ARM-EXTENSION LH

$

$

Not available

8

MTD 1755871001

BRKT-HITCH

$

$

Not available

9

MTD 1706419

PIN-CLEVIS .5X2.0 ZP

$

$

Not available

10

Troy-Bilt 1703011

CLIP-HAIRPIN .07 DIA
(Superseded to 914-0145)

$4.99

$

In Stock, Qty 20+

0

11

MTD 1755914

ADAPTER-ARM

$

$

Not available

12

Troy-Bilt 1755360

SEAL-COVER 9.5"

$

$

Currently unavailable

13

MTD 1757917

SCR-HH 3/4-10 X 2.00

$

$

Not available

14

MTD 1120390

NUT-H/LK 3/4-10

$

$

Not available

15

MTD 1100065

SCR-HH 1/2-13X1.75 G5 ZP

$

$

Not available

16

Troy-Bilt 1100245

WASHER-LK .5
(Superseded to 936-0921)

$4.49

$

In Stock, only 2 left!

0

17

MTD 1730682

SPACER-.75X.531X.89

$

$

Not available

18

Troy-Bilt 1186233

NUT-HEX JAM 1/2-13
(Superseded to 912-0206)

$4.49

$

In Stock, Qty 20+

0

20

Troy-Bilt 1100075

SCR-HH 1/2-13X2.25 G5 ZP
(Superseded to 710-3104)

$8.49

$

Usually ships in 3-6 days

0

21

Troy-Bilt 1107385

WASHER-1.06X.531X.1 ZP
(Superseded to 936-0326)

$4.49

$

In Stock, only 2 left!

0

22

Troy-Bilt 1734514

NUT-TOP LOCK 1/2-13 ZP
(Superseded to 712-3022)

$3.99

$

In Stock, Qty 20+

0

23

Troy-Bilt 1100779

SCR-HH 5/16-18X1.75
(Superseded to 710-3180)

$5.49

$

In Stock, Qty 20+

0

24

Troy-Bilt 1732499

NUT-TOP/LK 5/16-18 ZP
(Superseded to 712-3004A)

$3.99

$

In Stock, Qty 20+

0

25

MTD 1741195

WASHER-.87X.34X.06 NYLON

$

$

Not available

26

Troy-Bilt 1107382

WASHER-FLAT 5/16 SAE
(Superseded to 936-0275)

$

$

Not available

43

MTD 1752529001

ASSM-FRAME GRASSBAG

$

$

Not available

47

Troy-Bilt 1100054

SCR-HH 1/2-13X1.0 G5 ZP
(Superseded to 710-3131)

$5.49

$

In Stock, only 1 left!

0

?101

MTD 1750148001

BRKT-ANGLE

$

$

Not available

?102

MTD 1751983

COVER-SEAL

$

$

Not available

103

MTD 1748349

WINDOW

$

$

Not available

104

MTD 1755359

SEAL-COVER

$

$

Not available

105

MTD 1755317001

ASSM-HINGE SUPPORT

$

$

Not available

?106

MTD 1754982001

CHUTE REINFORCEMENT

$

$

Not available

107

MTD 1755307

COVER-LOCK RH

$

$

Not available

108

MTD 1755308

COVER-LOCK LH

$

$

Not available

109

MTD 1755358

SEAL-COVER

$

$

Not available

110

Troy-Bilt 1748369

RIVET-POP

$

$

Currently unavailable

111

Troy-Bilt 1185878

RIVET-POP 3/16"DIA
(Superseded to 928-0123)

$4.99

$

Usually ships in 3-6 days

0

112

MTD 1755309

GASKET-CHUTE

$

$

Not available

?113

Troy-Bilt 1727379

RIVET-POP 3/16 X 5/8

$3.49

$

Usually ships in 3-6 days

0

?114

Troy-Bilt 1103959

WASHER-.505X.22X.05

$4.99

$

In Stock, Qty 14

0

?115

MTD 1748346

SCREEN

$

$

Not available

116

Troy-Bilt 1736359

WASHER-.88X.2X.059

$

$

Not available

117

MTD 1728772

RIVET-POP 3/16X1/2

$

$

Not available

118

Troy-Bilt 1186059

RIVET-POP .125

$

$

Currently unavailable

?119

Troy-Bilt 1737650

RIVET-POP
(Superseded to 928-04004)

$7.99

$

In Stock, only 1 left!

0

120

MTD 1748245

DECAL-INST

$

$

Not available

Troy-Bilt 1735222

PAINT-BLACK SPRAY
(Superseded to 788-0637A)

$30.99

$

In Stock, only 1 left!

0
