14065 - Troy-Bilt 33" Tiller Attachment (SN: 140650100101 & Above) SUPPORT ASSEMBLY Parts Diagram

33" Tiller Attachment

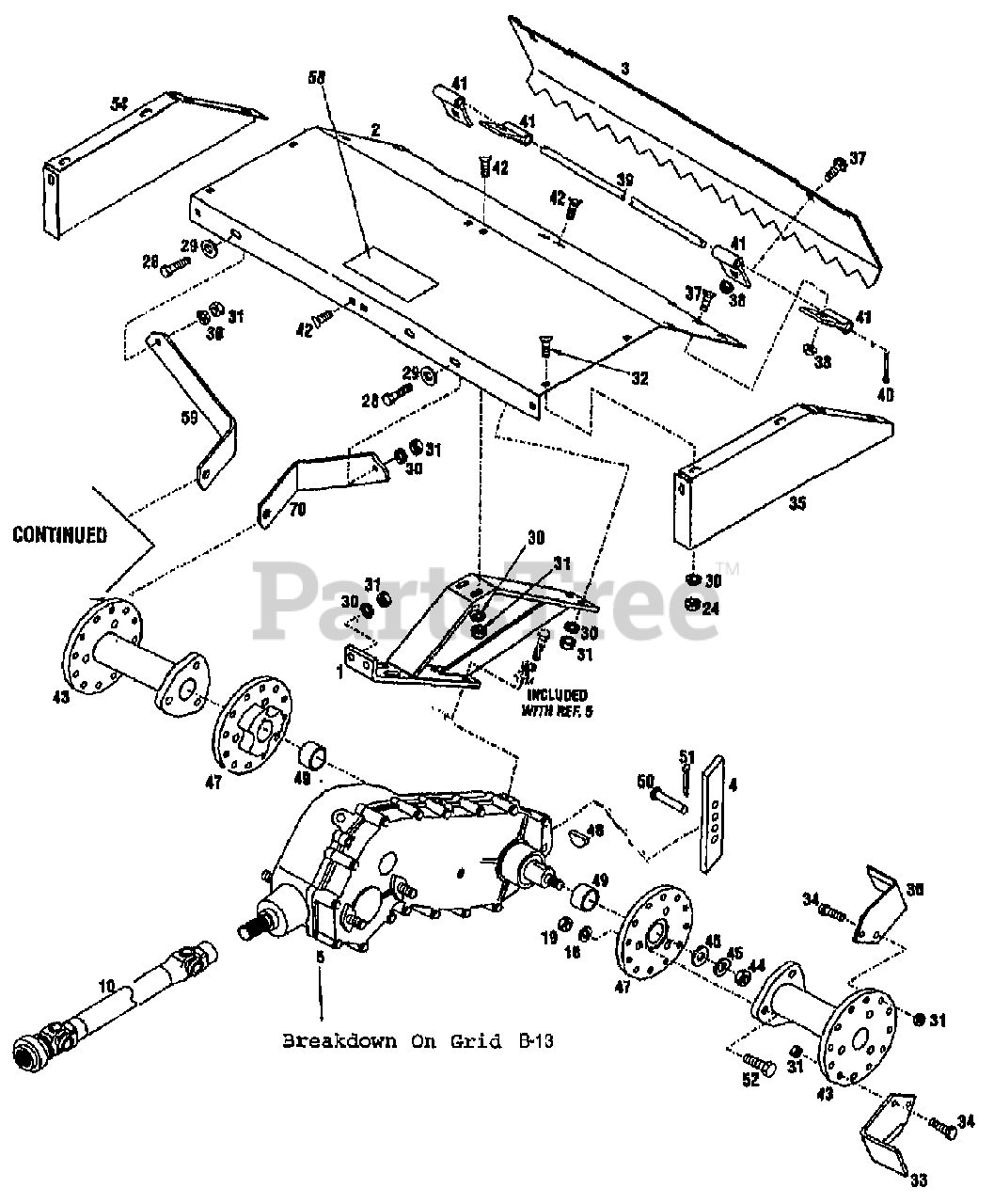

SUPPORT ASSEMBLY Parts Diagram

  • Title

1

MTD 1729222001

SUPPORT

$

$

Not available

2

MTD 1767119

HOOD W/DECALS

$

$

Not available

3

Troy-Bilt 1723504001

BOARD-LEVELING

$

$

Currently unavailable

4

Troy-Bilt 1718189001

SHOE-CENTER

$

$

Currently unavailable

5

Troy-Bilt 1729326001

ASSM-GEAR CASE

$

$

Currently unavailable

10

MTD 1755221001

SHAFT-DRIVE

$

$

Not available

18

Troy-Bilt 1100245

WASHER-LK .5
(Superseded to 936-0921)

$4.49

$

In Stock, Qty 6

0

19

Troy-Bilt 1186233

NUT-HEX JAM 1/2-13
(Superseded to 912-0206)

$4.49

$

In Stock, Qty 20+

0

24

MTD 1186259

NUT-HEX/JAM 3/8-16

$

$

Not available

28

Troy-Bilt 1100046

SCR-HH 3/8-16X1.0 G5 ZP
(Superseded to 710-0514)

$4.49

$

In Stock, Qty 20+

0

29

Troy-Bilt 1107383

WASHER-FLAT 3/8 SAE
(Superseded to 736-3050)

$4.49

$

In Stock, Qty 16

0

30

Troy-Bilt 1100243

WASHER-LK .375 @ DEPL
(Superseded to 936-0169)

$3.99

$

In Stock, Qty 20+

0

31

Troy-Bilt 1733398

NUT-LOCK 3/8-16
(Superseded to 912-3000)

$4.49

$

In Stock, Qty 9

0

32

MTD 1739656

SCR-CARR 3/8-16X.75 G5 ZP

$

$

Not available

33

Troy-Bilt 1709387001

TINE

$

$

Not available

34

Troy-Bilt 1100043

SCR-HH 3/8-16X1.25
(Superseded to 710-3005)

$3.99

$

In Stock, Qty 20+

0

35

Troy-Bilt 1723034001

HOOD-LH SIDE

$

$

Currently unavailable

36

MTD 1709388001

TINE

$

$

Not available

37

Troy-Bilt 1186469

SCR-CARR 5/16-18X.75
(Superseded to 710-0451)

$4.49

$

In Stock, Qty 20+

0

38

Troy-Bilt 1186391

NUT-HFLK 5/16-18 ZP
(Superseded to 712-04054)

$4.99

$

In Stock, Qty 20+

0

39

MTD 1723031

PIN-HINGE

$

$

Not available

40

Troy-Bilt 1100346

PIN-COTTER .09X.75 ZP
(Superseded to 914-0507)

$4.49

$

In Stock, Qty 17

0

41

MTD 1718196

HINGE-HOOD

$

$

Not available

42

Troy-Bilt 1186128

SCR-CARR 3/8-16X1.00
(Superseded to 710-3168)

$3.99

$

In Stock, Qty 20+

0

43

Troy-Bilt 1718138001

SPACER-TINE

$

$

Currently unavailable

44

MTD 1186435

NUT

$

$

Not available

45

MTD 1800041

WASHER-1.41X.656X.18 SPECIAL

$

$

Not available

46

MTD 1718765

WASHER-SPACER

$

$

Not available

47

Troy-Bilt 1727907001

HUB-TINE

$

$

Currently unavailable

48

MTD 1727897

KEY-WDRF

$

$

Not available

49

MTD 1718170

SLEEVE

$

$

Not available

50

MTD 1186431

PIN-CLEVIS .5X2.5 ZP

$

$

Not available

51

Troy-Bilt 1100350

PIN-COTTER .120X1.00 ZP
(Superseded to 914-0115)

$3.99

$

In Stock, Qty 20+

0

52

MTD 1100065

SCR-HH 1/2-13X1.75 G5 ZP

$

$

Not available

54

Troy-Bilt 1723035001

HOOD-RH SIDE

$

$

Currently unavailable

58

Troy-Bilt 1742798

DECAL-OPEI CAUTION
(Superseded to 1739687)

$7.49

$

Usually ships in 3-6 days

0

59

MTD 1729239001

BRKT-SUPPORT

$

$

Not available

70

Troy-Bilt 1723029001

BRKT-SUPPORT

$

$

Currently unavailable

?101

Troy-Bilt 1735222

PAINT-BLACK SPRAY
(Superseded to 788-0637A)

$30.99

$

In Stock, only 1 left!

0
