14065 - Troy-Bilt 33" Tiller Attachment (SN: 140650100101 & Above) GEAR CASE ASSEMBLY Parts Diagram

33" Tiller Attachment

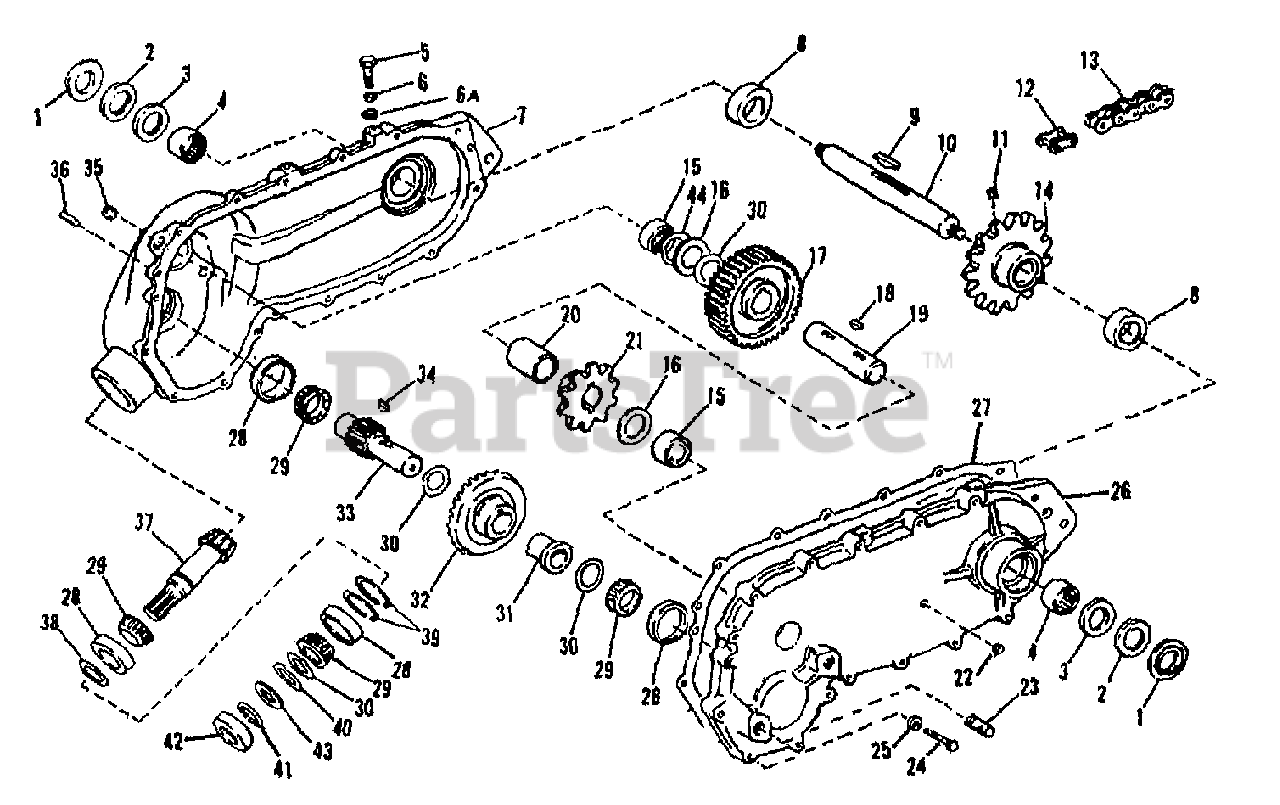

GEAR CASE ASSEMBLY Parts Diagram

  • Title

1

Troy-Bilt 1718153

WASHER-SEAL

$

$

Currently unavailable

2

Troy-Bilt 1185630

SEAL-OIL
(Superseded to GW-9618099)

$20.99

$

In Stock, Qty 20+

0

3

Troy-Bilt 1185629

SEAL-OIL 1.25
(Superseded to 721-0110)

$

$

Not available

4

Troy-Bilt 1185721

BEARING-NEEDLE

$

$

Currently unavailable

5

Troy-Bilt 1100055

SCR-HH 1/2-13X1.25 G5 ZP
(Superseded to 710-3032)

$6.49

$

Usually ships in 3-6 days

0

6

Troy-Bilt 1100245

WASHER-LK .5
(Superseded to 936-0921)

$4.49

$

In Stock, Qty 6

0

6A

Troy-Bilt 1107385

WASHER-1.06X.531X.1 ZP
(Superseded to 936-0326)

$4.49

$

In Stock, only 2 left!

0

7

Troy-Bilt 1729249

HOUSING

$

$

Currently unavailable

8

MTD 1723961

WASHER-THRUST 2X1.27X.433

$

$

Not available

9

MTD 1723622

KEY-HI PRO .31X2.0

$

$

Not available

10

Troy-Bilt 1727908

SHAFT-TINE

$

$

Currently unavailable

11

MTD 1103494

SCR-SET 3/8-16X1/2

$

$

Not available

12

MTD 1718152

CHAIN-ROLLER CONNECTOR

$

$

Not available

13

MTD 1718151

CHAIN-ROLLER 1 PITCH

$

$

Not available

14

MTD 1721591

SPROCKET-15 TOOTH 1"PITCH

$

$

Not available

15

Troy-Bilt 1185720

BEARING-NEEDLE

$

$

Currently unavailable

16

MTD 1723960

WASHER-THRUST 2X1.27X.063

$

$

Not available

17

MTD 1718393

GEAR-39 TOOTH

$

$

Not available

18

MTD 1723959

KEY-.312 SQ X 1.063

$

$

Not available

19

MTD 1723955

SHAFT

$

$

Not available

20

MTD 1723956

SPACER-1.375X1.25X1.41

$

$

Not available

21

MTD 1718147

SPROCKET-10TOOTH 1"PITCH

$

$

Not available

22

Troy-Bilt 1185741

PLUG-PIPE 1/8 NPT
(Superseded to 737-04178)

$4.49

$

Usually ships in 3-6 days

0

23

MTD 1113755

STUD

$

$

Not available

24

Troy-Bilt 1111607

SCR-HH 5/16-18X2.25 G5ZP
(Superseded to 710-0395)

$4.99

$

In Stock, only 1 left!

0

25

Troy-Bilt 1100242

WASHER-LK .312 ZP
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

26

MTD 1729283

COVER-GEAR CASE

$

$

Not available

27

MTD 1718389

GASKET

$

$

Not available

28

MTD 1177343

BEARING-CUP

$

$

Not available

29

Troy-Bilt 1177262

BRG-TAPERED ROLLER CONE

$

$

Currently unavailable

30

MTD 1718781

SHIM-.005

$

$

Not available

31

MTD 1723954

SPACER-1.625X1.25X1.225

$

$

Not available

32

MTD 1718391

GEAR-BEVEL 40 TOOTH

$

$

Not available

33

Troy-Bilt 1723953

SHAFT AND PINION

$

$

Currently unavailable

34

MTD 1708382

KEY-WOODRUFF .25X1

$

$

Not available

35

MTD 1105678

PLUG-PIPE

$

$

Not available

36

MTD 1185206

PIN-DRIVE .375X1.00 ZP

$

$

Not available

37

MTD 1718390

PINION-13 TOOTH

$

$

Not available

38

MTD 1719443

SHIM-2.313X1.87X.005

$

$

Not available

39

MTD 1185733

RING-RETAINING

$

$

Not available

40

Troy-Bilt 1720529

WASHER
(Superseded to 736-0246)

$

$

Not available

41

MTD 1185732

RING-RET

$

$

Not available

42

MTD 1185734

SEAL-OIL

$

$

Not available

43

MTD 1732288

THRUST-RACE

$

$

Not available

44

MTD 1719271

SHIM-1.75X1.26X.02

$

$

Not available

?101

Troy-Bilt 1735222

PAINT-BLACK SPRAY
(Superseded to 788-0637A)

$30.99

$

In Stock, only 1 left!

0

?102

Troy-Bilt 1700182

GREASE-LUBRICANT 55GAL

$

$

Currently unavailable
