14063 - Troy-Bilt 46" Two Stage Snow Thrower Attachment (SN: 140630100101 & Above) WORM GEAR ASSEMBLY Parts Diagram

46" Two Stage Snow Thrower Attachment

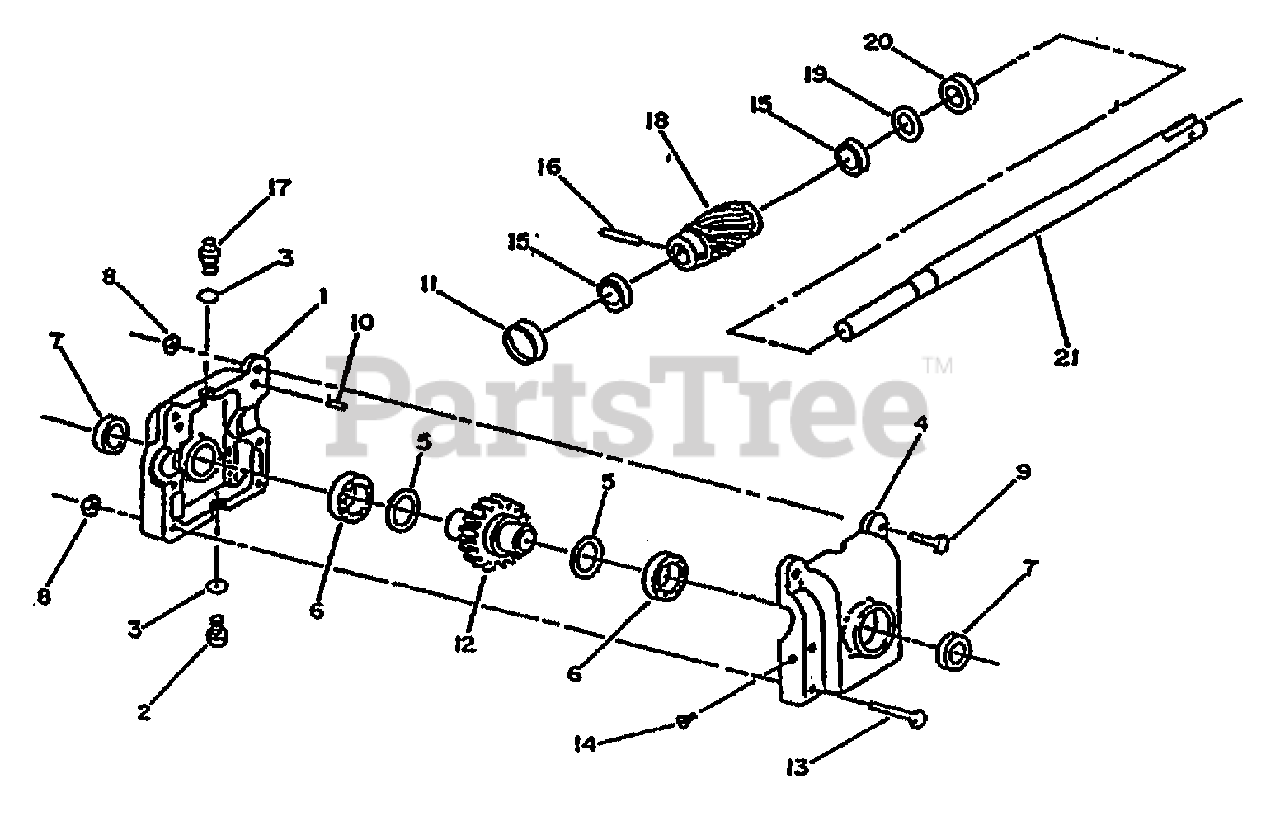

WORM GEAR ASSEMBLY Parts Diagram

  • Title
1

MTD 1824137

HSG-GEARCASE

$

$

Not available

2

$

$

Currently unavailable

3

Troy-Bilt 1824140

UD RING-O

$

$

Currently unavailable

4

MTD 1824138

HSG-GEARCASE

$

$

Not available

5

$

$

Not available

6

Troy-Bilt 1824142

BRG
(Superseded to 741-1104)

$51.99

$

Usually ships in 3-6 days

0

7

$

$

Not available

8

MTD 1860255

NUT-M8 P1.25

$

$

Not available

9

MTD 1860220

BOLT M8X40

$

$

Not available

10

$

$

Currently unavailable

11

$

$

Not available

$

$

Currently unavailable

13

MTD 1860222

BOLT M8X60

$

$

Not available

14

Troy-Bilt 1105620

PLUG-SQ HEAD 1/4-18 NPT

$4.49

$

In Stock, only 3 left!

0

$

$

Currently unavailable

16

Troy-Bilt 1824148

PIN-SPRING

$

$

Currently unavailable

17

MTD 1105678

PLUG-PIPE

$

$

Not available

18

MTD 1824149

PINION

$

$

Not available

19

Troy-Bilt 1825493

SHIM-WASHER

$

$

Currently unavailable

20

$

$

Not available

$

$

Currently unavailable
