14062 - Troy-Bilt 42" Single-Stage Snow Thrower Attachment (SN: 140620100101 & Above) AUGER ASSEMBLY Parts Diagram

42" Single-Stage Snow Thrower Attachment

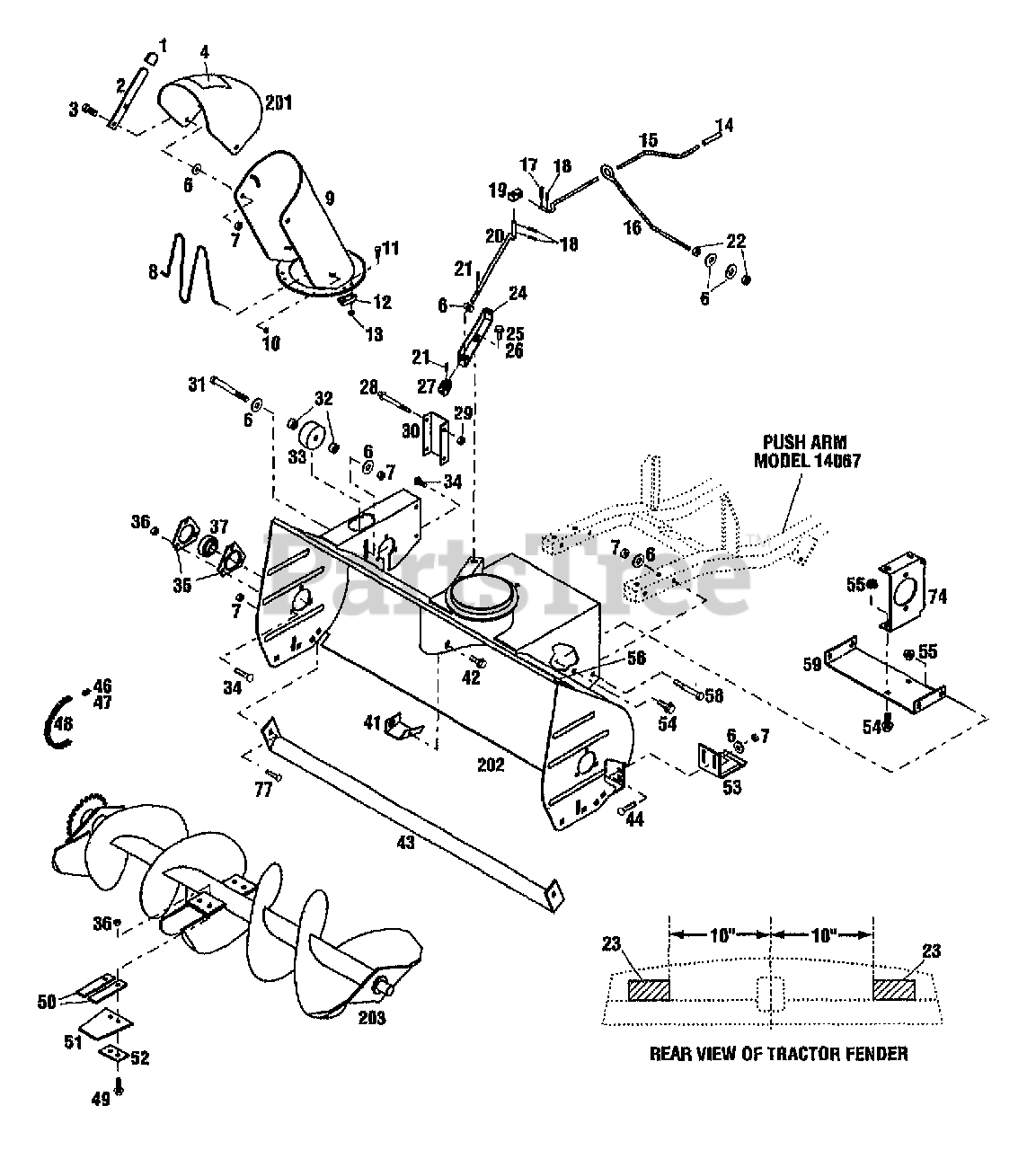

AUGER ASSEMBLY Parts Diagram

  • Title

1

Troy-Bilt 1737499

GRIP-VACUCUT

$

$

Not available

2

MTD 1723643

LEVER-ADJUSTING

$

$

Not available

3

Troy-Bilt 1100068

SCR-HH 3/8-16X.75 G5 ZP
(Superseded to 710-0216)

$4.49

$

In Stock, Qty 14

0

4

MTD 1750692

DECAL-WARNING

$

$

Not available

6

Troy-Bilt 1107383

WASHER-FLAT 3/8 SAE
(Superseded to 736-3050)

$4.49

$

In Stock, Qty 16

0

7

Troy-Bilt 1733398

NUT-LOCK 3/8-16
(Superseded to 912-3000)

$4.49

$

In Stock, Qty 9

0

8

MTD 1722501

GUARD-CHUTE

$

$

Not available

9

Troy-Bilt 1754465001

ASSM-DISCHARGE CHUTE

$

$

Currently unavailable

10

MTD 1186048

NUT-PUSH 3/16

$

$

Not available

11

MTD 1185130

SCR-SEMS MACH

$

$

Not available

12

Troy-Bilt 1724869

CLIP-HOLD DOWN
(Superseded to 1724869099)

$11.99

$

In Stock, Qty 20+

0

13

Troy-Bilt 1737938

NUT-H/LK M10-24 NYLOCK
(Superseded to 1983039)

$

$

Not available

14

Troy-Bilt 1715685

GRIP-PLASTIC
(Superseded to 720-0269)

$4.99

$

In Stock, only 1 left!

0

15

Troy-Bilt 1726091

ROD

$

$

Currently unavailable

16

MTD 1750953

SCR-EYE

$

$

Not available

17

Troy-Bilt 1100349

PIN-COTTER .125 X .75 ZP
(Superseded to 914-0474)

$

$

Not available

18

MTD 1177625

PIN-ROLL 1/8 X 3/4

$

$

Not available

19

Troy-Bilt 1714782

BLOCK-SWIVEL NYLON

$25.99

$

In Stock, Qty 6

0

20

MTD 1724806

SHAFT-PINION

$

$

Not available

21

Troy-Bilt 1724885

PIN-DRIVE .09X.75

$

$

Not available

22

Troy-Bilt 1186231

NUT-HEX 3/8-16 ZP
(Superseded to 912-3017)

$4.49

$

In Stock, Qty 20+

0

23

Troy-Bilt 1725615

REFLECTOR

$

$

Not available

24

MTD 1750573

SUPPORT-SHAFT

$

$

Not available

25

Troy-Bilt 1186329

SCR-HFLK 5/16-18X.75 ZP
(Superseded to 710-04043)

$4.49

$

Usually ships in 3-6 days

0

26

Troy-Bilt 1186391

NUT-HFLK 5/16-18 ZP
(Superseded to 712-04054)

$4.99

$

In Stock, Qty 20+

0

27

MTD 1724870

GEAR-WORM LH

$

$

Not available

28

MTD 1111602

SCR-HH 1/4-20X3.0 G5 ZP

$

$

Not available

29

Troy-Bilt 1734398

NUT-HT LK 1/4-20
(Superseded to 912-0291)

$

$

Not available

30

MTD 1718771001

COVER-END

$

$

Not available

31

Troy-Bilt 1111614

SCR-HH 3/8-16X3.0 G5 ZP
(Superseded to 710-0521)

$5.49

$

In Stock, Qty 11

0

32

Troy-Bilt 1723776

SPACER-.68X.39X.46

$

$

Currently unavailable

33

MTD 1735725

BLOCK-TENSION

$

$

Not available

34

Troy-Bilt 1186098

SCR-CARR 5/16-18X.75 G2 ZP

$

$

Not available

35

MTD 1185787

BEARING-FLANGE

$

$

Not available

36

Troy-Bilt 1732499

NUT-TOP/LK 5/16-18 ZP
(Superseded to 712-3004A)

$3.99

$

In Stock, Qty 20+

0

37

Troy-Bilt 1742623

BEARING & COLLAR
(Superseded to 1742623099)

$

$

Not available

41

MTD 1750858001

ASSM-DEFLECTOR

$

$

Not available

42

MTD 1185798

SCR-HH 3/8-16X.50

$

$

Not available

43

Troy-Bilt 1756705001

BLADE-SCRAPER

$

$

Currently unavailable

44

Troy-Bilt 1186128

SCR-CARR 3/8-16X1.00
(Superseded to 710-3168)

$3.99

$

In Stock, Qty 20+

0

46

MTD 1185026

LINK-CONNECTOR

$

$

Not available

47

Troy-Bilt 1120213

LINK-OFFSET

$

$

Currently unavailable

48

Troy-Bilt 1714363

CHAIN-DRIVE

$

$

Not available

49

MTD 1186332

SCR-HFLK 5/16-18X1.25 ZP

$

$

Not available

50

MTD 1750859001

SLINGER EXTENSION

$

$

Not available

51

Troy-Bilt 1756579

SEAL

$

$

Not available

52

MTD 1756723001

PLATE

$

$

Not available

53

MTD 1768881001

SHOE-SKID

$

$

Not available

54

MTD 1186345

SCR

$

$

Not available

55

Troy-Bilt 1186393

NUT-HFLK 3/8-16 ZP

$3.49

$

In Stock, only 2 left!

0

56

MTD 1750691

DECAL-WARNING

$

$

Not available

58

Troy-Bilt 1100049

SCR-HH 3/8-16X2.25 G5 ZP
(Superseded to 710-3011)

$6.99

$

In Stock, Qty 19

0

59

Troy-Bilt 1745445001

SUPT-HOUSING

$

$

Currently unavailable

74

Troy-Bilt 1745446001

SUPPORT-GEAR BOX

$

$

Currently unavailable

77

Troy-Bilt 1186126

BOLT-3/8-16 X 3/4
(Superseded to 710-0389)

$4.49

$

Usually ships in 3-6 days

0

?200

Troy-Bilt 1735222

PAINT-BLACK SPRAY
(Superseded to 788-0637A)

$30.99

$

In Stock, only 1 left!

0

201

MTD 1765817

ASSM-DISCHARGE CAP

$

$

Not available

202

MTD 1767125

HSG W/DECALS

$

$

Not available

203

Troy-Bilt 1750860001

ASSY-ROTOR 42"

$

$

Currently unavailable
