14061 - Troy-Bilt 60" Side-Discharge Mower Deck (SN: 140610200101 & Above) GAGE WHEEL ASSEMBLY 1 Parts Diagram

60" Side-Discharge Mower Deck

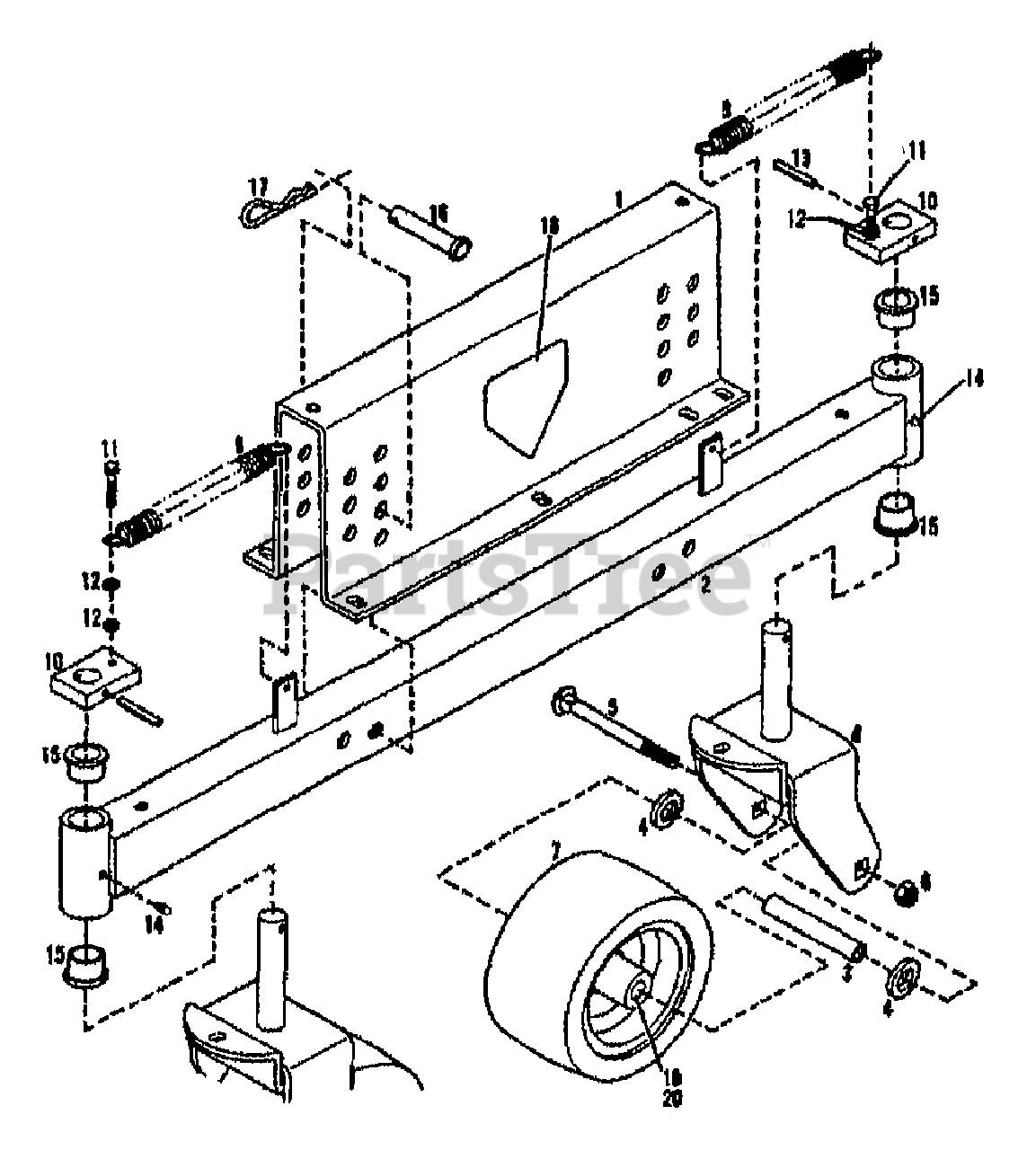

GAGE WHEEL ASSEMBLY 1 Parts Diagram

  • Title
1

Troy-Bilt 1767759

MOUNT-GAGE WHEEL W/DECALS

$

$

Currently unavailable

5

Troy-Bilt 1770949001

ASSM-WHEEL SUPPORT

$

$

Currently unavailable

3

MTD 1756614

SLEEVE-WHEEL

$

$

Not available

4

MTD 1107387

WASHER-1.5X.812X.134 ZP

$

$

Not available

5

MTD 1186196

SCR-CARR 1/2-13X4.75

$

$

Not available

6

Troy-Bilt 1734514

NUT-TOP LOCK 1/2-13 ZP
(Superseded to 712-3022)

$3.99

$

In Stock, Qty 20+

0

7

Troy-Bilt 1756619

ASSM-TIRE&WHEEL 6.25X3.

$

$

Not available

8

Troy-Bilt 1770939

ASSM-WHEEL YOKE

$

$

Currently unavailable

14

Troy-Bilt 1185976

FITTING-GREASE 1/4-28X2.00
(Superseded to 937-0146)

$5.49

$

In Stock, only 2 left!

0

15

MTD 1752556

BEARING-FLANGE

$

$

Not available

16

Troy-Bilt 1752308

PIN-CLEVIS .62X2.50 ZP
(Superseded to 711-1626)

$43.99

$

Usually ships in 3-6 days

0

17

Troy-Bilt 1185590

PIN-HITCH .149DIA

$4.99

$

Usually ships in 3-6 days

0

18

Troy-Bilt 1739687

DECAL-OPEI CAUTION

$7.49

$

Usually ships in 3-6 days

0

19

MTD 1761157

BEARING-ROLLER

$

$

Not available

20

Troy-Bilt 1761158

CAP-BEARING

$

$

Currently unavailable

129

Troy-Bilt 1703073

WASHER-THRUST
(Superseded to 1915058)

$

$

Not available

128

MTD 1185689

RING-HEAVY EXT HD 1.0 ID

$

$

Not available
