14061 - Troy-Bilt 60" Side-Discharge Mower Deck (SN: 120900100101 - 140610200100) GAGE WHEEL ASSEMBLY (S/N 0200101 - 0299999) Parts Diagram

60" Side-Discharge Mower Deck

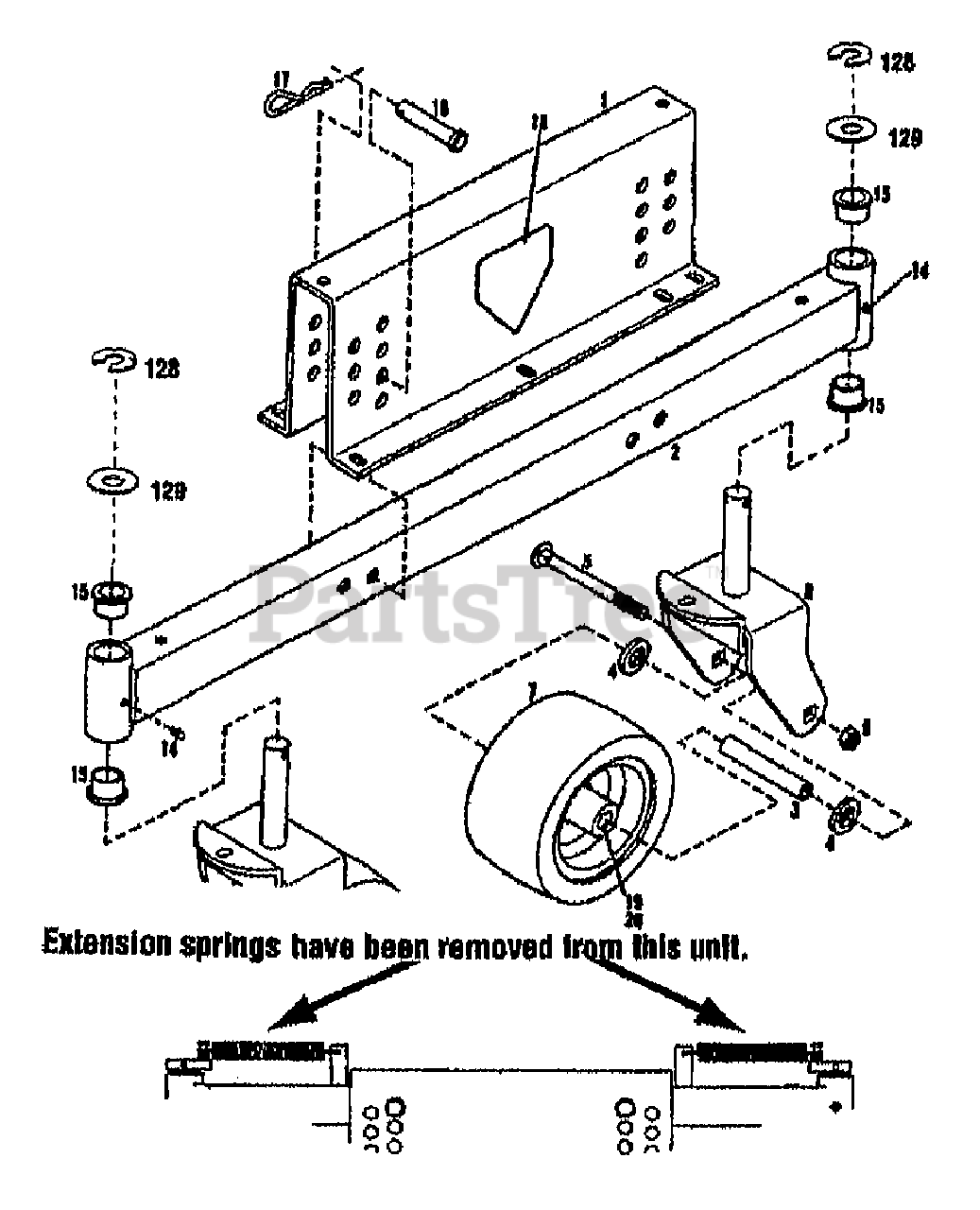

GAGE WHEEL ASSEMBLY (S/N 0200101 - 0299999) Parts Diagram

  • Title

1

Troy-Bilt 1767759

Gage Wheel Mount w/Decals

Note: (Incl. Rol. 18)

$

$

Currently unavailable

2

Troy-Bilt 1770949001

Wheel Support Assembly

$

$

Currently unavailable

3

MTD 1756614

Wheel Sleeve

$

$

Not available

4

MTD 1107387

Flat Washer, 3/4

$

$

Not available

5

MTD 1186196

Carriage Bolt, 1/2-13 x 4-3/4

$

$

Not available

6

Troy-Bilt 1734514

Top Lock Nut, 1/2-13
(Superseded to 712-3022)

$3.99

$

In Stock, Qty 20+

0

7

Troy-Bilt 1766619

Wheel & Tire Assembly, 6.25 x 8.25

Note: (Incl. Refs., 19 & 20)

$

$

Currently unavailable

8

Troy-Bilt 1770939

Wheel Yoke Assembly

$

$

Currently unavailable

14

Troy-Bilt 1185976

Grease Fitting
(Superseded to 937-0146)

$5.49

$

In Stock, only 2 left!

0

15

MTD 1752556

Flange Bearing

$

$

Not available

16

Troy-Bilt 1752308

Clovis Pin, 5/8 x 2-1/4
(Superseded to 711-1626)

$43.99

$

Usually ships in 3-6 days

0

17

Troy-Bilt 1185590

Hitch Pin

$4.99

$

Usually ships in 3-6 days

0

18

Troy-Bilt 1739687

Decal, Danger

$7.49

$

Usually ships in 3-6 days

0

19

MTD 1761157

Roller Bearing

Note: (Ind. w/ Ref. 7)

$

$

Not available

20

Troy-Bilt 1761158

Bearing Cap

Note: (Incl. Ref. 7)

$

$

Currently unavailable

129

Troy-Bilt 1703073

Washer
(Superseded to 1915058)

$

$

Not available

128

MTD 1185689

Retaining Ring

$

$

Not available

$

$

Not available
