14061 - Troy-Bilt 60" Side-Discharge Mower Deck (SN: 120900100101 - 140610200100) 60" S.D. CENTER MOUNT MOWER Parts Diagram

60" Side-Discharge Mower Deck

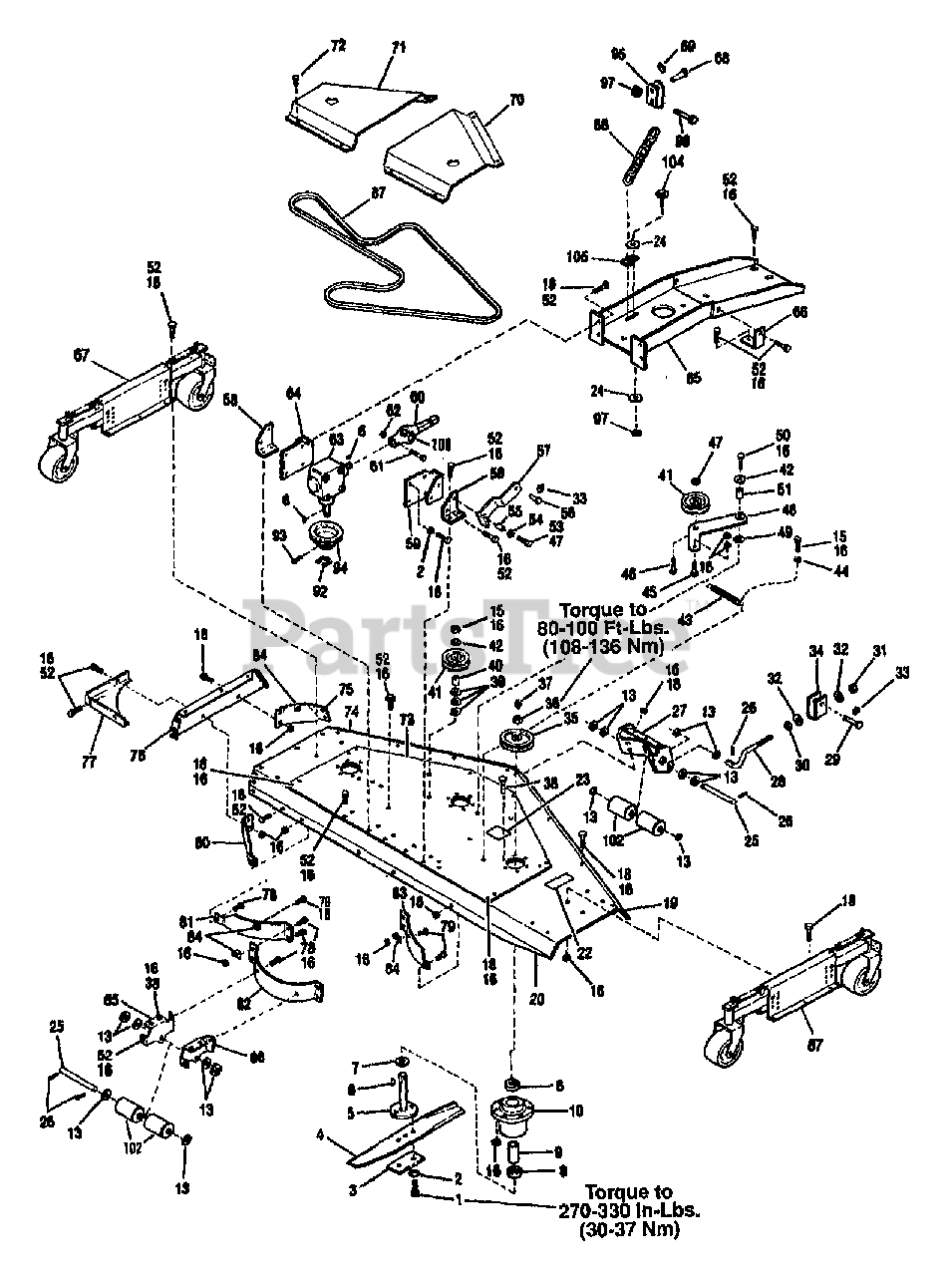

60" S.D. CENTER MOUNT MOWER Parts Diagram

  • Title

1

Troy-Bilt 1100009

SCR-HH 3/8-24X1.0 G5 ZP
(Superseded to 710-1039)

$4.49

$

In Stock, Qty 20+

0

2

Troy-Bilt 1100243

WASHER-LK .375 @ DEPL
(Superseded to 936-0169)

$3.99

$

In Stock, Qty 20+

0

3

MTD 1738847001

PLATE-BLADE

$

$

Not available

4

Troy-Bilt 1738742

BLADE

$

$

Not available

5

Troy-Bilt 1738806

ASSM-BLADE SHAFT

$

$

Currently unavailable

6

MTD 1186034

KEY-WOODRUFF .25X.875

$

$

Not available

7

Troy-Bilt 1701449

SHIM-1.25X1.01X.06

$

$

Currently unavailable

8

Troy-Bilt 1725087

BEARING-BALL

$40.99

$

Usually ships in 3-6 days

0

9

MTD 1739484

SLEEVE

$

$

Not available

10

Troy-Bilt 1733686001

HOUSING-SPINDLE

$

$

Currently unavailable

13

MTD 1107387

WASHER-1.5X.812X.134 ZP

$

$

Not available

15

Troy-Bilt 1100048

SCR-HH 3/8-16X2.0 G5 ZP
(Superseded to 710-3144)

$4.49

$

In Stock, Qty 20+

0

16

Troy-Bilt 1733398

NUT-LOCK 3/8-16
(Superseded to 912-3000)

$4.49

$

In Stock, Qty 9

0

18

Troy-Bilt 1100068

SCR-HH 3/8-16X.75 G5 ZP
(Superseded to 710-0216)

$4.49

$

In Stock, Qty 14

0

19

Troy-Bilt 1747762001

BASE-FRONT RH

$

$

Currently unavailable

20

Troy-Bilt 1748279001

BASE-MOWER

$

$

Currently unavailable

22

MTD 1744491

DECAL-CUTTING LINE

$

$

Not available

23

MTD 1757419

DECAL-BELT DRIVE

$

$

Not available

24

Troy-Bilt 1100255

WASHER-FLAT 5/16 SAE
(Superseded to 736-0262)

$3.99

$

In Stock, Qty 20+

0

25

MTD 1747787

SHAFT-ROLLER

$

$

Not available

26

MTD 1100351

PIN-COTTER .120X1.25 ZP

$

$

Not available

27

MTD 1748277001

BRKT-DRAG FRONT

$

$

Not available

28

Troy-Bilt 1746170

LINK-HITCH

$

$

Currently unavailable

29

Troy-Bilt 1752308

PIN-CLEVIS .62X2.50 ZP
(Superseded to 711-1626)

$43.99

$

Usually ships in 3-6 days

0

30

Troy-Bilt 1186236

NUT
(Superseded to 712-0301)

$7.99

$

In Stock, only 1 left!

0

31

MTD 1120390

NUT-H/LK 3/4-10

$

$

Not available

32

Troy-Bilt 1103977

WASHER-LK 1.264X.76X.188

$

$

Currently unavailable

33

Troy-Bilt 1751909

RING-COTTER
(Superseded to 714-3020)

$4.49

$

In Stock, Qty 20+

0

34

Troy-Bilt 1749640001

BRKT-HITCH

$

$

Currently unavailable

35

MTD 1748284

SHEAVE-BLADE

$

$

Not available

36

MTD 1767367

NUT-H/LK

$

$

Not available

37

Troy-Bilt 1185976

FITTING-GREASE 1/4-28X2.00
(Superseded to 937-0146)

$5.49

$

In Stock, only 2 left!

0

38

Troy-Bilt 1100043

SCR-HH 3/8-16X1.25
(Superseded to 710-3005)

$3.99

$

In Stock, Qty 20+

0

39

Troy-Bilt 1891733

WASHER-1.12X.378X.125
(Superseded to 936-0206)

$4.49

$

In Stock, only 4 left!

0

40

Troy-Bilt 1740203

SPACER-.5X.385X.437

$

$

Currently unavailable

41

Troy-Bilt 1752354

PULLEY-IDLER

$84.99

$

In Stock, only 1 left!

0

42

Troy-Bilt 1100256

WASHER-.986X.437X.083 ZP
(Superseded to 736-3052)

$4.49

$

In Stock, Qty 20+

0

43

MTD 1725367

SPRING-EXTENSION

$

$

Not available

44

MTD 1186259

NUT-HEX/JAM 3/8-16

$

$

Not available

45

MTD 1748374

SCR

$

$

Not available

46

Troy-Bilt 1748373

SCR

$

$

Currently unavailable

47

Troy-Bilt 1734514

NUT-TOP LOCK 1/2-13 ZP
(Superseded to 712-3022)

$3.99

$

In Stock, Qty 20+

0

48

MTD 1749769001

ARM-IDLER

$

$

Not available

49

MTD 1724929

WASHER

$

$

Not available

50

Troy-Bilt 1100047

SCR-HH 3/8-16X1.5 G5 ZP
(Superseded to 710-0520)

$4.49

$

In Stock, Qty 5

0

51

MTD 1185395

BRG

$

$

Not available

52

Troy-Bilt 1100046

SCR-HH 3/8-16X1.0 G5 ZP
(Superseded to 710-0514)

$4.49

$

In Stock, Qty 20+

0

53

MTD 1100065

SCR-HH 1/2-13X1.75 G5 ZP

$

$

Not available

54

Troy-Bilt 1100257

WASHER-1/2 FLAT

$

$

Not available

55

MTD 1715387

SPACER-TUBULAR

$

$

Not available

56

Troy-Bilt 1752309

PIN-CLEVIS .625X1.44
(Superseded to 711-0654)

$16.99

$

Usually ships in 3-6 days

0

57

MTD 1755730001

LINK-DRAG

$

$

Not available

58

MTD 1748273001

BRKT-MOUNTING

$

$

Not available

59

Troy-Bilt 1748271001

BRKT-GEAR BOX RH

$

$

Currently unavailable

60

MTD 1756089001

ASSM-DRIVE

$

$

Not available

61

MTD 1100807

SCR-HH 1/4-20X2.0 G5 ZP

$

$

Not available

62

Troy-Bilt 1734398

NUT-HT LK 1/4-20
(Superseded to 912-0291)

$

$

Not available

63

0

RT. ANGLE GEAR BOX

$

$

Not available

64

Troy-Bilt 1748272001

BRKT-GEAR BOX LH

$

$

Currently unavailable

65

Troy-Bilt 1753015001

BASE BRIDGE

$

$

Currently unavailable

66

Troy-Bilt 1749044001

BRKT-SUPPORT

$

$

Currently unavailable

67

0

GAGE WHEEL ASSY

$

$

Not available

68

Troy-Bilt 1112587

PIN-CLEVIS .375 X .937 ZP

$4.99

$

Usually ships in 3-6 days

0

?69

Troy-Bilt 1751908

RING-CIRCLE COTTER

$5.99

$

Usually ships in 3-6 days

0

70

Troy-Bilt 1748282001

COVER-BELT RH

$

$

Currently unavailable

71

MTD 1747797001

COVER-BELT LH

$

$

Not available

72

Troy-Bilt 1723037

SCR
(Superseded to 710-0623)

$4.49

$

In Stock, Qty 20+

0

73

MTD 1748280001

DOUBLER-BASE

$

$

Not available

74

Troy-Bilt 1747763001

BASE-FRONT LH

$

$

Currently unavailable

75

MTD 1747775001

BAFFLE-FRONT CORNER

$

$

Not available

76

MTD 1747764001

BASE-END

$

$

Not available

77

MTD 1758934001

PLATE-BAFFLE

$

$

Not available

78

Troy-Bilt 1186128

SCR-CARR 3/8-16X1.00
(Superseded to 710-3168)

$3.99

$

In Stock, Qty 20+

0

79

Troy-Bilt 1186126

BOLT-3/8-16 X 3/4
(Superseded to 710-0389)

$4.49

$

Usually ships in 3-6 days

0

80

MTD 1747774001

BAFFLE-REAR CORNER

$

$

Not available

?81

MTD 1747773001

BAFFLE-LH

$

$

Not available

?82

MTD 1747771001

BAFFLE-CENTER

$

$

Not available

83

Troy-Bilt 1747772001

BAFFLE-RH

$

$

Currently unavailable

84

MTD 1747770001

BRKT-BAFFLE

$

$

Not available

85

MTD 1747768001

BRKT-ROLLER LH

$

$

Not available

?86

MTD 1747767001

BRKT-ROLLER RH

$

$

Not available

87

MTD 1748274

BELT-V

$

$

Not available

88

MTD 1756697

CHAIN

$

$

Not available

92

Troy-Bilt 1118554

RING-RETAINING
(Superseded to 916-0102)

$5.49

$

In Stock, Qty 20+

0

93

MTD 1737419

SCR-SQ HD SET 5/16X3/4

$

$

Not available

94

Troy-Bilt 1748276001

SHEAVE-DRIVE

$

$

Currently unavailable

95

Troy-Bilt 1760356

CLEVIS

$

$

Not available

97

Troy-Bilt 1110107

NUT-H/LK 5/16-18
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 18

0

98

MTD 1100808

SCR-HH 5/16-18X1.25 G5ZP

$

$

Not available

102

Troy-Bilt 1765851

ROLLER

$22.99

$

Usually ships in 3-6 days

0

104

Troy-Bilt 1186331

SCR-HFLK 5/16-18X1.00 ZP
(Superseded to 710-04048)

$4.99

$

In Stock, Qty 7

0

105

Troy-Bilt 1760442

HOOK-S

$

$

Not available

?107

Troy-Bilt 1735222

PAINT-BLACK SPRAY
(Superseded to 788-0637A)

$30.99

$

In Stock, only 1 left!

0

108

MTD 1714208

KIT-CROSS REPAIR

$

$

Not available
